REACTOR HEATED HOSE, 50', 3/8, 3500PSI W/O S

GG 246053

REACTOR HEATED HOSE, 50', 3/8, 3500PSI W/O S

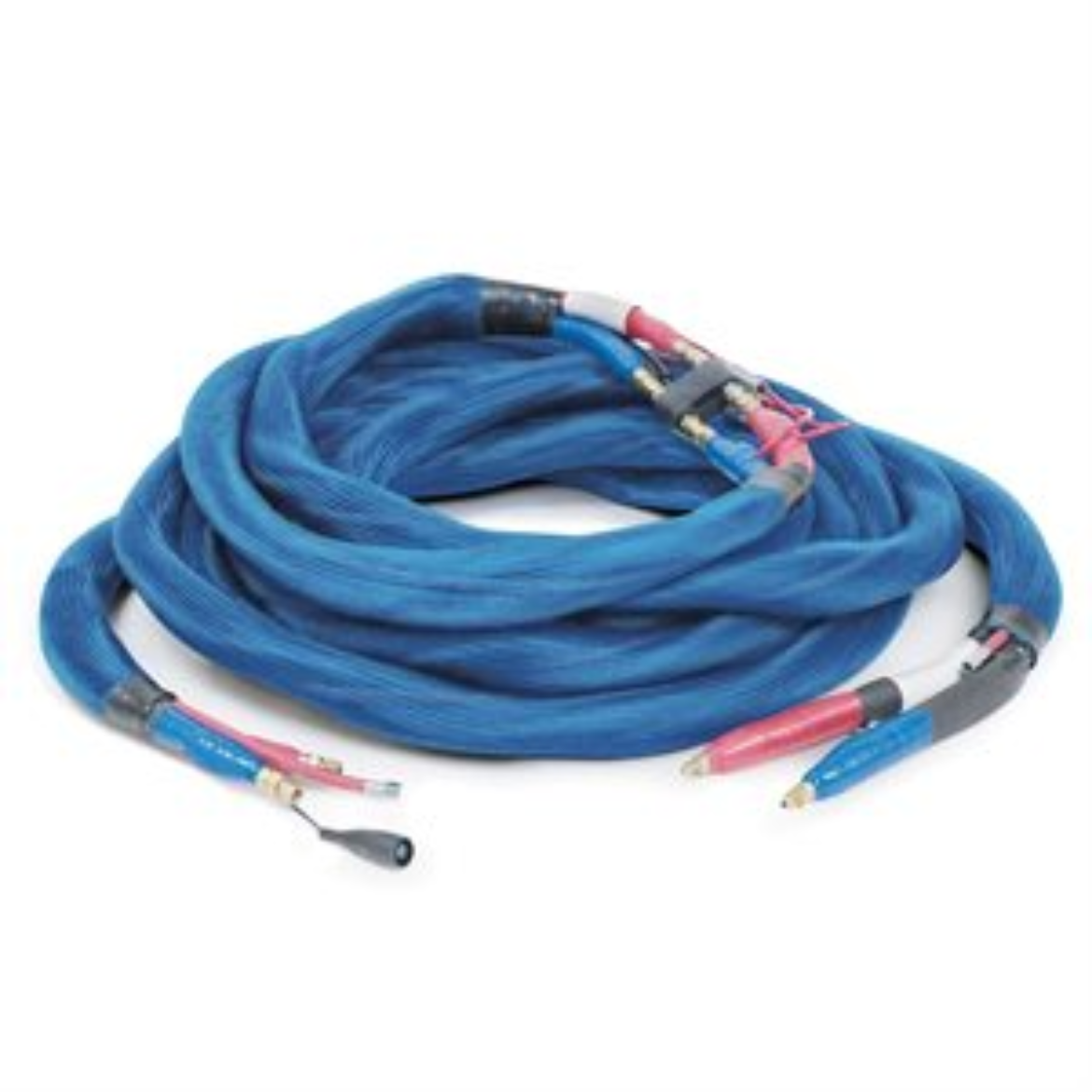

Graco 246053 50 ft x 3/8 in Heated Hose, 3500 psi, Thermocouple, No Scuff, Reactor 1

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life
  • Thermocouple

    Very accurate and reliable way to monitor and maintain temperature




    • Model: Reactor 1
    • Series: No Scuff
    • Compatible Sprayer: Reactor 1
    • For Use With: Plural Component Proportioners
    • Hose Heating Type: External Heated
    • Hose Inside Diameter (in): 3/8
    • Hose Inside Diameter (mm): 9.525
    • Hose Length (ft): 50
    • Hose Length (m): 15.2
    • Inside Diameter (in): 3/8
    • Maximum Working Pressure (bar): 241
    • Maximum Working Pressure (kPa): 24100
    • Maximum Working Pressure (MPa): 24.1
    • Maximum Working Pressure (psi): 3500
