REACTOR HEATED HOSE, 50', 1/4", 2000PSI

GG 246045

REACTOR HEATED HOSE, 50', 1/4", 2000PSI

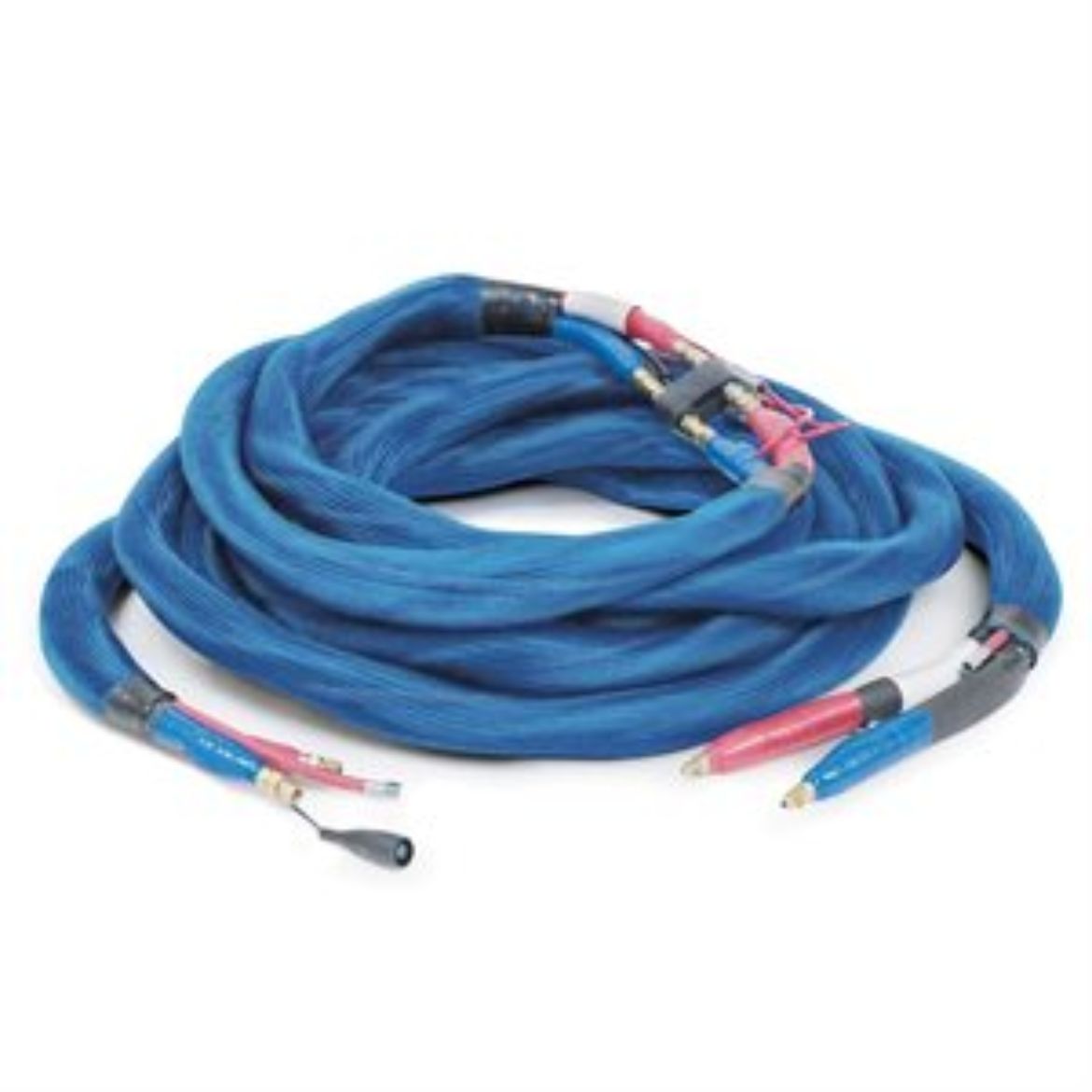

Graco 246045 50 ft x 1/4 in Heated Hose, 2000 psi, Thermocouple, No Scuff, Reactor 1 & 2

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life
  • Thermocouple

    Very accurate and reliable way to monitor and maintain temperature




    • Model: Reactor 1
    • Series: No Scuff
    • Compatible Sprayer: Reactor 1 & 2
    • For Use With: Plural Component Proportioners
    • Hose Heating Type: External Heated
    • Hose Inside Diameter (in): 1/4
    • Hose Inside Diameter (mm): 6.35
    • Hose Length (ft): 50
    • Hose Length (m): 15.2
    • Inside Diameter (in): 1/4
    • Maximum Working Pressure (bar): 138
    • Maximum Working Pressure (kPa): 13800
    • Maximum Working Pressure (MPa): 13.8
    • Maximum Working Pressure (psi): 2000
