Husky Pump,716A-Pp01Aa1-4Ssssptpt

GG 246485

HUSKY PUMP, 716A-PP01AA1-4SSSSPTPT

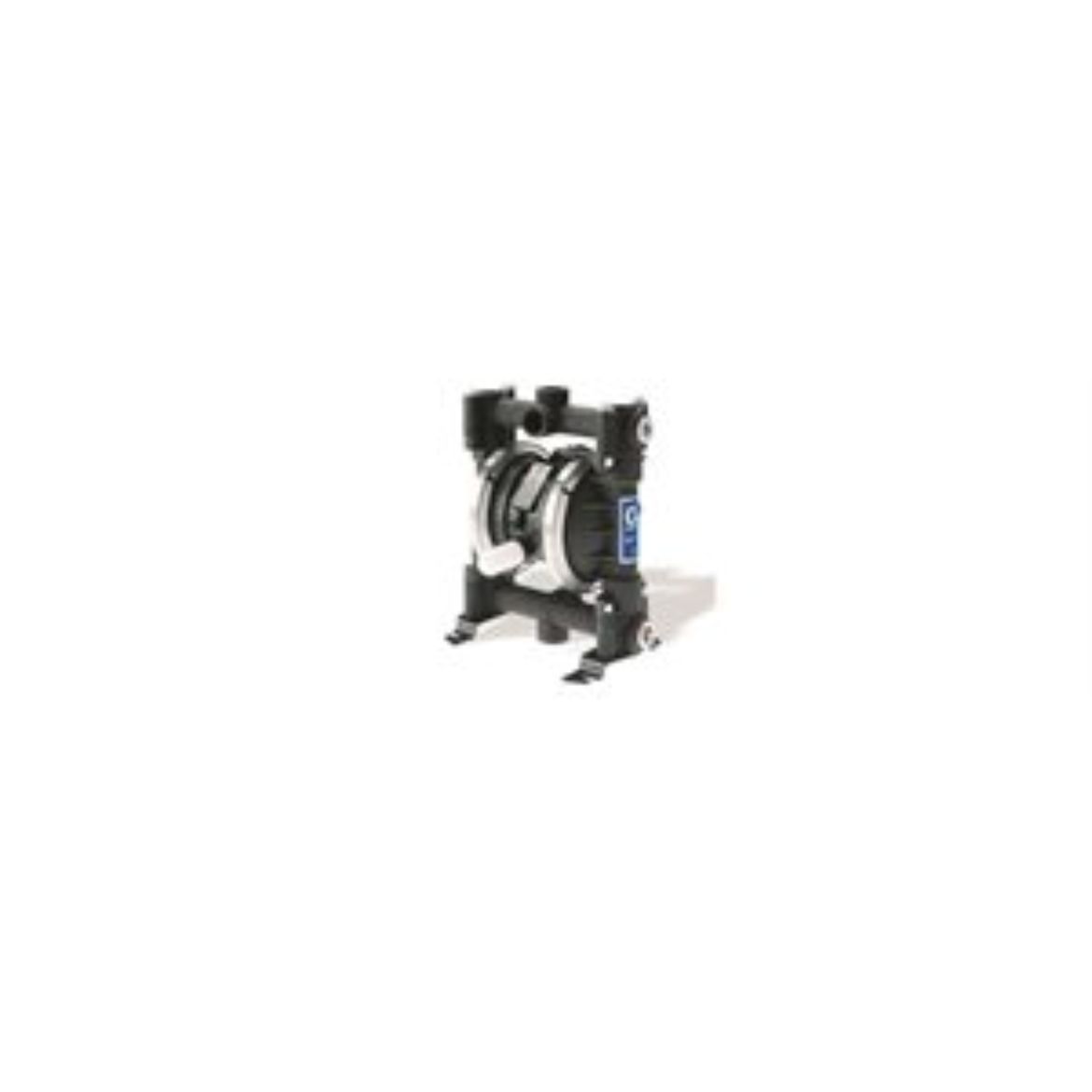

Graco 246485 Husky 716 Diaphragm Pump

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Compatible Material: Antifreeze, Detergent, Motor Oil, Gear Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water - Freshwater Treatment, Ink and Colorant

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Section Material: Carbon Steel

• Material: Carbon Steel

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 70
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Overall Height (in): 10.43

• Power Source: Air
