GG 246100
FUSION AP GUN, ROUND 00

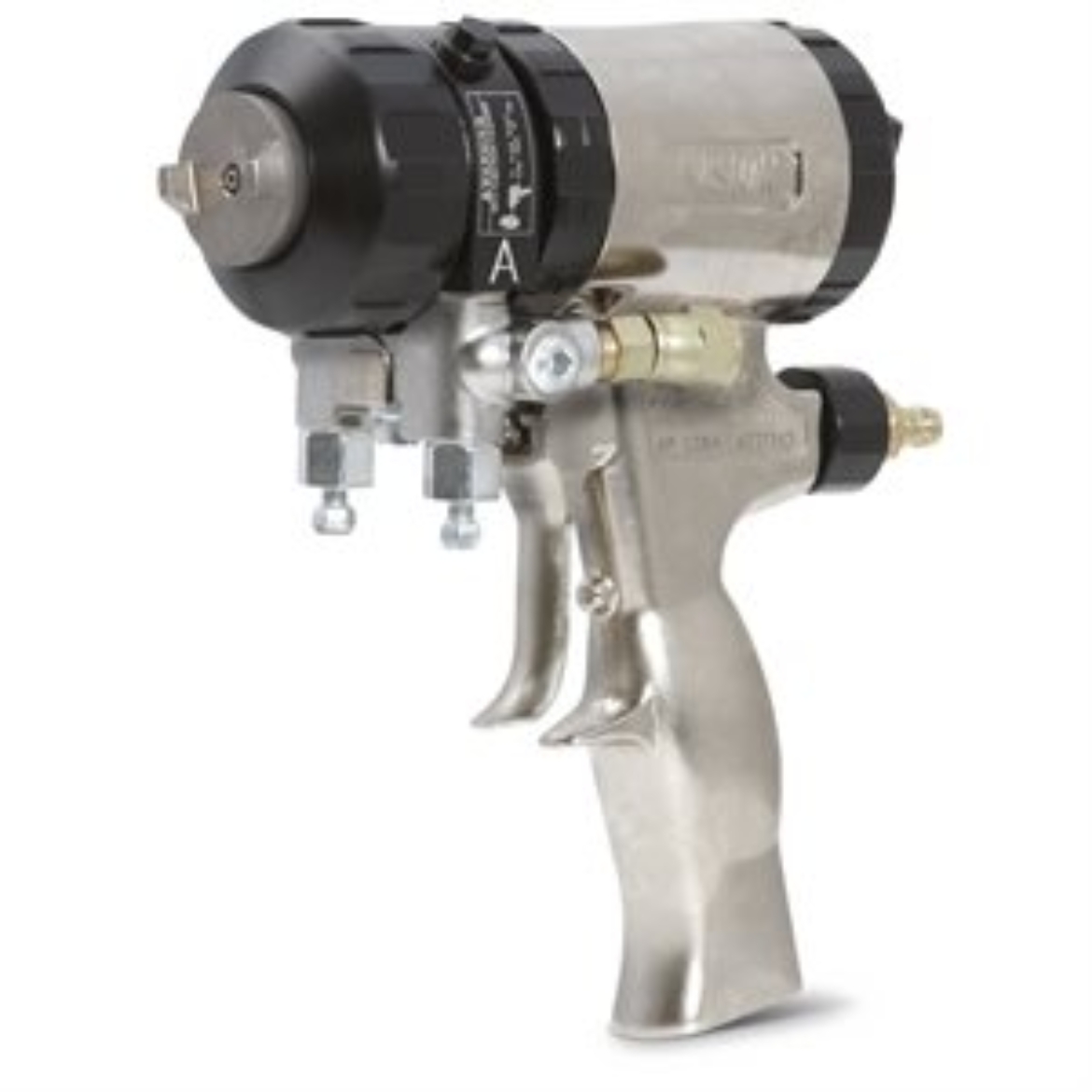

Graco 246100 Round Fusion Air-Purge Gun with 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.
- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.029
- Impingement Port Size (mm): 0.70
- Includes: AR2929 Mix Chamber Tip
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Working Pressure (bar): 245
- Maximum Fluid Working Pressure (MPa): 24.5
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Ov
