GRACO INC. S10595
RAC X FFLP TIP, SPRAY, (210)
GG FFLP210
RAC X FFLP TIP, SPRAY, (210)
Graco FFLP210 Fine Finish Low Pressure RAC X FF LP SwitchTip, 210
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 210 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.010 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.
Application: For fine finish applications- Less Prep & Cleanup Time
Less mess with less overspray
Put the paint where you want it
- Easiest Pattern Overlap
Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality
- Extended Life
Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life
- Best Tip on the Market
Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
- Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents
- Model: RAC X
- Series: FF LP SwitchTip
- Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints
- For Use With: RAC X HandTite Tip Guard
- Material: Tungsten Carbide
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.11
- Maximum Flow Rate (L/min): 0.42
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.010
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPOEP21
GG FD1213
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPOEP21
SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSCWPOPT21
GG FD1133
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSCWPOPT21
SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, CW Balls, PO Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)

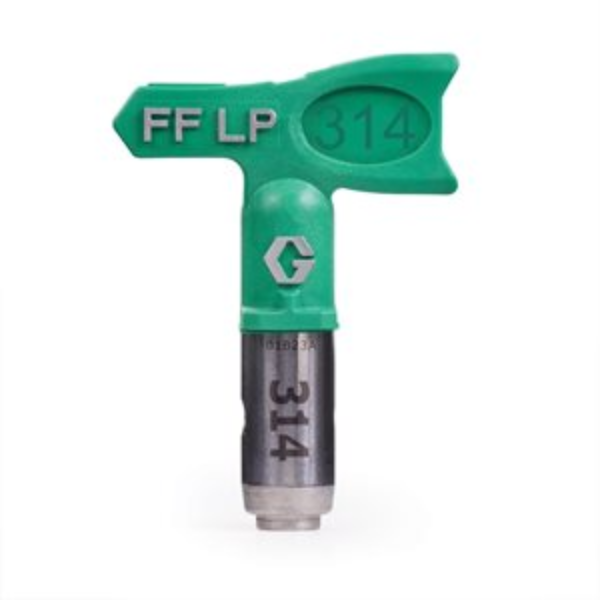

RAC X FFLP TIP, SPRAY, (314)
GG FFLP314
RAC X FFLP TIP, SPRAY, (314)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 314 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 314 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 6 to 8 inch Fan pattern and has a 0.014 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
RAC X FFLP TIP, SPRAY, (410)
GG FFLP410
RAC X FFLP TIP, SPRAY, (410)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 410 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 410 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces an 8 to 10 inch Fan pattern and has a 0.010 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWPOPT21
GG FD2133
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWPOPT21
Graco FD2133 SaniForce 1590 S/S AODD Pump with Sanitary Clamp Conn, S/S Center & Seats, PTFE O-Rings, Weighted CR Balls & Overmold PTFE Diaphragm
Graco’s SaniForce 1590 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
Application: 1-1/2 inch (38 mm) air-operated double diaphragm sanitary pump with flow rates up to 90 gpm (341 lpm) - ideal for food-related applications- SaniForce 1590 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
- Model: SaniForce
- Series: 1590
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: Polychloroprene Weighted
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE Overmold
- Fluid Inlet Size (cm): 5.08
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 50.8
- Fluid Outlet Size (cm): 5.08
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 50.8
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 130
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM)
Three-way pilot valve for no-stick operation
316 series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2 in (51 mm) tri-clamp connection
90 gpm (341 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 15,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSSPSPPT21
GG FD2122
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSSPSPPT21
Graco FD2122 SaniForce 1590 AODD Pump with Sanitary Clamp Connection, S/S Seats, PTFE O-Rings, Santoprene Balls & Diaphragms
Graco’s SaniForce 1590 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
Application: 1-1/2 inch (38 mm) air-operated double diaphragm sanitary pump with flow rates up to 90 gpm (341 lpm) - ideal for food-related applications- SaniForce 1590 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
- Model: SaniForce
- Series: 1590
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: Santoprene
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: Santoprene
- Diaphragm Material: Santoprene
- Fluid Inlet Size (cm): 5.08
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 50.8
- Fluid Outlet Size (cm): 5.08
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 50.8
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 130
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 200
Three-way pilot valve for no-stick operation
316 series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2 in (51 mm) tri-clamp connection
90 gpm (341 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 15,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve
RAC X FFLP TIP, SPRAY, (510)
GG FFLP510
RAC X FFLP TIP, SPRAY, (510)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 510 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 510 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 10 to 12 inch Fan pattern and has a 0.010 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
RAC X FFLP TIP, SPRAY, (308)
GG FFLP308
RAC X FFLP TIP, SPRAY, (308)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 308 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 308 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 6 to 8 inch Fan pattern and has a 0.008 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
SANIFORCE AODD PUMP, 515FG-PP01AS13SSPTPOPT21
GG FD5113
SANIFORCE AODD PUMP, 515FG-PP01AS13SSPTPOPT21
Graco FD5113 SaniForce 515 AODD Pump with Flange Connection, S/S Seat6s, PTFE O-Rings, Balls & Overmolded Diaphragms
Graco&prime, s SaniForce 515 air-operated double diaphragm sanitary pump provides a solution to customers needing a pump with lower flow rates, a quick knock-down design for easy cleaning and a low cost of ownership – ideal for the food processing and personal care markets. Popular applications include transferring flavorings, purees, sauces and other low to medium viscosity materials.
Application: 1/2 inch air-operated double diaphragm sanitary pump with flow rates up to 15 gpm (56.7 lpm) - ideal for food-related applications- SaniForce 515 Double Diaphragm Pump
- 1 in (25.4 mm) Tri-clamp connectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Fluid pressure to 100 psi (7 bar, 0.7 MPa)Flow rates of 15 gpm (56.7 lpm)Applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cpsSuitable to pump products like: flavorings, purees, sauces and other low to medium viscosity materials
- SaniForce 515 Drum Siphon Kit
- PTFE/EPDM Overmolded Diaphragms
Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco&prime, s PTFE/EPDM diaphragms so there&prime, s no place to harbor bacteria
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
Available on the SaniForce 515, 1040, 1590, 2150 and SaniForce HS 1590 and 3150
- Model: SaniForce
- Series: 515
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: PTFE
- Center Section Material: Polypropylene
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE Overmold
- Fluid Inlet Size (cm): 2.54
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Size (mm): 25.4
- Fluid Outlet Size (cm): 2.54
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 25.4
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 28
- Maxim
Great for quickly unloading 55 gallon (208 liter) drums of low to medium viscosity materials
The SaniForce 515 Drum Kit (Graco part # 262828) comes standard with:
316 SST drum length suction tube
316 SST mounting bracket
316 SST bung adapter
316 SST tri-clamp clamps (2)
FDA-compliant gaskets
- PTFE/EPDM Overmolded Diaphragms
- SaniForce 515 Drum Siphon Kit
RAC X FFLP TIP, SPRAY, (616)
GG FFLP616
RAC X FFLP TIP, SPRAY, (616)
Graco FFLP616 Fine Finish Low Pressure RAC X FF LP SwitchTip, 616
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 616 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 12 to 14 inch Fan pattern and has a 0.016 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.
Application: For fine finish applications- Less Prep & Cleanup Time
Less mess with less overspray
Put the paint where you want it
- Easiest Pattern Overlap
Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality
- Extended Life
Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life
- Best Tip on the Market
Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
- Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents
- Model: RAC X
- Series: FF LP SwitchTip
- Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints
- For Use With: RAC X HandTite Tip Guard
- Material: Tungsten Carbide
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.27
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.016
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
RAC X FFLP TIP, SPRAY, (214)
GG FFLP214
RAC X FFLP TIP, SPRAY, (214)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 214 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 214 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.014 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents

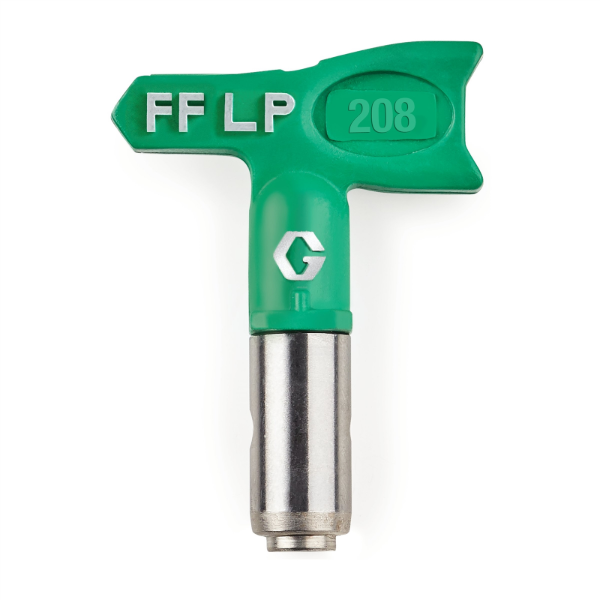

RAC X FFLP TIP, SPRAY, (208)
GG FFLP208
RAC X FFLP TIP, SPRAY, (208)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 208 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 208 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.008 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
RAC X FFLP TIP, SPRAY, (108)
GG FFLP108
RAC X FFLP TIP, SPRAY, (108)
Graco FFLP108 Fine Finish Low Pressure RAC X FF LP SwitchTip, 108
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 108 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 2 to 4 inch fann pattern and has a 0.008 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.
Application: For fine finish applications- Less Prep & Cleanup Time
Less mess with less overspray
Put the paint where you want it
- Easiest Pattern Overlap
Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality
- Extended Life
Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life
- Best Tip on the Market
Works with any airless sprayer
Longest lasting fann pattern
Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
- Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents
- Model: RAC X
- Series: FF LP SwitchTip
- Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints
- For Use With: RAC X HandTite Tip Guard
- Material: Tungsten Carbide
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.07
- Maximum Flow Rate (L/min): 0.26
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.008
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
KIT, 1040 FG SS, PT, PT, EP
GG FK1211
KIT, 1040 FG SS, PT, PT, EP
SaniForce 1040 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PT Diaphragm and EP Seal
KIT, 1590 FG SS, PT, PO, EP
GG FK2213
KIT, 1590 FG SS, PT, PO, EP
SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PO Diaphragm, EP Seal

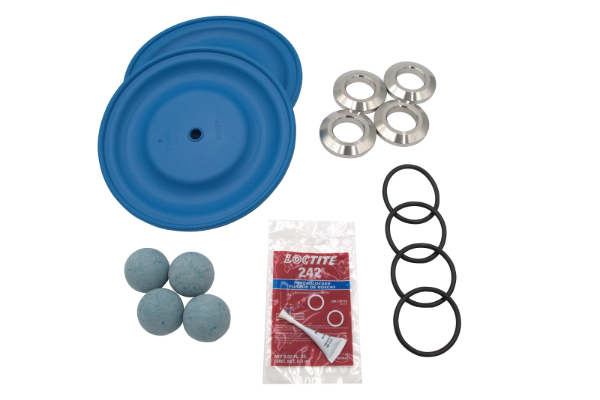

KIT, 1590 FG SS, SP, SP, EP
GG FK2222
KIT, 1590 FG SS, SP, SP, EP
SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, SP Ball, SP Diaphragm, EP Seal
RAC X FFLP TIP, SPRAY, (312)
GG FFLP312
RAC X FFLP TIP, SPRAY, (312)
Fine Finish Low Pressure RAC X FF LP SwitchTip, 312 Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 312 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 6 to 8 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs. For fine finish applications Less Prep & Cleanup Time- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting Fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
REACTOR 2 H-30 SYSTEM, 15KW, ELITE, PC
GG FPH132
REACTOR 2 H-30 SYSTEM, 15KW, ELITE, PC
Graco FPH132 Reactor 2 H-30 Elite Proportioner Package, Fusion PC Gun, Heated Hose with Xtreme-Wrap, 15 kW, 230/400 V
Graco&prime, s hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.
Application: For medium to high-output foam applications and roofing projects – applies up to 28 lb (12.3 kg) per minute.- What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
- Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
- Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
- Sacrificial surge protector
Protects your electronics against excessive power spikes
- Three-year warranty
Covers user display and control modules
One of the best in the industry
- Model: Reactor 2
- Series: H-30
- Product Series: Elite
- Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
- Application: Spray Foam
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: Fusion PC
- Hose Length (ft): 50, 10
- Hose Length (m): 15, 3
- Hose Package: Single Hose
- Includes: Proportioner, Fusion PC Gun, Heated Hose with Scuff Guard, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors
- Material Application: Polyurethane Foam
- Maximum Flow Rate (kg/min): 12.7
- Maximum Flow Rate (lb/min): 28
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Mix Ratio: 1:1
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (MPa): 13.8
- Maximum Working Pressure (psi): 2000
- Overall Depth (cm): 53
- Overall Depth (in): 20.88
- Overall De

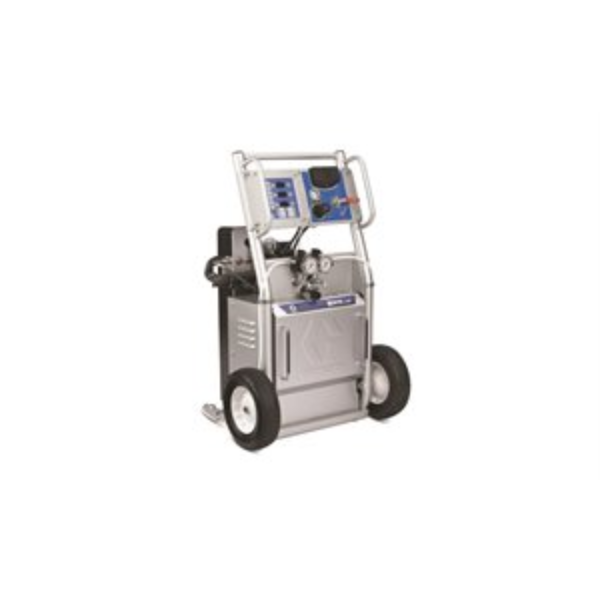

REACTOR A-25 SYSTEM, FUSION PC
GG FP2614
REACTOR A-25 SYSTEM, FUSION PC
Graco FP2614 Reactor A25 Proportioner Package, Fusion PC Gun, Wheels, DataTrak, 230/400 V
The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you&prime, re spraying at maximum flow rates - resulting in better quality foam.
Application: For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute.- Maintains temperature setpoints for better yield
- Maintains consistent output pressure for uniform spray pattern
- Easy to operate and maintain
- DataTrak Control
Resettable counter tracks material usage
- Three Heat Zones
Three independent heat zones – ISO, resin and hose heat
Provide accurate heat control for reliable spraying to handle different chemical viscosities
Digital temperature controls
- Recirculation Manifold
A quick, easy way to balance system pressures
- NXT Air Motor
Low air consumption for increased efficiency
Muffler provides low operating noise levels
Air valve provides smooth and rapid changeover
- Quick Knockdown Lower Pumps
For easy disassembly and maintenance
- ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft
- ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft
- Model: Reactor
- Series: A-25
- Air Inlet Size (cm): 1.27
- Air Inlet Size (in): 1/2
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 18.5 @ 380 V ac (3-Phase WYE), 32 @ 230 V ac (3-Phase Delta), 40 @ 230 V ac (1-Phase)
- Application: Spray Foam
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component A Inlet Size (in): 3/4
- Component A Inlet Size (mm): 19.05
- Component A Thread Gender: Female
- Component A Thread Type: NPT
- Component B Inlet Size (in): 3/4
- Component B Inlet Size (mm): 19.05
- Component B Thread Gender: Female
- Component B Thread Type: NPT
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: Fusion PC
- Hose Length (ft): 50, 10
- Hose Length (m): 15, 3
- Includes: Proportioner, Fusion PC Gun, Heated Hose, Wheels, DataTrak
- Material Application: Polyurethane Foam
- Maximum Air Consumption (SCFM): 28 scfm at 1500 psi
- Maximum Air Inlet Pressure (bar): 8.62
- Maximum Air Inlet Pressure (kPa): 862
- Maximum Air Inlet Pressure (psi): 125
- Maximum Flow Rate (kg/min): 11.4
- Maximum Flow Rate (lb/min): 25
- Maximum Fluid Temperature (°C): 88
- Maximum Fluid Temperature (°F): 190
- Maximum Fluid
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTPT21
GG FD1111
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTPT21
Graco FD1111 SaniForce 1040 S/S AODD Pump with Flange Connection, 316 S/S Seats, PTFE O-Rings, Balls & Diaphragms
Graco’s SaniForce 1040 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
- 1.5 in (38 mm) Tri-clamp connection
- All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps
- Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Model: SaniForce
- Series: 1040
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: PTFE
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE
- Fluid Inlet Size (cm): 3.81
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 38.1
- Fluid Outlet Size (cm): 3.81
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 38.1
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 50
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 256
- Maximum Flow Rate (GPM): 41
- Maximum Flow Rate (L/min): 151
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Operating Temperature (°C): 104
- Maximum Operating Temperature (°F): 220
- Maximum Solid Size (cm): 0.3175
- Maximum Solid Size (in): 0.125
- Maximum Solid Size (mm): 3.175
- Overall Height (in): 16.1
- Power Source: Pneumatic
- Pump Ratio: 1:1
SANIFORCE AODD PUMP, 2150FG-PS01AS13SSCWPOPT21
GG FD3133
SANIFORCE AODD PUMP, 2150FG-PS01AS13SSCWPOPT21
Graco FD3133 SaniForce 2150 S/S AODD Pump with Flange Conn, 316 S/S Seats, PTFE O-Rings, Polychloroprene with S/S Core & PTFE Overmold Diaphragm
Graco’s SaniForce 2150 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
- SaniForce 2150 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco&prime, s PTFE/EPDM diaphragms so there&prime, s no place to harbor bacteria
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
- Model: SaniForce
- Series: 2150
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: Polychloroprene Weighted
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE Overmold
- Fluid Inlet Size (cm): 6.35
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 63.5
- Fluid Outlet Size (cm): 6.35
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 63.5
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 175
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- M
Three-way pilot valve for no-stick operation
Long-lasting 16 Series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2-1/2 in (63.5 mm) Tri-clamp connection
Flow rates up to 150 gpm (567 lpm) (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 20,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve

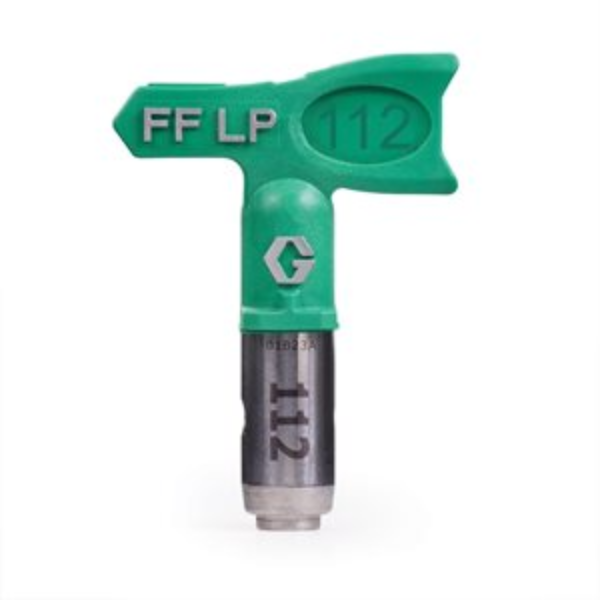

RAC X FFLP TIP, SPRAY, (112)
GG FFLP112
RAC X FFLP TIP, SPRAY, (112)
Graco FFLP112 Fine Finish Low Pressure RAC X FF LP SwitchTip, 112
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 112 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 2 to 4 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.
Application: For fine finish applications- Less Prep & Cleanup Time
Less mess with less overspray
Put the paint where you want it
- Easiest Pattern Overlap
Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality
- Extended Life
Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life
- Best Tip on the Market
Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
- Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents
- Model: RAC X
- Series: FF LP SwitchTip
- Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints
- For Use With: RAC X HandTite Tip Guard
- Material: Tungsten Carbide
- Maximum Fan Width (cm): 5
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.15
- Maximum Flow Rate (L/min): 0.57
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.012
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6

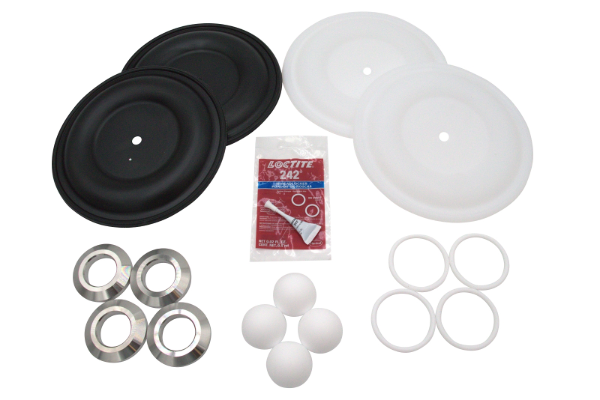

KIT, 1590 FG, SS, PT, PT, PT
GG FK2111
KIT, 1590 FG, SS, PT, PT, PT
SaniForce 1590 FG Complete Fluid Repair Kit with SS Seat, PT Ball, PT Diaphragm, PT Seal
REACTOR E-10HP SPRAYER, 120V
GG 24T100
REACTOR E-10HP SPRAYER, 120V
Reactor E-10HP Sprayer, 120 VExpand your business with polyurea applications. The Reactor E-10hp sprayer is a smart, affordable investment that will help grow your business. Even though it's an entry level system, it packs plenty of power and uses standard residential electrical outlets - no generator is needed.
Entry-level system for pure and hybrid polyurea coatings.Digital heat controls
- Allows you to enter the exact temperatures you need
- Uses the same circuit boards as a standard Reactor
Motor
- Offers 50% more power than the Reactor E-10
- Provides improved spray performance with reduced pressure drop
Low Level Sensors
- Indicates when material is low (1 gal/3.8 L remaining)
- No contact with materials - prevents buildup
Boost Heat
- Directs unused power from the motor circuit to additional heater rods
- Additional heater power brings material to desired temperatures faster during recirculation mode
Insulated Tanks
- Double-wall insulated to retain heat
- Smooth interior lining for easy cleaning
- Improved seal design on lid for better moisture control
Quick knockdown Lower Pumps
- Easy disassembly and maintenance
Robust Hybrid Heater
- More power, faster material handling means more uptime
Temperature Guages in Y-strainers
- Provides accurate tank temperature readings
KIT, ZONE VALVE, 24VDC NC
GG 24T296
KIT, ZONE VALVE, 24VDC NC
Graco 24T296 General Accessories - Two-Way Valve, 24 VDC, Normally Closed, Deutsch Cable, 3500 psi
- Designed to custom fit lubrication systems and control when sections or zones of the system will receive lubricant
- Normally Closed
- DC models meet typical application requirements
- Amperage (A): 0.8
- Compatible Material: Grease
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Type: NPT
- IP Rating: IP69K
- Maximum NLGI Grade: #2
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Type: NPT
- Overall Height (cm): 9.779
- Overall Height (in): 3.85
- Overall Height (mm): 97.79
- Overall Width (cm): 5.08
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Power Connection Type: Deutsch DT Series 2 Pin
- Power Rating (W): 18.2
Kit, Lp Circ Valve
GG 24T442
KIT, LP CIRC VALVE
Graco 24T442 Low Pressure Circulating Valve for ProMix PD2K Electronic Proportioning System
Kit, Lp Non-Circ Valve
GG 24T441
KIT, LP NON-CIRC VALVE
Graco 24T441 Low Pressure Non-Circulating Valve, 100 psi max air working pressure, 300 psi max fluid working pressure, Series A
Kit, 3 Valve, Non-Circ, Valve
GG 24T648
KIT,3 VALVE, NON-CIRC, VALVE
Graco 24T648 3 Valve SST High Pressure Non-Circulating Valve
Kit, 2 Valve, Non-Circ, Valve
GG 24T647
KIT,2 VALVE, NON-CIRC, VALVE
Graco 24T647 2 Valve SST High Pressure Non-Circulating Valve
Kit, Repair, Ball
GG 24T752
KIT, REPAIR, BALL
Graco 24T752 Ball Repair Kit for ProMix PD2K Proportioner Mix Manifold
- Catalyst Inlet Size (in): 1/4
- Catalyst Inlet Thread Gender: Female
- Catalyst Inlet Thread Type: NPT
Kit, Transducer, Lp
GG 24T786
KIT, TRANSDUCER, LP
Graco 24T786 Fluid Outlet Pressure Sensor, for Isolated Pump Expansion Kits 24W159 and 24W160
Kit, Solvent Flow Switch
GG 24T787
KIT, SOLVENT FLOW SWITCH
Graco 24T787 Solvent Flow Switch Kit
Kit, Pump Assy, 35Cc, Lp
GG 24T788
KIT, PUMP ASSY, 35CC, LP
Graco 24T788 35 ccl Low Pressure Dosing Pump, 300 psi max fluid working pressure, Series A
Kit, Pump Assy, 70Cc, Lp
GG 24T790
KIT, PUMP ASSY, 70CC, LP
Graco 24T790 ProMix PD2K Dosing Pump, 70cc low pressure, 300 psi Maximum Fluid Working Pressure
Kit, Fluid Pump, 35Cc
GG 24T792
KIT, FLUID PUMP, 35CC
Graco 24T792 35 cc Lower for ProMix PD2K Electronic Positivie Displacement Proportioning System Dosing Pumps
Kit, Fluid Pump, 70Cc
GG 24T793
KIT, FLUID PUMP, 70CC
Graco 24T793 70 cc Lower for ProMix PD2K Electronic Positive Displacement Proportioning System Dosing Pumps
Kit, Rebuild, Hp Valve, Acid
GG 24T817
KIT, REBUILD, HP VALVE, ACID
Graco 24T817 Acid Valve Rebuild Kit for valve 24T785 (PEEK seat retainer)
TOUGHTEK SPRAYER, MORTAR, HOPPER, FLEX APP
GG 24T834
TOUGHTEK SPRAYER, MORTAR, HOPPER, FLEX APP
Graco 24T834 ToughTek M680a Piston Pump Package, Flex Hose Applicator, Stainless Steel Hopper
The ToughTek M680a piston pump handles abrasive materials such as epoxy mortars, non-skid coatings (bridges and marine industry – solvent based coatings) or cementitious materials, and tackles difficult polymers with fillers such as glass flake, silica or sand. The all stainless design makes cleanup of epoxy mortars easy and worry-free.
Application: Portable sprayer for mortar, cementitious and heavily filled materials- Primary features:
- Flex Hose Applicator
- Pole Applicator
- Large Capacity Hopper
25 gal (95 L) hopper kit
Ideal for materials that require more than 10 gal/38 liter capacity, such as fireproofing
Boost productivity by minimizing refills
Easily connects to ToughTek M680a
Easy to connect and maneuver
Order part number 24W889
- Model: ToughTek
- Series: M680a
- Application: Industrial
- Compatible Material: Cementitious Material
- Fluid Inlet Thread Gender: Male
- Fluid Outlet Size (cm): 2.54
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Material: Stainless Steel
- Maximum Flow Rate (GPM): 10.88
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 70
- Maximum Working Pressure (kPa): 7000
- Maximum Working Pressure (MPa): 7
- Maximum Working Pressure (psi): 1000
- Motor Type: Pneumatic
For hard to reach areas
Best for heavily filled materials that easily pack out
Includes Round Nozzle, provides a rough finish texture
Simple design, easy to clean
Order part number 24T946
- Large Capacity Hopper
Best for heavily filled materials that easily pack out
Includes Round Nozzle, provides a rough finish texture
Simple design, easy to clean
Order part number 24T947
- Pole Applicator
Low pressure pumping (200 to 500 psi/13.7 to 34.5 bar) reduces wear on pump lower
Less material waste and more consistent finish than hand-trowling
Fast, easy cleaning with high velocity flush
Can be quickly disassembled for hand cleaning
Explosion-proof for hazardous spray areas
One convenient air source to run pump and atomize air
- Flex Hose Applicator
Kit, Repair, Pump Seal
GG 277360
KIT, REPAIR, PUMP SEAL
Graco 277360 3 in. Piston Seal Repair Kit- UHMWPE
HOSE, CPLD, 3/8"X3', 4000WPR
GG 277351
HOSE, CPLD, 3/8"X3', 4000WPR
Graco 277351 BlueMax II HP Airless Whip Hose, 3/8 in x 3 ft, 4000 psi
The BlueMax II HP Whip Hose provides more flexibility and increased operator control at the gun. This BlueMax II Whip Hose has a 3/8 inch diameter and is 3 feet long and rated for up to 4000 psi.
- Lighter Weight
Over 10% lighter weight and increased hose flexibility improves under pressure
- Highest Safety Standards
Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs
- Minimal Hose Coil Memory
BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling
- Model: BlueMax II
- Series: Whip Hose
- Connection Type: Male x Female
- Hose Diameter (in): 3/8
- Hose Length (cm): 91
- Hose Length (ft): 3
- Hose Length (in): 36
- Hose Length (m): 0.9
- Hose Length (mm): 912
- Inside Diameter (cm): 0.9525
- Inside Diameter (in): 3/8
- Inside Diameter (mm): 9.525
- Material: Nylon
- Maximum Working Pressure (bar): 276
- Maximum Working Pressure (kPa): 27600
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
Kit, Repair, Pump Seal
GG 277362
KIT, REPAIR, PUMP SEAL
Graco 277362 3.5 in. Piston Seal Repair Kit- UHMWPE
RAC 5 TIP, SPRAY
GG 286109
RAC 5 TIP, SPRAY
Graco 286109 RAC 5 SwitchTip, 109
The Reverse-A-Clean (RAC) 109 RAC 5 SwitchTip is designed for narrower surfaces and thinner materials. The 109 SwitchTip has a 0.009 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.09
- Maximum Flow Rate (L/min): 0.34
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.009
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
RAC 5 TIP, SPRAY
GG 286121
RAC 5 TIP, SPRAY
Graco 286121 RAC 5 SwitchTip, 121
The Reverse-A-Clean (RAC) 121 RAC 5 SwitchTip is designed for narrower surfaces. The 121 SwitchTip has a 0.021 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.021
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
RAC 5 TIP, SPRAY
GG 286207
RAC 5 TIP, SPRAY
Graco 286207 RAC 5 SwitchTip, 207
The Reverse-A-Clean (RAC) 207 RAC 5 SwitchTip is designed for narrower surfaces and thinner materials. The 207 SwitchTip has a 0.007 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Clear Coating, Lacquer, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.05
- Maximum Flow Rate (L/min): 0.19
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.007
Pump, FTB100, 1:1, 200L Drum, Metal
GG 279037
Pump, FTB100, 1:1, 200L Drum, Metal
Graco 279037 Fast-Ball 100 55 Gallon Drum, Universal Pump, Steel Tube
Application:
- In-line design with fewer parts for less pump wear
- Double-acting pump provides reliable fluid flow
- Differential air motor ensures smooth pumping
- Model: Fast-Ball
- Series: 100
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: ATF, Gear Lube, Oil
- Cycles Per Gallon: 31
- Fluid Inlet Size (in): 1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 0.75
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (psi): 150
- Maximum Continuous Cycle Rate (CPM): 170
- Maximum Working Pressure (psi): 150
- Power Type: Pneumatic
- Pump Ratio: 1:1
Control Box, Promix 2Ks Easykey Repl.
GG 277869
CONTROL BOX, PROMIX 2KS EASYKEY REPL.
Kit, Repair, Pump Seal
GG 277358
KIT, REPAIR, PUMP SEAL
Graco 277358 4 in. Piston Seal Repair Kit- UHMWPE
RAC 5 TIP, SPRAY
GG 286211
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 211 The Reverse-A-Clean (RAC) 211 RAC 5 SwitchTip is designed for narrower surfaces and thin materials. The 211 SwitchTip has a 0.011 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286111
RAC 5 TIP, SPRAY
Graco 286111 RAC 5 SwitchTip, 111
The Reverse-A-Clean (RAC) 111 RAC 5 SwitchTip is designed for narrower surfaces and thin materials. The 111 SwitchTip has a 0.011 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.12
- Maximum Flow Rate (L/min): 0.45
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.011
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
RAC 5 TIP, SPRAY
GG 286209
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 209 The Reverse-A-Clean (RAC) 209 RAC 5 SwitchTip is designed for narrower surfaces and thinner materials. The 209 SwitchTip has a 0.009 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286113
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 113 The Reverse-A-Clean (RAC) 113 RAC 5 SwitchTip is designed for narrower surfaces. The 113 SwitchTip has a 0.013 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286213
RAC 5 TIP, SPRAY
Graco 286213 RAC 5 SwitchTip, 213
The Reverse-A-Clean (RAC) 213 RAC 5 SwitchTip is designed for narrower surfaces. The 213 SwitchTip has a 0.013 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.013
KING SPRAYER, CONTRACTOR, 70:1, B150
GG 279022
KING SPRAYER, CONTRACTOR, 70:1, B150
Graco 279022 Contractor King 70:1 Air Powered Airless Sprayer, Big 150 (2-F Gun)
Introducing the newest member of the King family &Prime, The Contractor King 70:1&Prime, . Designed around single-person mobility and high performance, this affordable line of air-powered sprayers is the perfect addition to every Contractor&prime, s fleet.
Application: The Contractor King is available in many hose and gun configurations. These units feature a &Prime, just the essentials design&Prime, allowing users to customize the sprayer by adding only the accessories that they need. Perfect for for high-volume and high-pressure waterproofing, fireproofing and protective coatings applications. These proven and durable sprayers offer the ultimate in convenience and value for every contractor.- Proven King quality with Anti-icing technology
Field-proven design virtually eliminates icing to keep you spraying
Durable aluminum, steel and composite construction for years of service
Delivers superior finish with no pulsation, even with multiple guns
Simple design for easy serviceability
Oversized porting for maximum air flow
- Easy to move and transport
Nearly 38 kg lighter than comparable models for easy, one-person handling
Chrome-plated, welded-steel frame for years of service
Integrated lifting points for easy positioning on any jobsite
Flat proof tires resist jobsite debris for maximum convenience
- Simple maintenance with proven design and performance
QuickChange Endurance pump, for quick and for easy on-the-job pump removal and maintenance
Chromex Rod and Stainless Steel cylinder for maximum life and performance
Fleet-friendly design uses the same wear parts as your other King sprayers
Xtreme Seal UHMWPE & Leather packings for ultimate durability with most materials
QuickAccess intake valve for easy access to lower ball check
- Big 150 package includes:
2-Finger Silver Plus HP Gun
XHD 417 and XHD 519 SwitchTips with XHD guard
1/4&Prime, x 1.8m Extreme Duty Airless whip hose
3x 3/8&Prime, x 15m Extreme Duty Airless hose (45m in total)
- Big 150 Package Includes:
Silver Plus Gun OR Silver Plus HP Gun (2 Finger Model)
XHD 417, XHD 519 SwitchTips and Guard
1/4 in x 6 ft Extreme Duty Airless Whip Hose
3 - 3/8 in x 50 ft Extreme Duty Airless Hose (150 ft total)
- Model: Contractor King
- Series: 70:1
- Product Series: Big 150
- Approved for Hazardous Locations: Yes
- Gun Included: 1
- Gun Model: Silver Plus HP Gun
- Includes: Silver Plus HP Airless Spray Gun, 3 - 3/8 in x 50 ft Xtreme-Duty Airless Hose, 1/4 in x 6 ft Xtreme-Duty Airless Whip Hose, XHD RAC 417 SwitchTip, XHD RAC 519 SwitchTip, XHD RAC Tip Guard, Hose Fittings
- Maximum Flow Rate (GPM): 2.9
- Maximum Working Pressure (psi): 7250
- Package Options: Big 150
- Package Pressure Ratio (Motor/Lower): 70:1 XL6500 motor/180cc Lower
- Pump Ratio: 70:1 (7250 psi)
- Pump Type: Endurance
XP SYSTEM, 4:1, 220/54, BF, CH, HS
GG 282404
XP SYSTEM, 4:1, 220/54, BF, CH, HS
Graco 282404 XP50 Hazardous Location Spray Package, Cart, 4:1 Mix Ratio, Hopper, Solvent Pump, Heaters, XTR Gun, 240V
Two-component spraying made easy and affordable. Graco XP50 Plural-Component Sprayers are designed to pump, mix and atomize medium to high solid coatings with superior results. When you upgrade from hand mixing, you&prime, ll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
Application: For higher-volume protective coatings.- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 5000 psi (345 bar) to handle viscous materials and long hose lengths
- Series: XP50
- Air Inlet Size (in): 3/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic Airless, Manual Airless
- Compatible Material: Protective Coatings, Primer, Epoxies, Polyurethane, Two-Component Coating, Solvents
- Component Type: Plural-Component
- Configuration: Cart Mount with 7 gallon (26.5 Liter) Hopper
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Solvent
- Hose Length (ft): 35
- Hose Length (m): 10.7
- Includes: Cart, Material Hoses, XTR-5 Gun, NXT 6500 Air Motor, Hoppers, IS Fluid Heater, Flush Pump
- Material Application: Coatings, Paints, Primers
- Maximum Air Consumption (SCFM): 60 scfm/gpm at 100 psi
- Maximum Air Inlet Pressure (bar): 12.07
- Maximum Air Inlet Pressure (kPa): 1207
- Maximum Air Inlet Pressure (MPa): 1.21
- Maximum Air Inlet Pressure (psi): 175
- Maximum Cycle Rate (CPM): 40
- Maximum Flow Rate (cc/min): 10970
- Maximum Flow Rate (GPM): 2.9
- Maximum Flow Rate (L/min): 10.97
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Viscosity (cP): 20000
- Maximum Hose Length (ft): 300
- Maximum Hose Length (m): 91.4
- Maximum Operating Temperature (°C): 54
- Maximum Operating Temperature (°F): 130
- Maximum Spray Pressure (bar): 344
- Maximum Spray Pressure (kPa): 34400
- Maximum Spray Pressure (MPa): 34
- Maximum Spray Pressure (psi): 5000
- Maximum Working Pressur
RAC 5 TIP, SPRAY
GG 286215
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 215 The Reverse-A-Clean (RAC) 215 RAC 5 SwitchTip is designed for narrower surfaces. The 215 SwitchTip has a 0.015 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286219
RAC 5 TIP, SPRAY
Graco 286219 RAC 5 SwitchTip, 219
The Reverse-A-Clean (RAC) 219 RAC 5 SwitchTip is designed for narrower surfaces and thick materials. The 219 SwitchTip has a 0.019 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.38
- Maximum Flow Rate (L/min): 1.44
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.019
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
RAC 5 TIP, SPRAY
GG 286217
RAC 5 TIP, SPRAY
Graco 286217 RAC 5 SwitchTip, 217
The Reverse-A-Clean (RAC) 217 RAC 5 SwitchTip is designed for narrower surfaces. The 217 SwitchTip has a 0.017 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.31
- Maximum Flow Rate (L/min): 1.17
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.017
RAC 5 TIP, SPRAY
GG 286221
RAC 5 TIP, SPRAY
Graco 286221 RAC 5 SwitchTip, 221
The Reverse-A-Clean (RAC) 221 RAC 5 SwitchTip is designed for narrower surfaces and thick materials. The 221 SwitchTip has a 0.021 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.021
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
RAC 5 TIP, SPRAY
GG 286223
RAC 5 TIP, SPRAY
Graco 286223 RAC 5 SwitchTip, 223
The Reverse-A-Clean (RAC) 223 RAC 5 SwitchTip is designed for narrower surfaces and thick materials. The 323 SwitchTip has a 0.023 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.023
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
RAC 5 TIP, SPRAY
GG 286309
RAC 5 TIP, SPRAY
Graco 286309 RAC 5 SwitchTip, 309
The Reverse-A-Clean (RAC) 309 RAC 5 SwitchTip is designed for narrow surfaces and thinner materials. The 309 SwitchTip has a 0.009 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Clear Coating, Lacquer, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 20.3
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.09
- Maximum Flow Rate (L/min): 0.34
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.009
RAC 5 TIP, SPRAY
GG 286235
RAC 5 TIP, SPRAY
Graco 286235 RAC 5 SwitchTip, 235
The Reverse-A-Clean (RAC) 235 RAC 5 SwitchTip is designed for narrower surfaces and thicker materials. The 235 SwitchTip has a 0.035 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.035
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
RAC 5 TIP, SPRAY
GG 286313
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 313 The Reverse-A-Clean (RAC) 313 RAC 5 SwitchTip is designed for narrow surfaces. The 313 SwitchTip has a 0.013 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286311
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 311 The Reverse-A-Clean (RAC) 311 RAC 5 SwitchTip is designed for narrow surfaces and thin materials. The 311 SwitchTip has a 0.011 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286317
RAC 5 TIP, SPRAY
Graco 286317 RAC 5 SwitchTip, 317
The Reverse-A-Clean (RAC) 317 RAC 5 SwitchTip is designed for narrow surfaces. The 317 SwitchTip has a 0.017 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 20.3
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.31
- Maximum Flow Rate (L/min): 1.17
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.017
RAC 5 Tip, Spray
GG 286315
RAC 5 Tip, Spray
RAC 5 SwitchTip, 315 The Reverse-A-Clean (RAC) 315 RAC 5 SwitchTip is designed for narrow surfaces. The 315 SwitchTip has a 0.015 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286321
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 321 The Reverse-A-Clean (RAC) 321 RAC 5 SwitchTip is designed for narrow surfaces and thick materials. The 321 SwitchTip has a 0.021 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286319
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 319 The Reverse-A-Clean (RAC) 319 RAC 5 SwitchTip is designed for narrow surfaces and thick materials. The 319 SwitchTip has a 0.019 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286323
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 323 The Reverse-A-Clean (RAC) 323 RAC 5 SwitchTip is designed for narrow surfaces and thick materials. The 323 SwitchTip has a 0.023 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286327
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 327 The Reverse-A-Clean (RAC) 327 RAC 5 SwitchTip is designed for narrow surfaces and thicker materials. The 327 SwitchTip has a 0.027 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286325
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 325 The Reverse-A-Clean (RAC) 325 RAC 5 SwitchTip is designed for narrow surfaces and thicker materials. The 325 SwitchTip has a 0.025 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286409
RAC 5 TIP, SPRAY
Graco 286409 RAC 5 SwitchTip, 409
The Reverse-A-Clean (RAC) 409 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.009 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.09
- Maximum Flow Rate (L/min): 0.34
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.009
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286331
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 331 The Reverse-A-Clean (RAC) 331 RAC 5 SwitchTip is designed for narrow surfaces and thicker materials. The 331 SwitchTip has a 0.031 inch orifice and produces a 6 to 8 inch fan. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286411
RAC 5 TIP, SPRAY
Graco 286411 RAC 5 SwitchTip, 411
The Reverse-A-Clean (RAC) 411 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.011 inch orifice. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Clear Coating, Lacquer, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.12
- Maximum Flow Rate (L/min): 0.45
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.011
RAC 5 TIP, SPRAY
GG 286413
RAC 5 TIP, SPRAY
Graco 286413 RAC 5 SwitchTip, 413
The Reverse-A-Clean (RAC) 413 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.013 inch orifice. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.013
RAC 5 TIP, SPRAY
GG 286415
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 415 The Reverse-A-Clean (RAC) 415 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286417
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 417 The Reverse-A-Clean (RAC) 417 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286421
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 421 The Reverse-A-Clean (RAC) 421 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286419
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 419 The Reverse-A-Clean (RAC) 419 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.019 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286423
RAC 5 TIP, SPRAY
Graco 286423 RAC 5 SwitchTip, 423
The Reverse-A-Clean (RAC) 423 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.023
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286425
RAC 5 TIP, SPRAY
Graco 286425 RAC 5 SwitchTip, 425
The Reverse-A-Clean (RAC) 425 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.54
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.025
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286427
RAC 5 TIP, SPRAY
Graco 286427 RAC 5 SwitchTip, 427
The Reverse-A-Clean (RAC) 427 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.77
- Maximum Flow Rate (L/min): 2.91
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.027
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286429
RAC 5 TIP, SPRAY
Graco 286429 RAC 5 SwitchTip, 429
The Reverse-A-Clean (RAC) 429 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.9
- Maximum Flow Rate (L/min): 3.41
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.029
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286435
RAC 5 TIP, SPRAY
Graco 286435 RAC 5 SwitchTip, 435
The Reverse-A-Clean (RAC) 435 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.035 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.035
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286439
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 439 The Reverse-A-Clean (RAC) 439 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.039 inch orifice. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286443
RAC 5 TIP, SPRAY
Graco 286443 RAC 5 SwitchTip, 443
The Reverse-A-Clean (RAC) 443 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.043 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 1.98
- Maximum Flow Rate (L/min): 7.50
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.043
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286451
RAC 5 TIP, SPRAY
Graco 286451 RAC 5 SwitchTip, 451
The Reverse-A-Clean (RAC) 451 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.051 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 2.79
- Maximum Flow Rate (L/day): 10.57
- Maximum Flow Rate (L/min): 10.56
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.051
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
RAC 5 TIP, SPRAY
GG 286455
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 455 The Reverse-A-Clean (RAC) 455 RAC 5 SwitchTip produces an 8 to 10 inch fan and has a 0.055 inch orifice. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286511
RAC 5 TIP, SPRAY
Graco 286511 RAC 5 SwitchTip, 511
The Reverse-A-Clean (RAC) 511 RAC 5 SwitchTip produces a 10 to 12 inch fan and has a 0.011 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.12
- Maximum Flow Rate (L/min): 0.45
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.011
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
RAC 5 TIP, SPRAY
GG 286513
RAC 5 TIP, SPRAY
Graco 286513 RAC 5 SwitchTip, 513
The Reverse-A-Clean (RAC) 513 RAC 5 SwitchTip produces a 10 to 12 inch fan and has a 0.013 inch orifice. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.013
RAC 5 Tip, Spray
GG 286515
RAC 5 Tip, Spray
RAC 5 SwitchTip, 515 The Reverse-A-Clean (RAC) 515 RAC 5 SwitchTip produces a 10 to 12 inch fan and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
Rac 5 Tip, Spray
GG 286517
Rac 5 Tip, Spray
Graco 286517 RAC 5 SwitchTip, 517
The Reverse-A-Clean (RAC) 517 RAC 5 SwitchTip produces a 10 to 12 inch fan and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.31
- Maximum Flow Rate (L/min): 1.17
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.017
