Saniforce, Pump, 515, FDA

GG FD5113

SANIFORCE AODD PUMP, 515FG-PP01AS13SSPTPOPT21

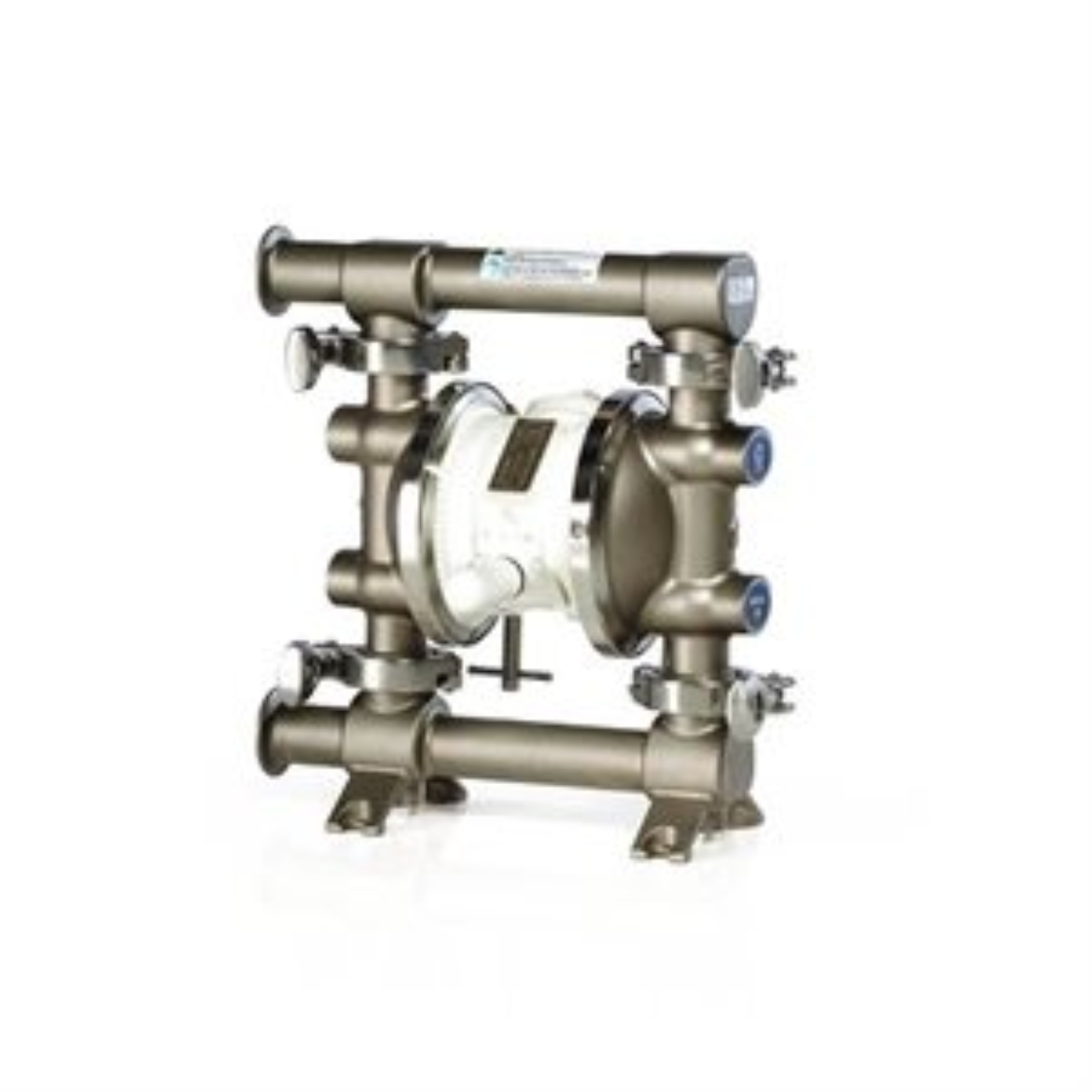

Graco FD5113 SaniForce 515 AODD Pump with Flange Connection, S/S Seat6s, PTFE O-Rings, Balls & Overmolded Diaphragms

Gracos SaniForce 515 air-operated double diaphragm sanitary pump provides a solution to customers needing a pump with lower flow rates, a quick knock-down design for easy cleaning and a low cost of ownership – ideal for the food processing and personal care markets. Popular applications include transferring flavorings, purees, sauces and other low to medium viscosity materials.

• SaniForce 515 Double Diaphragm Pump
  1 in (25.4 mm) Tri-clamp connectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Fluid pressure to 100 psi (7 bar, 0.7 MPa)Flow rates of 15 gpm (56.7 lpm)Applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cpsSuitable to pump products like: flavorings, purees, sauces and other low to medium viscosity materials
  • SaniForce 515 Drum Siphon Kit

    Great for quickly unloading 55 gallon (208 liter) drums of low to medium viscosity materials

    The SaniForce 515 Drum Kit (Graco part # 262828) comes standard with:

    316 SST drum length suction tube

    316 SST mounting bracket

    316 SST bung adapter

    316 SST tri-clamp clamps (2)

    FDA-compliant gaskets

    • PTFE/EPDM Overmolded Diaphragms

      Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Gracos PTFE/EPDM diaphragms so theres no place to harbor bacteria

      Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side

      Longer diaphragm life in abrasive applications that still require PTFE

      Available on the SaniForce 515, 1040, 1590, 2150 and SaniForce HS 1590 and 3150




      • Model: SaniForce
      • Series: 515
      • Air Exhaust Port Size (in): 3/8
      • Air Exhaust Port Thread Gender: Female
      • Air Exhaust Port Thread Type: NPT
      • Air Inlet Size (in): 1/4
      • Air Inlet Thread Gender: Female
      • Air Inlet Thread Type: NPT
      • Application: Sanitary
      • Ball Material: PTFE
      • Center Section Material: Polypropylene
      • Compatible Material: Edible Oil, Food and Personal Care
      • Connection Type: Tri-Clamp
      • Diaphragm Compatible Material: PTFE
      • Diaphragm Material: PTFE Overmold
      • Fluid Inlet Size (cm): 2.54
      • Fluid Inlet Size (in): 1/2
      • Fluid Inlet Size (mm): 25.4
      • Fluid Outlet Size (cm): 2.54
      • Fluid Outlet Size (in): 1/2
      • Fluid Outlet Size (mm): 25.4
      • Fluid Section Material: 316L Stainless Steel
      • For Use With: Food and Personal Care
      • Manifold Configuration: End Port
      • Manifold O-Ring Material: PTFE
      • Material: Stainless Steel
      • Maximum Air Consumption (SCFM): 28
      • Maximum Air Pressure (bar): 6.9
      • Maximum Air Pressure (kPa): 690
      • Maximum Air Pressure (MPa): 0.7
      • Maximum Air Pressure (psi): 100
      • Maximum Cycle Rate (CPM): 182
      • Maximum Flow Rate (GPM): 16
      • Maximum Flow Rate (L/min): 60.6
      • Maximum Fluid Pressure (bar): 6.9
