GG 24T100
REACTOR E-10HP SPRAYER, 120V

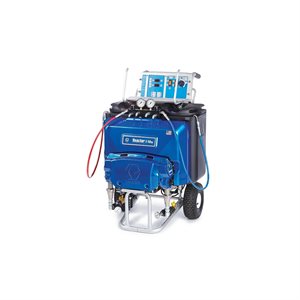

Graco 24T100 Reactor E-10HP Sprayer, 120 V
Expand your business with polyurea applications. The Reactor E-10hp sprayer is a smart, affordable investment that will help grow your business. Even though its an entry level system, it packs plenty of power and uses standard residential electrical outlets - no generator is needed.
Application: Entry-level system for pure and hybrid polyurea coatings.
- Digital heat controls
Allows you to enter the exact temperatures you need
Uses the same circuit boards as a standard Reactor
- Motor
Offers 50% more power than the Reactor E-10
Provides improved spray performance with reduced pressure drop
- Low Level Sensors
Indicates when material is low (1 gal/3.8 L remaining)
No contact with materials - prevents buildup
- Insulated Tanks
Double-wall insulated to retain heat
Smooth interior lining for easy cleaning
Improved seal design on lid for better moisture control
- Quick knockdown Lower Pumps
Easy disassembly and maintenance
- Robust Hybrid Heater
More power, faster material handling means more uptime
- Temperature Guages in Y-strainers
Provides accurate tank temperature readings
- Model: Reactor
- Series: E-10hp
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Air Outlet Size (cm): 0.635
- Air Outlet Size (in): 1/4
- Air Outlet Size (mm): 6.35
- Air Outlet Thread Type: NPSM
- Amperage (A): 16
- Application: Protective Coatings
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Material Application: Polyurea
- Maximum Flow Rate (cc/min): 3790
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.79
- Maximum Fluid Temperature (°C): 77
- Maximum Fluid Temperature (°F): 170
- Maximum Fluid Temperature (°C): 77
- Maximum Fluid Temperature (°F): 170
- Maximum Hose Length (ft): 105
- Maximum Hose Length (m): 32
- Maximum Spray Pressure (bar): 152
- Maximum Spray Pressure (kPa): 15170
- Maximum Spray Pressure (MPa): 15.2
- Maximum Spray Pressure (psi): 2200
- Maximum Working Pressure (bar): 210
- Maximum Working Pressure (kPa): 21000
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Overall Depth (cm): 91.4
- Overall Depth (in): 36
- Overall Depth (mm): 914
- Overall Height (cm): 116.8
- Overall Height (in): 46
- Overall Height (mm): 1168
- Overall Width (cm): 73.7
- Overall Width (in): 29
- Overall Width (mm): 737
- Power Rating (HP): 5.15
- Power Rating (kW): 3.84
- Power Rating (W): 3840
- Power Source: Electric
- Pressure Type: Low Pressure
- Product Type: Plural Component<
