KIT, ZONE VALVE, 24VDC NC

Manufacturer: GRACO INC. S10595

GG 24T296

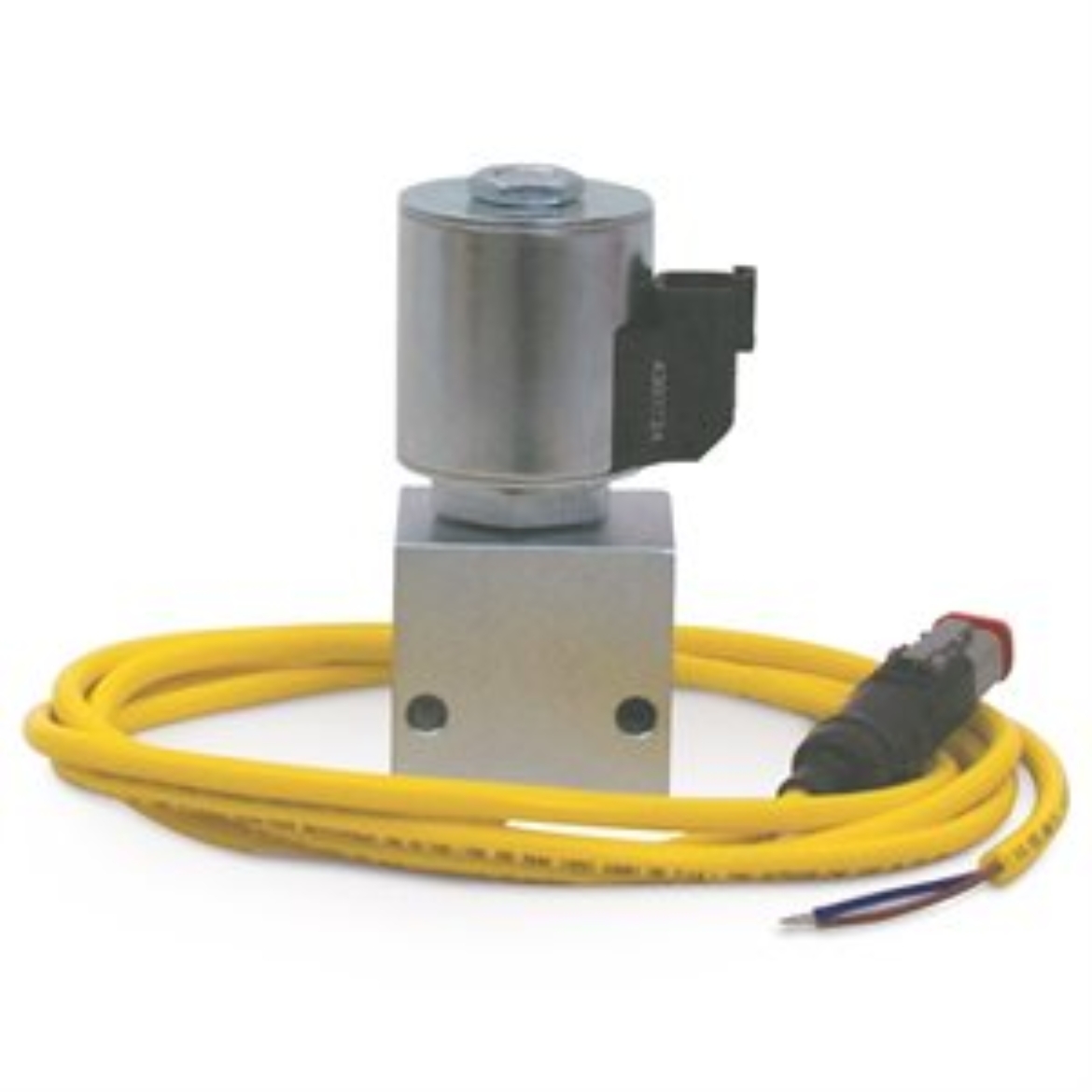

KIT, ZONE VALVE, 24VDC NC

Graco 24T296 General Accessories - Two-Way Valve, 24 VDC, Normally Closed, Deutsch Cable, 3500 psi

  • Designed to custom fit lubrication systems and control when sections or zones of the system will receive lubricant
  • Normally Closed
  • DC models meet typical application requirements


  • Amperage (A): 0.8
  • Compatible Material: Grease
  • Inlet Size (cm): 0.635
  • Inlet Size (in): 1/4
  • Inlet Size (mm): 6.35
  • Inlet Thread Type: NPT
  • IP Rating: IP69K
  • Maximum NLGI Grade: #2
  • Outlet Size (cm): 0.635
  • Outlet Size (in): 1/4
  • Outlet Size (mm): 6.35
  • Outlet Thread Type: NPT
  • Overall Height (cm): 9.779
  • Overall Height (in): 3.85
  • Overall Height (mm): 97.79
  • Overall Width (cm): 5.08
  • Overall Width (in): 2
  • Overall Width (mm): 50.8
  • Power Connection Type: Deutsch DT Series 2 Pin
  • Power Rating (W): 18.2
SKU: GG 24T296
Availability:
Price: $537.00
