Tip, Spray, FFLP (314)

GG FFLP314

RAC X FFLP TIP, SPRAY, (314)

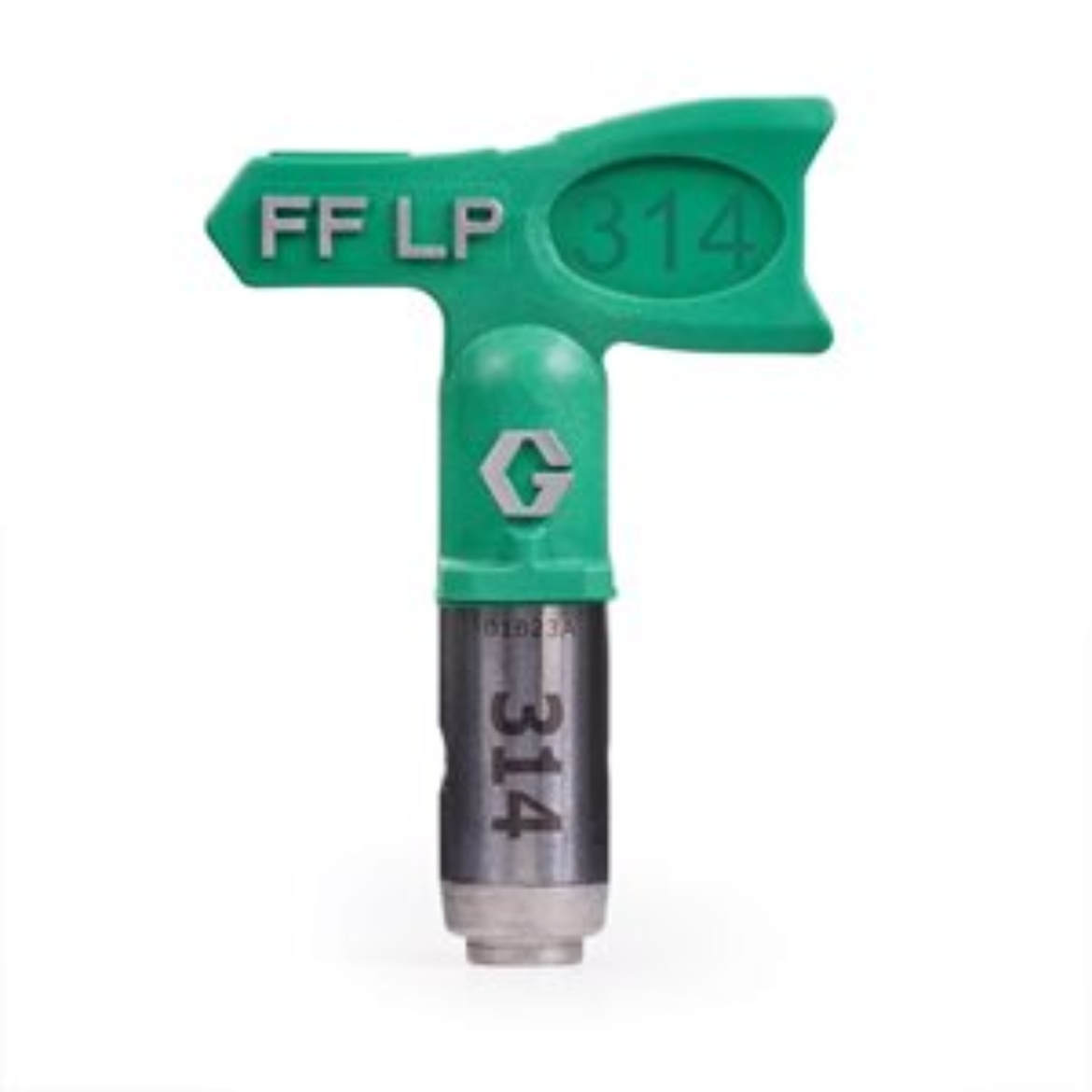

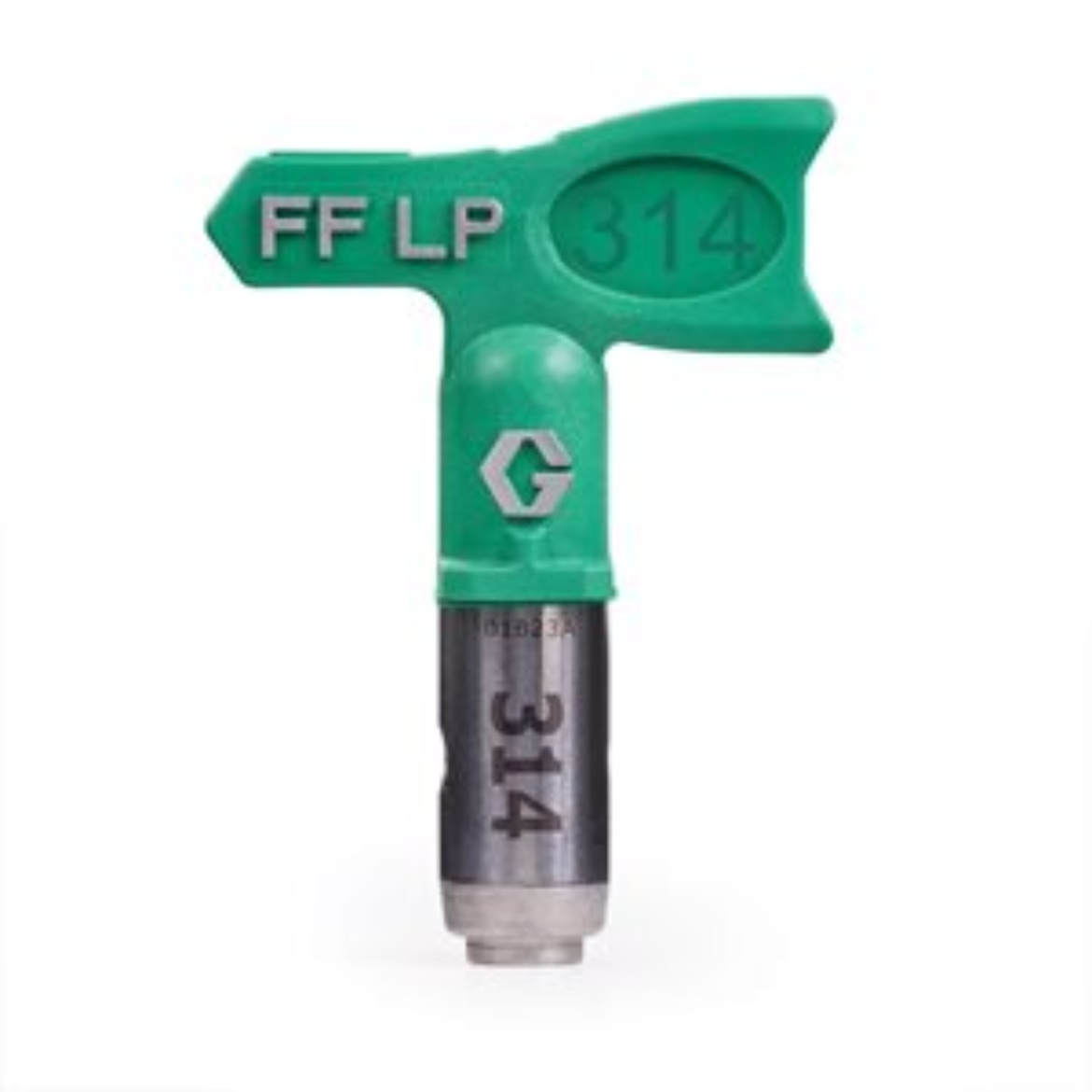

Graco FFLP314 Fine Finish Low Pressure RAC X FF LP SwitchTip, 314

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 314 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 6 to 8 inch Fan pattern and has a 0.014 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.

• Less Prep & Cleanup Time

  Less mess with less overspray

  Put the paint where you want it

• Easiest Pattern Overlap

  Softer spray fan pattern

  Easy to apply any material to any surfance

  Consistent blended finish quality

• Extended Life

  Spraying at half pressure doubles tip life

  Reduced sprayer maintenance - up to 2X life

• Best Tip on the Market

  Works with any airless sprayer

  Longest lasting Fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: FF LP SwitchTip

• Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 15
• Maximum Fan Width (in): 6
• Maximum Fan Width (mm): 203

• Maximum Flow Rate (GPM): 0.21
• Maximum Flow Rate (L/min): 0.79

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 6
• Minimum Fan Width (mm): 152

• Orifice Diameter (in): 0.014

• Pattern Size (in): 6 to 8
• Pattern Size (mm): 152.4 to 203.2
