GG 286207
RAC 5 TIP, SPRAY

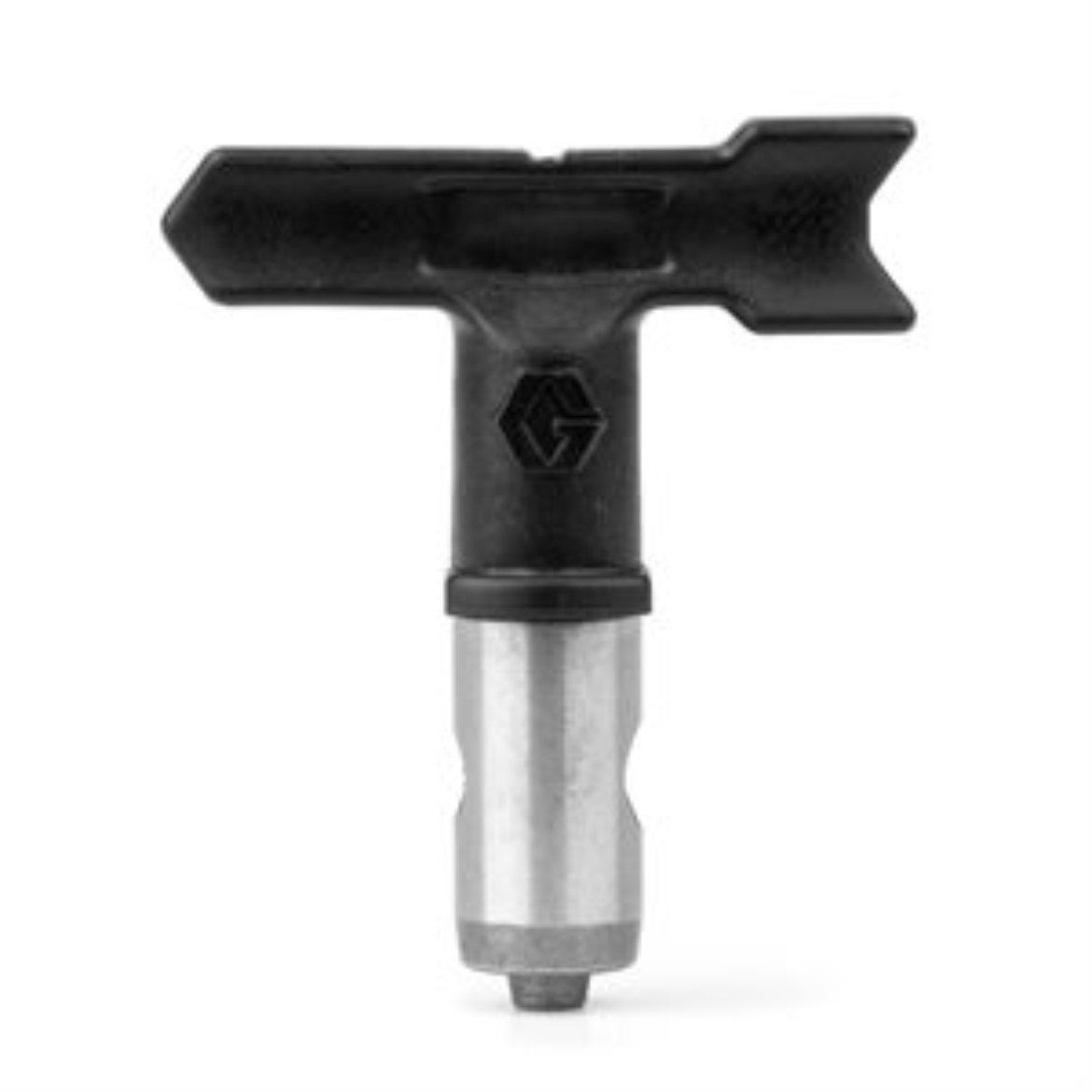

Graco 286207 RAC 5 SwitchTip, 207
The Reverse-A-Clean (RAC) 207 RAC 5 SwitchTip is designed for narrower surfaces and thinner materials. The 207 SwitchTip has a 0.007 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Clear Coating, Lacquer, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.05
- Maximum Flow Rate (L/min): 0.19
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.007
