Rac 5 Switch Tip .019

GG 286219

RAC 5 TIP, SPRAY

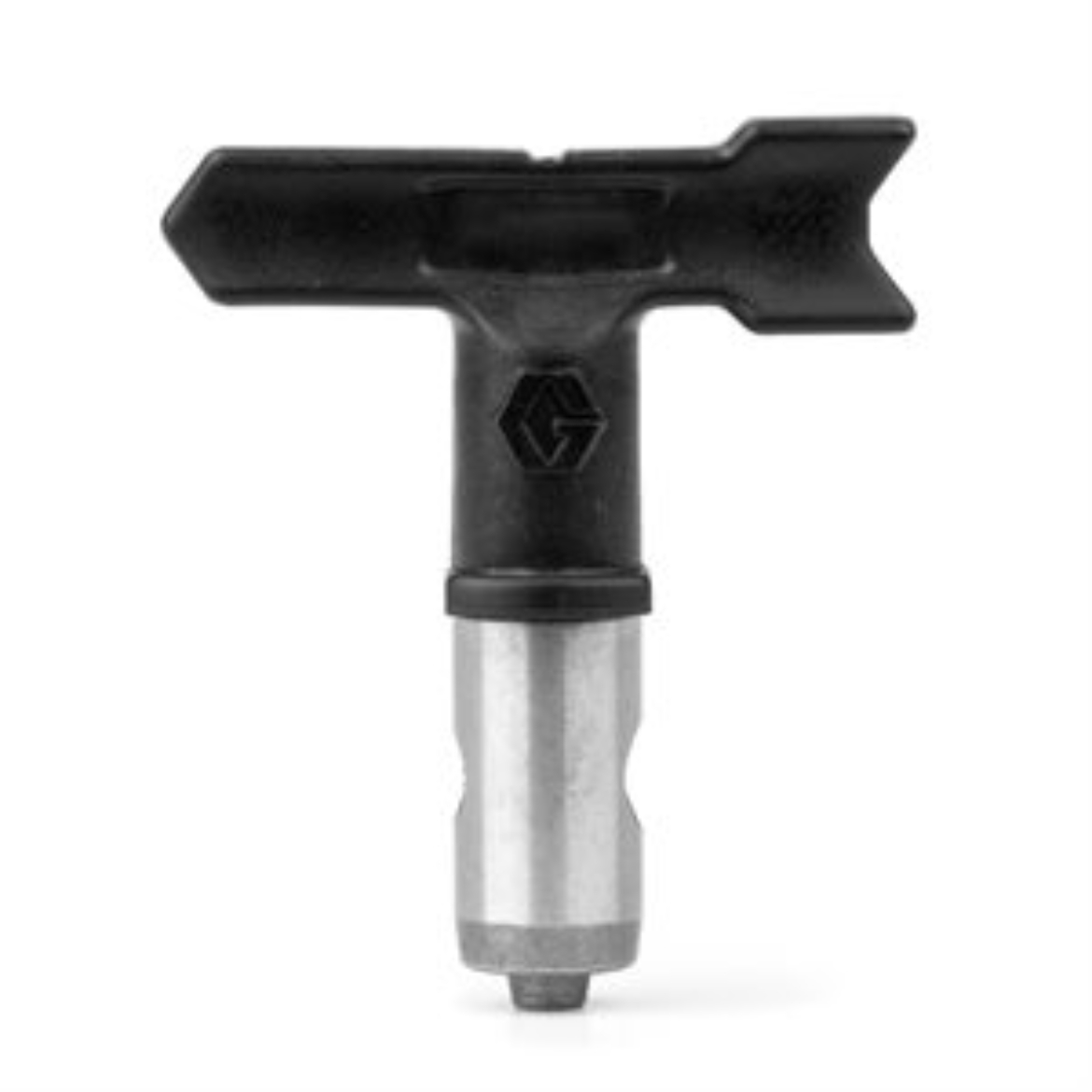

Graco 286219 RAC 5 SwitchTip, 219

The Reverse-A-Clean (RAC) 219 RAC 5 SwitchTip is designed for narrower surfaces and thick materials. The 219 SwitchTip has a 0.019 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.

• Most Widely Used Reversible Spray Tip on the Market (Black Handle)

  Used for residential and commercial applications

  Includes OneSeal for most common coatings

  Large selection of tip sizes available

  Easy to identify laser stamped tip size

  Solvent seal available when using extremely hot solvents

• Model: RAC 5
• Series: SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC 5 HandTite Tip Guard

• Maximum Fan Width (cm): 15.2
• Maximum Fan Width (in): 4
• Maximum Fan Width (mm): 152

• Maximum Flow Rate (GPM): 0.38
• Maximum Flow Rate (L/min): 1.44

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 4
• Minimum Fan Width (mm): 102

• Orifice Diameter (in): 0.019

• Pattern Size (in): 4 to 6
• Pattern Size (mm): 101.6 to 152.4
