GG FD1111
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTPT21

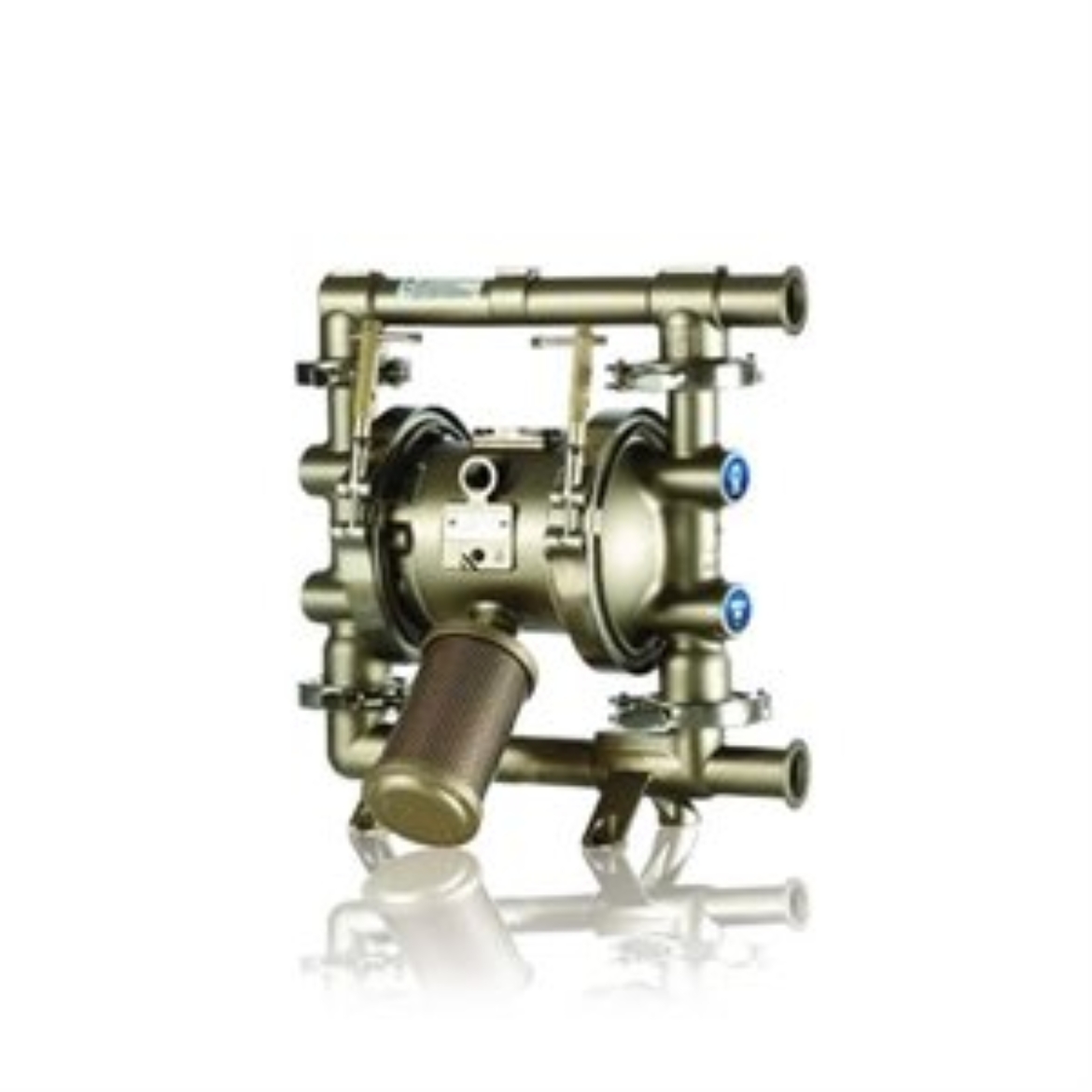

Graco FD1111 SaniForce 1040 S/S AODD Pump with Flange Connection, 316 S/S Seats, PTFE O-Rings, Balls & Diaphragms
Graco's SaniForce 1040 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco's dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
- 1.5 in (38 mm) Tri-clamp connection
- All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps
- Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Model: SaniForce
- Series: 1040
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE
- Fluid Inlet Size (cm): 3.81
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 38.1
- Fluid Outlet Size (cm): 3.81
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 38.1
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 50
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 256
- Maximum Flow Rate (GPM): 41
- Maximum Flow Rate (L/min): 151
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Operating Temperature ( degree C): 104
- Maximum Operating Temperature ( degree F): 220
- Maximum Solid Size (cm): 0.3175
- Maximum Solid Size (in): 0.125
- Maximum Solid Size (mm): 3.175
- Overall Height (in): 16.1
