Spray Guns - Automatic

View as Grid List

Sort by

Display items per page

Trophy Auto 14 X 11Conv

BB 3465-14CN-11S0

Trophy Auto 14 X 11Conv

$1,175.00

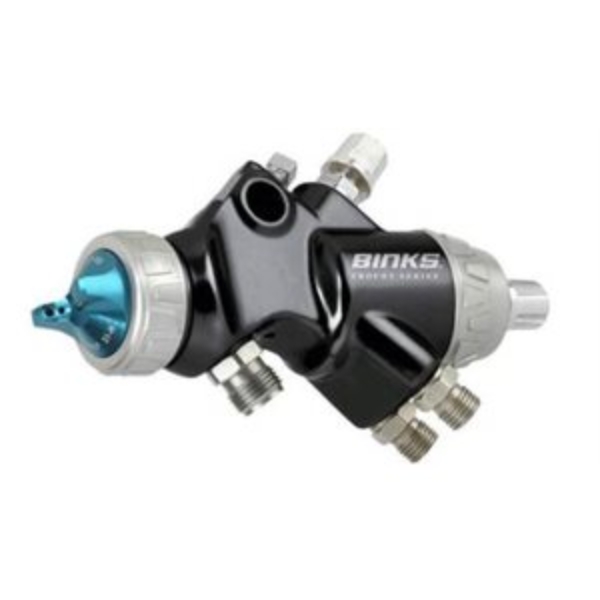

Trophy Auto 14 X 23Lvmp

BB 3465-14LV-23S0

Trophy Auto 14 X 23Lvmp

$1,175.00

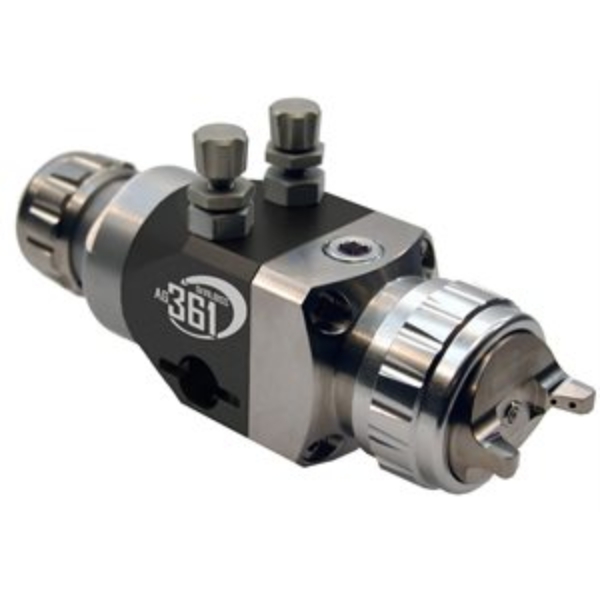

Auto Gun Kit (Ceramics)

DD AG361E-C67-18C-FR

Auto Gun Kit (Ceramics)

$1,529.00

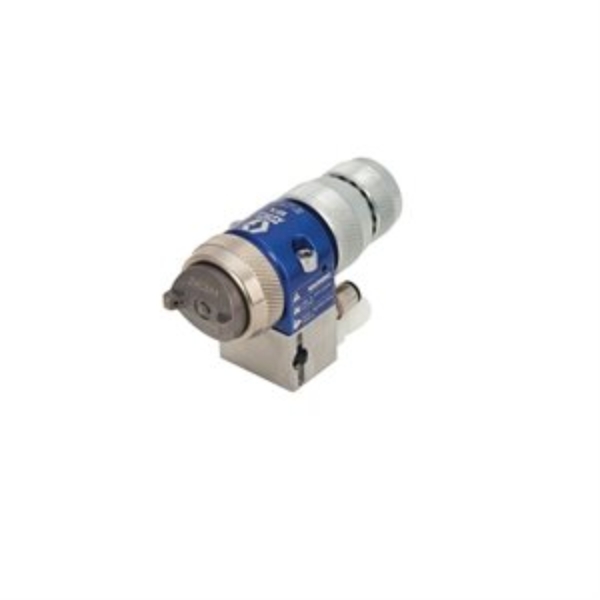

AIRPRO GUN, EFX, AIR BRUSH, .028

GG 24B875

AIRPRO GUN, EFX, AIR BRUSH, .028

AirPro EFX Auto Air Spray Gun with Manifold, Air Brush, 0.028 inch (0.7 mm) Nozzle, SST Tip, Indexing Fluid Adjust Knob The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications. Aircaps and nozzles deliver superior, precision spray performance Precision fluid adjustment with a micrometer-telescoping knob High wear components designed for abrasive materials Excellent fluid flow rate stability and repeatability

$2,560.00

GUN, AUTO, CONV, .030, ADJ

GG 25F167

GUN, AUTO, CONV, .030, ADJ

Stellair Automatic Air Spray Gun, Conventional, 0.030 in (0.8 mm) Nozzle for General Industry with fluid control knob Conventional air spray gun delivers stellar results as part of a robotic, reciprocator, flat line or other automated finishing system. Automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures. Conventional is the most widely used air spray method, producing Class A, automotive finish quality. General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure. Precise fluid flow control click knob with true zero set point ensures accurate paint thickness. Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving. One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime. Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

$1,220.00

GUN, AUTO, HVLP TRIM, .042, ADJ

GG 25F206

GUN, AUTO, HVLP TRIM, .042, ADJ

Graco 25F206 Stellair Automatic Air Spray Gun, HVLP Trim, 0.042 in (1.1 mm) Nozzle for General Applications with fluid control knob

High volume low pressure (HVLP) air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.

Application: Automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.

High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
Trim air cap produces a well-defined edge with minimal overspray that’s required for edges, trim, dielectric coating and other selective applications.
Precise fluid flow control click knob with true zero set point ensures accurate paint thickness.
One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

Application: General
Applicator Type: Automatic

Body Material: Metal
Compatible Material: Dielectrics, Fast-Set, High Solids, Solvent borne Paints, Stains, UV Coating, Waterborne
Fluid Adjustment Knob: Clicking
Fluid Orifice Size (in): 0.042
Fluid Orifice Size (mm): 1.10
Gun Model: Stellair
Gun Series: Automatic
Gun Type: HVLP Gun
Gun Weight (g): 430
Gun Weight (lb): 1
Manifold Type: Not Included
Maximum Air Pressure (bar): 7
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Flow Rate (oz/min): 14
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Working Pressure (bar): 21
Maximum Fluid Working Pressure (MPa): 2.1
Maximum Fluid Working Pressure (psi): 300
Minimum Air Inlet Pressure (bar): 3.4
Minimum Air Inlet Pressure (MPa): 0.34
Minimum Air Inlet Pressure (psi): 50
Needle Tip Material: PEEK
Nozzle Size (in): 0.042
Nozzle Size (mm): 1.10
Overall Height (in): 1.9
Overall Height (mm): 48.3
Overall Length (in): 5.9
Overall Length (mm): 150
Overall Width (in): 1.63
Overall Width (mm): 41.4

$1,260.00

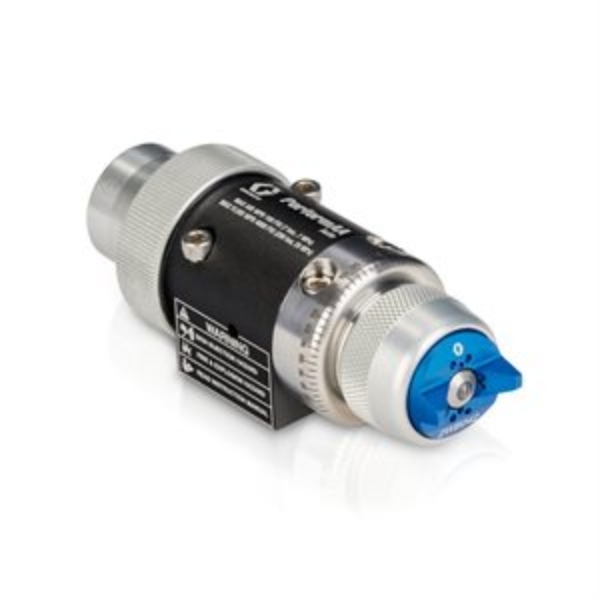

PERFORMAA GUN, AA, AUTO, WB

GG 26B575

PERFORMAA GUN, AA, AUTO, WB

Graco 26B575 PerformAA Auto Air Assist Spray Gun with Waterborne (WB) air cap

Automatic air-assisted spray gun delivers performance above all when spraying waterborne material, water-based coating.

Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying waterborne coatings of water-based material.
Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.

Series: Auto

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Applicator Type: Automatic
Bleed Type: Bleeder
Body Material: Metal
Compatible Material: Latex, Plural Component Materials, Polyurethane, Urethane, UV Coating, Varnish, Waterborne, Latex Paint
Fluid Inlet Size (cm): 0.635
Fluid Inlet Size (in): 1/4
Fluid Inlet Size (mm): 6.35
Fluid Inlet Thread Type: NPSM
Gun Activation: Automatic
Gun Type: Air-Assisted Gun
Gun Weight (g): 544
Gun Weight (kg): 0.544
Gun Weight (lb): 1.2
Gun Weight (oz): 19.2
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (MPa): 0.7
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Fluid Pressure (bar): 280
Maximum Fluid Pressure (kPa): 28000
Maximum Fluid Pressure (MPa): 28
Maximum Fluid Pressure (psi): 4000
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 280
Maximum Fluid Pressure (kPa): 28000
Maximum Fluid Pressure (MPa): 28
Maximum Fluid Pressure (psi): 4000
Maximum Fluid Temperature (°C): 49
Maximum Fluid Temperature (°F): 120
Overall Height (cm): 7.6
Overall Height (in): 3
Overall Height (mm): 76.2
Overall Length (cm): 13
Overall Length (in): 5.3
Overall Length (mm): 135
Overall Width (cm): 5.1
Overall Width (in): 2
Overall Width (mm): 50.8
Product Type: Spray Gun
Purge Method: Air

$1,500.00

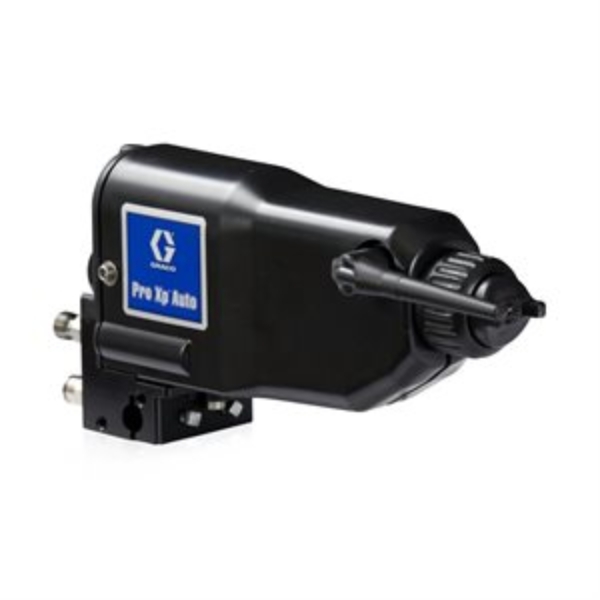

PRO XP GUN, ES, AUTO REAR, SMART, WBX

GG LA1M28

PRO XP GUN, ES, AUTO REAR, SMART, WBX

Pro Xp Auto Waterborne Air Spray Electrostatic Spray Gun, external charging, smart model, with rear manifold, 60 kV Pro Xp Auto waterborne air spray guns are ideal for low pressure spraying without an isolation system. 60 kV power supply and internal power so there’s no electrical cord to damage or replace. Versatile product line gives you more models to choose from and greater spraying flexibility with air spray and waterborne guns Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting 60 kV power supply and internal power so there’s no electrical cord to worry about damaging or replacing Higher transfer efficiency equals less waste, saving you money on material Durable components reduce cost of ownership, supported by a three year warranty

$15,380.00

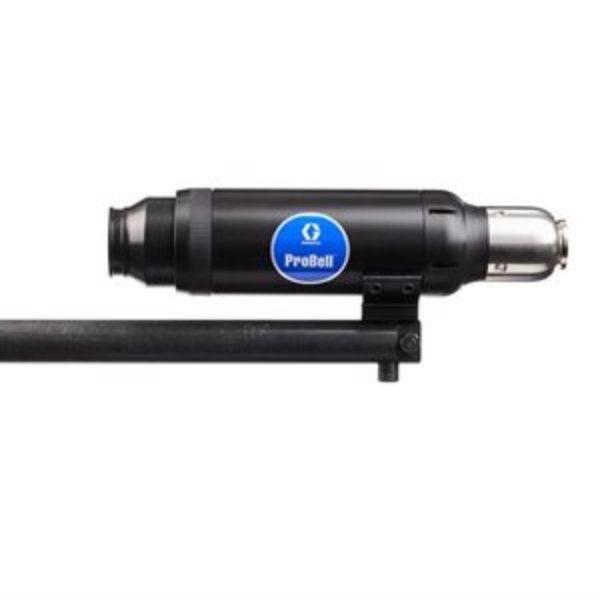

APPLICATOR, BELL, 50MM, 1.5

GG R5A160

APPLICATOR, BELL, 50MM, 1.5

ProBell Applicator, Standard, Solventborne, 50 mm bell cup, 1.5 mm nozzle Combining rotary bell atomization with electrostatic technology is proven to provide up to 95 percent transfer efficiency. This ProBell rotary atomizer fits on a solid wrist robot, reciprocator or fixed mount. ProBell delivers the spray performance, pattern and finish quality needed to exceed in any industry. Applications for which the rotary bell atomizer has proven itself include Tier 1 automotive, architectural panels and extruded aluminum, wood products, and more. System integration uses existing PLC (programmable logic controller) or new installation. Coiled fluid tube controls electrostatic resistivity for a wide range of material. Aluminum bell cup with serrated edge has equally spaced axial grooves that act as channels for paint flow, producing uniform particles. This makes it ideal for atomizing difficult material like clear coats.

$27,680.00
