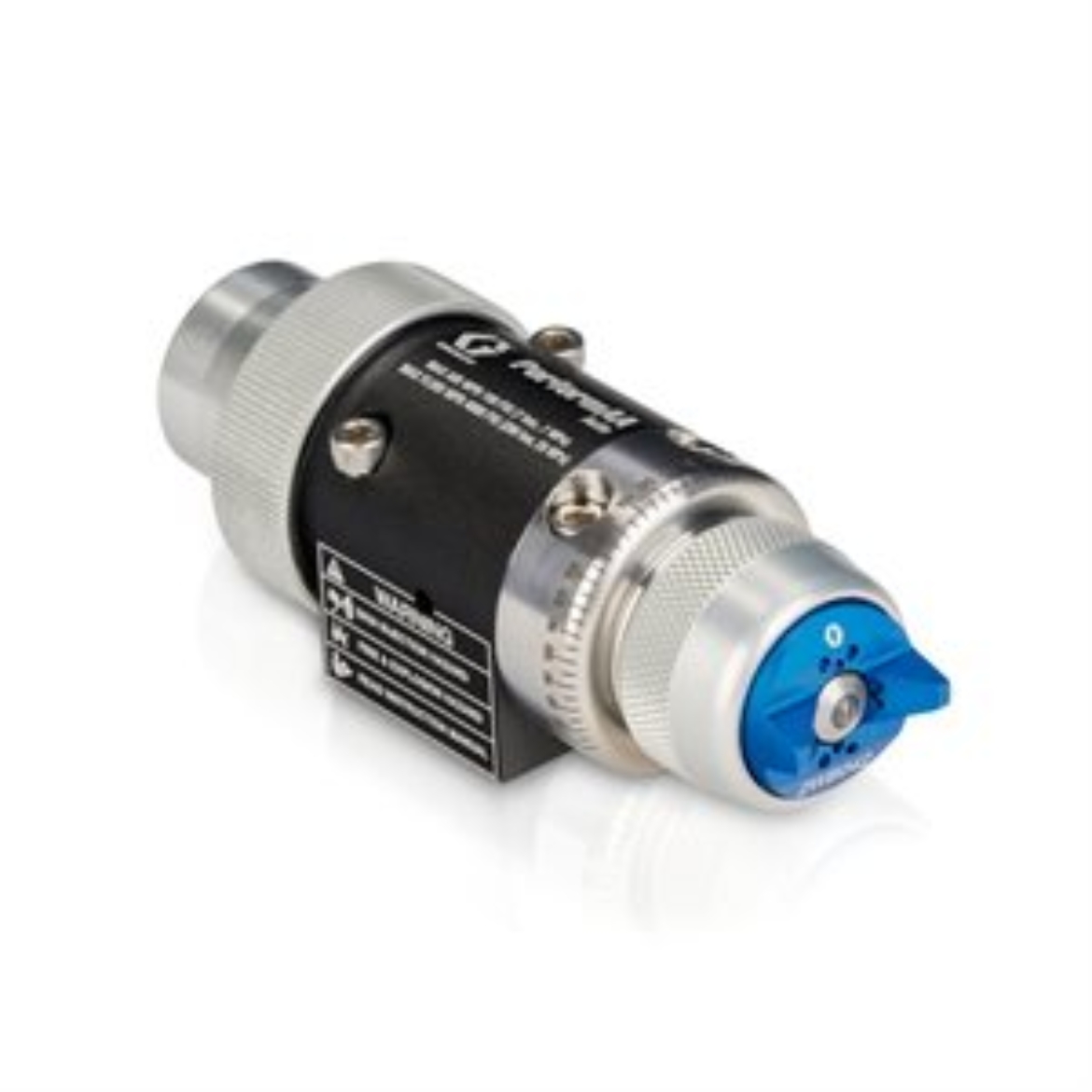

PerformAA Auto Air Assist Spray Gun With Waterborne Air Cap

GG 26B575

PERFORMAA GUN, AA, AUTO, WB

Graco 26B575 PerformAA Auto Air Assist Spray Gun with Waterborne (WB) air cap

Automatic air-assisted spray gun delivers performance above all when spraying waterborne material, water-based coating.

• Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
• Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying waterborne coatings of water-based material.
• Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.

• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Metal

• Compatible Material: Latex, Plural Component Materials, Polyurethane, Urethane, UV Coating, Varnish, Waterborne, Latex Paint

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Automatic
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 544
• Gun Weight (kg): 0.544
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.2

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Overall Height (cm): 7.6
• Overall Height (in): 3
• Overall Height (mm): 76.2
• Overall Length (cm): 13
• Overall Length (in): 5.3
• Overall Length (mm): 135
• Overall Width (cm): 5.1
• Overall Width (in): 2
• Overall Width (mm): 50.8

• Product Type: Spray Gun

• Purge Method: Air
