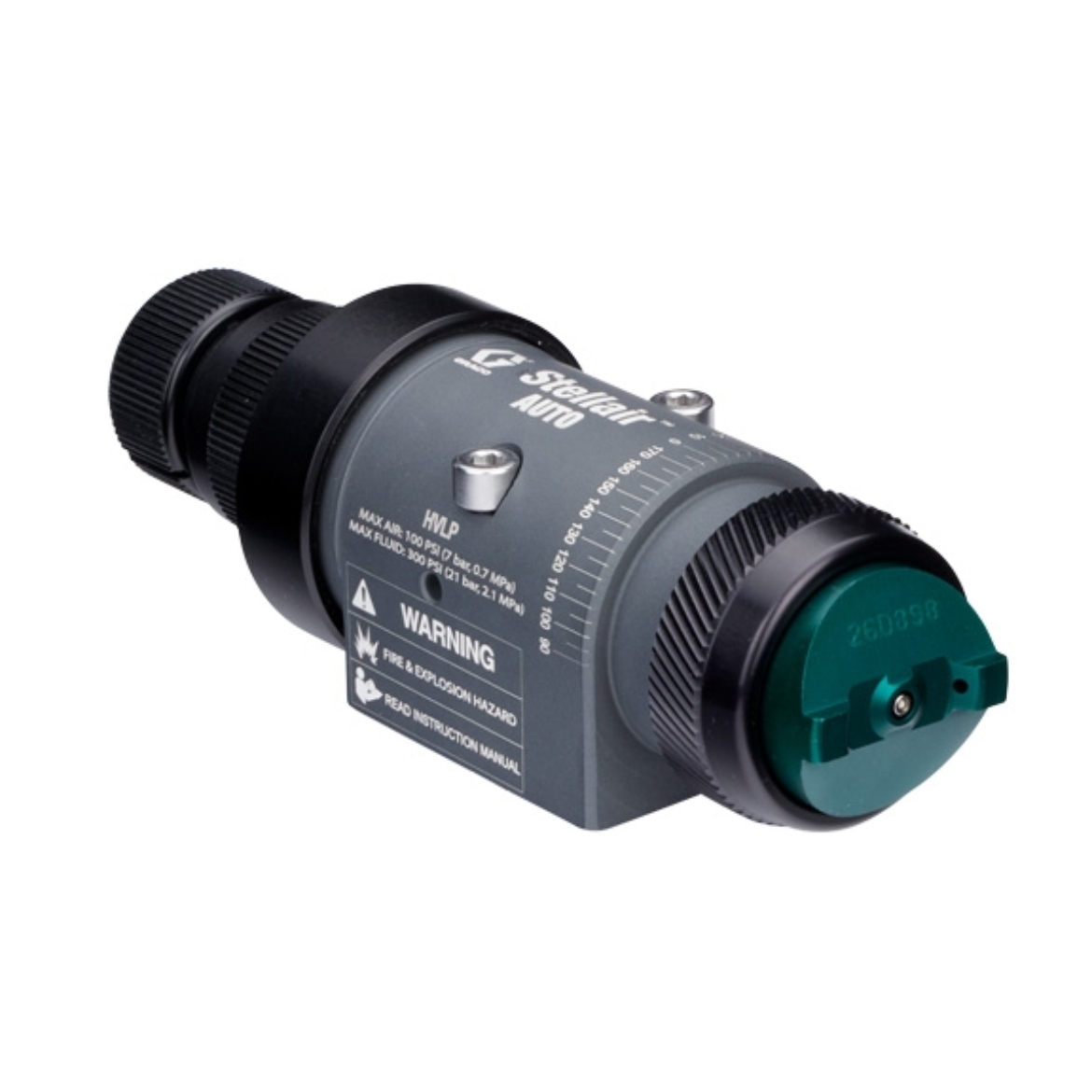

Stellair automatic air spray gun, HVLP Trim, 0.042 in (1.1 mm) nozzle w/Fluid Knob

GG 25F206

GUN, AUTO, HVLP TRIM, .042, ADJ

Graco 25F206 Stellair Automatic Air Spray Gun, HVLP Trim, 0.042 in (1.1 mm) Nozzle for General Applications with fluid control knob

High volume low pressure (HVLP) air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.

• High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
• Trim air cap produces a well-defined edge with minimal overspray that's required for edges, trim, dielectric coating and other selective applications.
• Precise fluid flow control click knob with true zero set point ensures accurate paint thickness.
• One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
• Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

• Application: General
• Applicator Type: Automatic

• Body Material: Metal

• Compatible Material: Dielectrics, Fast-Set, High Solids, Solvent borne Paints, Stains, UV Coating, Waterborne

• Fluid Adjustment Knob: Clicking
• Fluid Orifice Size (in): 0.042
• Fluid Orifice Size (mm): 1.10

• Gun Model: Stellair
• Gun Series: Automatic
• Gun Type: HVLP Gun
• Gun Weight (g): 430
• Gun Weight (lb): 1

• Manifold Type: Not Included

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (oz/min): 14

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Working Pressure (bar): 21
• Maximum Fluid Working Pressure (MPa): 2.1
• Maximum Fluid Working Pressure (psi): 300

• Minimum Air Inlet Pressure (bar): 3.4
• Minimum Air Inlet Pressure (MPa): 0.34
• Minimum Air Inlet Pressure (psi): 50

• Needle Tip Material: PEEK
• Nozzle Size (in): 0.042
• Nozzle Size (mm): 1.10

• Overall Height (in): 1.9
• Overall Height (mm): 48.3
• Overall Length (in): 5.9
• Overall Length (mm): 150
• Overall Width (in): 1.63
• Overall Width (mm): 41.4
