Spray Guns - Automatic

GG 206660

VALVE, SPRAY, AUTO

Graco 206660 Automatic Spray Gun Valve, 1/4 npt inlet, 1/8 npt outlet

• Automatic Spray Gun Valve

  • Automate your system with this robust pneumatically operated valve
  • Mount easily to 1/2in (12.7mm) rod using built-in set screw
  • Stainless steel wetted materials are compatible with catalyst, waterborne, and other finishing materials
  • Easily install a wide variety of flat tips for many spraying options
  • Adjustment knob for fine tuning your process

GG 24B875

AIRPRO GUN, EFX, AIR BRUSH, .028

AirPro EFX Auto Air Spray Gun with Manifold, Air Brush, 0.028 inch (0.7 mm) Nozzle, SST Tip, Indexing Fluid Adjust KnobThe AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.Aircaps and nozzles deliver superior, precision spray performancePrecision fluid adjustment with a micrometer-telescoping knobHigh wear components designed for abrasive materialsExcellent fluid flow rate stability and repeatability

GG 24C932

EP GUN,250,031,AUTO

Graco 24C932 Auto EP Gun with 0.031 in Orifice Size

The Graco EP Pour Gun is truly an innovative advancement for the polyurethane processing industry. Here's why. First of all, it's engineered with technology that allows for on-site rebuilds. Which means significantly less downtime and no more expensive backup mixheads. Second, it's affordable, with a low initial investment. Best of all, the Graco EP Pour Gun provides accurate on-ratio dispensing and handles a variety of materials.

Application: Polyurethane mixhead for open pour and closed-mold injection applications

• Low initial investment

• Easy do-it-yourself mixhead rebuilds

• Delivers repeatable, accurate shots

  Accurate, on-ratio dispensing

• Lightweight

• Responsive trigger delivers repeatable, accurate shots

• Offers both manual and automated application modes

• For open pour applications and closed-mold injection

• Compatible with Graco HFR Metering System, Reactor IP-25 and Reactor IP-40

• Application: Rigid Polyurethane, Flexible Polyurethane

GG 25F167

GUN, AUTO, CONV, .030, ADJ

Stellair Automatic Air Spray Gun, Conventional, 0.030 in (0.8 mm) Nozzle for General Industry with fluid control knobConventional air spray gun delivers stellar results as part of a robotic, reciprocator, flat line or other automated finishing system.Automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.Conventional is the most widely used air spray method, producing Class A, automotive finish quality.General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure.Precise fluid flow control click knob with true zero set point ensures accurate paint thickness.Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

GG 25F206

GUN, AUTO, HVLP TRIM, .042, ADJ

Stellair Automatic Air Spray Gun, HVLP Trim, 0.042 in (1.1 mm) Nozzle for General Industry with fluid control knobHigh volume low pressure (HVLP) air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.Automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.Trim air cap produces a well-defined edge with minimal overspray that’s required for edges, trim, dielectric coating and other selective applications.Precise fluid flow control click knob with true zero set point ensures accurate paint thickness.Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

GG 26B575

PERFORMAA GUN, AA, AUTO, WB

Graco 26B575 PerformAA Auto Air Assist Spray Gun with Waterborne (WB) air cap

Automatic air-assisted spray gun delivers performance above all when spraying waterborne material, water-based coating.

• Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
• Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying waterborne coatings of water-based material.
• Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.

• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Metal

• Compatible Material: Latex, Plural Component Materials, Polyurethane, Urethane, UV Coating, Varnish, Waterborne, Latex Paint

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Automatic
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 544
• Gun Weight (kg): 0.544
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.2

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Overall Height (cm): 7.6
• Overall Height (in): 3
• Overall Height (mm): 76.2
• Overall Length (cm): 13
• Overall Length (in): 5.3
• Overall Length (mm): 135
• Overall Width (cm): 5.1
• Overall Width (in): 2
• Overall Width (mm): 50.8

• Product Type: Spray Gun

• Purge Method: Air

GG 26C624

Al Auto Gun, Airless, Xhd, 5000Psi

GG LA1M28

PRO XP GUN, ES, AUTO REAR, SMART, WBX

Pro Xp Auto Waterborne Air Spray Electrostatic Spray Gun, external charging, smart model, with rear manifold, 60 kVPro Xp Auto waterborne air spray guns are ideal for low pressure spraying without an isolation system. 60 kV power supply and internal power so there’s no electrical cord to damage or replace.Versatile product line gives you more models to choose from and greater spraying flexibility with air spray and waterborne gunsManifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting60 kV power supply and internal power so there’s no electrical cord to worry about damaging or replacingHigher transfer efficiency equals less waste, saving you money on materialDurable components reduce cost of ownership, supported by a three year warranty

GG R5A160

APPLICATOR, BELL, 50MM, 1.5

ProBell Applicator, Standard, Solventborne, 50 mm bell cup, 1.5 mm nozzleCombining rotary bell atomization with electrostatic technology is proven to provide up to 95 percent transfer efficiency. This ProBell rotary atomizer fits on a solid wrist robot, reciprocator or fixed mount.ProBell delivers the spray performance, pattern and finish quality needed to exceed in any industry. Applications for which the rotary bell atomizer has proven itself include Tier 1 automotive, architectural panels and extruded aluminum, wood products, and more.System integration uses existing PLC (programmable logic controller) or new installation.Coiled fluid tube controls electrostatic resistivity for a wide range of material.Aluminum bell cup with serrated edge has equally spaced axial grooves that act as channels for paint flow, producing uniform particles. This makes it ideal for atomizing difficult material like clear coats.

IW 5438B

Wa101-101P Automatic Spray Gun

IW 5440W-S1

Automatic Spray Gun, Special Build W/Adj

IW 7601

Automatic Gun, COG-200-18

IW 7602

Automatic Gun, COG-A200-12

RR 82665-41310121

Ransflex RFX Two Gun Electrostatic Package

BB 252-3975

EXT 60 Inch AG362 Auto HCVT-Type WITH GUN

BB 3465-12HV-39S0

Trophy Auto 1.2 X 39Hvlp

BB 3465-14CN-14V0

Trophy Auto 14X14Conv-Vt

BB 3465-14HV-39S0

Trophy Auto 1.4 X 39Hvlp

BB 3465-14LV-24S0

Trophy Auto 16 X 24Lvmp

BB 3465-14LV-25S0

Trophy Auto 1.4 X 25Lvmp

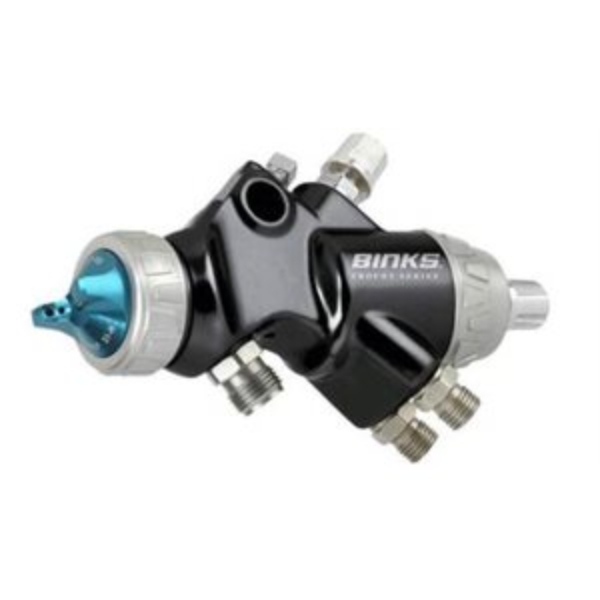

BB 3465-18CN-11S0

Trophy Auto 18 X 11Conv

BB 3465-85LV-22S0

Trophy Auto 85 X 22Lvmp

BB 6700-0000-5

550 Auto Airless Gun

BB AG362U-HV30-05-L

HVLP Recirc Auto Gun Kit

BB T2AGPV-A78-807MT2-FX

T2AGPV AUTOMATIC SPRAY GUN
