Spray Guns - Automatic

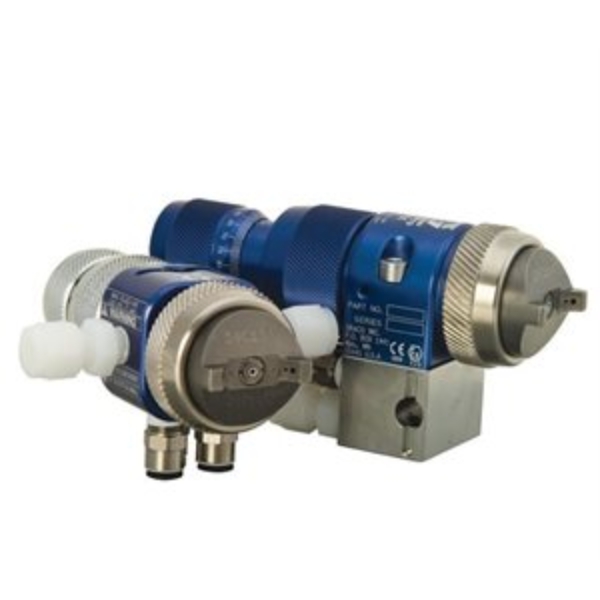

AIRPRO GUN, EFX, HITE, .039, RND
GG 24B885
GG 24B885
AIRPRO GUN, EFX, HITE, .039, RND
Graco 24B885 AirPro EFX Auto Air Spray Gun, Direct Connect, HiTEch, 0.039 inch (1.0 mm) Nozzle, Carbide Tip, Ultra Precision Fluid Adjust Knob
The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.
- Aircaps and nozzles deliver superior, precision spray performance
- Precision fluid adjustment with a micrometer-telescoping knob
- High wear components designed for abrasive materials
- Model: AirPro
- Series: EFX
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Stainless Steel
- Compatible Material: Ceramics, Enamel, Fast-Set, High Solids, Solvent borne, Waterborne
- Component Type: Single Component
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Ultra Precision
- Fluid Orifice Size (cm): 0.10
- Fluid Orifice Size (in): 0.039
- Fluid Orifice Size (mm): 1
- Gun Activation: Automatic
- Gun Type: HiTech
- Gun Weight (kg): 0.27
- Gun Weight (lb): 0.6
- Includes: Air Cap with Pin, Needle/Nozzle Kit, Fluid Adjustment Knob
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Flow Rate @ PSI (oz/min): 6.8
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Minimum Flow Rate @ PSI (oz/min): 0.7
- Needle Tip Material: Carbide
- Overall Height (cm): 2.2
- Overall Height (in): 1
- Overall Height (mm): 25
- Overall Length (cm): 12
- Overall Length (in): 4.9
- Overall Length (mm): 124
- Overall Width (cm): 3.5
- Overall Width (in): 1
- Overall Width (mm): 25
- Purge Method: Air
$4,590.00

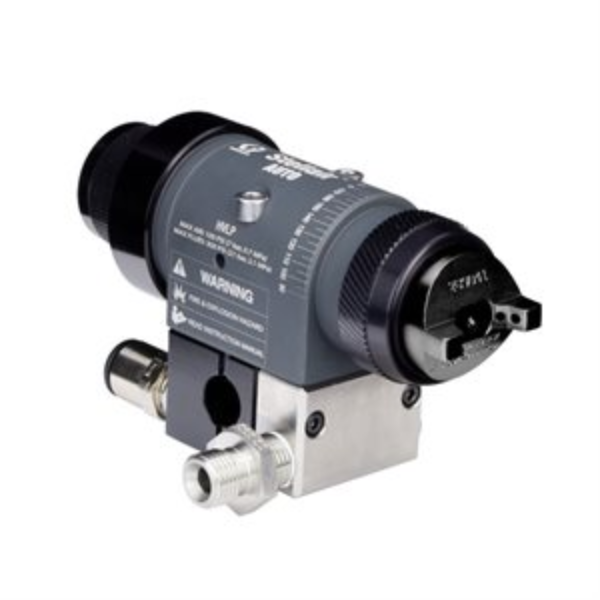

GUN, AUTO, HVLP .055, MANIFOLD
GG 25F214
GG 25F214
GUN, AUTO, HVLP .055, MANIFOLD
Stellair Automatic Air Spray Gun, HVLP, 0.055 in (1.4 mm) Nozzle for General Industry with side inlet manifold (imperial) High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth. Automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures. High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations. General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure. Two-screw manifold to gun connection makes installation easy. Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving. One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime. Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
$1,530.00
PRO XP GUN, ES, AUTO REAR, SMART
GG LA1M10
GG LA1M10
PRO XP GUN, ES, AUTO REAR, SMART
Graco LA1M10 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Smart, Rear Manifold, 1.5 mm (0.055 in) Nozzle, Standard Coating
Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for low pressure, high quality spraying.
- Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
- Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
- 85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
- Durable components reduce cost of ownership, supported by a three year warranty
- Model: Pro Xp
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Automatic
- Coating Type: Standard
- Compatible Paint Type: Solvent borne
- Display Type: Smart
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- For Use With: Pro Xp Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 1197
- Gun Weight (kg): 1.2
- Gun Weight (lb): 2.64
- Gun Weight (oz): 42.24
- Manifold Type: Rear
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 3
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 26.92
- Overall Length (in): 10.6
- Overall Length (mm): 269.2
$13,630.00
PRO XP GUN, ES, AUTO REAR, SMART, HC
GG LA1M16
GG LA1M16
PRO XP GUN, ES, AUTO REAR, SMART, HC
Graco LA1M16 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Smart, Rear Manifold, 1.5 mm (0.055 in) Nozzle, High Conductive/High Wear
Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for low pressure, high quality spraying.
- Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
- Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
- 85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
- Durable components reduce cost of ownership, supported by a three year warranty
- Model: Pro Xp
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, High Conductivity, High Wear
- Applicator Type: Automatic
- Coating Type: High Conductivity
- Compatible Paint Type: High-Conductivity
- Display Type: Smart
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- For Use With: Pro Xp Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 1197
- Gun Weight (kg): 1.2
- Gun Weight (lb): 2.64
- Gun Weight (oz): 42.24
- Manifold Type: Rear
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 3
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 26.92
- Overall Length (in): 10.6
- Overall Length (mm): 269.2
$16,020.00

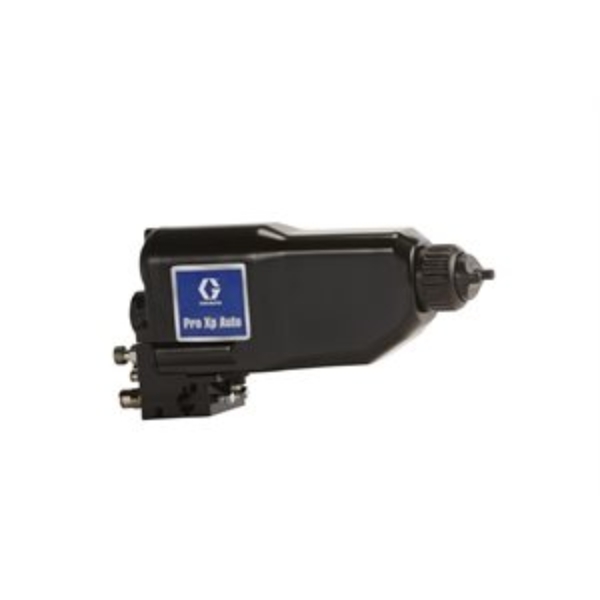

PRO XP GUN, ES, AUTO BOTTOM, SMT, HC
GG LA2M16
GG LA2M16
PRO XP GUN, ES, AUTO BOTTOM, SMT, HC
Graco LA2M16 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Smart, Rear Manifold, 1.5 mm (0.055 in) Nozzle, Standard Coating
Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for low pressure, high quality spraying.
- Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
- Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
- 85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
- Durable components reduce cost of ownership, supported by a three year warranty
- Model: Pro Xp
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Automatic
- Coating Type: Standard
- Compatible Paint Type: High-Conductivity
- Display Type: Smart
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- For Use With: Pro Xp Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 1197
- Gun Weight (kg): 1.2
- Gun Weight (lb): 2.64
- Gun Weight (oz): 42.24
- Manifold Type: Rear
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 3
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 25.91
- Overall Length (in): 10.2
- Overall Length (mm): 259.1
$14,130.00

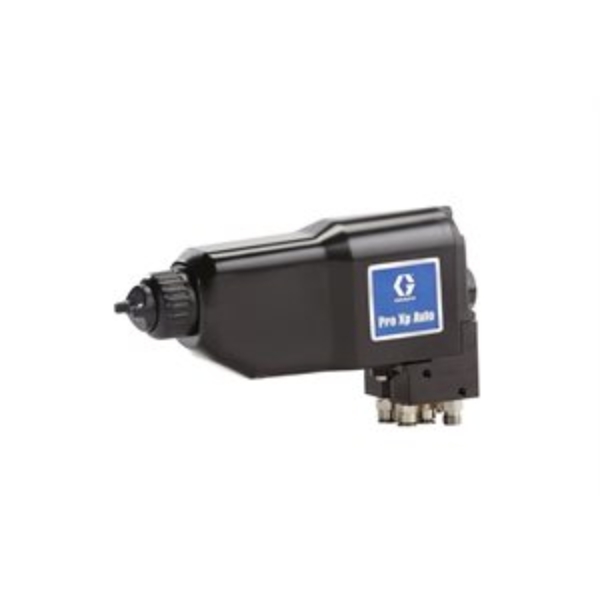

PRO XP GUN, ES, AUTO BOTTOM
GG LA2T10
GG LA2T10
PRO XP GUN, ES, AUTO BOTTOM
Graco LA2T10 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Standard, Bottom Manifold, 1.5 mm (0.055 in) Nozzle, Standard Coating
Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Standard gun models always run at 85 kV power and include an alternator speed indicator to display electrostatic performance. Ideal for low pressure, high quality spraying.
- Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
- Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
- 85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
- Durable components reduce cost of ownership, supported by a three year warranty
- Model: Pro Xp
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Automatic
- Coating Type: Standard
- Compatible Paint Type: Solvent borne
- Display Type: Standard
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- For Use With: Pro Xp Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 1197
- Gun Weight (kg): 1.2
- Gun Weight (lb): 2.64
- Gun Weight (oz): 42.24
- Manifold Type: Bottom
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 3
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 25.91
- Overall Length (in): 10.2
- Overall Length (mm): 259.1
$12,610.00

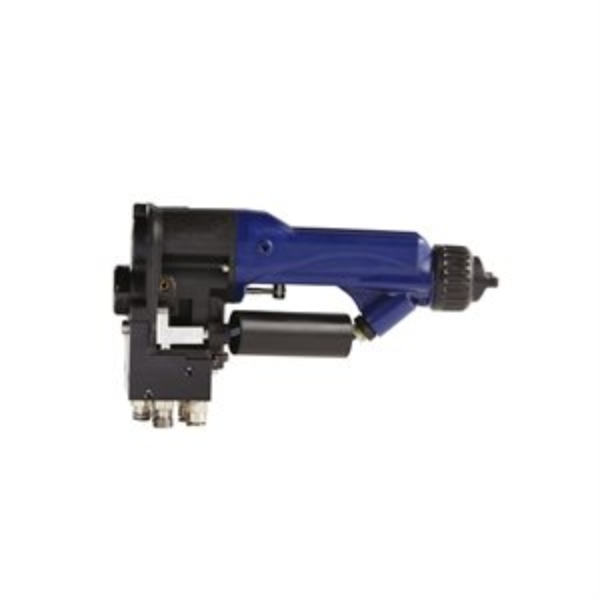

PRO XP GUN, ES, AUTO BOTTOM, HC
GG LA2T16
GG LA2T16
PRO XP GUN, ES, AUTO BOTTOM, HC
Graco LA2T16 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Standard, Bottom Manifold, 1.5 mm (0.055 in) Nozzle, High Conductive/High Wear
Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Standard gun models always run at 85 kV power and include an alternator speed indicator to display electrostatic performance. Ideal for low pressure, high quality spraying.
- Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
- Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
- 85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
- Durable components reduce cost of ownership, supported by a three year warranty
- Model: Pro Xp
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, High Conductivity, High Wear
- Applicator Type: Automatic
- Coating Type: High Conductivity
- Compatible Paint Type: High-Conductivity
- Display Type: Standard
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- For Use With: Pro Xp Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 1197
- Gun Weight (kg): 1.2
- Gun Weight (lb): 2.64
- Gun Weight (oz): 42.24
- Manifold Type: Bottom
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 3
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 25.91
- Overall Length (in): 10.2
- Overall Length (mm): 259.1
$14,650.00
EXT 60 Inch AG362 Auto HCVT-Type WITH GUN
BB 252-3975
BB 252-3975
EXT 60 Inch AG362 Auto HCVT-Type WITH GUN
$4,438.00
Ag361 Hvlp/Tt Units 10 Less Air Cap
DD AG361-HVTE-10
DD AG361-HVTE-10
Ag361 Hvlp/Tt Units 10 Less Air Cap
$1,175.00
Ag362 Conv Auto Spray Guns Usa Only
DD AG362-C3-10-S
DD AG362-C3-10-S
Ag362 Conv Auto Spray Guns Usa Only
$1,574.00
Ag362 Petite Recirc Auto Gun Kit
DD AG362PU-90HV-10-LM
DD AG362PU-90HV-10-LM
Ag362 Petite Recirc Auto Gun Kit
$2,039.00
Ag362 Trans-Tech 1.4mm With Recirculating Screw Manifold
DD AG362-TE40-14-T
DD AG362-TE40-14-T
Ag362 Trans-Tech 1.4mm With Recirculating Screw Manifold
$1,574.00
Agmdpro Conventional W/1.4Mm Plastic
DD AGMDPRO-1000-14P
DD AGMDPRO-1000-14P
Agmdpro Conventional W/1.4Mm Plastic
$2,803.00
Recirc Gun, High Effeciancy
DD AGMDPROU-TE40-12
DD AGMDPROU-TE40-12
Recirc Gun, High Effeciancy
$2,914.00
