Spray Guns - Automatic

DD AG361-C1-085

Ag361 Conv Auto Spray Gun

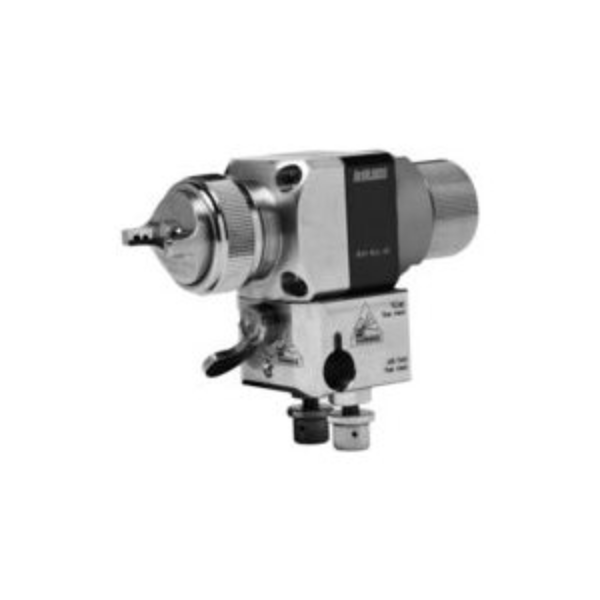

DD CMAX-B10-M-507

Compact Auto-X HVLP Gun 1.0mm repl by AG362-HV30-10-L

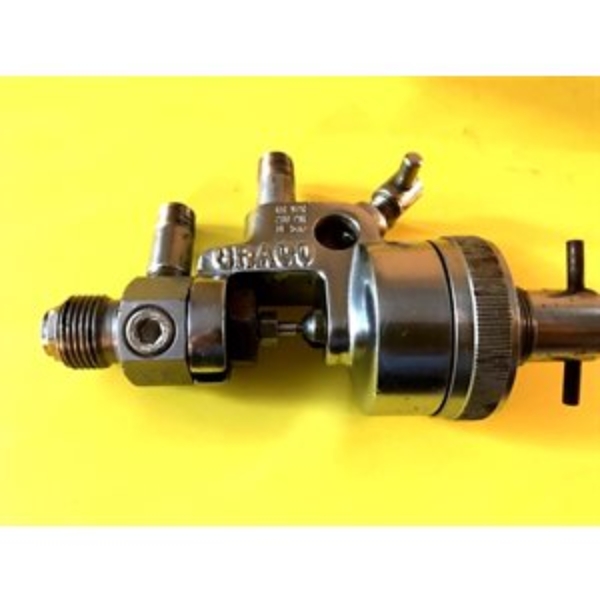

GG 206513

VALVE, AUTO, SPRAY

Graco 206513 Hydra Spray Gun, automatic, airless, stainless steel, with no tip, Series J

Standard packings are two UHMWPE packings (181523)

Application: For Automatic, Airless, Circulating, and Non-Circulating Systems.

• 3000 psi

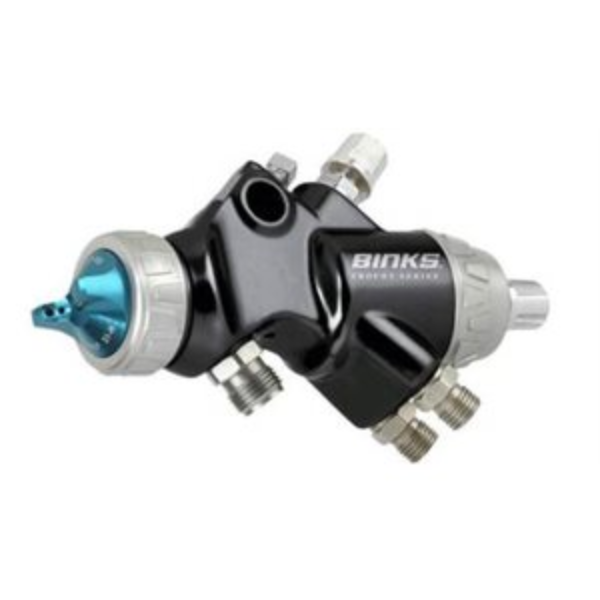

BB 3465-14HV-32S0

Trophy Auto 14 X 32Hvlp

DD AG362-TE10-085-L

AG362 TE10 Air Cap .085, Lever

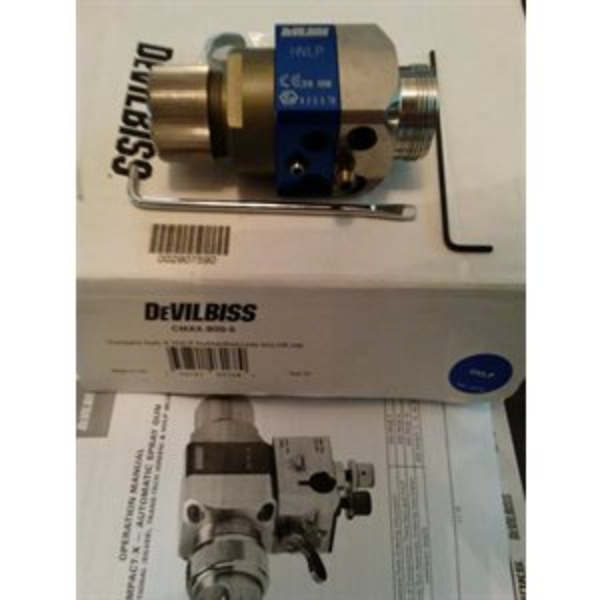

DD CMAX-B00-0

Compact Auto-X HVLP Gun

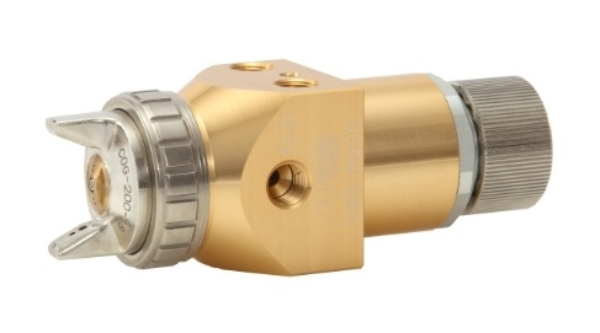

IW 7605

Automatic Gun, COG-R200-18, 1.8 Nozzle

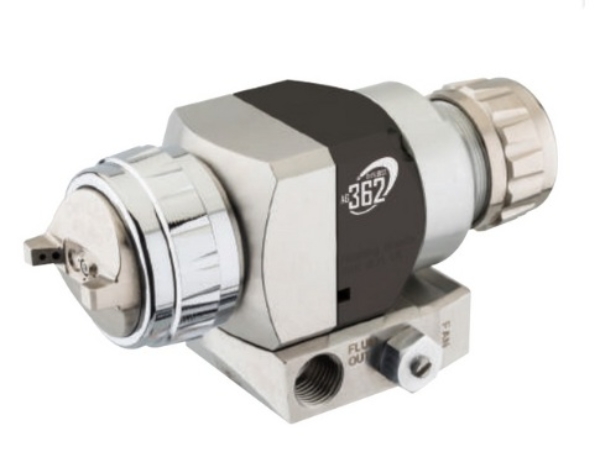

DD AG362-HV30-10-S

Ag362 Hvlp Auto Spray Gun With Screw Manifold Usa Only

DD AG362-HVTE-14-L

AG362 HVLP/TT 14 With Lever Manifold, Less Air Cap

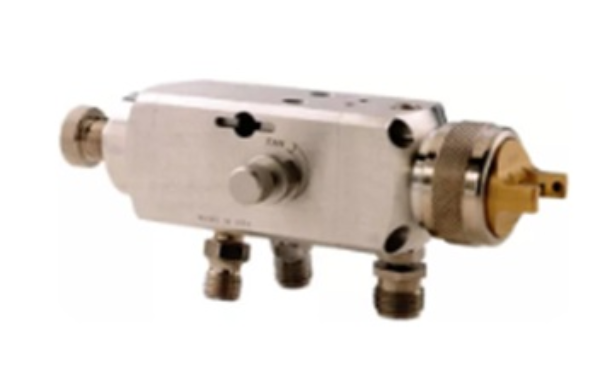

DD AGX-550-FF

Automatic Spray Gun 400 S

GG 26B570

PERFORMAA GUN, AA, AUTO, GF

Graco 26B570 PerformAA Auto Air Assist Spray Gun with General Finishing (GF) air cap

Automatic air-assisted spray gun delivers performance above all for all general finishing needs.

• Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
• Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
• Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.

• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Urethane, UV Coating, Varnish,

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Automatic
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 544
• Gun Weight (kg): 0.544
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.2

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Overall Height (cm): 7.6
• Overall Height (in): 3
• Overall Height (mm): 76.2
• Overall Length (cm): 13
• Overall Length (in): 5.3
• Overall Length (mm): 135
• Overall Width (cm): 5.1
• Overall Width (in): 2
• Overall Width (mm): 50.8

• Product Type: Spray Gun

• Purge Method: Air

DD AG364-0000-S

Ag364 Airless Auto

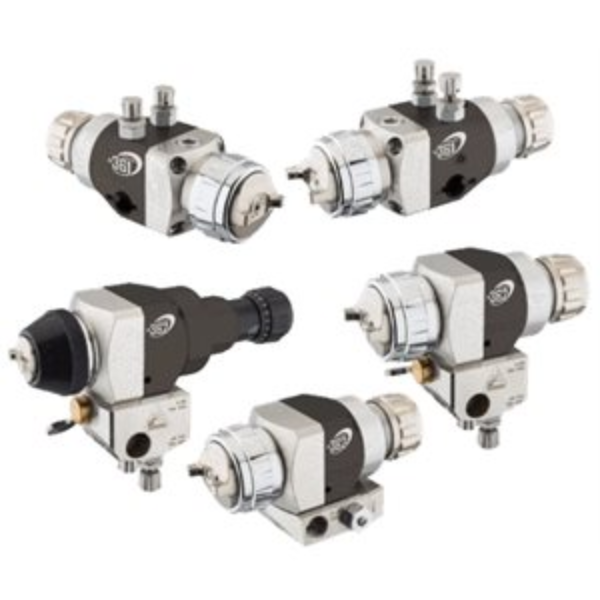

DD CMAX-B14-M-507

Compact AutoX HVLP Spray Gun, 1.4mm tip, w/Manifold, 507 Air Cap repl by AG362-HV30-14-L

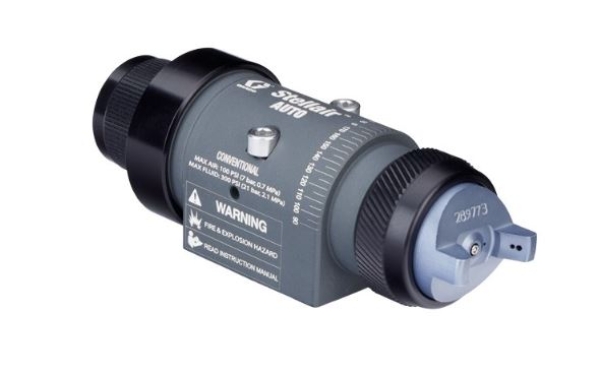

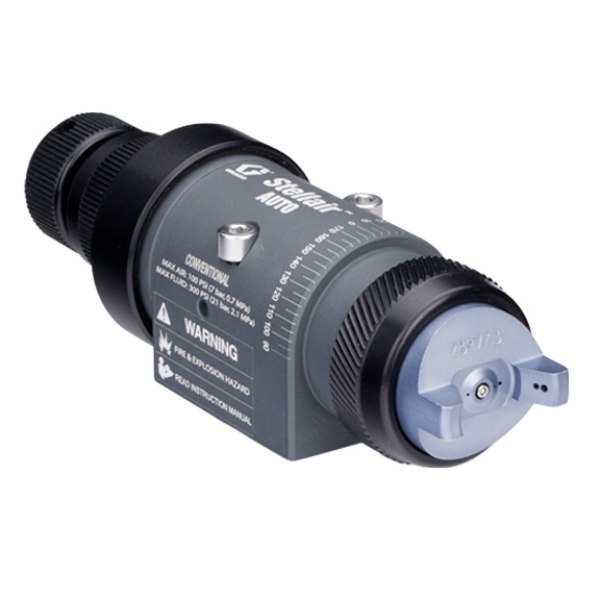

GG 25F164

GUN, AUTO, CONV .042

Stellair Automatic Air Spray Gun, Conventional, 0.042 in (1.1 mm) Nozzle for General IndustryConventional air spray gun delivers stellar results as part of a robotic, reciprocator, flat line or other automated finishing system.Automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.Conventional is the most widely used air spray method, producing Class A, automotive finish quality.General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure.Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.Small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

BB 3465-12LV-23S0

Trophy Auto 12 X 23Lvmp

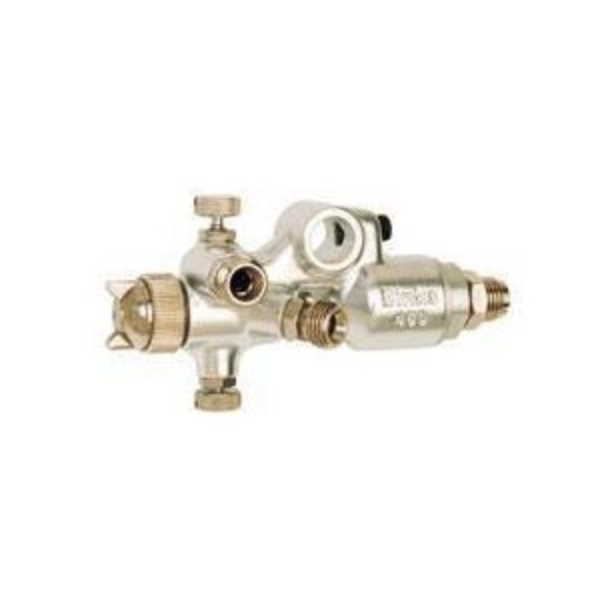

BB 6401-2100-8

460 Auto Gun Assy, 1.5Mm (K90Ss X D92P)

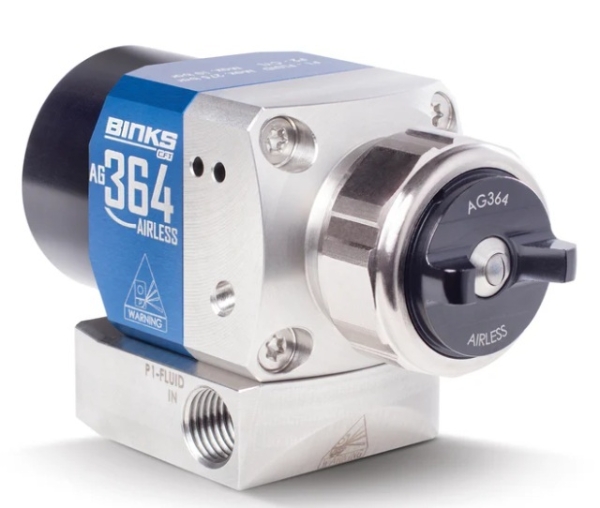

DD AG364-0000-T

Ag364 Airless Auto, Recirc

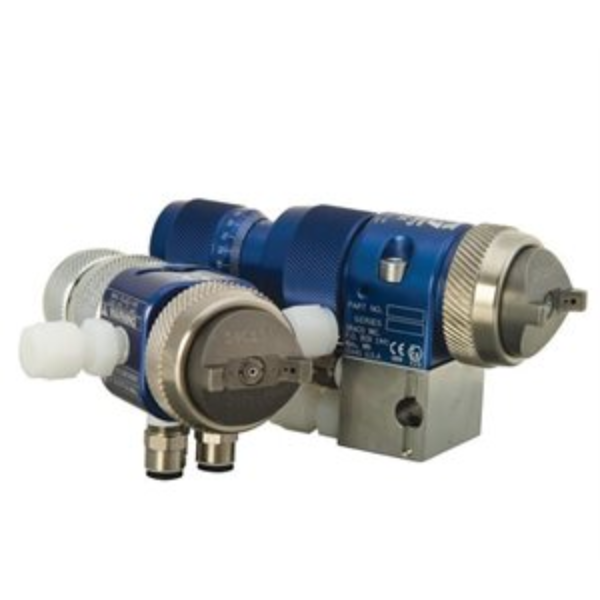

GG 24B873

AIRPRO GUN, ASSY, EFX, LVMP, .051

AirPro EFX Auto Air Spray Gun with Manifold, LVMP, 0.051 inch (1.3 mm) Nozzle, SST Tip, Ultra Precision Fluid Adjust KnobThe AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.Aircaps and nozzles deliver superior, precision spray performancePrecision fluid adjustment with a micrometer-telescoping knobHigh wear components designed for abrasive materialsExcellent fluid flow rate stability and repeatability

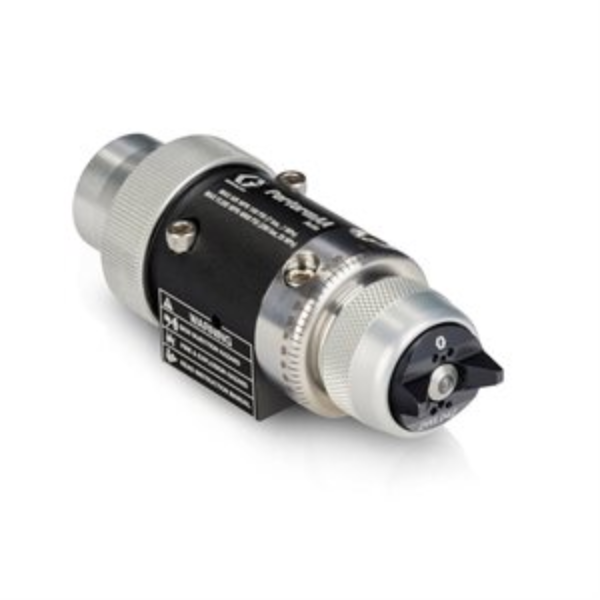

GG 26B571

PERFORMAA GUN, AA, AUTO, WL

Graco 26B571 PerformAA Auto Air Assist Spray Gun with Wood Lacquer (WL) air cap

Automatic air-assisted spray gun delivers performance above all when spraying wood lacquer.

• Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
• Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying lacquer on wood products.
• Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.

• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Metal

• Compatible Material: Lacquer, Latex, Plural Component Materials, Solvent borne, Topcoats, Varnish

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Automatic
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 544
• Gun Weight (kg): 0.544
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.2

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Overall Height (cm): 7.6
• Overall Height (in): 3
• Overall Height (mm): 76.2
• Overall Length (cm): 13
• Overall Length (in): 5.3
• Overall Length (mm): 135
• Overall Width (cm): 5.1
• Overall Width (in): 2
• Overall Width (mm): 50.8

• Product Type: Spray Gun

• Purge Method: Air

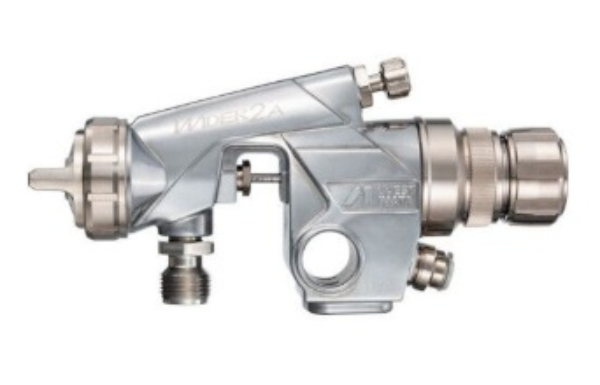

IW 5610W

Wider2A-15K2

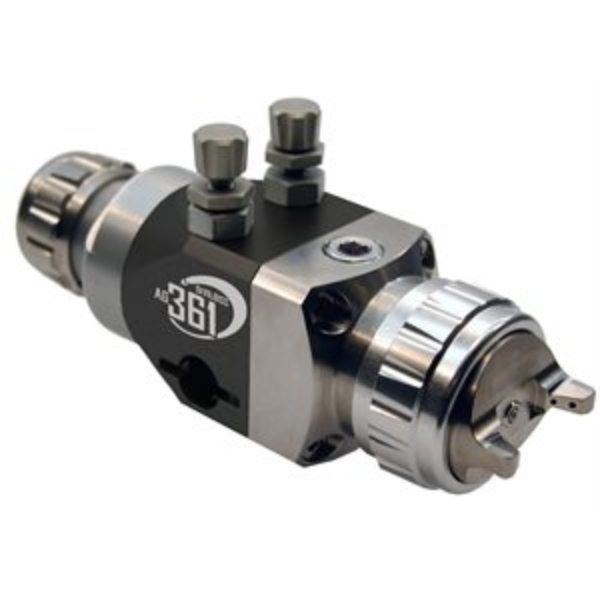

DD AG361E-C64-22C-FR

Auto Gun Kit (Ceramics)

DD AG361-TE40-18

Ag361 Te Auto Spray Gun

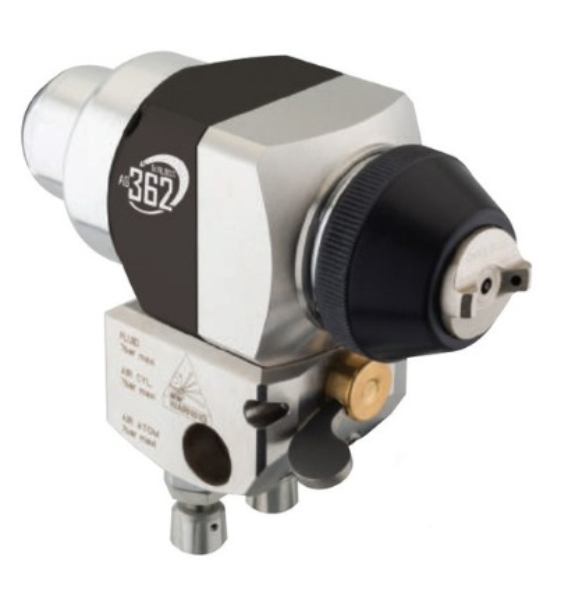

DD AG362P-90HV-10-SM

Ag362P Auto Gun Assy, Screw Manifold, Micrometer

DD AG362-TE10-10N-L

Ag362 Te10 Air Cap 1.0 Mm Nitride

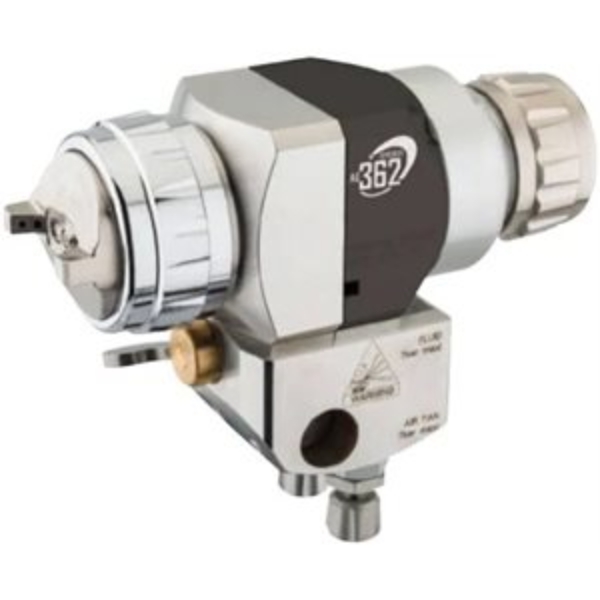

DD AG362U-TE30-085

Recirc Auto Gun Kit
