GG 24R046
SANIFORCE PISTON PUMP, 2:1, STD LGTH, UHMW

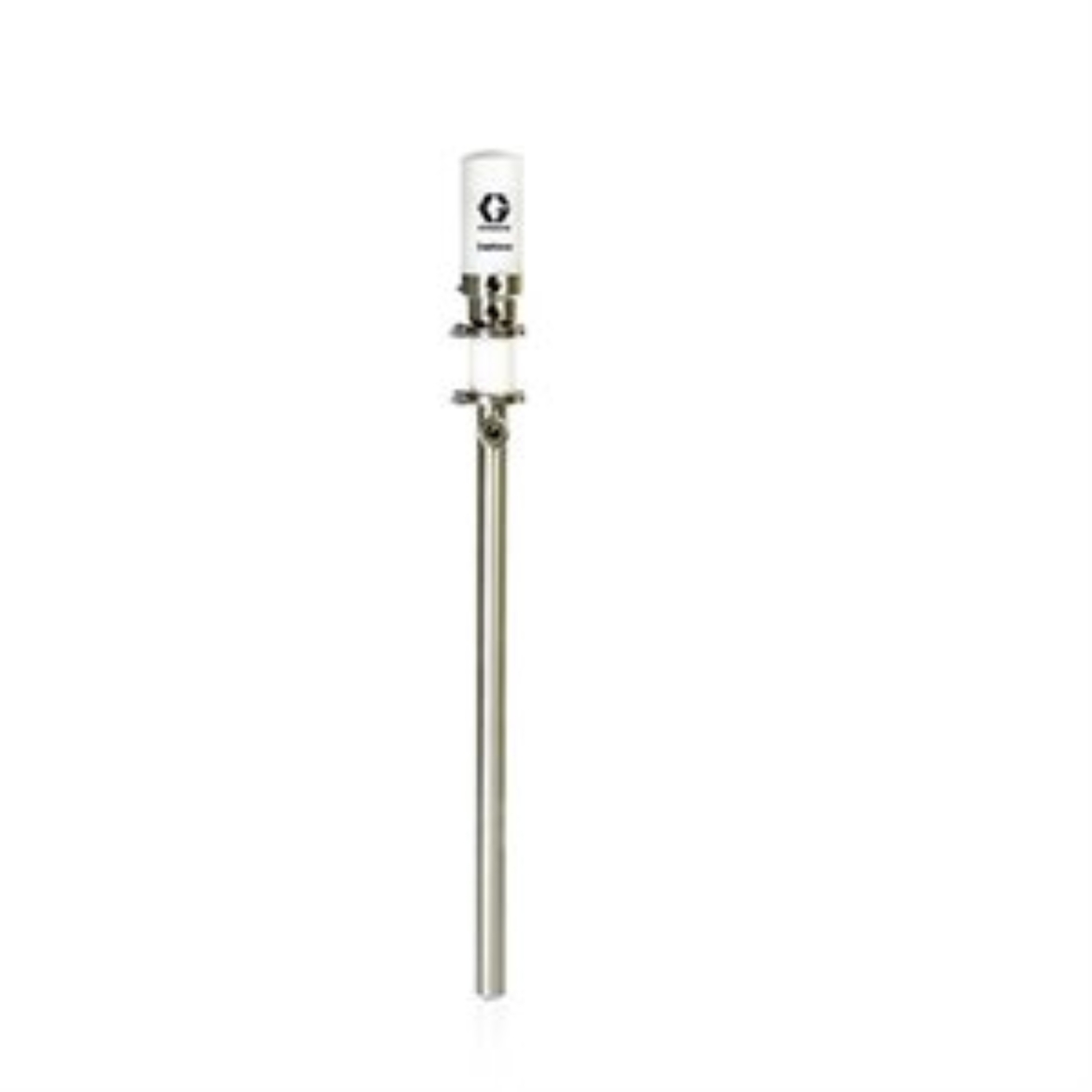

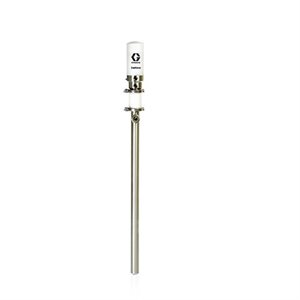

Graco 24R046 2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with UHMWPE & FKM Packings
Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Gracos SaniForce 2:1 piston pump utilizes proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard drum length and 26 lb (11.7 kg) for the long length. Plus, it fits through a standard bung hole.
Application: Quick Knockdown Sanitary Piston Pump for Food and Personal Care Applications
- SaniForce 2:1 Sanitary Piston Pump:
Flow rates range from 1.5 gpm (5.7 lpm) at 60 cpm, up to 2.5 gpm (9.5 lpm) at 100 cpm
Quick disconnect clamps for easy disassembly
Fluid transfer and supply of materials up to 50,000 cps
Suitable to pump products such as: fruit juice concentrates, creamy candy fillings, ice cream variegates, and cosmetics
- SaniForce 2:1 Air Motor:
Removable, wash down safe, FDA-compliant shroud lets you easily access the air valve
Simple knuckle joint design for easy removal of air motor from lower
- Easy Mounting:
SaniForce 2:1 pump fits through standard bung hole
FDA-compliant bung adapter accessory available for easy mounting
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- For Use With: Food, Personal Care, & Pharmaceutical
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 2.5
- Maximum Flow Rate (L/min): 9.46
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 17
- Maximum Working Pressure (kPa): 1700
- Maximum Working Pressure (MPa): 1.7
- Maximum Working Pressure (psi): 250
