GG 24F625
SANIFORCE PISTON PUMP, 12:1 PP ST

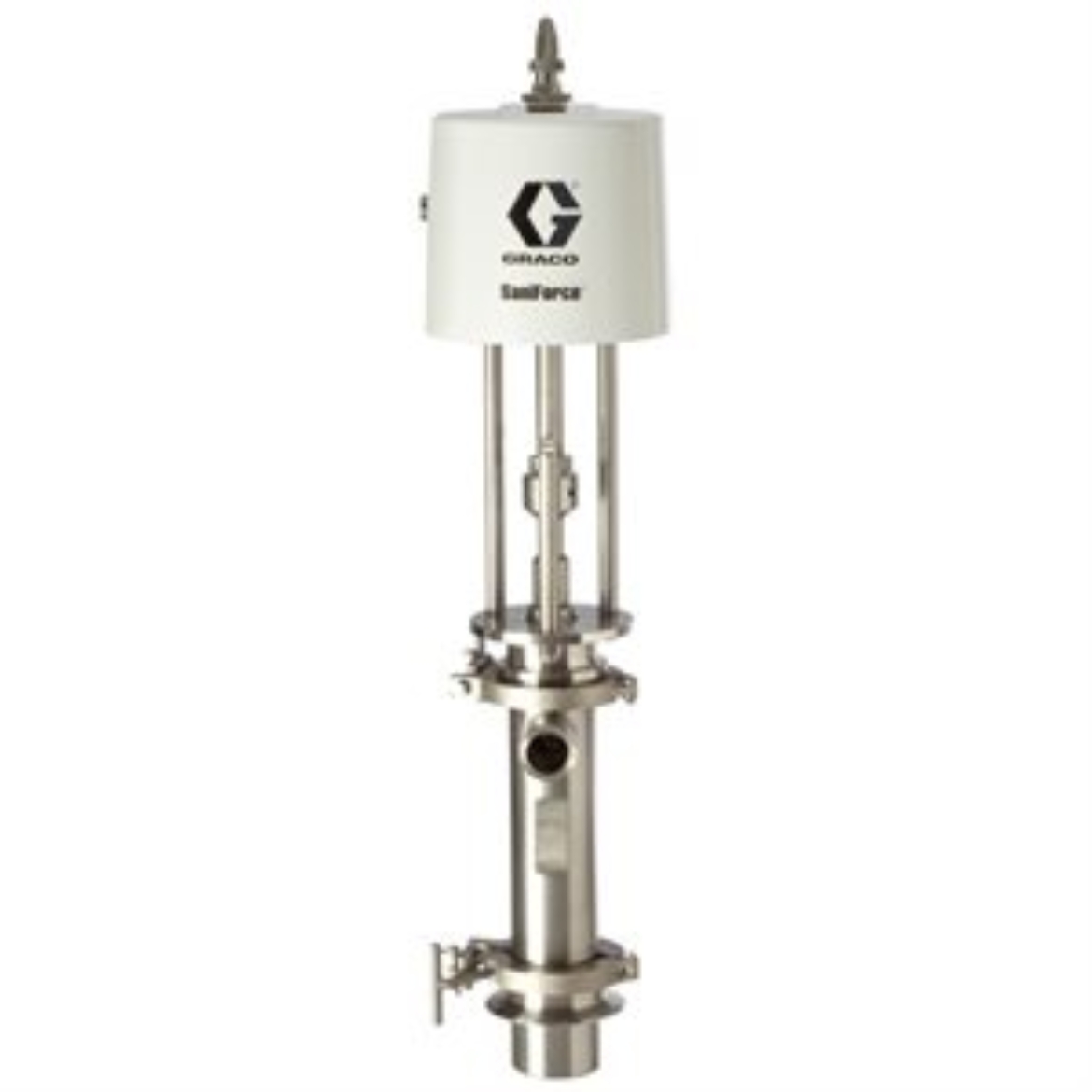

Graco 24F625 SaniForce 12:1 Stubby Piston Pump
Gracos sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.
Application: Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications
- Quick knockdown lower
- Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
- Product highlights:
Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Most advanced air motor on the market
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 50.8
- For Use With: Food, Personal Care, & Pharmaceutical
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 128
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 8.5
- Maximum Flow Rate (L/min): 32.18
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 100.4
- Maximum Working Pressure (kPa): 10040
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1450
