Sanitary

GG 24E840

SANIFORCE PISTON PUMP, 6:1 DB DL

6:1 Ratio SaniForce Drum Length Double Ball Piston Pump with Bun-N, Nylon, Nitrile & Polychloroprene Packings

Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

Quick Knockdown Sanitary Piston Pumps for Food and Personal Care ApplicationsMost advanced air motor on the marketAvailable in double-ball and priming piston designsFluid transfer and supply of low to medium viscosity fluidsSuitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies

FDA-Compliant Shroud:

• Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
• Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability

GG 24F195

SANIFORCE PISTON PUMP, 5:1 DB DL

5:1 Ratio SaniForce Double Ball Drum Length Piston Pump with 4 in Inlet

The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

Quick Knockdown Sanitary Piston Pumps for Food and Personal Care ApplicationsAvailable in double-ball and priming piston designsFluid transfer and supply of low to medium viscosity fluidsSuitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies

FDA-Compliant Shroud:

• Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
• Most advanced air motor on the market
• Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability

GG 24F625

SANIFORCE PISTON PUMP, 12:1 PP ST

SaniForce 12:1 Stubby Piston Pump

Graco's sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.

Quick Knockdown Sanitary Piston Pumps for Food and Personal Care ApplicationsQuick knockdown lowerSuitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies

Product highlights:

• Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability
• Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
• Most advanced air motor on the market

GG 24F626

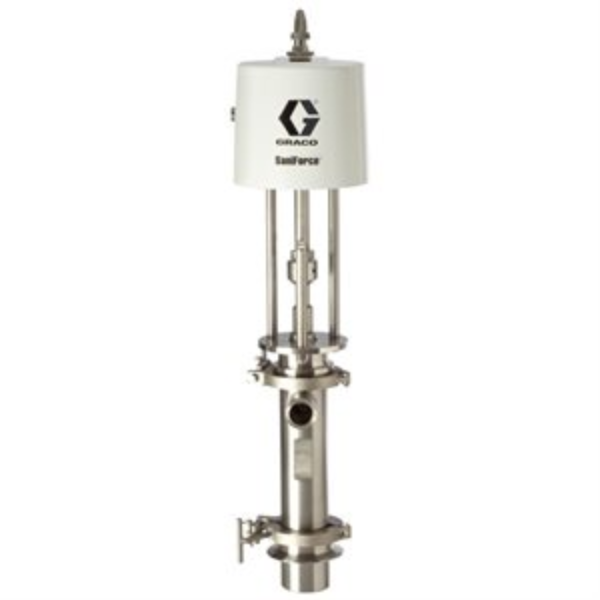

SANIFORCE PISTON PUMP, 12:1 PPC ST

SaniForce 12:1 Stubby Piston Pump for Sticky Viscous Material

Graco's sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.

Quick Knockdown Sanitary Piston Pumps for Food and Personal Care ApplicationsQuick knockdown lowerSuitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies

Product highlights:

• Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability
• Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
• Most advanced air motor on the market

GG 24F942

SANIFORCE PISTON PUMP, 6:1 DB BL

6:1 Ratio SaniForce Bin Length Double Ball Piston Pump

Graco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

Quick Knockdown Sanitary Piston Pumps for Food and Personal Care ApplicationsMost advanced air motor on the marketAvailable in double-ball and priming piston designsFluid transfer and supply of low to medium viscosity fluidsSuitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies

FDA-Compliant Shroud:

• Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
• Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability

GG 25C420

SANIFORCE DRUM PUMP, PC , 39", 115V

115 VAC Variable Speed Progressive Cavity Drum Pump System with North American Plug Style and 39 inch Lower

Reduce maintenance and sanitization time at your facility with the SaniForce Drum Pump, designed for easy cleaning with quick tri-clamp connections, minimal moving parts and easy transferability.

Powered by variable speed electric motorSimple design to facilitate easy cleaning and reduce maintenance and downtimeFlow rates up to 35 GPM (132 LPM) with a smooth output of materialEasily transferable from container to container and adaptable to drums, totes and kettles

GG 25C782

SANIFORCE DRUM PUMP, PC RUM BL, FDA, 39, 3PH

GG 903035

Pump, Monark, Sanitary, 5X1

GG FD1111

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTPT21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT DiaphragmsGraco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.125 in. (3.2 mm)

GG FD1213

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPOEP21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO DiaphragmsGraco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.125 in. (3.2 mm)

GG FD1222

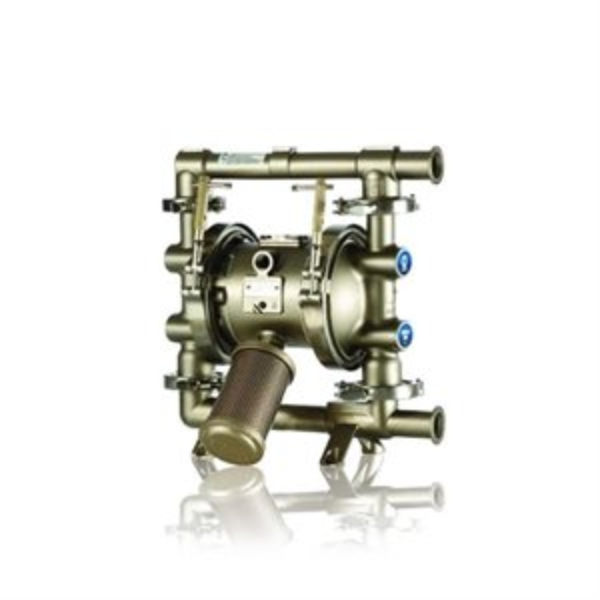

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSSPSPEP21

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP DiaphragmsGraco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.125 in. (3.2 mm)

GG FD2111

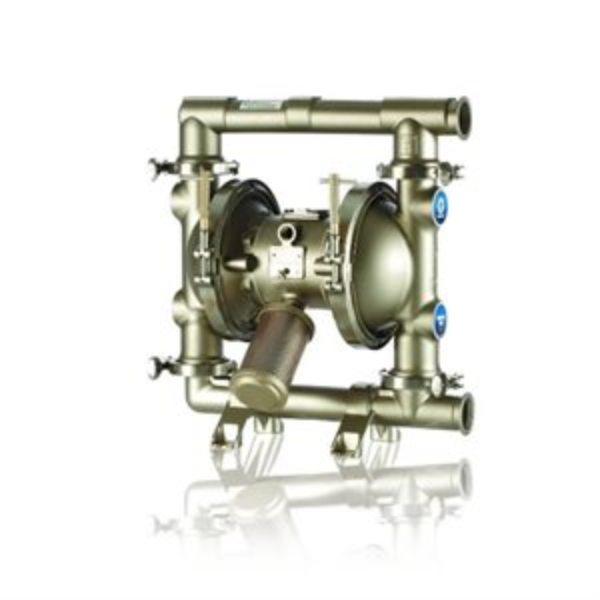

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPTPT21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT DiaphragmsGraco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.1875 in. (4.8 mm)

GG FD2122

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSSPSPPT21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP DiaphragmsGraco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.1875 in. (4.8 mm)

GG FD2133

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWPOPT21

SaniForce 1590, 1.5" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, CW Balls, PO DiaphragmsGraco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.1.5 inch sanitary pump with flow rates up to 100 gpm (379 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.1875 in. (4.8 mm)

GG FD3113

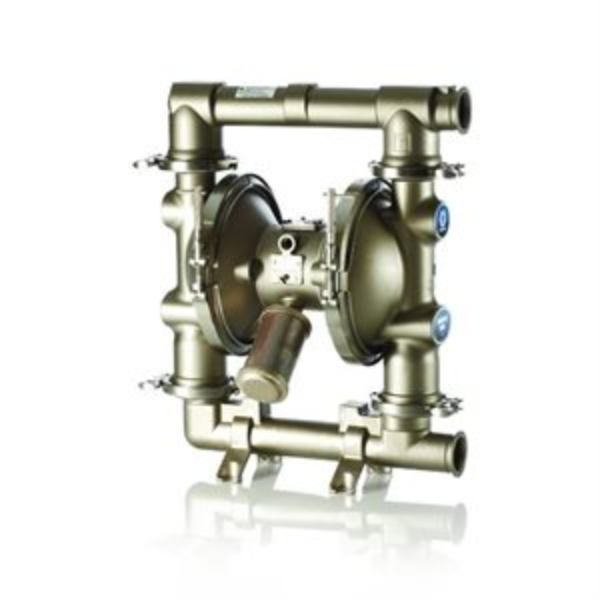

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSPTPOPT21

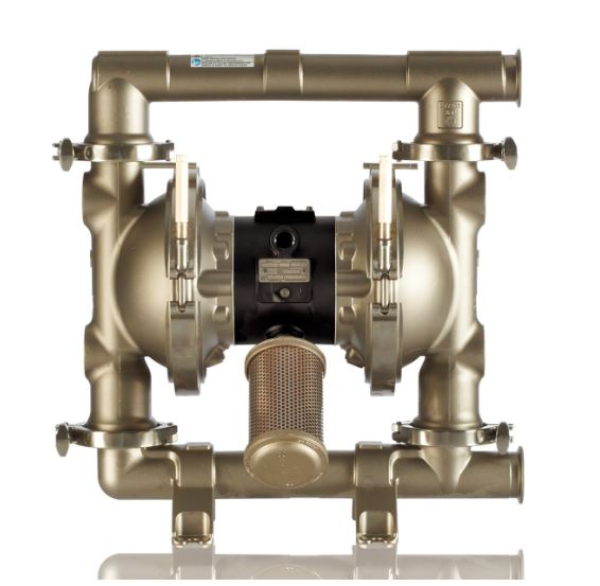

SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO DiaphragmsGraco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.25 in. (6.3 mm)

GG FD3133

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSCWPOPT21

SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, CW Balls, PO DiaphragmsGraco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance processPTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.25 in. (6.3 mm)

GG FD9222

SANIFORCE AODD PUMP, 2150FG-PS01AS14SSSPSPEP21

SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, SP Balls, SP DiaphragmsGraco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Features DIN inlet and outlet connections316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.25 in. (6.3 mm)

GG SDU.A05AAA1AA0C21

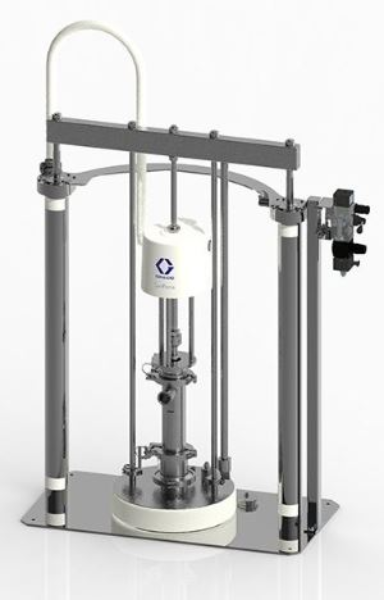

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Stainless Steel Frame, 12:1 PP, Inflatable Seal, Exposed ControlsSaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cpsReduce material waste with up to 99% material evacuationImprove worker ergonomics by eliminating hazards associated with scooping and dumping optionsImprove food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminatesSelf-priming and run dry pump capabilities ideal for container unloading applicationsConfigurable systems to meet requirements of almost any ingredient unloading application

GG SDU.B05AAA6AA0C21

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC

SaniForce Ram Unit, Carbon Steel Frame, 12:1 PP, Inflatable Seal, Exposed ControlsSaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications.High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cpsReduce material waste with up to 99% material evacuationImprove worker ergonomics by eliminating hazards associated with scooping and dumping optionsImprove food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminatesSelf-priming and run dry pump capabilities ideal for container unloading applicationsConfigurable systems to meet requirements of almost any ingredient unloading application

GG FA3111

SANIFORCE AODD PUMP, 2150FG-PA01AS13SSPTPTPT21

SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, PT Balls, PT DiaphragmsGraco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar)Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditionsGraco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valvesExternally serviceable air valves deliver leading efficiency and reduce downtime.Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process316 stainless steel wetted sectionAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Pass solids up to 0.25 in. (6.3 mm)
