GG 19C726
SOLOTECH ST25 PUMP, H25-MPM-FG-SS-A1-A1-0

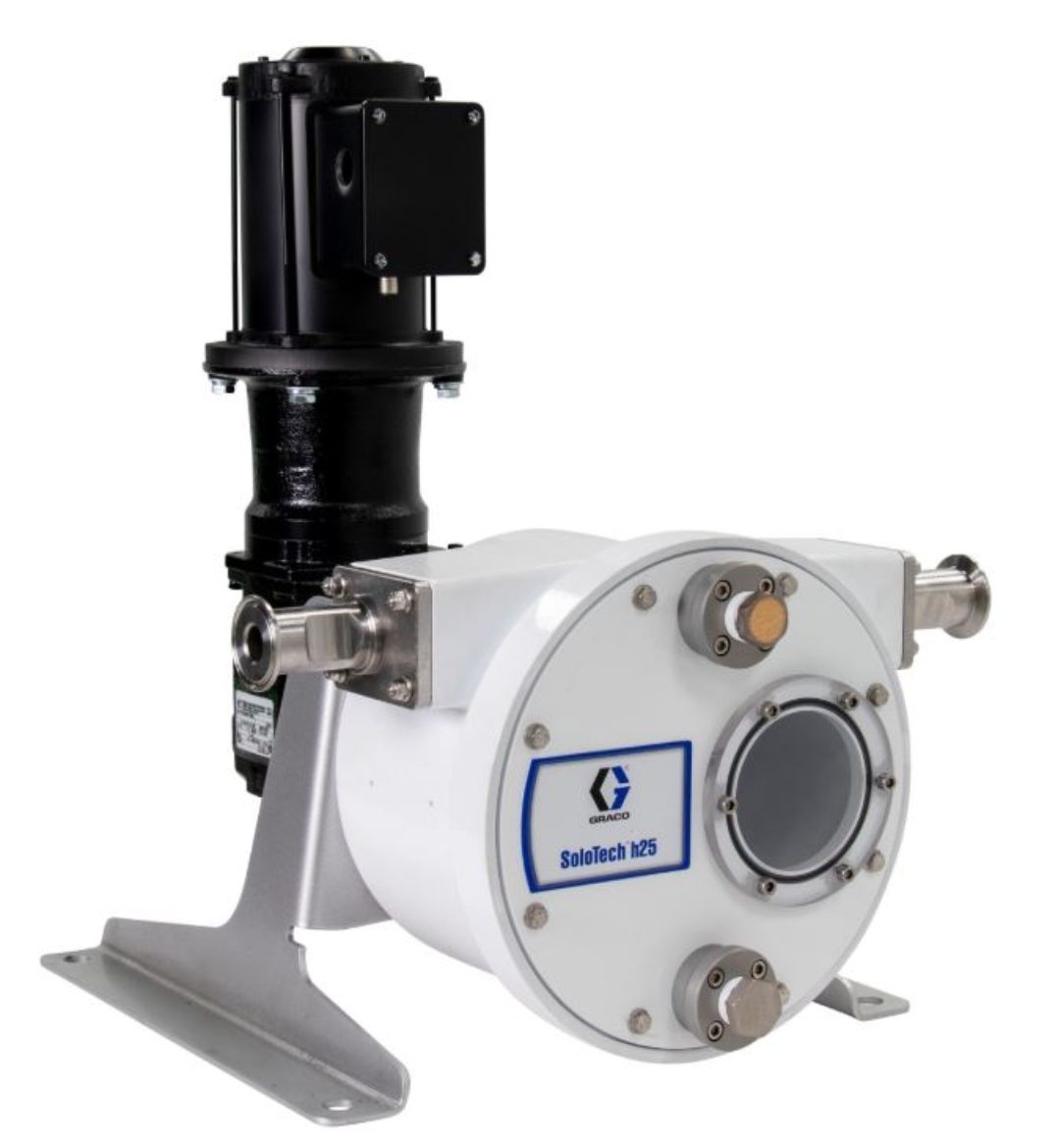

Graco 19C726 SoloTech h25 Peristaltic Pump, 1 hp BLDC motor with gear reducer, .142-5.22 gpm, FDA Nitrile Hose, SST Sanitary Clamp Barb
With only the hose in contact with the fluid being pumped and no check valves in line, Graco's SoloTech peristaltic pumps are ideal for materials other pumps can't handle.
Application: For metering and dosing flavorants, colorants, solids, abrasives, and slurries for food, beverage, and personal care products.
- Single Roller Design
- The single roller compresses an engineered hose through a full 360 degrees of rotation. This reduces compressions, temperature, and friction, improving hose life.
- Hose Design
- SoloTech customers routinely experience fewer failures and perform much less maintenance compared to other pump technology.
- Hose Barb Assembly
- Easy to install or remove – no special tools needed
- 316 SST sanitary clamp design for easy cleaning
- Pump Construction
- Powder-coated aluminum housing reduces pump weight
- Improved mounting flexibility with adjustable feet
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: h25
- Barb Material: 316 Stainless Steel
- Hose Diameter (cm): 2.5
- Hose Diameter (in): 0.98
- Hose Diameter (mm): 25
- Hose Material: FDA Nitrile
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 5.1
- Inlet Size (in): 2.0
- Inlet Size (mm): 50.8
- Inlet Thread Type: Tri-Clamp
- Lubricant Material: FDA Glycerin
- Maximum Flow Rate (GPH): 0
- Maximum Flow Rate (GPM): 0
- Maximum Flow Rate (L/h): 0
- Maximum Flow Rate (L/min): 0
- Maximum Fluid Pressure (bar): 8.6
- Maximum Fluid Pressure (kPa): 861.8
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 8.6
- Maximum Fluid Pressure (kPa): 861.8
- Maximum Fluid Pressure (psi): 125
- Maximum Operating Temperature (°C): 40
- Maximum Operating Temperature (°F): 104
- Maximum Pump Speed (RPM): 0
- Minimum Flow Rate (GPM): 0
- Minimum Pump Speed (RPM): 0
- Minimum Temperature (°C): -10
- Minimum Temperature (°F): 14
- Outlet Size (cm): 5.1
- Outlet Size (in): 2.0
- Outlet Size (mm): 50.8
- Overall Height (cm): 0
- Overall Height (in): 0
- Overall Height (mm): 0
- Overall Length (cm): 0
- Overall Length (in): 0
- Overall Length (mm): 0
- Overall Width (cm): 0.0
- Overall Width (in): 0
- Overall Width (mm): 0.0
- Power Rating (HP): 0
- Power Rating (kW): 0.75
