Pump, FDA, 1590, EPDM/PTFE/OPTFE

GG FD2213

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPOEP21

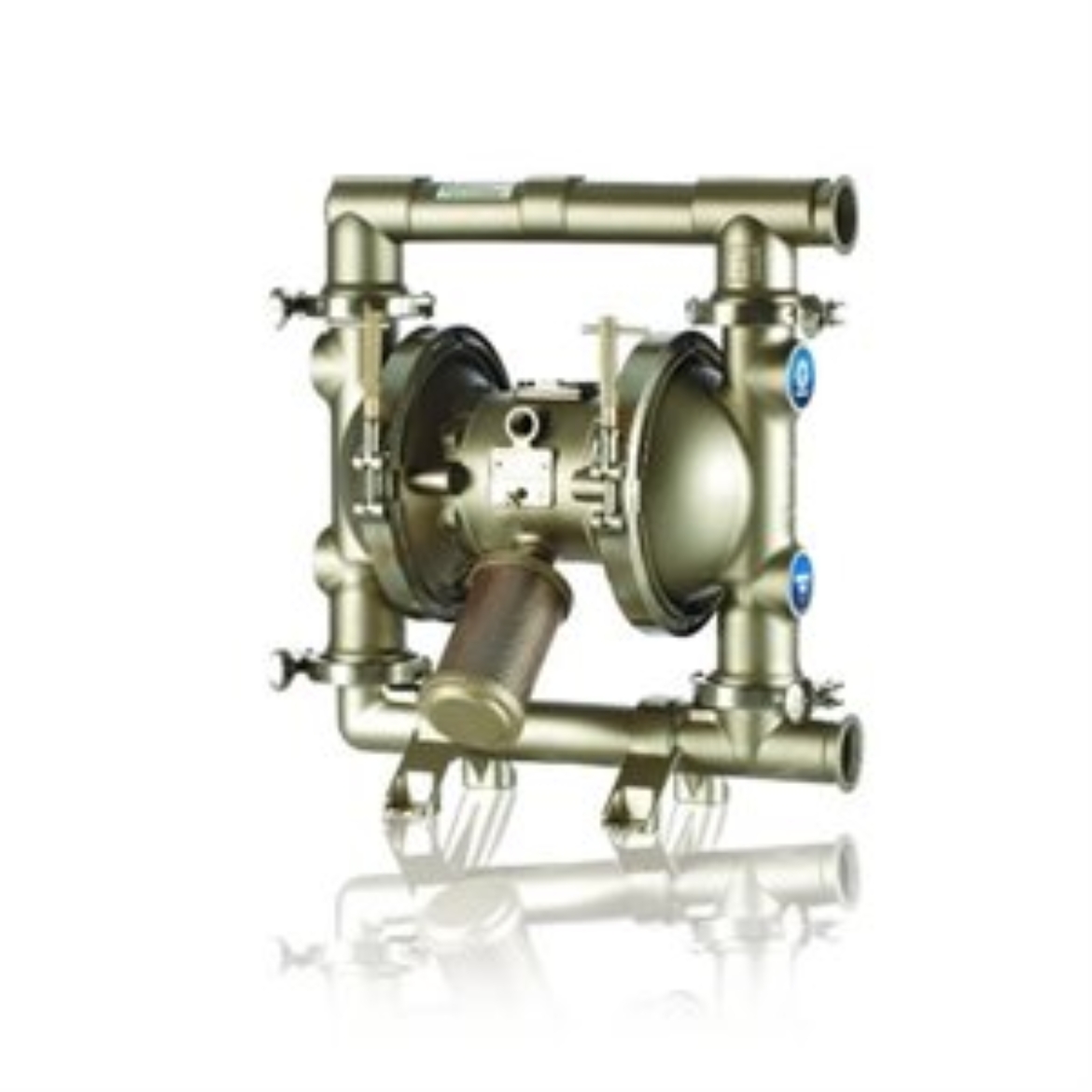

Graco FD2213 SaniForce 1590 with Sanitary Clamp Connection

Graco's SaniForce 1590 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco's dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.

• SaniForce 1590 Double Diaphragm Pump

  2 in (51 mm) tri-clamp connection

  90 gpm (341 lpm) in a compact, portable size

  Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)

  All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21

  High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 15,000 cps

  Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies

  • Patented, lube-free air valve

    Three-way pilot valve for no-stick operation

    316 series stainless steel rod design for long life and corrosion resistance

    1040, 1590 and 2150 SaniForce pumps use common center sections

    100% externally serviceable air valve

    • PTFE/EPDM Overmolded Diaphragms

      Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150

      Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side

      Longer diaphragm life in abrasive applications that still require PTFE




      • Model: SaniForce
      • Series: 1590
      • Air Exhaust Port Size (in): 3/4
      • Air Exhaust Port Thread Gender: Female
      • Air Exhaust Port Thread Type: NPT
      • Air Inlet Size (in): 1/2
      • Air Inlet Thread Gender: Female
      • Air Inlet Thread Type: NPT
      • Application: Sanitary
      • Ball Material: PTFE
      • Center Section Material: Stainless Steel
      • Compatible Material: Edible Oil, Food and Personal Care
      • Connection Type: Tri-Clamp
      • Diaphragm Compatible Material: PTFE
      • Diaphragm Material: PTFE Overmold
      • Fluid Inlet Size (cm): 5.08
      • Fluid Inlet Size (in): 1-1/2
      • Fluid Inlet Size (mm): 50.8
      • Fluid Outlet Size (cm): 5.08
      • Fluid Outlet Size (in): 1-1/2
      • Fluid Outlet Size (mm): 50.8
      • Fluid Section Material: 316L Stainless Steel
      • For Use With: Food and Personal Care
      • Manifold Configuration: End Port
      • Manifold O-Ring Material: EPDM
      • Material: Stainless Steel
      • Maximum Air Consumption (SCFM): 130
      • Maximum Air Pressure (bar): 8
      • Maximum Air Pressure (kPa): 800
      • Maximum Air Pressure (MPa): 0.8
      • Maximum Air Pressure (psi): 120
      • Maximum Cycle Rate (CPM): 200
      • Maximum Flow Rate (GPM): 90
      • Maximum Flow Rate (L/min): 341
      • Maximum Fluid Pressure (bar): 8
      • Maximum Fluid Pressure (kPa): 800
      • Maximum Fluid Pressure (MPa): 0.8
      • Maximum Fluid Pressure (psi): 120
      • Maximum Fluid Pressure (bar): 8
      • Maximum Fluid Pressure (kPa): 800
      • Maximum Fluid Pressure (MPa):
