GG 24R047

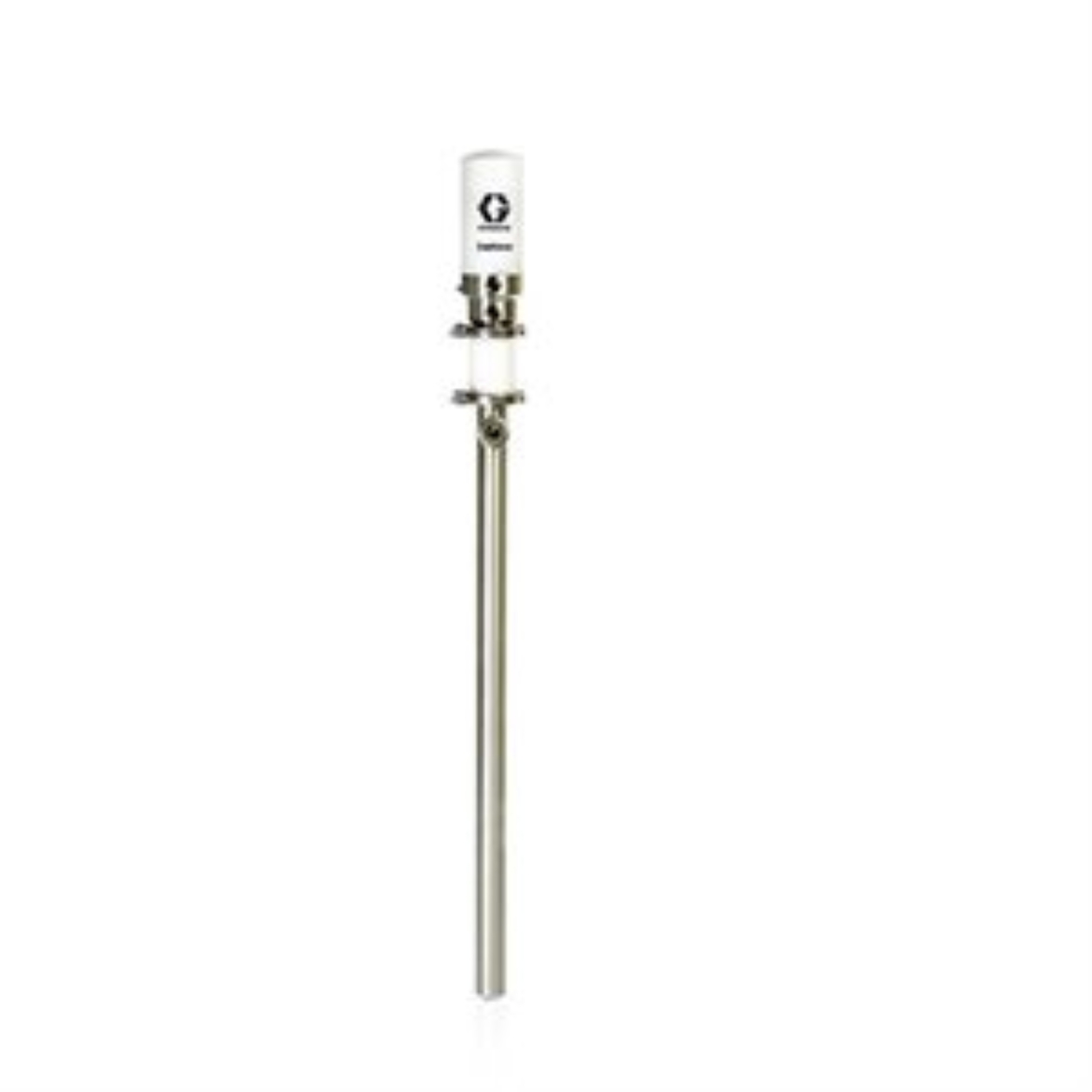

SANIFORCE PISTON PUMP, 2:1, STD LGTH, PTFE
Graco 24R047 2:1 Ratio SaniForce Standard Drum Length Double Ball Piston Pump with PTFE & FKM Packings
Easily transfer low to medium viscosity food and personal care materials up to 50,000 cps out of drums and totes. Gracos SaniForce 2:1 piston pump utilizes proven Graco air motor technology and smart sanitary design. The pump is extremely portable, weighing between 24 lb (10.8 kg) for the standard drum length and 26 lb (11.7 kg) for the long length. Plus, it fits through a standard bung hole.
Application: Quick Knockdown Sanitary Piston Pump for Food and Personal Care Applications
- SaniForce 2:1 Sanitary Piston Pump:
Flow rates range from 1.5 gpm (5.7 lpm) at 60 cpm, up to 2.5 gpm (9.5 lpm) at 100 cpm
Quick disconnect clamps for easy disassembly
Fluid transfer and supply of materials up to 50,000 cps
Suitable to pump products such as: fruit juice concentrates, creamy candy fillings, ice cream variegates, and cosmetics
- Easy Mounting:
SaniForce 2:1 pump fits through standard bung hole
FDA-compliant bung adapter accessory available for easy mounting
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- For Use With: Food, Personal Care, & Pharmaceutical
- Maximum Air Consumption (SCFM): 6
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 2.5
- Maximum Flow Rate (L/min): 9.46
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 17
- Maximum Working Pressure (kPa): 1700
- Maximum Working Pressure (MPa): 1.7
- Maximum Working Pressure (psi): 250
