Piston

GG 256714

MONARK DRUM PUMP, 5:1, 1.5 F INLET

Graco 256714 5:1 Ratio Monark Pump with 1.5 in (38.1 mm) Female Inlet

Designed for high production applications, Monark pumps provide uniform and easily controlled delivery with its reliable Monark air motor.

• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Fluid return stanchion for circulation back to the pump
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

• Model: Monark

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Air Consumption (SCFM): 8.2

• Maximum Flow Rate (GPM): 2.5
• Maximum Flow Rate (L/min): 9.5

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Portable: Non-Portable

• Power Type: Pneumatic

• Pump Ratio: 5:1

GG 571102

XP SYSTEM, 1:1, 90/90, BF, CH

Graco 571102 XP70 Hazardous Location Spray Package, Cart, 1:1 Mix Ratio, Hopper, XTR Gun

The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70's design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, youll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.

• Reduced material waste
• No more throwing away unused mixed material at the end of the day
• Save money by using less clean-up solvent
• Easy to operate - minimal training required
• Reduced maintenance costs
• Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths

• Series: XP70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic Airless, Manual Airless

• Compatible Material: Protective Coatings, Primer, Epoxies, Polyurethane, Two-Component Coating, Solvents

• Component Type: Plural-Component
• Configuration: Cart Mount with 7 gallon (26.5 Liter) Hopper

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Solvent

• Hose Length (ft): 35
• Hose Length (m): 10.7

• Includes: XTR Spray Gun, Fluid Hose, NXT Air Motor

• Material Application: Coatings, Paints, Primers

• Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi
• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (MPa): 1.21
• Maximum Air Inlet Pressure (psi): 175

• Maximum Cycle Rate (CPM): 40

• Maximum Flow Rate (cc/min): 7200

• Maximum Flow Rate (GPM): 1.9
• Maximum Flow Rate (L/min): 7.2

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Hose Length (ft): 300
• Maximum Hose Length (m): 91.4

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Spray Pressure (bar): 500

• Maximum Spray Pressure (kPa): 50000
• Maximum Spray Pressure (MPa): 50
• Maximum Spray Pressure (psi): 7250

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (MPa): 50
• Maximum Working Pressure (psi): 7250
• Measuring Type: Fixed Mechanical Positive Displacement

• Minimum Fluid Viscosity (cP): 200

• Mix Accuracy (%): +/- 5
• Mix Ratio: 1:1

• Number of Catalysts: 1

• Number of Reducers: 0

• Number of Resin Colors: 1
• Number of Tanks: 2

• Overall Depth (cm): 132.1
<

GG W03EAS

GG W30AAS

SWP 10059768

AA CL0409A91LL2DE31

EP ZE2408EB

Enerpac ZE2 electric hydraulic pumps are based on our Z Pump platform - our most efficient and market proven design. Z-Class high-efficiency pumps offer higher oil flow and by-pass pressure, cooler running and 18% less current draw than comparable pumps.

The ZE2 pump utilizes many of the same robust valves, reservoir, and pump components as larger pumps in the ZE family. Combined with the efficient, easy to service pumping element, the ZE2 is suited to continuous use in manufacturing and workshop environments.

The 0.75 hp (0.56 kW) induction motor in the ZE2 enables productive flow rates, cooler running temperatures, quieter operation, and less power consumption compared to standard universal motors.

Multiple valve and control options allow you to match the pump to a wide range of pressing, punching, and many other operations.

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZE
• SubTypes: Electric Pump - High Flow

• 0.75 hp (0,56 kW) induction motor for long life and quiet operation
• Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires up to 18% less current draw than comparable pumps.
• Totally enclosed, fan-cooled industrial electric motors for an extended life and to stand up to harsh industrial environments.
• 71 to 79 dBA across the pressure range
• Low-voltage pendant, on certain models, provides additional safety for the operator.
• Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications.
• Models available to suit single-acting or double-acting cylinders.
• High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh industrial environments.
• LCD readout on electric valve models provides diagnostic and readout capabilities.
• IP54 Rating for superior dust and water protection.
• Wide range of optional factory installed accessories; including return line filter, pressure gauge, heat exchanger, skid bar, roll cage, foot switch, and more.

EP ZE3408MB

Enerpac ZE3 electric hydraulic pumps are based on our Z Pump platform - our most efficient and market proven design. Z-Class high-efficiency pumps offer higher oil flow and by-pass pressure, cooler running and 18% less current draw than comparable pumps.

The ZE3 pump utilizes the same robust valves, reservoir, and pump components as larger pumps in the ZE family. Combined with the efficient, easy to service pumping element, the ZE3 is suited to continuous use in manufacturing and workshop environments.

The 1.0 hp (0.75 kW) induction motor in the ZE3 enables productive flow rates, cooler running temperatures, quieter operation, and less power consumption than pumps with standard universal motors.

Multiple valve and control options allow you to match the pump to a wide range of pressing, punching, and many other operations.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZE
• SubTypes: Electric Pump - High Flow

• 1.0 hp (0.75 kW) induction motor for long life and quiet operation.
• Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires up to 18% less current draw than comparable pumps.
• Totally enclosed, fan-cooled industrial electric motors for an extended life and to stand up to harsh industrial environments.
• 75 dBA sound level.
• Low-voltage pendant, on certain models, provides additional safety for the operator.
• Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications.
• Models available to suit single-acting or double-acting cylinders.
• High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh industrial environments.
• LCD readout on electric valve models provides diagnostic and readout capabilities.
• IP54 Rating for superior dust and water protection.
• Wide range of optional factory installed accessories; including return line filter, pressure gauge, heat exchanger, skid bar, roll cage, foot switch, and more.

• Accessories: ZPF, SBZ4, ZRC04, ZPSE3

GG 16C799

GG 177175

GG 17E226

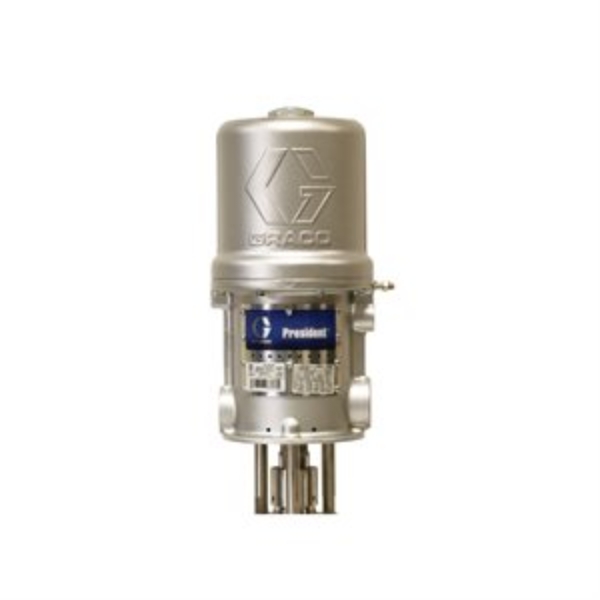

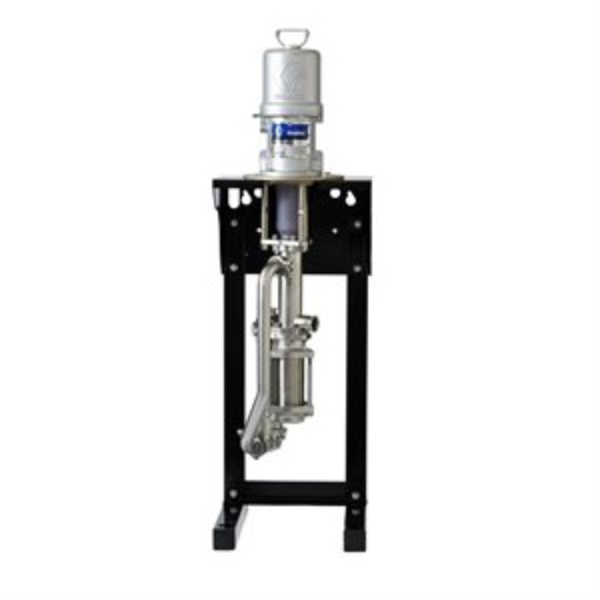

PRESIDENT PUMP, OPEN, SST, 3:1

Graco 17E226 3:1 President 4-Ball Pneumatic Pump, 750 cc, Open SST Lower, 460 psi (32 bar) Max Working Pressure, NPT, Standard Pump Length

Gracos high volume circulating pumps will allow you to handle large flow requirements while operating at low cycle rates. The pump lower requires fewer cycles per gallon and longer intervals between seal replacement, lowering your overall cost of ownership.

• Excellent abrasion and corrosion resistance with large porting for excellent priming and handling of high viscosity fluids
• Stainless steel and carbon steel wetted parts for a wide range of fluids

• Model: President
• Series: 4-Ball

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Open Wet Cup

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Continuous Cycle Rate (CPM): 12

• Maximum Flow Rate (GPM): 9.6
• Maximum Flow Rate (L/min): 36.34

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 32
• Maximum Working Pressure (kPa): 3200
• Maximum Working Pressure (MPa): 3.2
• Maximum Working Pressure (psi): 460

• Portable: Non-Portable

• Pump Ratio: 3:1

GG 17K660

GG 17K662

GG 17K668

KIT,PUMP,4B,OPEN,SST,750,NPT

Graco 17K668 4-Ball Lower, Open Wet Cup, 750 cc, Stainless Steel, NPT Connection

GG 17K670

GG 17Z392

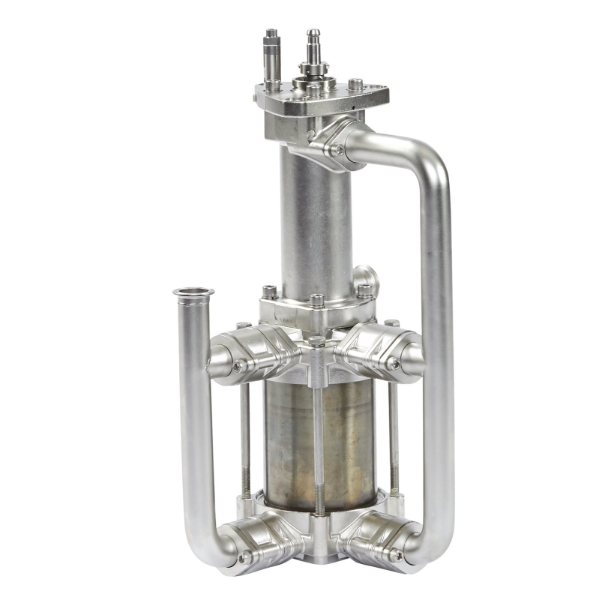

KIT,PUMP,4B,CHROME,4000CC

Graco 17Z392 Sealed 4-Ball Plus Lower, 4000cc, Chrome Cylinders

Graco's Sealed 4-Ball Plus Lower has the industry's highest fluid delivery at the lowest cycle rates. Use this durable, maintenance-free lower to power existing or new electric, hydraulic or pneumatic pumps.

• Chrome coating on lower rods and cylinders works well for fine pigment paint and fluids with low lubrication, such as solvents and water.
• Connection kits contain tie rods and adapters – everything required to upgrade most legacy Graco circulation pumps to the latest technology. Refer to manual 311876 for complete information.

GG 180539

GG 180613

GG 181847

GG 181864

GG 181865

GG 181905

GG 184157

GG 184394

GG 2007108
