Merkur Sprayer, Es,Aa,30:1,Cs,Wall

GG 24F156

MERKUR SPRAYER, ES, AA, 30:1, CS, WALL

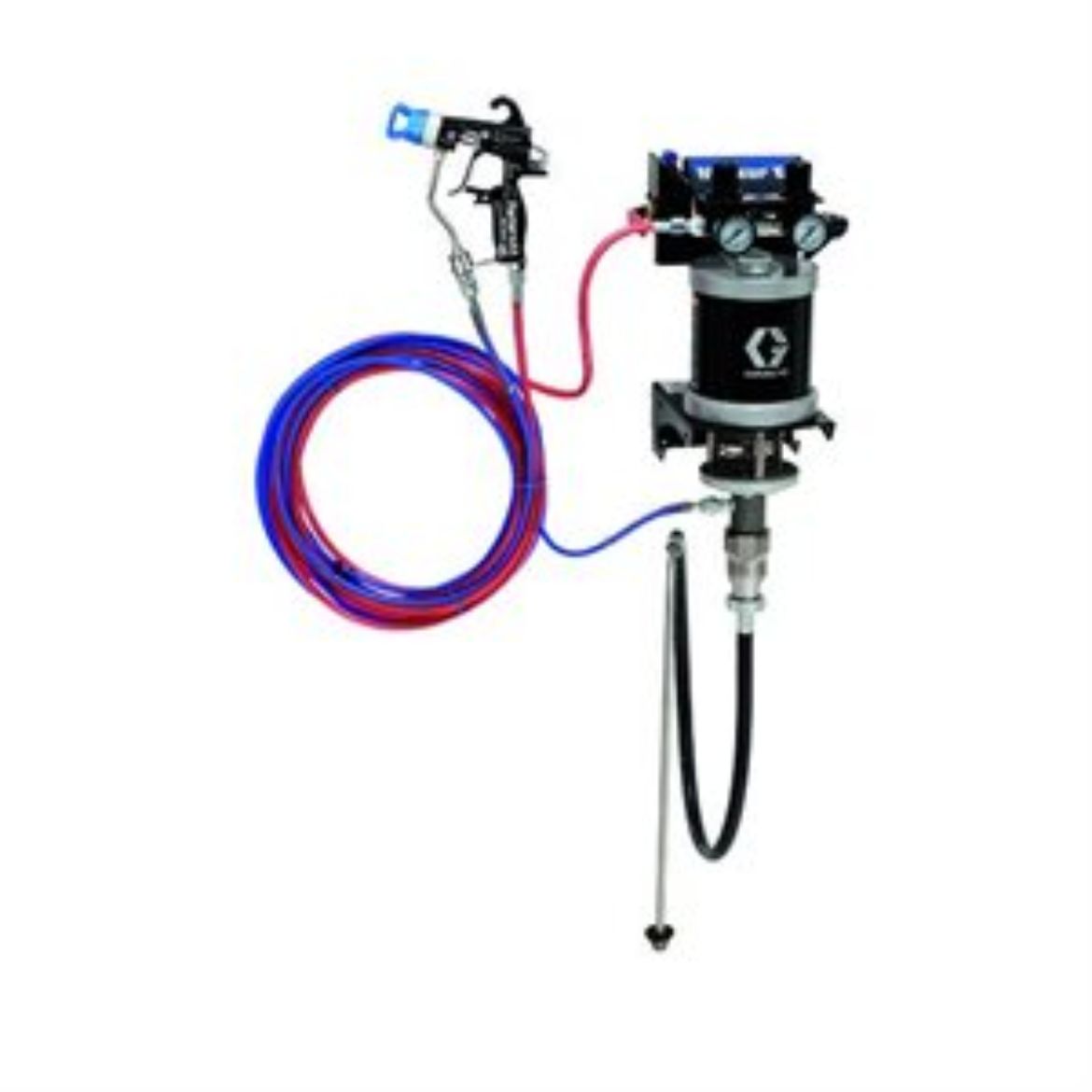

Graco 24F156 30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, wall mount, with PerfermAA 50 gun, suction hose, and plated steel

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

• Quick flush system requires less than 1 minute to flush
• 45% less material to fill the system than the leading competitors
• Delivers a superior, consistent spray finish
• Easily set and monitor air control, plus an integrated carrying handle for transport
• Air motor provides consistent finishes with smooth, rapid changeover
• Suction hose and strainer leaves less material in the supply container
• Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage

• Model: Merkur
• Series: ES

• Convertible: Non-Convertible

• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Type: NPSM

• Gun Included: 1
• Gun Model: G40
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.3175
• Hose Inlet Diameter (in): 1/8
• Hose Inlet Diameter (mm): 3

• Includes: G40 Gun, Suction Hose, Wall Mount

• Maximum Flow Rate (GPM): 0.40
• Maximum Flow Rate (L/min): 1.5

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.5

• Maximum Tip Size (in): 0.019

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Wall Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump
