Fireball 425 Pump,10:1

GG 965129

FIREBALL 425 PUMP, 10:1

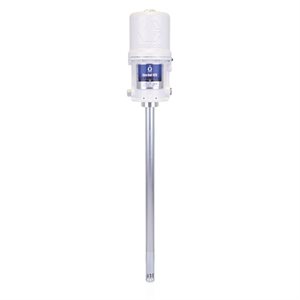

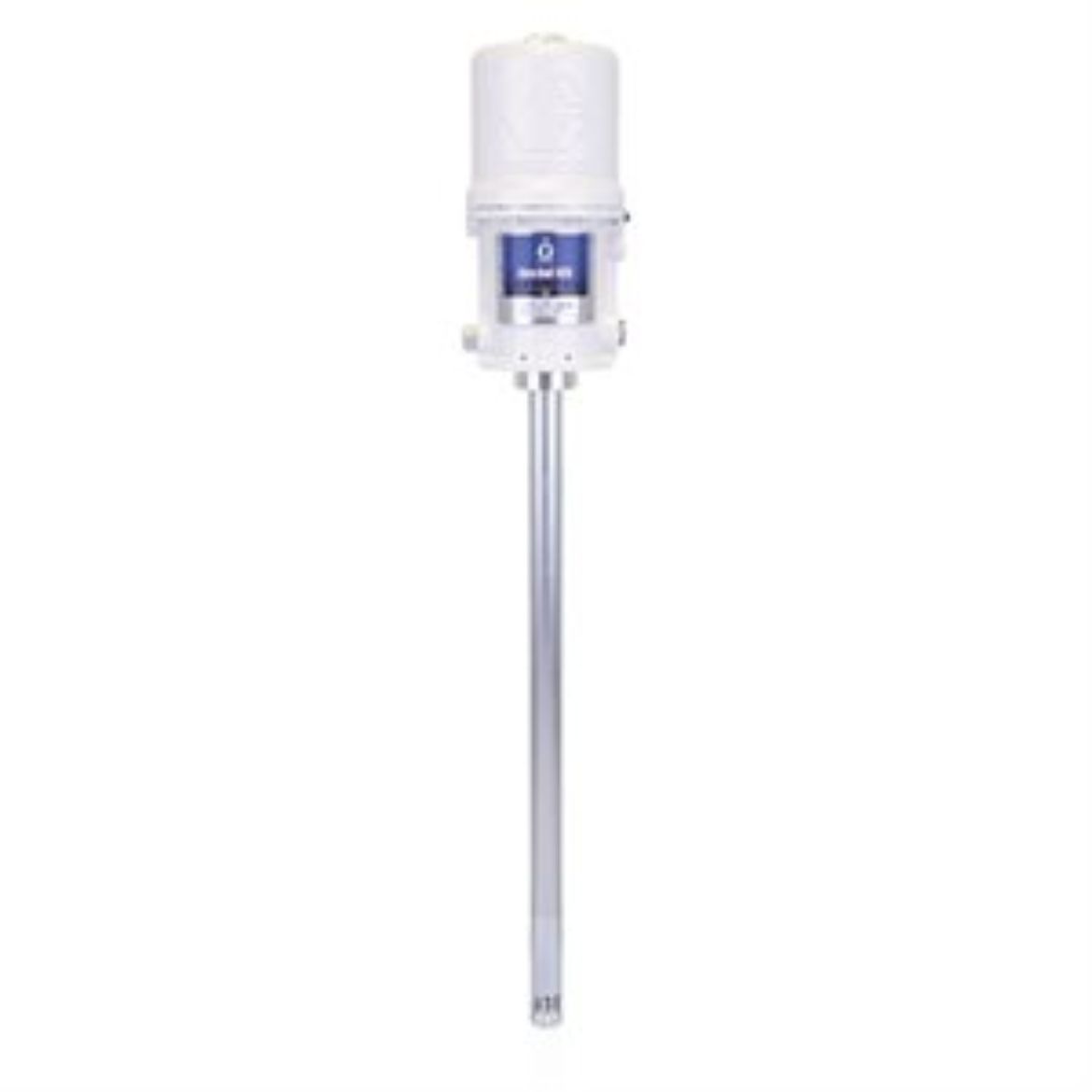

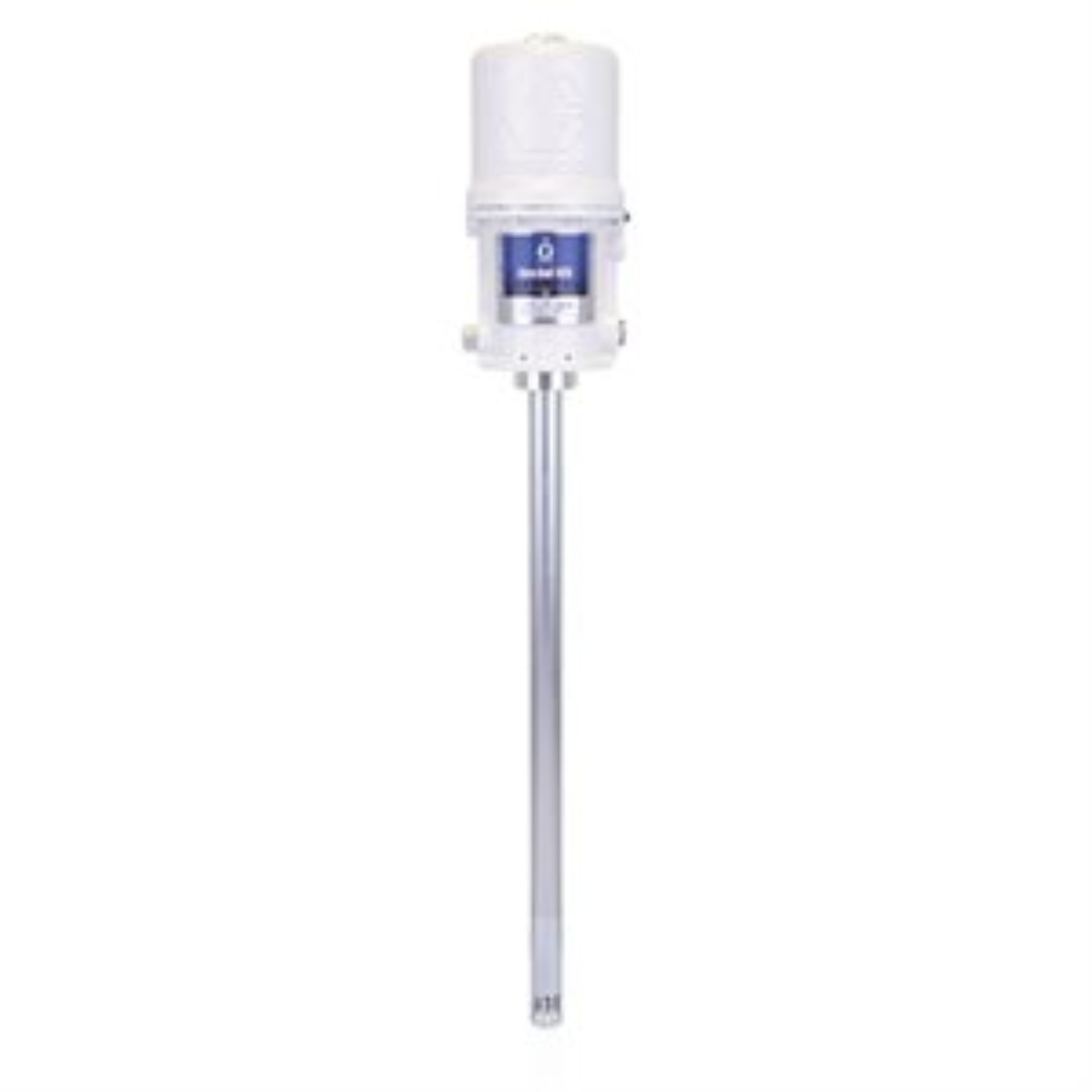

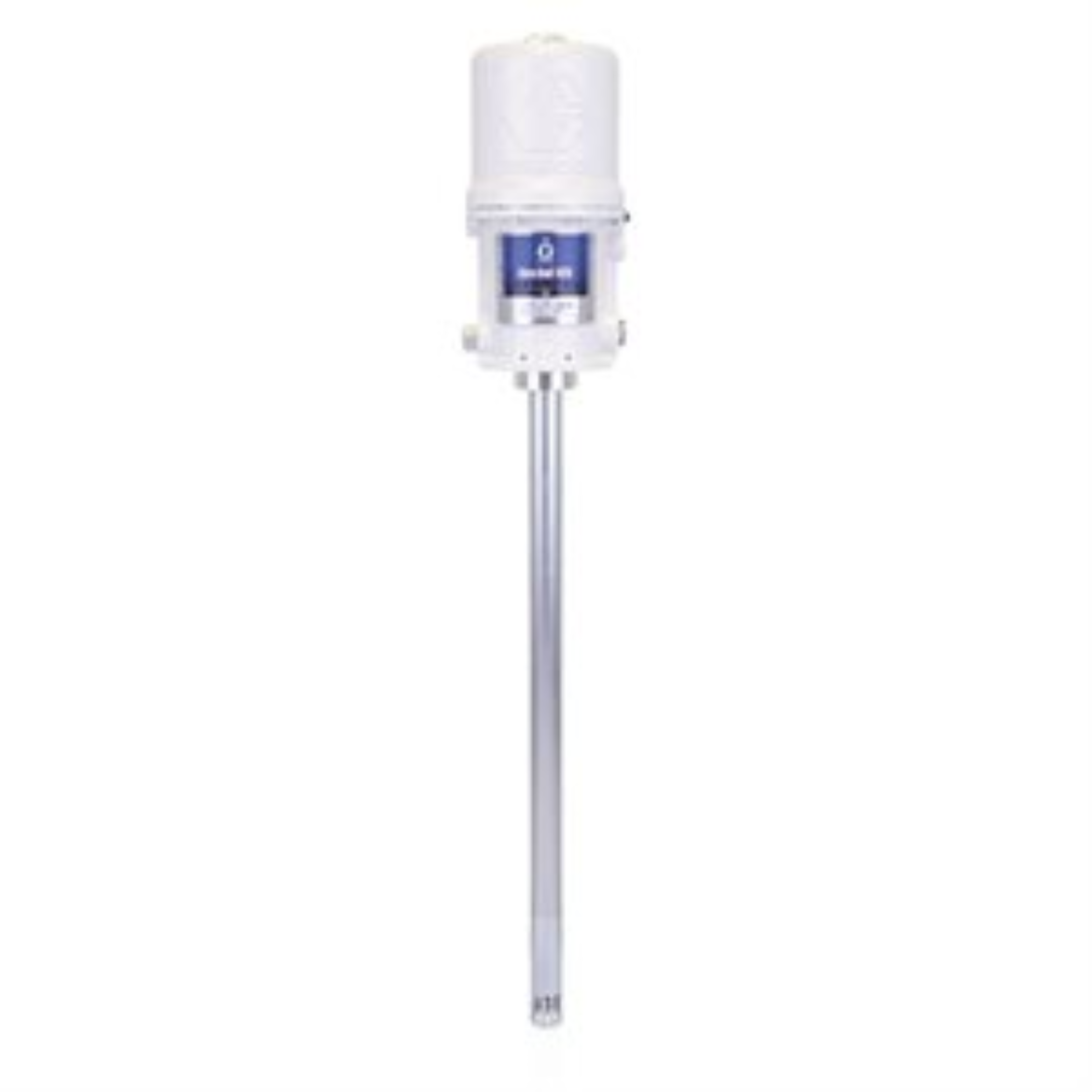

Graco 965129 Fire-Ball 425 Series 10:1 400 lb (180 kg). Air-Powered Grease Pump

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

• Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Grease

• Cycles Per Gallon: 20

• Fluid Inlet Type: Slotted

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Grease

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Intermittent Cycle Rate (CPM): 60

• Maximum Working Pressure (bar): 124
• Maximum Working Pressure (kPa): 12400
• Maximum Working Pressure (MPa): 12.4
• Maximum Working Pressure (psi): 1800

• Power Type: Pneumatic

• Pump Ratio: 10:1
