GG 237132
FAST-FLO PUMP, (1:1)

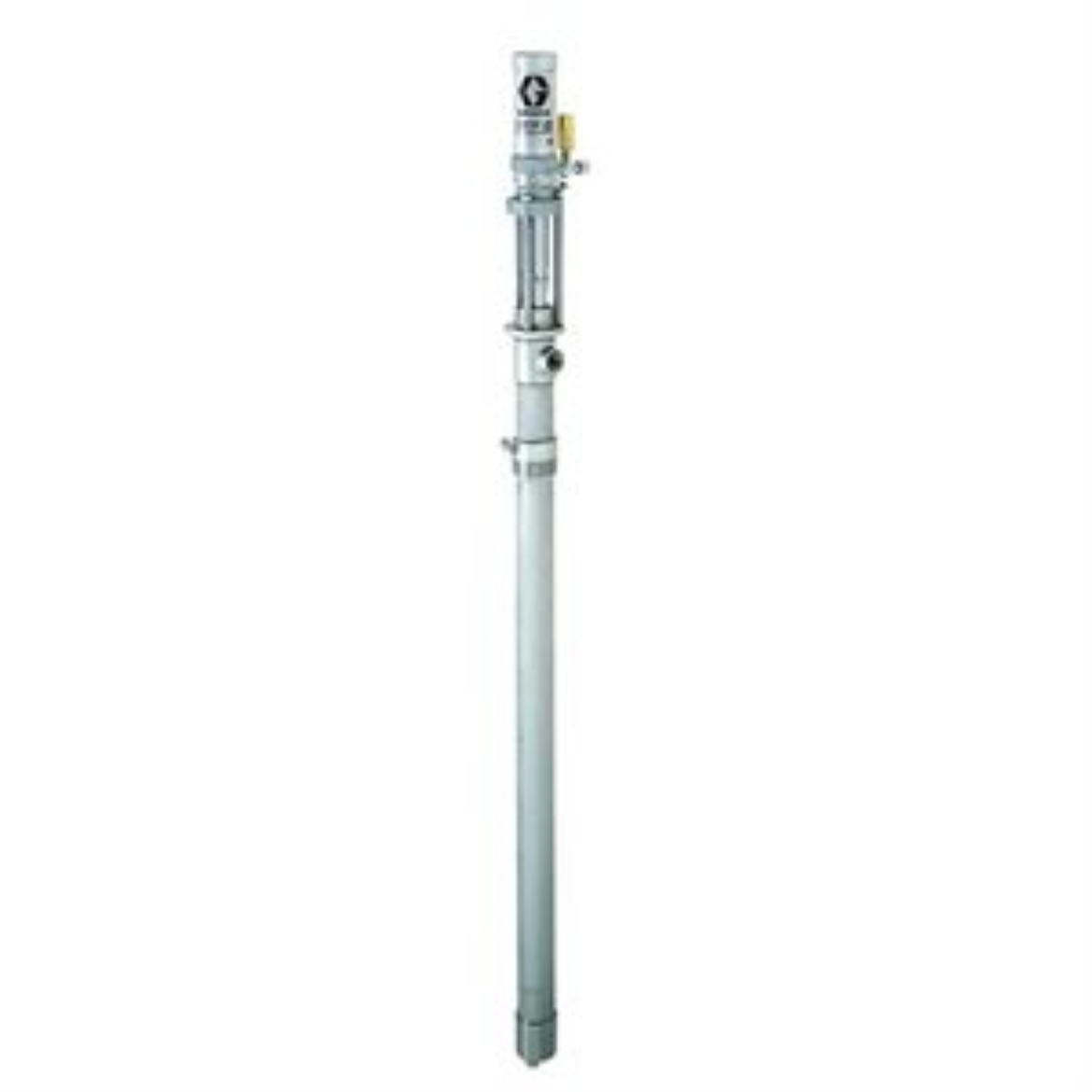

Graco 237132 1:1 Ratio Fast-Flo Air Operated Piston Transfer Stainless Steel Stubby Pump with PTFE Packings
Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options.
Application: Maximum delivery up to 5 gpm (19 lpm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids.
- Air-powered for high reliability and low cost
- Delivery up to 5 gpm (19 lpm)
- Available in stainless steel or carbon steel
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Drum Height (in): 9.8
- Compatible Material: Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 100
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.1
- Maximum Intermittent Cycle Rate (CPM): 4
- Maximum Working Pressure (bar): 12.4
- Maximum Working Pressure (kPa): 1240
- Maximum Working Pressure (MPa): 1.2
- Maximum Working Pressure (psi): 180
- Minimum Flow Rate (GPM): 180
