Dura-Flo 2400 Pump,Xl,34:1,(24 Cm Cs)

GG 24Y207

DURA-FLO 2400 PUMP, XL, 34:1, (24 CM CS)

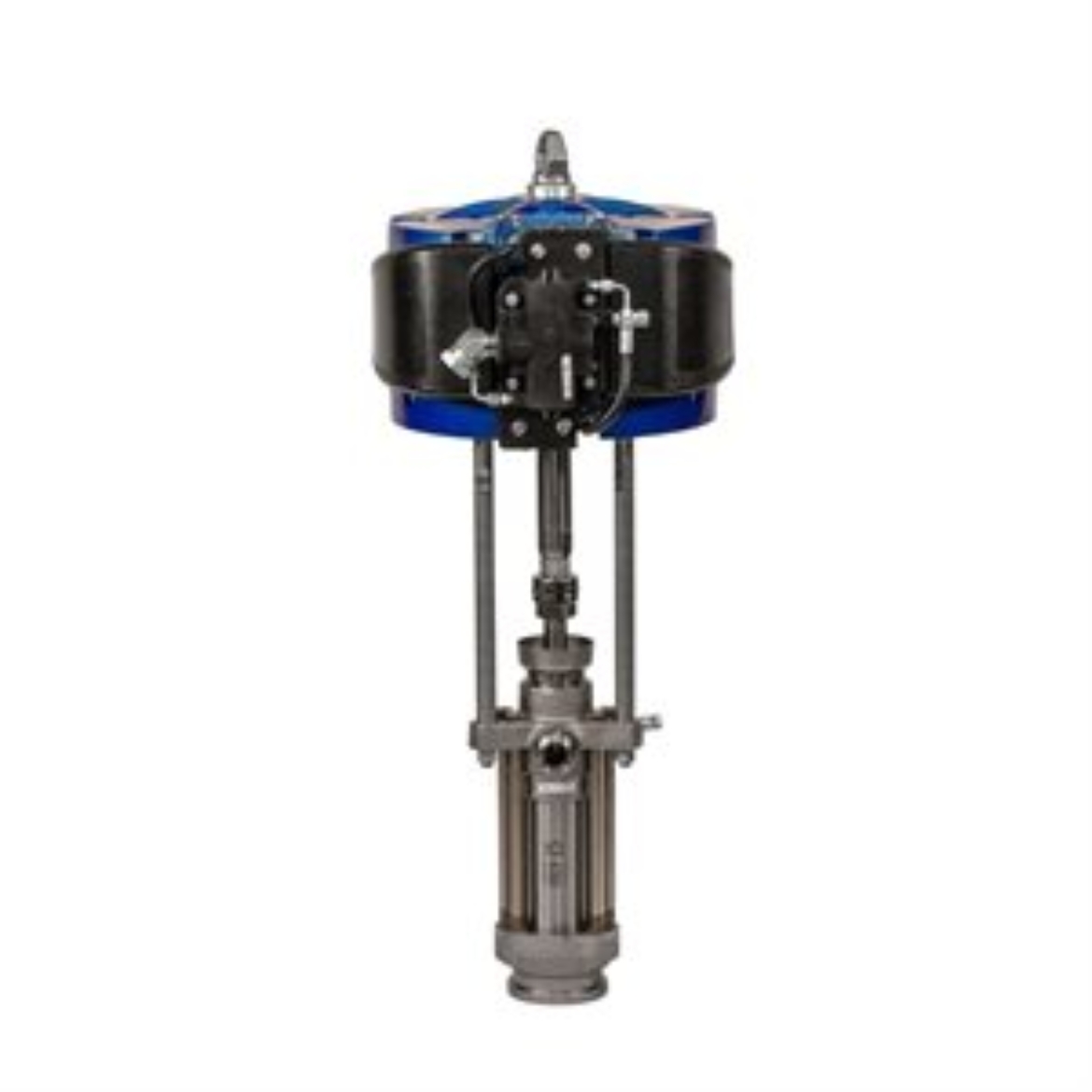

Graco 24Y207 35:1 - 580cc Dura-Flo Pump with XL 10000 Air Motor, Severe Duty Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• XL 1000 Air Motor


  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 580cc Dura-Flo Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Standard Threaded Coupler -

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity




  • Model: Dura-Flo
  • Series: XL 2400
  • Air Inlet Size (in): 1
  • Air Inlet Size (mm): 25.4000
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPT
  • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
  • Fluid Outlet Size (in): 1-1/2
  • Fluid Outlet Thread Gender: Male
  • Fluid Outlet Thread Type: NPT
  • Material: Carbon Steel
  • Maximum Air Inlet Pressure (bar): 7
  • Maximum Air Inlet Pressure (kPa): 690
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Continuous Cycle Rate (CPM): 60
  • Maximum Flow Rate (GPM): 9.2
  • Maximum Flow Rate (L/min): 34.8
  • Maximum Operating Temperature (°C): 82
  • Maximum Operating Temperature (°F): 180
  • Maximum Working Pressure (bar): 234
  • Maximum Working Pressure (kPa): 23400
  • Maximum Working Pressure (MPa): 23.4
  • Maximum Working Pressure (psi): 3400
  • Power Type: Pneumatic
  • Pump Ratio: 35:1
