GG 17E226
PRESIDENT PUMP, OPEN, SST, 3:1

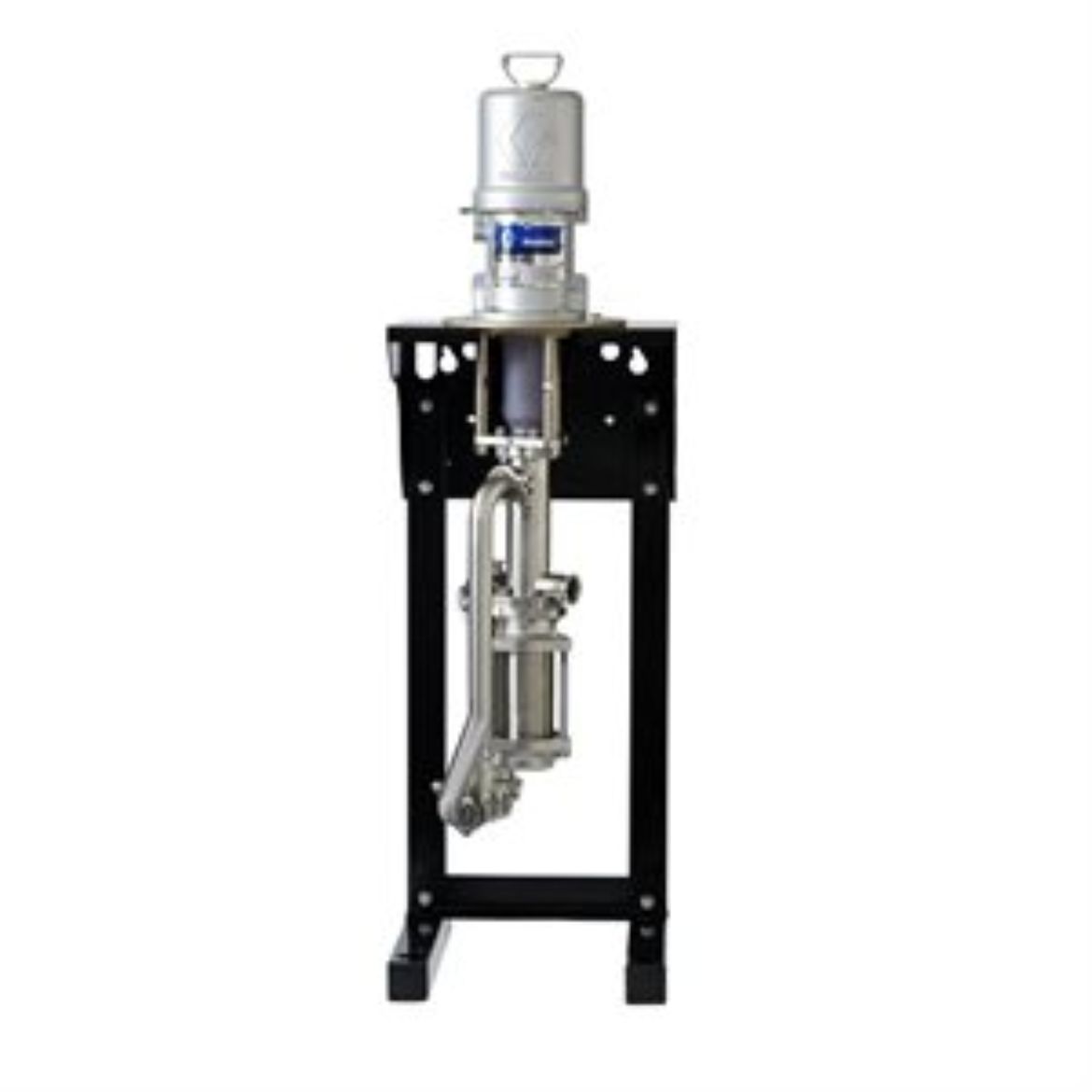

Graco 17E226 3:1 President 4-Ball Pneumatic Pump, 750 cc, Open SST Lower, 460 psi (32 bar) Max Working Pressure, NPT, Standard Pump Length
Gracos high volume circulating pumps will allow you to handle large flow requirements while operating at low cycle rates. The pump lower requires fewer cycles per gallon and longer intervals between seal replacement, lowering your overall cost of ownership.
- Excellent abrasion and corrosion resistance with large porting for excellent priming and handling of high viscosity fluids
- Stainless steel and carbon steel wetted parts for a wide range of fluids
- Model: President
- Series: 4-Ball
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: Open Wet Cup
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Continuous Cycle Rate (CPM): 12
- Maximum Flow Rate (GPM): 9.6
- Maximum Flow Rate (L/min): 36.34
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 32
- Maximum Working Pressure (kPa): 3200
- Maximum Working Pressure (MPa): 3.2
- Maximum Working Pressure (psi): 460
