CHECK-MATE 2100 PUMP, VISCOUNT II, 2.4:1

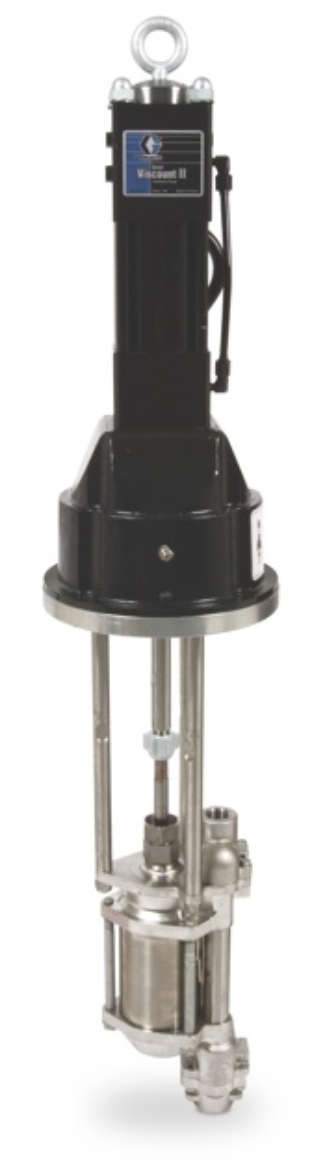

Graco 222902 Viscount II 2.4:1 Ratio Hydraulic Pump

Field-Proven, Energy-Efficient. When paired with any of Graco's priming piston pumps, the Viscount II hydraulic motor offers exceptional cost savings by operating on 20% of the energy used by a pneumatic motor.

• Built-In Reliability - Self-lubricating vertical design for long life and reliable operation in high-vibration environments.
• Quiet Hydraulic Motor - No need for add-on mufflers.
• High-Efficiency Motor - Uses less hydraulic oil.

• Model: Viscount
• Series: II

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 7.5
• Maximum Flow Rate (L/min): 28.4

• Maximum Hydraulic Fluid Inlet Pressure (bar): 103
• Maximum Hydraulic Fluid Inlet Pressure (kPa): 10300
• Maximum Hydraulic Fluid Inlet Pressure (psi): 1500

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Working Pressure (bar): 159
• Maximum Working Pressure (kPa): 15900
• Maximum Working Pressure (MPa): 15.9
• Maximum Working Pressure (psi): 2300

• Portable: Non-Portable

• Power Type: Hydraulic

• Pump Ratio: 2.4:1
