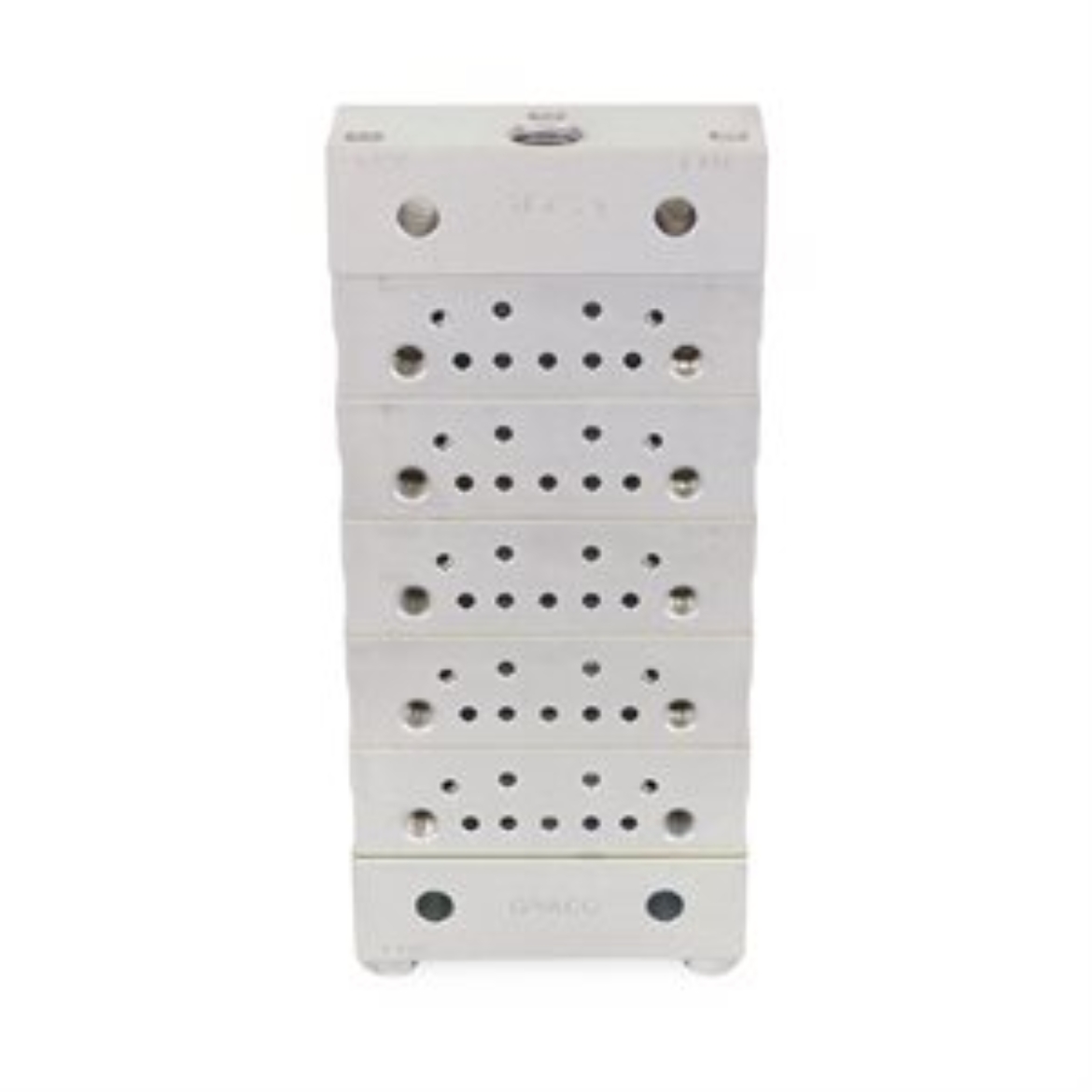

Trabon, MSP Divider Valve, 5 Section Base Plate Assmblies, BSPP

GG 24N917

PLATE, BASE, 5 SECTION MSP BSPP

Graco 24N917 Trabon MSP Divider Valve - 5 Section Base Plate Assemblies - BSPP

The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve - and is still the best!

• Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime.
• Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
• Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.

• Model: Trabon
• Series: MSP

• Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery

• Compatible Material: Oil, Grease

• Cycle Indicator: None

• Discharge Per Piston Stroke (in cu ): N/A

• Divider Valve Series: MSP

• Inlet Size (in): 1/4

• Inlet Thread Gender: Female
• Inlet Thread Type: BSPP

• Material: Carbon Steel

• Maximum NLGI Grade: #2

• Maximum Operating Temperature ( degree C): 176
• Maximum Operating Temperature ( degree F): 350

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (psi): 3500

• Number of Outlets: 10

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175
• Outlet Thread Gender: Female
• Outlet Thread Type: BSPP
