GG 94G039
G1 STANDARD PUMP, G-24NC-2L0A00-LD000000

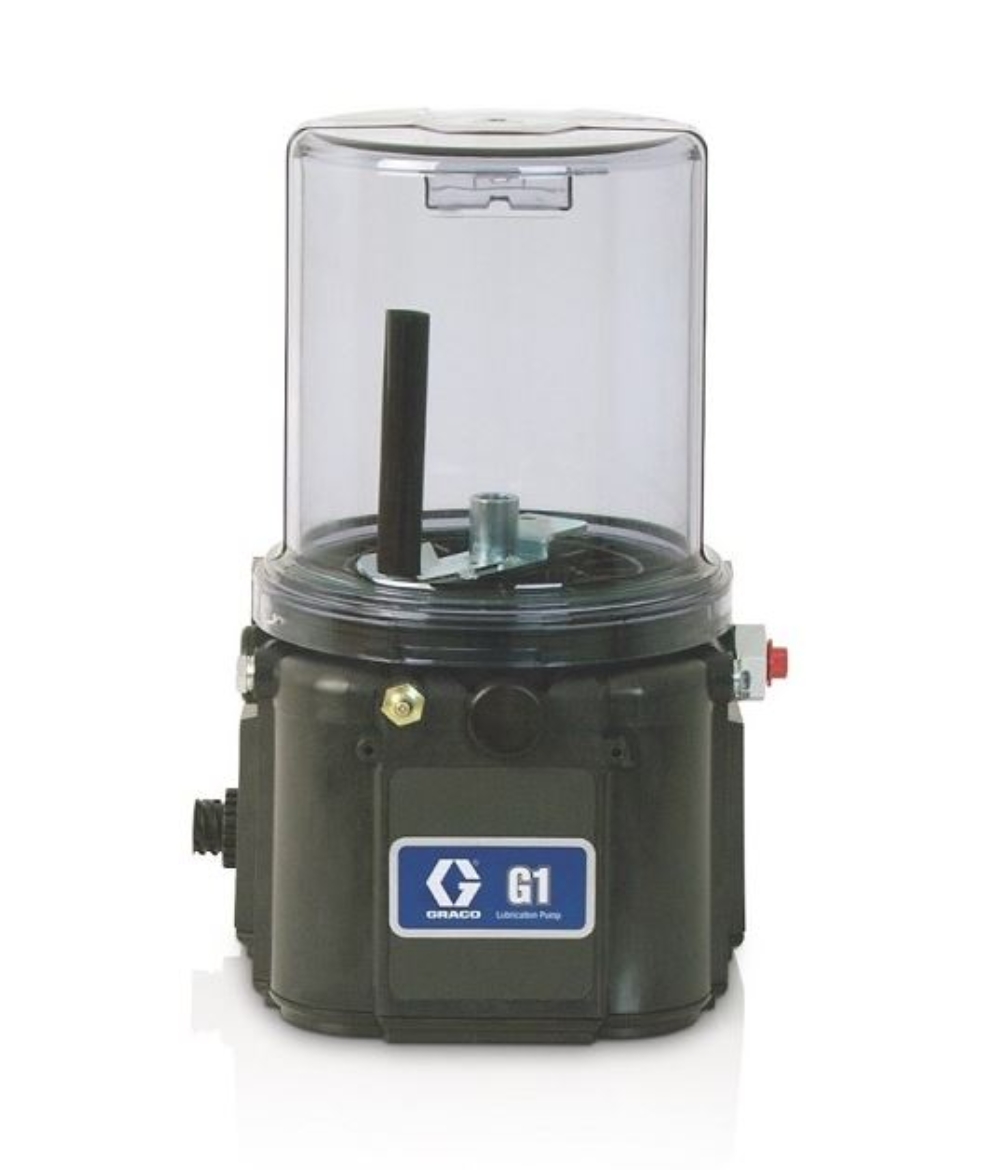

Graco 94G039 G1™ Standard Grease Lubrication Pump, 24 VDC, 2 Liter, DIN, Wiper, Low Level
Simple solution. Sophisticated results. Choose the user friendly Graco G1 Pump when you need a reliable, simple alternative to manual lubrication. Work smarter and get better productivity from your equipment with G1 Series lubrication pumps.
Application: Automatic Lubrication for Series Progressive Metering Systems
- G1 Standard has no internal controller for a low cost solution.
- 2 liter reservoir
- Connect to 24 VDC
- Hard Working Pump - G1 comes with one pump element installed that reliably delivers lubricant when you need it.
- Achieve Uninterrupted Material Flow - With its advanced flow dynamics the contoured base flows lubricants directly to the pump inlet, significantly reducing stagnant areas where grease can separate.
- Experience Our Long Life Design - Engineered offset drive design minimizes load and stress on the motor and pump element.
- Model: G1
- Series: Standard
- Application: On-Road Vehicles, Off-Road Equipment
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive, Single Line Parallel
- Control Options: Standard
- Fluid Outlet Size (in): 0.25
- Fluid Outlet Size (mm): 6.3500
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPSF
- Includes: Wiper Arm, External Low Level
- Maximum Flow Rate (ci/min): 0.25
- Maximum Run Time (min): 30
- Maximum Voltage (V dc): 32
- Maximum Working Pressure (bar): 351.6
- Maximum Working Pressure (kPa): 35160
- Maximum Working Pressure (MPa): 35.1
- Maximum Working Pressure (psi): 5100
- Minimum Voltage (V dc): 18
- Number of Pump Elements: 1
- Overall Depth (cm): 22.9
- Overall Depth (in): 9
- Overall Depth (mm): 229
- Overall Height (cm): 33.7
- Overall Height (in): 13.25
- Overall Height (mm): 337
- Overall Width (cm): 20.3
- Overall Width (in): 8
- Overall Width (mm): 203
- Power Connection Type: DIN
