GG 24G606
LD SERIES GREASE PUMP, 50:1, 180 KG, NPT

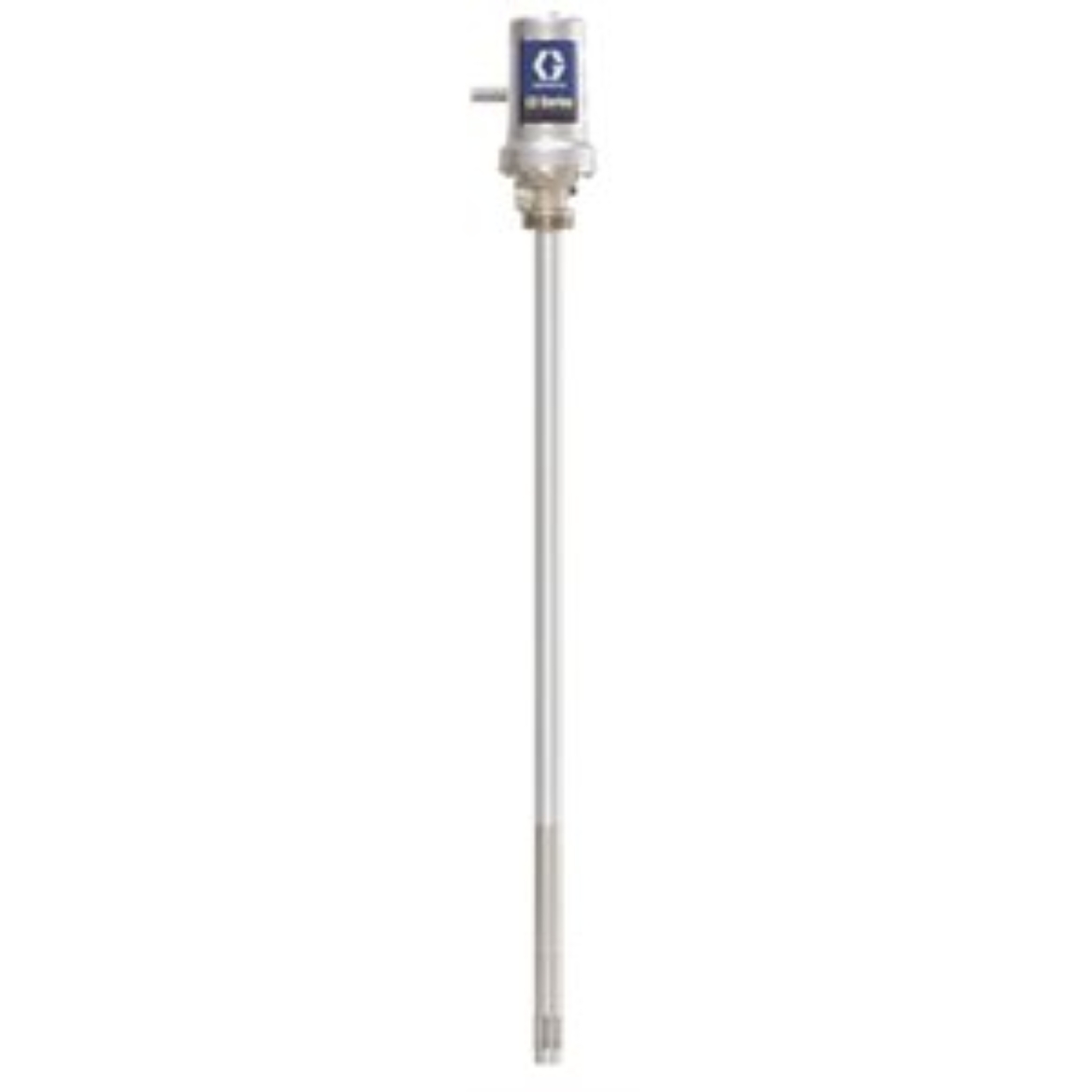

Graco 24G606 LD Series 50:1 Pump for 400 lb (180 kg). Pail - NPT
The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
- Three Inch Air Motor - Provides more power to create better flow.
- Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
- Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
- Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
- Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
- 400 lb (180 kg) Grease Pump - 50:1
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Grease
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Working Pressure (bar): 517
- Maximum Working Pressure (kPa): 51700
- Maximum Working Pressure (MPa): 51.7
- Maximum Working Pressure (psi): 7500
