INGERSOLL-RAND IR TOOL S12880
INGERSOLL-RAND IR TOOL S12880 branded products

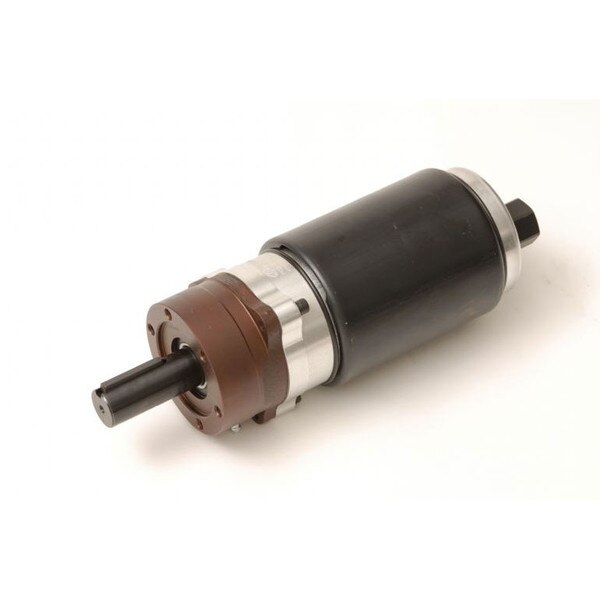

MOTOR
IR 3800U
IR 3800U
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 220 RPM, 1.45 HP, 189 NM, Non-reversible
Air Consumption at Max HP (scfm): 48Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 220
Max Pressure (bar): 6.2
Max Torque (ft-lb): 139
Max Torque (in-lb): 1673
Max Torque (nm): 189
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.5
Rated Power (hp): 1.45
Rated Power (kW): 1.08
Reversible: Non-reversible
Speed at Max Power (rpm): 105
Standards/Certifications: ATEX
Starting Torque (ft-lb): 105
Starting Torque (nm): 142
Warranty: 1-year
$4,219.50
MOTOR
IR 3840Q
IR 3840Q
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 280 RPM, 1.35 HP, 106 NM, Reversible
Air Consumption at Max HP (scfm): 44Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 78
Max Torque (in-lb): 938
Max Torque (nm): 106
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 130
Standards/Certifications: ATEX
Starting Torque (ft-lb): 60
Starting Torque (nm): 81.4
Warranty: 1-year
$3,980.25
MOTOR
IR 3840P
IR 3840P
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 440 RPM, 1.35 HP, 72.6 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 440
Max Pressure (bar): 6.2
Max Torque (ft-lb): 54
Max Torque (in-lb): 643
Max Torque (nm): 72.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 215
Standards/Certifications: ATEX
Starting Torque (ft-lb): 40
Starting Torque (nm): 54.2
Warranty: 1-year
$3,780.15
MOTOR
IR 3840M
IR 3840M
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 825 RPM, 1.40 HP, 47.7 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 825
Max Pressure (bar): 6.2
Max Torque (ft-lb): 35
Max Torque (in-lb): 422
Max Torque (nm): 47.7
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 7.38
Rated Power (hp): 1.40
Rated Power (kW): 1.04
Reversible: Reversible
Speed at Max Power (rpm): 390
Standards/Certifications: ATEX
Starting Torque (ft-lb): 23
Starting Torque (nm): 31.2
Warranty: 1-year
$3,545.25
PLATE, VALVE CHEST, FAB, MK-549, NO PAINT
IR 382-35944
IR 382-35944
PLATE, VALVE CHEST, FAB, MK-549, NO PAINT $197.00

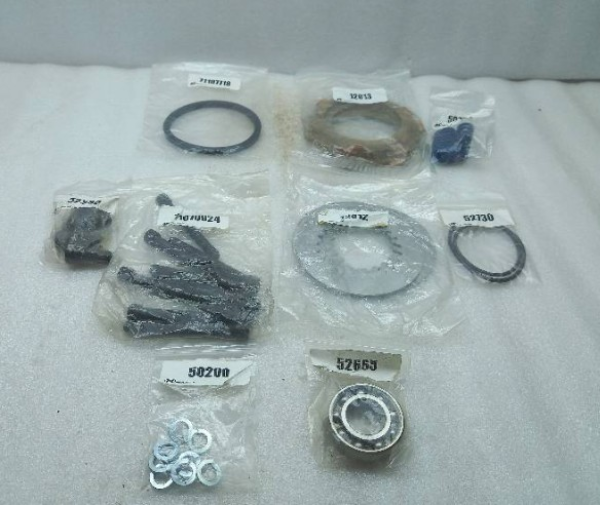

Kit, Servise, Brake, FA150KGMR
IR 382-31483
IR 382-31483
Kit, Servise, Brake, FA150KGMR Call for pricing
MOTOR
IR 3840S
IR 3840S
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 190 RPM, 1.35 HP, 156 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 190
Max Pressure (bar): 6.2
Max Torque (ft-lb): 115
Max Torque (in-lb): 1381
Max Torque (nm): 156
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 100
Standards/Certifications: ATEX
Starting Torque (ft-lb): 86
Starting Torque (nm): 116
Warranty: 1-year
$4,176.00
MOTOR
IR 3840U
IR 3840U
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 162 RPM, 1.35 HP, 181 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 162
Max Pressure (bar): 6.2
Max Torque (ft-lb): 133
Max Torque (in-lb): 1602
Max Torque (nm): 181
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 83
Standards/Certifications: ATEX
Starting Torque (ft-lb): 100
Starting Torque (nm): 135
Warranty: 1-year
$5,050.00
MOTOR
IR 3840Q2
IR 3840Q2
Inline Multi-Vane Air Motor, 3/4" Square Shaft, 280 RPM, 1.35 HP, 106 NM, Reversible
Air Consumption at Max HP (scfm): 44Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 78
Max Torque (in-lb): 938
Max Torque (nm): 106
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 130
Standards/Certifications: ATEX
Starting Torque (ft-lb): 60
Starting Torque (nm): 81.4
Warranty: 1-year
$4,110.75
MOTOR
IR 3840R
IR 3840R
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 238 RPM, 1.35 HP, 125 NM, Reversible
Air Consumption at Max HP (scfm): 44Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 238
Max Pressure (bar): 6.2
Max Torque (ft-lb): 92
Max Torque (in-lb): 1106
Max Torque (nm): 125
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 122
Standards/Certifications: ATEX
Starting Torque (ft-lb): 69
Starting Torque (nm): 93
Warranty: 1-year
$4,197.75
RIGID END TRUCK - ZRA1/T ON ZRA2 12 INCH 45519618-1200
IR 45519618-1200
IR 45519618-1200
RIGID END TRUCK - ZRA1/T ON ZRA2 12 INCH 45519618-1200 $1,570.00
VACUUM CUP, ROUND, 8.63 DIAMETER, 60 DUROMETER
IR 47549516001
IR 47549516001
VACUUM CUP, ROUND, 8.63 DIAMETER, 60 DUROMETER $285.00
VACUUM CUP, ROUND, 7.042 DIAMETER, 50 DUROMETER
IR 47549517001
IR 47549517001
VACUUM CUP, ROUND, 7.042 DIAMETER, 50 DUROMETER $155.00
MOTOR
IR 4800M
IR 4800M
Inline Multi-Vane Air Motor, 1" Keyed Shaft, 1050 RPM, 3.7 HP, 93.6 NM, Non-reversible
The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1050
Max Pressure (bar): 6.2
Max Torque (ft-lb): 69
Max Torque (in-lb): 828
Max Torque (nm): 93.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.7
Rated Power (kW): 2.76
Reversible: Non-reversible
Speed at Max Power (rpm): 560
Standards/Certifications: ATEX
Starting Torque (ft-lb): 51
Starting Torque (nm): 69.2
Warranty: 1-year
$5,675.00
MOTOR
IR 4800U2
IR 4800U2
Inline Multi-Vane Air Motor, 1" Square Shaft, 185 RPM, 3.5 HP, 480 NM, Non-reversible
The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 53.5:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 185
Max Pressure (bar): 6.2
Max Torque (ft-lb): 354
Max Torque (in-lb): 4248
Max Torque (nm): 480
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 97
Standards/Certifications: ATEX
Starting Torque (ft-lb): 265
Starting Torque (nm): 359
Warranty: 1-year
$6,750.00
MOTOR
IR 4840K
IR 4840K
Inline Multi-Vane Air Motor, 1" Keyed Shaft, 1429 RPM, 3.2 HP, 57 NM, Reversible
Features And Benefits- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1429
Max Pressure (bar): 6.2
Max Torque (ft-lb): 42
Max Torque (in-lb): 504
Max Torque (nm): 57
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.2
Rated Power (kW): 2.39
Reversible: Reversible
Speed at Max Power (rpm): 711
Standards/Certifications: ATEX
Starting Torque (ft-lb): 32
Starting Torque (nm): 43.4
Warranty: 1-year
$5,198.25
MOTOR
IR 4840M
IR 4840M
Inline Multi-Vane Air Motor, 1" Keyed Shaft, 975 RPM, 3.2 HP, 85.4 NM, Reversible
The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 35.6:1
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 975
Max Pressure (bar): 6.2
Max Torque (ft-lb): 63
Max Torque (in-lb): 756
Max Torque (nm): 85.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.2
Rated Power (kW): 2.39
Reversible: Reversible
Speed at Max Power (rpm): 485
Standards/Certifications: ATEX
Starting Torque (ft-lb): 47
Starting Torque (nm): 64
Warranty: 1-year
$5,350.50
MOTOR
IR 4840P
IR 4840P
Inline Multi-Vane Air Motor, 1" Keyed Shaft, 475 RPM, 3 HP, 170 NM, Reversible
The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 35.6:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 475
Max Pressure (bar): 6.2
Max Torque (ft-lb): 125
Max Torque (in-lb): 1505
Max Torque (nm): 170
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 20.13
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 228
Standards/Certifications: ATEX
Starting Torque (ft-lb): 93
Starting Torque (nm): 126
Warranty: 1-year
$5,568.00
MOTOR
IR 4840S
IR 4840S
Inline Multi-Vane Air Motor, 1" Keyed Shaft, 255 RPM, 3 HP, 292 NM, Reversible
The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.Features And Benefits
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 35.6:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 255
Max Pressure (bar): 6.2
Max Torque (ft-lb): 215
Max Torque (in-lb): 2584
Max Torque (nm): 292
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 20.13
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 125
Standards/Certifications: ATEX
Starting Torque (ft-lb): 161
Starting Torque (nm): 218
Warranty: 1-year
$6,003.00
700 SERIES ARM 10FT REACH 500LB CAP BTM MOUNT NO
IR 70050SABB0ZP100
IR 70050SABB0ZP100
700 SERIES ARM 10FT REACH 500LB CAP BTM MOUNT NO $28,250.00
Jib, Medium Duty With 15 Foot Boom-A2- Rail-500Lb Cap-12' Uc
IR 7050JA2F15144
IR 7050JA2F15144
Jib, Medium Duty With 15 Foot Boom-A2- Rail-500Lb Cap-12' Uc Call for pricing
713 ARM LOW PROFILE CARRIAGE TRI
IR 71335SAA2LZT080
IR 71335SAA2LZT080
713 ARM LOW PROFILE CARRIAGE TRI $25,900.00
1/2" IQV20 DRILL DRIVER
IR D3141
IR D3141
1/2" 20V Cordless Compact Drill Driver Bare Tool, 450 in-lb Torque, Keyless Chuck, Pistol Grip
The Ingersoll Rand® D3141 IQV20™ Cordless Compact Drill Driver combines all the flexibility and dexterity of cordless tools with the power, durability, and strength that our professional-grade portfolio is known for. Weighing 3 lbs. with battery and 7" tip to tail length, it’s designed to help you access the toughest spots, from wheel hubs to heavy machinery gaskets. Also available in the D3141-K22 kit which includes (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.Features And Benefits
- Performance: A powerful brushless motor runs with up to 450 in-lbs of torque, ensuring the IQV20™ Cordless Compact Drill Driver operates at the peak of power in any application.
- Versatility: Equipped with both drill and drive modes, to help get the job done right- no matter the application.
- Precision: Fine-tune fastening depth with an 18-position clutch that helps reduce cam-outs and keep you working efficiently.
- Ergonomics: Powerful things come in small packages. The IQV20™ Cordless Compact Drill Driver is 7" tip to tail and weighs 3 lbs. with battery.
- Durability: Impact-resistant rubberized design helps prevent accidental damage and increases longevity. IPX6 rated protection against harmful effects of water ingress.
- Speed: Whether you're drilling through sheet metal, wood or anything in between, two speed settings help you with the right level of torque.
- Strength: A 1/2" all-metal keyless chuck with carbide teeth grips drill bits and lets you drill through tough materials with ease.
- Visibility: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
- Also available in the D3141-K22 kit which includes the D3141 Drill Driver, (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.
Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Drilling, honing, reaming, hole sawing, drilling out spot welds and rivets, driving threaded fasteners in sheet metal, wood or anything in between.
Actuation/Throttle Type/Switch Type: Trigger
Adjustable Clutch: Yes
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Clutch Settings: 18
Color: Grey
Configuration/Handle Type: Pistol Grip
Handle Material: Overmolded Grip
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 37
Max Torque (in-lb): 443
Max Torque (nm): 50
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 7.1
Product Width (in): 3.1
Product Height (in): 8.3
Product Height (in) (with Battery): 9.1
Product Weight (lb): 2.2
Product Weight (lb) (with Battery): 3.1
Recommended Forward Torque Range (ft-lb): 37
Recommended Forward Torque Range (in-lb): 443
Recommended Forward Torque Range (nm): 50
Reversible: Reversible
RPM Setting 1: 500
Sound Pressure/Power Db(A): 73 / 81
Special Features: Compact
Speed Setting: Dual speed
Standards/Certifications: ETL, CB, CE, IPX6
Tool Type: Compact
Vibration Level (m/s2): 4.0
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Similar IR
- D5241
$168.15
1/4" HEX IQV20 SCREWDRIVER, BARE TOOL
IR D3411
IR D3411
1/4" Hex 20V Cordless Compact Screwdriver, Quick Change Chuck, 450 in-lb Torque, Pistol Grip, Bare Tool
The Ingersoll Rand D3411 IQV20 Cordless Compact Screwdriver combines all the flexibility and dexterity of cordless tools with the power, durability, and strength that our professional-grade portfolio is known for. Weighing under 2.7 lbs. with battery and 5" tip to tail length, it’s designed to help you access the toughest spots.Features And Benefits
- Performance: A powerful brushless motor runs with up to 450 in-lbs of torque, ensuring the IQV20 Cordless Compact Screwdriver operates at the peak of power in any demanding application.
- Versatility: A 1/4” Hex quick change all-metal chuck grips bits and lets you drive fasteners and drill through tough materials with ease.
- Precision: Fine-tune fastening depth with an 18-position clutch that helps reduce cam-outs and keep you working efficiently.
- Ergonomics: Powerful things come in small packages. The IQV20 Cordless Compact Screwdriver weighs less than 2.7 lbs with 20V 2.5 Ah battery, so you can get the job done in tough-to-reach spaces with less fatigue.
- Durability: Impact-resistant rubberized design helps prevent accidental damage and increases longevity. IPX6 rated protection against harmful effects of water ingress.
- Speed: Whether you're drilling through sheet metal, wood or anything in between, two speed settings help you with the right level of torque.
- Strength: A 1/4" Hex Quick Change all-metal chuck grips drill and driver bits and lets you drill through tough materials with confidence
- Visibility: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
- Also available in the D3411-K22 kit which includes (2) BL2012 2.5Ah Batteries, and a 20V Battery Charger.
Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Drilling, honing, reaming, hole sawing, drilling out spot welds and rivets, driving threaded fasteners in sheet metal, wood or anything in between.
Actuation/Throttle Type/Switch Type: Trigger
Adjustable Clutch: Yes
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/4
Clutch Settings: 18
Clutch Type: Slip Clutch
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Type: Hex
Handle Material: Overmolded Grip
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 37
Max Torque (in-lb): 443
Max Torque (nm): 50
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 5
Product Width (in): 3.19
Product Height (in): 8.27
Product Height (in) (with Battery): 9.45
Product Weight (lb): 1.76
Product Weight (lb) (with Battery): 2.69
Recommended Forward Torque Range (ft-lb): 37
Recommended Forward Torque Range (in-lb): 443
Recommended Forward Torque Range (nm): 50
Retainer Type: Quick Change
Reversible: Reversible
RPM Setting 1: 500
Sound Pressure/Power Db(A): 73 / 81
Special Features: Compact
Speed Setting: Dual speed
Standards/Certifications: ETL, CB, CE, IPX6
Tool Type: Compact
Vibration Level (m/s2): 4
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
$156.75
1/2" DRIVE, 3" EXTENSION
IR E43H
IR E43H
1/2" Drive Hex Impact Socket, 3" Extension
Drive Size (in): 1/2Socket Bit Type: Hex
Socket Measurement Type: SAE
Warranty: Lifetime Limited
$26.00
ENGRAVING PEN KIT
IR EP51K
IR EP51K
Air Engraving Pen Kit, Includes 3 Stylus and Case, 13000 BPM
With a knurled zoom throttle for positive control and three assorted carbide tipped styluses, the EP51 will allow you to engrave even the smallest details across a wide range of materials. Designed for industrial applications, the steel housing withstands the harshest environments while dampening vibration for comfortable all day use.Features And Benefits
- Productivity: A knurled, variable zoom throttle acts as a regulator for greater control across a wide range of materials.
- Comfort: Steel housing dampens vibration and a flexible hose allows for easy movement.
- Durability: Housing made of steel for even the harshest environments while engraving the hardest materials.
- Versatility: includes 3 different carbide tipped styluses to engrave various materials from brittle ceramics to hard alloy.
Includes: EP51 Engraving Pen, Fine Point Stylus, Medium Point Stylus, Coarse Point Stylus, Molded plastic carrying case, 6ft flexible hose.
Product Application and Uses: Designed for industrial applications and ideal for marking welds, hardened tool steels, plastic, glass, and other materials.
Actuation/Throttle Type/Switch Type: Slide/Zoom
Air Consumption @ Load (cfm): 1.5
Air Consumption @ Load (l/min): 42.48
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Bit Material: Carbide
Blows per Min: 13000
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Hose Length (ft): 6
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 7/32
Non Sparking: No
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 5.68
Product Width (in): 0.62
Product Height (in): 0.62
Product Weight (lb): 0.31
Sound Pressure/Power Db(A): 75/86
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vibration Level (m/s2): 4.6
Vibration Uncertainy K* (m/s2): 1..07
Warranty: 1-year
Similar IR
- 140EP
- 8315
- 320PG
- 320PGK
Supersedes
- EP50K
$455.40

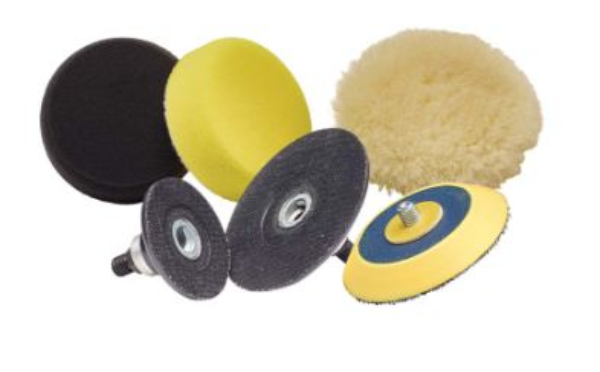

ACCESSORY KIT
IR G1000-KIT-PAD
IR G1000-KIT-PAD
Accessory Kit, includes 6-Pads for Ingersoll Rand G1000 Sander/Polisher
Includes: 2" sander backing pad, 3" sander backing pad, 3" polisher hook & loop backing pad, 3" sander hook & loop T80 foam pad, 3" sander hook & loop T10 foam pad, 3" polisher hook & loop pad $123.00
G1 ANGLE DIE GRINDER, 1/4" COLLET, REAR EXHAUST
IR G1A200RG4
IR G1A200RG4
Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust
The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.Features And Benefits
- Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
- Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip that ensures you'll get more done with less fatigue.
- Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
- One-nut access for all motor servicing.
- Patent-pending soft-mount system reduces vibration for extended motor and switch life.
- Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.
Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.1
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 12.5
Product Height (in): 2.5
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 3
Right Angle Length (mm): 76
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 83.6 / 94.6
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.6
Warranty: 1-year
Wheel Type: Burr
Similar IR
- M2A180RG4
- G1A120RG4
- G1A200FG4
$641.70

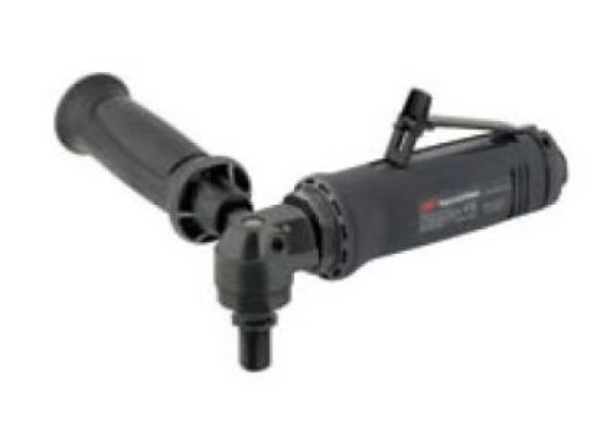

G1 SANDER, 1/4-20 THREAD
IR G1A200RS4
IR G1A200RS4
Angle Air Sander, 20,000 RPM, 0.4 HP, 1/4"-20 Thread, Rear Exhaust
Arbor/Collet: 1/4"-20 ThreadConfiguration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Max Free Speed (rpm): 20000
Min Hose Size (in): 3/8
Mounting Type: Arbor
Product Length (in): 6
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.6 / 94.6
Speed Setting: Variable Speed
Vacuum: None
Vibration Level (m/s2): 3
Warranty: 1-year
$696.90
G3 DIE GRINDER
IR G3H150RG4
IR G3H150RG4
Air Angle Die Grinder, 15,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust
The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.Features And Benefits
- Power: Powerful 1.35 15,000 RPM vane motor that won’t let you down on job that call for maximum power.
- Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
- Vibration dampening for ease-of-use.
Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 84.1 / 95.1
Vibration Level (m/s2): 3.7
Vibration Uncertainy K* (m/s2): 2.6
Warranty: 1-year
$1,400.00
1" FLAT CHISEL - 9"
IR H3R-214F-9
IR H3R-214F-9
1" Flat Chipping Hammer Chisel Steel, 9"L Hex Shank Round Collar
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.Includes: (10) Chipping Hammer Chisel Steels
Product Application and Uses: Designed for general demolition. For use with Ingersoll Rand W1A1, W2A1, W3A1, W4A1 chipping hammers.
Chisel Edge Style: Flat
Chisel Style: Flat
Collar Type: Round
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 6.5
Product Length (in): 9
Product Width (in): 1
Product Weight (lb): 1.25
Shank Length (in): 2.5
Shank SIze (in): 0.58
Shank Type: Hex
For Use With
- W1A1
- W2A1
- W3A1
- W4A1
$48.00
MOIL POINT - 12" .68 RD SHK RD COL, QTY 5
IR H3R-215M-12
IR H3R-215M-12
12" Moil Point Chipping Hammer Steel, Round Shank Round Collar
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.Includes: (5) Moil Point Steels
Product Application and Uses: Designed for general demolition. For use with Ingersoll Rand W1A2, W2A2, W3A2, W4A2 chipping hammers.
Chisel Style: Moil Point
Collar Type: Round
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 9.5
Product Length (in): 12
Product Weight (lb): 1.75
Shank Length (in): 2.5
Shank SIze (in): 0.68
Shank Type: Round
For Use With
- W1A2
- W2A2
- W3A2
- W4A2
$46.00
2" FLAT CHISEL - 9"
IR HH1-323-9
IR HH1-323-9
2" Scaling Chipping Hammer Chisel Steels, 9"L Round Shank Oval Collar
Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.Includes: (1) Chipping Hammer Chisel Steel
Product Application and Uses: Designed for general demolition. For use with Ingersoll Rand 2DA2SA, 3DA2SA, 4DA2SA, 1A2SA, 2A2SA, 3A2SA, 4A2SA chipping hammers
Chisel Style: Scaling
Collar Thickness (in): 0.813
Collar Type: Oval
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 6.625
Product Length (in): 9
Product Width (in): 2
Product Weight (lb): 1.25
Shank Length (in): 2.375
Shank SIze (in): 0.68
Shank Type: Round
For Use With
- 1A2SA
- 2A2SA
- 2DA2SA
- 3A2SA
- 3DA2SA
- 4A2SA
- 4DA2SA
$31.00
6 Ton Air Hoist, 20Ft Lift, 15ft Drop, 2 Motor Pendant, Powered Trolley
IR HL6000K-3HA20-C15
IR HL6000K-3HA20-C15
6Ton Air Hoist, 20Ft Lift, 15ft Drop, 2 Motor Pendant, Powered Trolley Call for pricing
