IR W9691

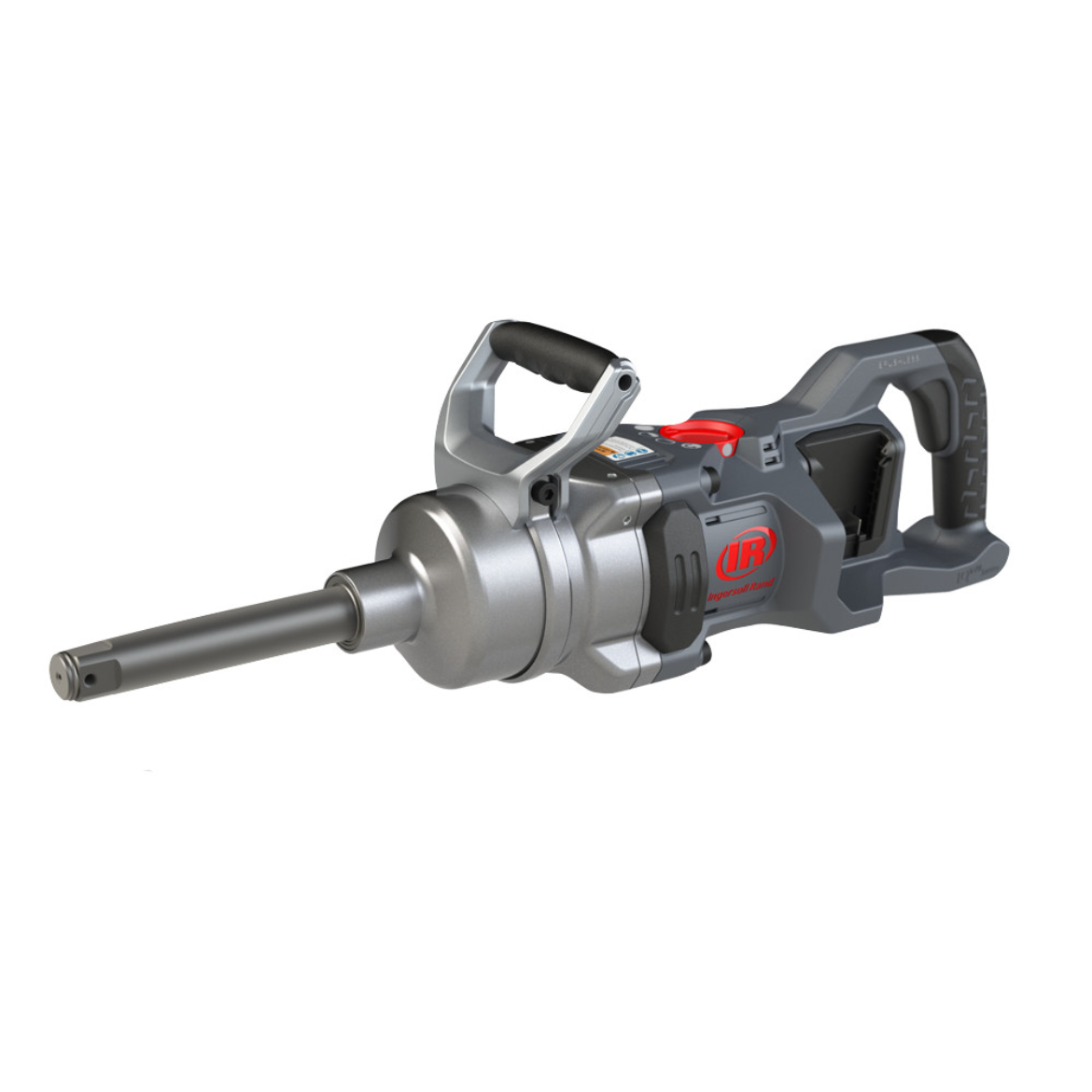

1" 20V Cordless Impact Wrench, 6" Ext Anvil, 3000 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle, Bare Tool
Description: Introducing the world's most powerful extended anvil 1" cordless impact wrench: the W9691 from Ingersoll Rand. Get 3,000 ft-lbs of nut busting torque with 100% mobility from the market leader in 1" impact wrenches. This powerful cordless impact wrench combines the power of air with the freedom of cordless mobility. Give yourself the ability to move about freely around any job site where space and maneuverability are at a premium.
Features And Benefits:
- Power: World's Most Powerful 1" Cordless Impact Wrench with best in class power-to-weight ratio. 3,000 ft-lbs of nut busting torque, 2,200 ft-lbs of tightening torque.
- Productivity: 250 bolts per charge – tackle a full day's worth of work. Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
- Extended Reach: The 6-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.
- IP56 rated for tough environmental conditions.
- Safety: Remove hoses & trip hazards to keep operators & technicians safe
- IQV Power Control System includes 3 modes: MAX Power, MID, and Snug
- Brushless motor delivers durability and efficiency
- 360° adjustable D-handle: rotates fully around the tool as the job demands
- Impact and chemical-resistant housing
- Compatible with IQV 20 Series Battery System
- 3-year limited warranty
Product Application and Uses:
Cordless Impact Wrenches are designed to remove and install threaded fasteners.
- Includes: Bare tool only, batteries and charger sold separately or with other kits.
- Actuation/Throttle Type/Switch Type: Inside Trigger
- Anvil Length: 6" Extended
- Blows per Min: 1170 (BL2022)
- Bolts per Charge (on and Off): 250
- Built-in Light: No
- Color: Grey
- Configuration/Handle Type: D-Handle
- Drive Size (in): 1
- Drive Type: Square
- Duty Rating: Industrial Duty
- Fasteners per charge: 250
- Forward Torque setting 1 (ft-lb): 184
- Forward Torque setting 1 (in-lb): 2213
- Forward Torque setting 1 (nm): 250
- Forward Torque setting 2 (ft-lb): 406
- Forward Torque setting 2 (in-lb): 4868
- Forward Torque setting 2 (nm): 550
- Forward Torque setting 3 (ft-lb): 2213
- Forward Torque setting 3 (in-lb): 26552
- Forward Torque setting 3 (nm): 3000
- Hammer Case: Steel-lined Aluminum
- Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
- Impact Mechanism: Ball and Cam
- Max Bolt Diameter (in): 1-1/4
- Max Free Speed (rpm): 890
- Max Torque (ft-lb): 2213
- Max Torque (in-lb): 26552
- Max Torque (nm): 3000
- Motor: Brushless Motor
- Number of Batteries Required: 2
- Number of Power Settings: 4
- Nut-busting/Breakaway Torque (ft-lb): 3000
- Nut-busting/Breakaway Torque (in-lb): 35996
- Nut-busting/Breakaway Torque (nm): 4067
- Power Source: Battery Powered
- Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.09
- Product Length (in): 26.13
- Product Width (in): 6.93
- Product Height (in): 8.11
- Product Weight (lb): 25.9
- Product Weight (lb) (with Battery): 27.5
- Recommended Forward Torque Range (ft-lb): 2213
