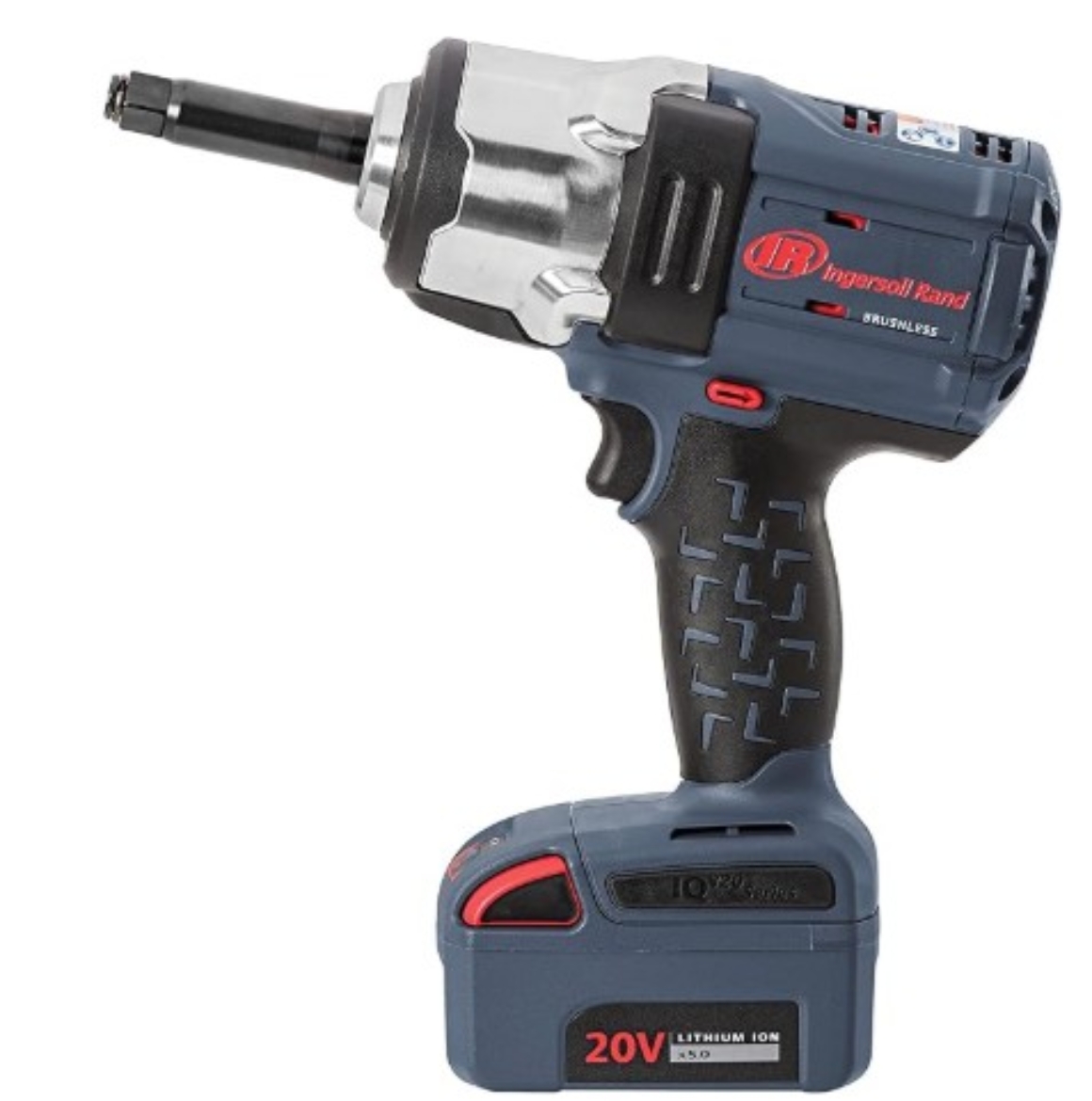

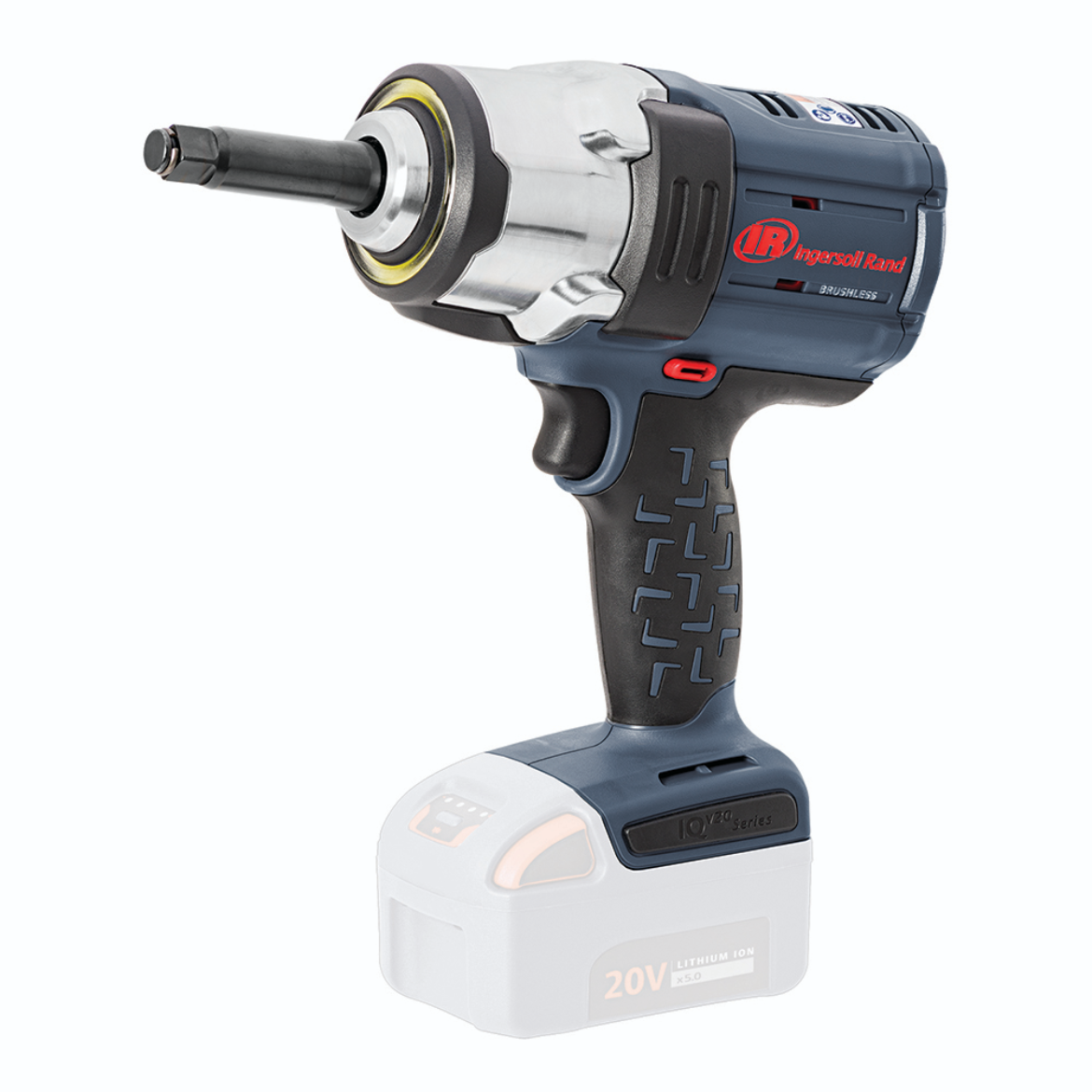

IR W7252
1/2" 20V Cordless Impact Wrench, 2" Ext Anvil, 1500 ft-lb Torque, Friction Ring Retainer, Pistol, Bare Tool
The W7252 is the most powerful ½” cordless impact wrench in its class. Delivering 1500 ft-lbs of nut-busting torque and utilizing the IQV® Intelligent Control System, the W7252 can go from MAX torque to “hand tight” in no time.
Features And Benefits
- Performance: Powerful brushless motor and finely tuned impact mechanism for best in class power-to-weight ratio. Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
- Durable: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7252 from aggressive fluids, chemicals and repeated drops.
- Access: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access. The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
- Control: Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there’s no need to switch tools.
- Variable-speed switch: (half and full power only) with electronic brake provides maximum control of the tool and increased safety-release trigger, drive stops spinning.
- Lightweight: Weighs only 7.8 lbs (with BL2022 battery).
- Compatible with IQV® 20 Series Battery System.
- Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
- Also available in the W7252-K22 Kit which includes (2) BL2022 5.0Ah Batteries, 20V battery charger and a tool bag.
Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners. Applications include tire changing, use with flip sockets, deep well wheels, tirelane and fleet maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 2" Extended
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 192.31
Product Length (in): 10.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.3
Product Weight (lb) (with Battery): 7.8
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Friction Ring
RPM Setting 1: 600
RPM Se
