SPRING

IR 508-51

Throttle Valve Spring Service Part for Ingersoll Rand Power Tools

$15.00

Die Grinder, 0.40 HP, 20K, Angle, 1/4in C

IR 5102MAX

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
MAX Productivity: Spindle lock feature allows for quick abrasive changeovers reducing operator downtime.
MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (2) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.4
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 1.89
Product Width (in): 7.09
Product Height (in): 3.43
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 84.1 / 95.1
Special Features: Lube-free Motor, Spindle Lock
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.3
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Type: Burr

Similar IR

5104MAX
302B
G1A200RG4
301B

Supersedes

320AC4A

$213.75

BEARING

IR 5102MAX-24

Bearing for Ingersoll Rand 5102MAX and 5104MAX Die Grinder

Product Application and Uses: For use use Ingersoll Rand 5102MAX and 5104MAX Air Die Grinder

For Use With

5102MAX

$10.00

RIGHT ANGLE DIE GRINDER - 24 PCS

IR 5103MAX-24

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust, Top Mounted Lever, 24-Piece

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
MAX Productivity: Spindle lock feature allows for quick abrasive changeovers reducing operator downtime.
MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: (24) 5103MAX Die Grinders, 1/4" Collet, 24 Large Wrenches, 24 Small Wrenches,
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7
Product Height (in): 4.4
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.74
Side to Center Distance (mm): 19
Sound Pressure/Power Db(A): 84.1 / 95.1
Special Features: Lube-free Motor, Spindle Lock
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.3
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Type: Burr

Similar IR

5102MAX
302B
G1A200RG4
301B

$8,350.00

STRAIGHT DIE GRINDER, 1/4" COLLET, 30K

IR 5107MAX

Air Die Grinder, 30,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 30,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 30000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.56
Product Height (in): 1.6
Product Weight (lb): 1
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 81.6 / 92.6
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 1.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

5108MAX
308B
G1H350RG4
307B

Supersedes

330SC4A

$205.20

SANDER, 3/16" ORBIT, 6" H&L PAD

IR 5151-6-HL

Random Orbital Air Sander, 3/16" Orbit, 6" Hook & Loop Pad, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
Performance: 12000 RPM to match optimal material removal speeds for your application.
Versatility: Comfort grip for user comfort and safety.
Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 32mm and 28mm sleeve kit, Safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 28mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 77.6 / 88.6
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 6
Vibration Uncertainy K* (m/s2): 2
Warranty: 1-year

Similar IR

5151-6
5151-HL-WP
5152-6-HL
5151-5-HL
5152-5-HL

$410.00

SANDER, 3/32" ORBIT, 5" VINYL PAD

IR 5152-5

Random Orbital Air Sander, 3/32" Orbit, 5" Vinyl Pad, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
Performance: 12000 RPM to match optimal material removal speeds for your application.
Versatility: Comfort grip for user comfort and safety.
Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 25mm sleeve kit, plug, safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 5
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 77.3 / 88.6
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 6
Vibration Uncertainy K* (m/s2): 2
Warranty: 1-year

Similar IR

5152-5-HL
5151-6
5152-6
5151-5

$405.00

DIE GRINDER, 0.40 HP, 25K, STRAIGHT, 1/4 C

IR 5108MAX

Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 25,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.56
Product Width (in): 7.09
Product Height (in): 1.6
Product Weight (lb): 1
Rated Power (hp): 0.4
Rated Power (kW): 0.298
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 83.3 / 94.3
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 1.8
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
Wheel Type: Burr

Similar IR

5107MAX
G1H250RG4
G1H250FG4
308B
307B

Supersedes

325SC4A

$196.65

SANDER, 3/32" ORBIT, 5" H&L PAD

IR 5152-5-HL

Random Orbital Air Sander, 3/32" Orbit, 5" Hook & Loop, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
Performance: 12000 RPM to match optimal material removal speeds for your application.
Versatility: Comfort grip for user comfort and safety.
Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 32mm and 28mm sleeve kit, Safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 28mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 5
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 78.3 / 89.3
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 2.8
Vibration Uncertainy K* (m/s2): 0.9
Warranty: 1-year

Similar IR

5152-5
5151-5-HL
5151-6-HL
5152-6-HL

$410.00

SPRING (50009125) JH40

IR 51357606

SPRING (50009125) JH40

$26.00

2" CARBIDE BIT QTY 1

IR 51248342

2" H Thread Jackhammer Multi-use Carbide Bits

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. All jackhammer rods bits are sold as single units (no required box quantities).

Includes: (1) Multi-use Carbide Bit. All jackhammer bits are sold as single units (no required box quantities).
Product Application and Uses: For use with H Thread Jackhammer Rods
Diameter (in): 2
Housing Material: Steel
Product Length (in): 2
Product Weight (lb): 1.1
Shank Type: H Thread

For Use With

50283183
50283506
50283555
50283696
50354596
50712975
50713049
51233690
51234052
51234060
51242014
51242063

$231.00

COLLET BODY

IR 5108MAX-290

COLLET BODY

$21.00

1-1/2" CARBIDE BIT QTY 1

IR 51248300

1-1/2" H Thread Jackhammer Multi-use Carbide Bits

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. All jackhammer rods bits are sold as single units (no required box quantities).

Includes: (1) Multi-use Carbide Bit. All jackhammer bits are sold as single units (no required box quantities).
Product Application and Uses: For use with H Thread Jackhammer Rods
Diameter (in): 1.5
Housing Material: Steel
Product Weight (lb): 0.6
Shank Type: H Thread

For Use With

50283183
50283506
50283555
50283696
50354596
50712975
50713049
51233690
51234052
51234060
51242014
51242063

$121.00

SANDER, 3/16" ORBIT, 5" H&L PAD

IR 5151-5-HL

Random Orbital Air Sander, 3/16" Orbit, 5" Hook & Loop, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
Performance: 12000 RPM to match optimal material removal speeds for your application.
Versatility: Comfort grip for user comfort and safety.
Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 32mm and 28mm sleeve kit, Safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 28mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 5
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 78.1 / 89.1
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 9.5
Vibration Uncertainy K* (m/s2): 3.1
Warranty: 1-year

Similar IR

5151-5
5151-6-HL
5152-6-HL
5152-5-HL

$230.85

PIPED AWAY KITS

IR 5108MAX-K284

Piped Away Exhaust Kit for Ingersoll Rand Die Grinders

For Use With

5102MAX
5102MAX-M
5103MAX-24
5104MAX
5104MAX-M
5106MAX
5106MAX-M
5107MAX
5107MAX-M
5108MAX
5108MAX-M
5109MAX-24
5208MAX
5208MAX-M

$15.00

DIE GRINDER, 5019MAX-24

IR 5109MAX-24

Air Die Grinder, 20,000 RPM, 0.3 HP, 1/4" Collet, Rear Exhaust, Top Mounted Lever, 24-Piece

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: (24) 5109MAX Die Grinders; 1/4" collet, 24 Large Wrenches; 24 Small Wrenches
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 600
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 5.3
Average Air Consumption (l/min): 150
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.6
Product Height (in): 2.7
Product Weight (lb): 1.1
Rated Power (hp): 0.3
Rated Power (kW): 0.22371
Side to Center Distance (in): 0.75
Side to Center Distance (mm): 19
Sound Pressure/Power Db(A): 83.3 / 94.3
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 1.8
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
Wheel Type: Burr

Similar IR

5108MAX
G1H200RG4
308B
307B

$7,550.00

SANDER, 3/32" ORBIT, 6" VINYL PAD

IR 5152-6

Random Orbital Air Sander, 3/32" Orbit, 6" Vinyl Pad, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
Performance: 12000 RPM to match optimal material removal speeds for your application.
Versatility: Comfort grip for user comfort and safety.
Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 25mm sleeve kit, plug, safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 78.3 / 89.3
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 5.2
Vibration Uncertainy K* (m/s2): 1.7
Warranty: 1-year

Similar IR

5152-6-HL
5151-6
5151-5
5152-5

$410.00

Seal, JM NO.12797 LDS

IR 51464

Seal, JM NO.12797 LDS

$127.00

SANDER, 3/32" ORBIT, 6" H&L PAD

IR 5152-6-HL

Random Orbital Air Sander, 3/32" Orbit, 6" Hook & Loop, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
Performance: 12000 RPM to match optimal material removal speeds for your application.
Versatility: Comfort grip for user comfort and safety.
Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 32mm and 28mm sleeve kit, Safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 28mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/32
Pad Diameter or Size (in): 6
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 78.3 / 89.3
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 4.4
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR

5151-6-HL
5152-6
5151-5-HL
5152-5-HL

$410.00

DEFLECTOR

IR 51729036

DEFLECTOR

$84.00

PIN (95651477)

IR 51716975

PIN (95651477)

$15.00

Nut

IR 51750

Nut

Call for pricing

SANDER, 3/16" ORBIT, 5" VINYL PAD

IR 5151-5

Random Orbital Air Sander, 3/16" Orbit, 5" Vinyl Pad, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
Performance: 12000 RPM to match optimal material removal speeds for your application.
Versatility: Comfort grip for user comfort and safety.
Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 25mm sleeve kit, plug, safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 5
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 77.9 / 88.9
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 10.1
Vibration Uncertainy K* (m/s2): 3.3
Warranty: 1-year

Similar IR

5151-5-HL
5151-6
5152-6
5152-5

Supersedes

R035A-PSV

$230.85

1-3/4" CARBIDE BIT QTY 1

IR 51248326

1-3/4" H Thread Jackhammer Multi-use Carbide Bits

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. All jackhammer rods bits are sold as single units (no required box quantities).

Includes: (1) Multi-use Carbide Bit. All jackhammer bits are sold as single units (no required box quantities).
Product Application and Uses: For use with H Thread Jackhammer Rods
Diameter (in): 1.75
Housing Material: Steel
Product Weight (lb): 0.8
Shank Type: H Thread

For Use With

50283183
50283506
50283555
50283696
50354596
50712975
50713049
51233690
51234052
51234060
51242014
51242063

$199.00

PIN

IR 514-667

$23.00

PIN KIT (51307619, 27)

IR 51792802

PIN KIT (51307619, 27)

$91.00

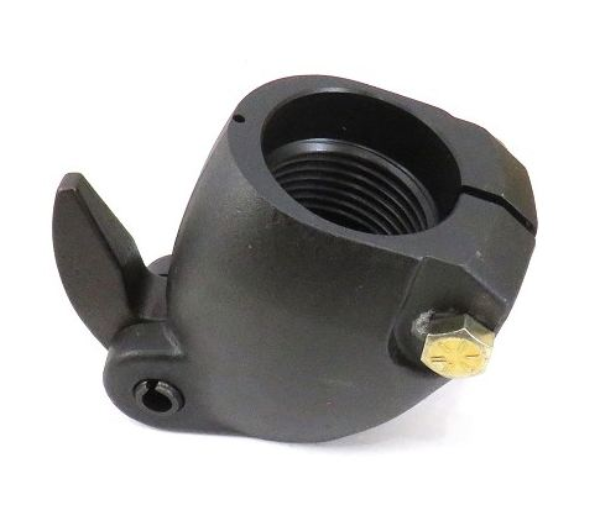

FRONTHEAD

IR 51917540

FRONTHEAD

$1,530.00

PIN KIT (51296291, 309)

IR 51792794

PIN KIT (51296291, 309)

$48.00

PLUG

IR 51944007

PLUG

$15.00

RETAINER

IR 51944015

RETAINER

$37.00

LATCH

IR 51948321

LATCH

$158.00

SPRING (50019579)

IR 51952836

SPRING (50019579)

$19.00

SLEEVE

IR 51952869

SLEEVE

$22.00

VALVE KIT

IR 51955375

VALVE KIT

$78.00

HANDLE (51910255)

IR 52084936

HANDLE (51910255)

$355.00

SANDER, 3/16" ORBIT, 6" VINYL PAD

IR 5151-6

Random Orbital Air Sander, 3/16" Orbit, 6" Adhesive Pad, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
Performance: 12000 RPM to match optimal material removal speeds for your application.
Versatility: Comfort grip for user comfort and safety.
Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 25mm sleeve kit, plug, safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 77.9 / 88.9
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 8.8
Vibration Uncertainy K* (m/s2): 2.9
Warranty: 1-year

Similar IR

5151-6-HL
5152-6
5151-5
5152-5

Supersedes

R036A-PSV

$230.85

EXTENDED DIE GRINDER, 1/4" COLLET, 25K

IR 5208MAX

Extended Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 25,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Extended Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.6
Product Height (in): 1.6
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 85.5 / 86.5
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 2.98
Vibration Uncertainy K* (m/s2): 0.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

G1X250RG4
G1X200RG4
G3X180RG4
G1X350RG4

Supersedes

330XC4A
325XC4A

$385.00

Screw

IR 52225

Screw

Call for pricing

Muffler, Quietaire, MA012A, 1.5 Inch

IR 52472

Muffler, Quietaire, MA012A, 1.5 Inch

$238.00

SAW

IR 529

Vibration Reduced Reciprocating Air Saw, 3/8" Stroke Length, 9,500 Strokes Per Minute, 1.5 lbs

The 529 vibration reduced reciprocating saw is the perfect tool for cutting plastics, fiberglass, sheet metal, aluminum, and a host of other materials. Equipped with a 360-degree swivel inlet, this tool allows you to cut intricate patterns in both flat and curved surfaces.

Features And Benefits

Reliability: With a guide that increases blade life, you know your tool will perform well from the moment you buy it.
Access: With an inline configuration, these saws allow for easier access in tight spaces, so even the toughest jobs can get done.
Lock-Out Lever: The 529 saw contains a unique system that prevents accidental throttle operation by utilizing a spring-loaded latch that resets each time the lever is released.

Includes: (3) fine tooth saw blades, (3) coarse tooth saw blades, 8mm hex key
Product Application and Uses: Designed for cutting plastics, fiberglass, composites, aluminum and sheet metal.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 32
Air Consumption @ Load (l/min): 1.13
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 1.1
Average Air Consumption (l/min): 31
Blade Material: High Speed Steel
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear- 360 adjustable
Free Speed Sound Pressure/Power Db(A): 84.3
Handle Location: Rear
Handle Material: Aluminum with Rubber Overmold
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Number of Blades Included: 6
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 9.7
Product Width (in): 3.94
Product Height (in): 2.6
Product Weight (lb): 1.5
Sound Pressure/Power Db(A): 84 / 95
Special Features: Vibration reduced
Speed Setting: Variable Speed
Stroke Length (in): 0.38
Strokes (per min): 9500
Vibration Level (m/s2): 3.1
Warranty: 1-year

Similar IR

429
4429

$225.15

COLLET ASSEMBLY

IR 529-274A

Collet Assembly for Ingersoll Rand 529 Reciprocating Saw

$29.00

BLADE GUARD

IR 529-321

BLADE GUARD

$15.00

SPRING

IR 533-664

SPRING

$15.00

AIR INLET ASSEMBLY

IR 529-565X

Air Inlet Assembly for Ingersoll Rand 529 Reciprocating Saw, 119, 118 Series Hammer

$19.00

RETAINER O-RING

IR 538-316

Retainer O-Ring Replacement Part for Ingersoll Rand 341, 441 Series Tamper

$15.00

HANDLE CONTROL ASSEMBLY

IR 54028014

HANDLE CONTROL ASSEMBLY

$835.00

Fitting

IR 53954

Fitting

$8.00

ASSY, HANDLE CONTROL

IR 54028048

ASSY, HANDLE CONTROL

$1,135.00

GASKET

IR 577-283

End Plate Gasket Service Part for Ingersoll Rand Power Tools

$15.00

SPACER

IR 588-140

SPACER

$15.00

CAP

IR 588-157

CAP

$45.00

SUPER DUTY IMPACTOOL

IR 5982A1

2-1/2" Air Impact Wrench, Super Duty, 20000 ft-lb Torque, Thru-hole Retainer, T-handle

The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.

Features And Benefits

Durability: With a Cast aluminum hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.
Reliability: Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger. Comes with a 1-year warranty.
Power: This series has a high torque output and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.
Built-in lubricator

Product Application and Uses: These Air Impact Wrenches are designed to remove and install threaded fasteners requiring high torque. Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards.
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 130
Average Air Consumption (l/min): 3681
Blows per Min: 850
Color: Grey
Configuration/Handle Type: T-handle
Drive Size (in): 2-1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 102.1 / 113.1
Hammer Case: Aluminum
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 2.25
Max Free Speed (rpm): 830
Max Pressure (bar): 6.2
Max Torque (ft-lb): 20000
Max Torque (in-lb): 239997
Max Torque (nm): 27116
Min Hose Size (in): 1
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 25.38
Product Weight (lb): 120
Recommended Forward Torque Range (ft-lb): 10000
Recommended Forward Torque Range (in-lb): 119998
Recommended Forward Torque Range (nm): 13558
Retainer Type: Thru-hole
Side to Center Distance (in): 3.5
Side to Center Distance (mm): 89
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 5
Vibration Level (m/s2): 20.5
Warranty: 1-year

Similar IR

588A1
5980A1

$21,700.50

Driver

IR 5C1-581

Driver

$86.00

Spacer

IR 5C1-401A

Spacer

$38.00

HOUSING

IR 5LK2C-B40

HOUSING

$244.00

THROTTLE VALVE SPRING

IR 5RL-51

THROTTLE VALVE SPRING

$11.20

MUFFLER ELEMENT

IR 5RL-311

MUFFLER ELEMENT

$11.20

Gauge, 0-160 psig

AA 100067

Gauge, 0-160 psig

$30.20

Valve Asm

AA 103-2-A

Valve Asm

$62.00

Flow Control 3/8 Inch

AA 104104-F03

Flow Control 3/8 Inch

$65.00

Flow Control 1/4 Inch

AA 104104-F02

Flow Control 1/4 Inch

$52.00

Flow Control 1/2 Inch

AA 104104-F04

Flow Control 1/2 Inch

$81.00

Set=2/Bag, Modular (Threaded) Pipeapart 2000 Series, 1/2in

AA 104398-4

SET=2/BAG, MODULAR (THREADED) PIPEAPAPT 2000 SERIES, 1/2in

$81.80

L-Type Wall Bracket, 2000 Series

AA 104405

L-Type Wall Bracket, 2000 Series

$30.90

L-Type Wall Bracket, 1000 Series

AA 104403

L-Type Wall Bracket, 1000 Series

$22.20

Poly Bowl, Manual Drain, 1000 Series

AA 104298

Poly Bowl, Manual Drain, 1000 Series

$31.10

Replacement Manual Drain

AA 104316

Replacement Manual Drain

$29.00

Needle Valve 1/2 Inch

AA 104104-N04

Needle Valve 1/2 Inch

$80.00

T-Type Wall Mount, 2000 Series

AA 104401

T-Type Wall Mount, 2000 Series

$51.20

C-Type Wall Bracket, 2000 Series

AA 104409

C-Type Wall Bracket, 2000 Series

$37.20

1/8 NPT 0-160 PSI Gauge, 2 Inch Face

AA 104496

1/8 NPT 0-160 PSI Gauge, 2 Inch Face

$26.60

Rod Clevis (Steel)7/16-20

AA 116183

Rod Clevis (Steel)7/16-20

$70.00

Repair Kit

AA 116773

Repair Kit

$26.00

Knob

AA 13512-A

Knob

$9.70

Valve Asm

AA 215-C

Valve Asm

$91.00

Cylinder

AA 2315-1009-020

Cylinder

$266.63

Cylinder

AA 2320-1009-030

Cylinder

$327.75

Button Bleeder Valve

AA 24130

Button Bleeder Valve

$33.00

Use IR 29665

AA 29665

1 Quart ARO Lubricating Oil, Class II

$24.20

Gauge, 0-160 psig, Bk-1/8 1-1/2 dial

AA 29850

Gauge, 0-160 psig, Bk-1/8 1-1/2 dial

$30.20

use IR 31363

AA 31363

Rotor Blade Replacement Part for Ingersoll Rand "0" series motors

$15.00

use IR 32310

AA 32310

Spacer

$11.20

use IR 33709

AA 33709

Bearing, Ball

$86.00

use IR 41325

AA 41325

Kit Asm

$297.00

use IR 41327

AA 41327

Kit Asm

$311.00

use IR 41520

AA 41520

Blade, Rotor

$11.20

Adj Roller Lever

AA 450

Adj Roller Lever

$94.00

use IR 46301

AA 46301

Rotor Blade

$11.20

use IR 46413

AA 46413

Blade, Rotor

$11.20

use IR 47622327001

AA 47622327001

Parker O-Ring Lube, 2 Oz Tube

$50.00

Valve, 50 Series 5040-10

AA 5040-10

Valve, 50 Series 5040-10

$182.00

use IR 7810-B

AA 7810-B

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 450 RPM, 0.7 HP, 39.8 NM, Reversible

Air Consumption at Max HP (scfm): 37.3
Air Inlet: 1/4" NPT
Air Pressure (psi): 90

Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 29
Max Torque (in-lb): 352
Max Torque (nm): 39.8
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 240
Torque Output @ Max HP (ft-lb): 15
Torque Output @ Max HP (nm): 21
Warranty: 1-year
Parts: 37894
