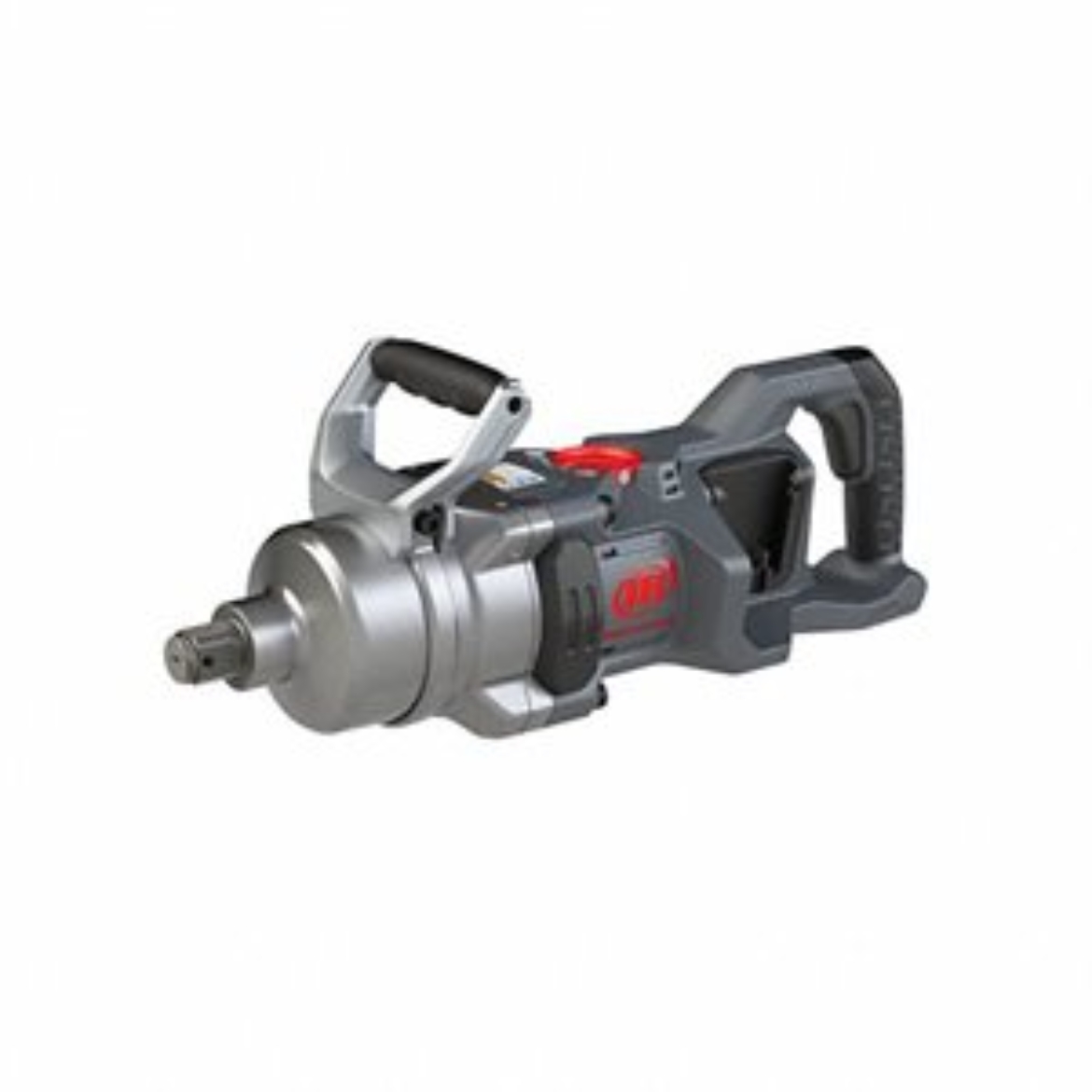

IR W9491
1" 20V Cordless Impact Wrench, 2600 ft-lb Torque, Friction Ring-Thru-hole Retainer, D-Handle, Bare Tool
Introducing the world’s most powerful 1" cordless impact wrench: the W9491 from Ingersoll Rand. Get 2,600 ft-lbs of nut busting torque with 100% mobility from the market leader in 1” impact wrenches. This powerful cordless impact wrench combines the power of air with the freedom of cordless mobility. Give yourself the ability to move about freely around any job site where space and maneuverability are at a premium.
Features And Benefits
- POWER: World's Most Powerful 1" Cordless Impact Wrench with best in class power-to-weight ratio. 2,600 ft-lbs of nut busting torque, 2,200 ft-lbs of tightening torque.
- PRODUCTIVITY: 250 bolts per charge – tackle a full day’s worth of work. Reduce set up time of jobs up to 15% compared to air tools. No waiting on air for roadside applications.
- IP56 rated for tough environmental conditions.
- SAFETY: Remove hoses & trip hazards to keep operators & technicians safe
- IQV® Power Control System includes 3 modes: MAX Power, MID, and Snug
- Brushless motor delivers durability and efficiency
- 360° adjustable D-handle: rotates fully around the tool as the job demands
- Impact and chemical-resistant housing
- Compatible with IQV® 20 Series Battery System
- 3-year limited warranty
Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Cordless Impact Wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Inside Trigger
Anvil Length: Standard
Blows per Min: 1170 (BL2022)
Bolts per Charge (on and Off): 250
Built-in Light: No
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Industrial Duty
Fasteners per charge: 250
Forward Torque setting 1 (ft-lb): 184
Forward Torque setting 1 (in-lb): 2213
Forward Torque setting 1 (nm): 250
Forward Torque setting 2 (ft-lb): 406
Forward Torque setting 2 (in-lb): 4868
Forward Torque setting 2 (nm): 550
Forward Torque setting 3 (ft-lb): 2213
Forward Torque setting 3 (in-lb): 26552
Forward Torque setting 3 (nm): 3000
Hammer Case: Steel-lined Aluminum
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 890
Max Torque (ft-lb): 2213
Max Torque (in-lb): 26552
Max Torque (nm): 3000
Motor: Brushless Motor
Number of Batteries Required: 2
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2600
Nut-busting/Breakaway Torque (in-lb): 31200
Nut-busting/Breakaway Torque (nm): 3525
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 94.55
Product Length (in): 20.13
Product Width (in): 6.93
Product Height (in): 8.11
Product Weight (lb): 24.3
Product Weight (lb) (with Battery): 27.5
Recommended Forward Torque Range (ft-lb): 2213
Recommended Forward Torque Range (in-lb): 26552
Recommended Forward Torque Range (nm): 3000
Retainer Type: Friction Ring and Thru-hole
RPM Setting 1: 500
RPM Setting 2: 540
Sound Pressure/Power Db(A): 94.0 / 105.0
Standards/Certifications: Ul Listed, Csa Certified, IP56 rated
Tool Type: High-torque
Vibration Level (m/s2): 25.8
Vibration Uncertainy K* (m/s2): 8.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
