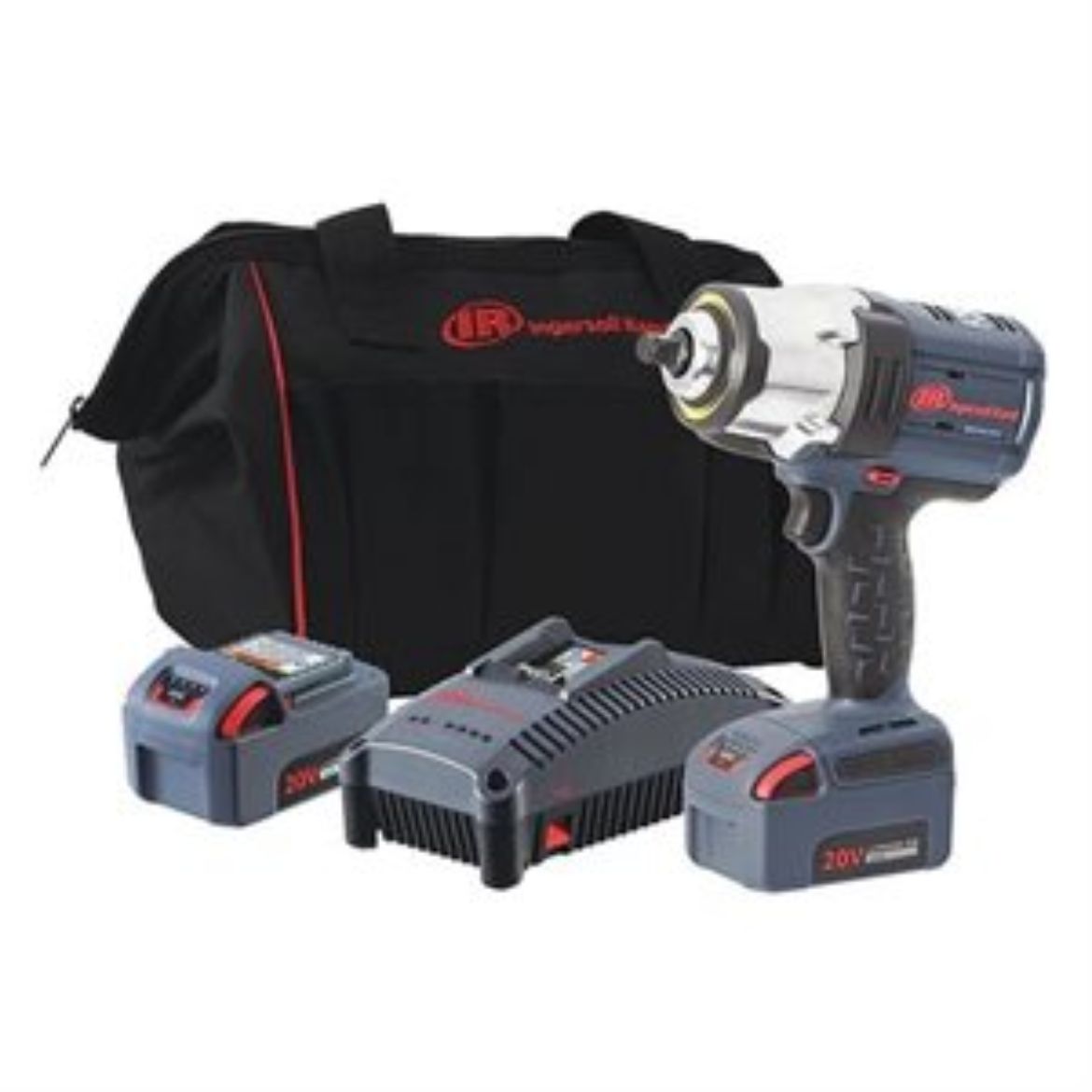

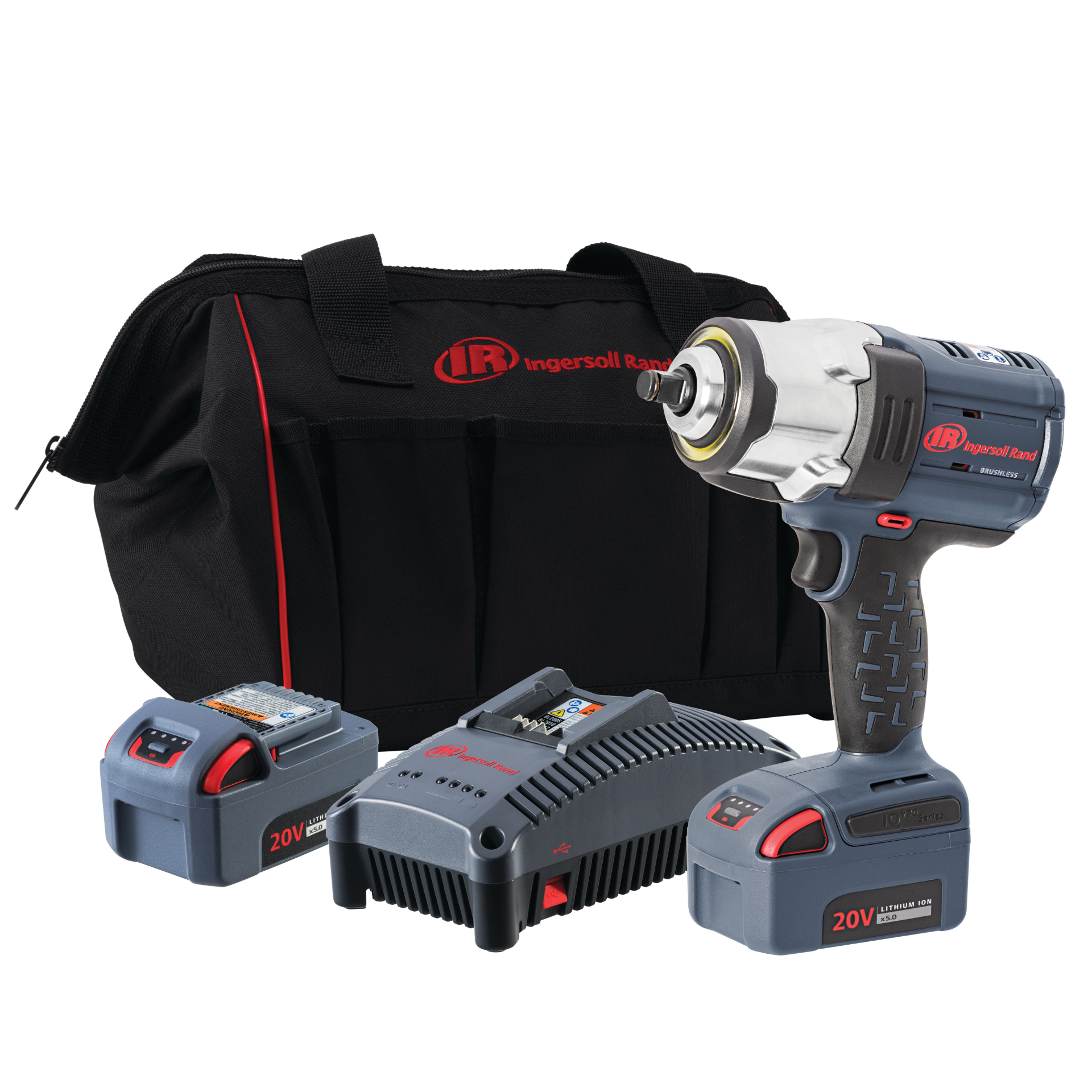

IR W7152-K22
1/2" 20V Cordless Impact Wrench 2 Battery Kit, 1500 ft-lb Torque, Friction Ring Retainer, Pistol
Includes: W7152 1/2" Cordless Impact Wrench, (2) BL2022 5.0Ah Batteries, 20V Battery Charger, Bag
Product Application and Uses: Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Blows per Min: 2450 (BL2022)
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Forward Torque setting 1 (ft-lb): 3.7-10
Forward Torque setting 1 (in-lb): 44-124
Forward Torque setting 1 (nm): 5-14
Forward Torque setting 2 (ft-lb): 37-111
Forward Torque setting 2 (in-lb): 443-1328
Forward Torque setting 2 (nm): 50-150
Forward Torque setting 3 (ft-lb): 531
Forward Torque setting 3 (in-lb): 6373
Forward Torque setting 3 (nm): 720
Forward Torque setting 4 (ft-lb): 1003
Forward Torque setting 4 (in-lb): 12037
Forward Torque setting 4 (nm): 1360
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Lumens: 39
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 197.37
Product Length (in): 8.1
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6
Product Weight (lb) (with Battery): 7.6
Recommended Forward Torque Range (ft-lb): 1003
Recommended Forward Torque Range (in-lb): 12037
Recommended Forward Torque Range (nm): 1360
Retainer Type: Friction Ring
RPM Setting 1: 600
RPM Setting 2: 1000
RPM Setting 3: 1450
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 95 / 106
Standards/Certifications: Ul Listed, Csa Certified
Tool Type: High-torque
Vibration Level (m/s2): 17.0
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
