Impactool

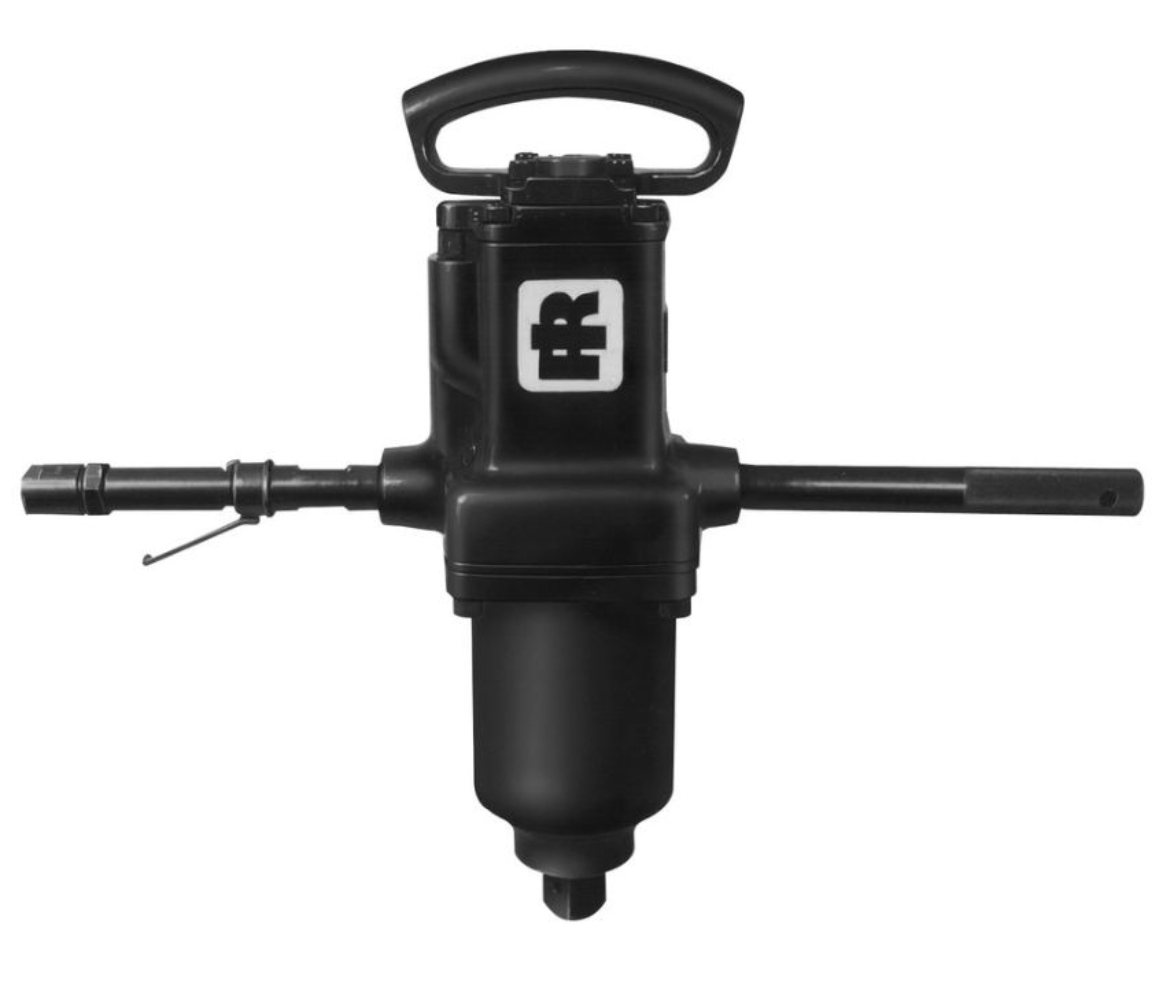

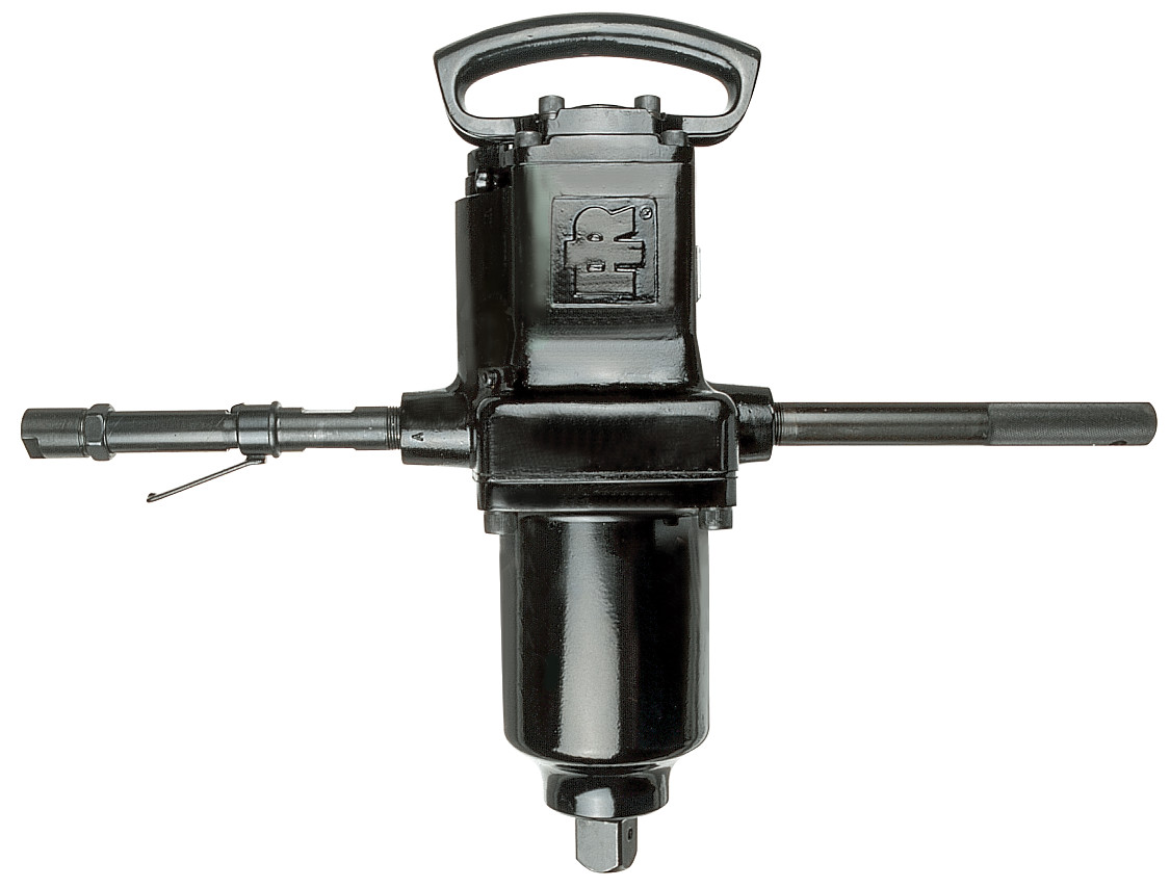

IR 5982A1

2-1/2" Air Impact Wrench, Super Duty, 20000 ft-lb Torque, Thru-hole Retainer, T-handle

Description: The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.

Features And Benefits:

• Durability: With a Cast aluminum hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.
• Reliability: Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger. Comes with a 1-year warranty.
• Power: This series has a high torque output and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.
• Built-in lubricator

Product Application and Uses:

These Air Impact Wrenches are designed to remove and install threaded fasteners requiring high torque. Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards.

• Actuation/Throttle Type/Switch Type: Lever
• Air Inlet: 3/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 130
• Average Air Consumption (l/min): 3681

• Blows per Min: 850

• Color: Grey
• Configuration/Handle Type: T-handle
• Drive Size (in): 2-1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 102.1 / 113.1

• Hammer Case: Aluminum
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam

• Max Bolt Diameter (in): 2.25
• Max Free Speed (rpm): 830
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 20000
• Max Torque (in-lb): 239997
• Max Torque (nm): 27116
• Min Hose Size (in): 1
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 25.38

• Product Weight (lb): 120
• Recommended Forward Torque Range (ft-lb): 10000
• Recommended Forward Torque Range (in-lb): 119998
• Recommended Forward Torque Range (nm): 13558
• Retainer Type: Thru-hole

• Side to Center Distance (in): 3.5
• Side to Center Distance (mm): 89

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 5
• Vibration Level (m/s2): 20.5
• Warranty: 1-year

• Lubrication: 50P
• Parts: 5820-A724
• Parts: ILA582A1-A727
