Die Grinder, 0.40 Hp, 20K, Angle, 1/4in C

IR 5102MAX

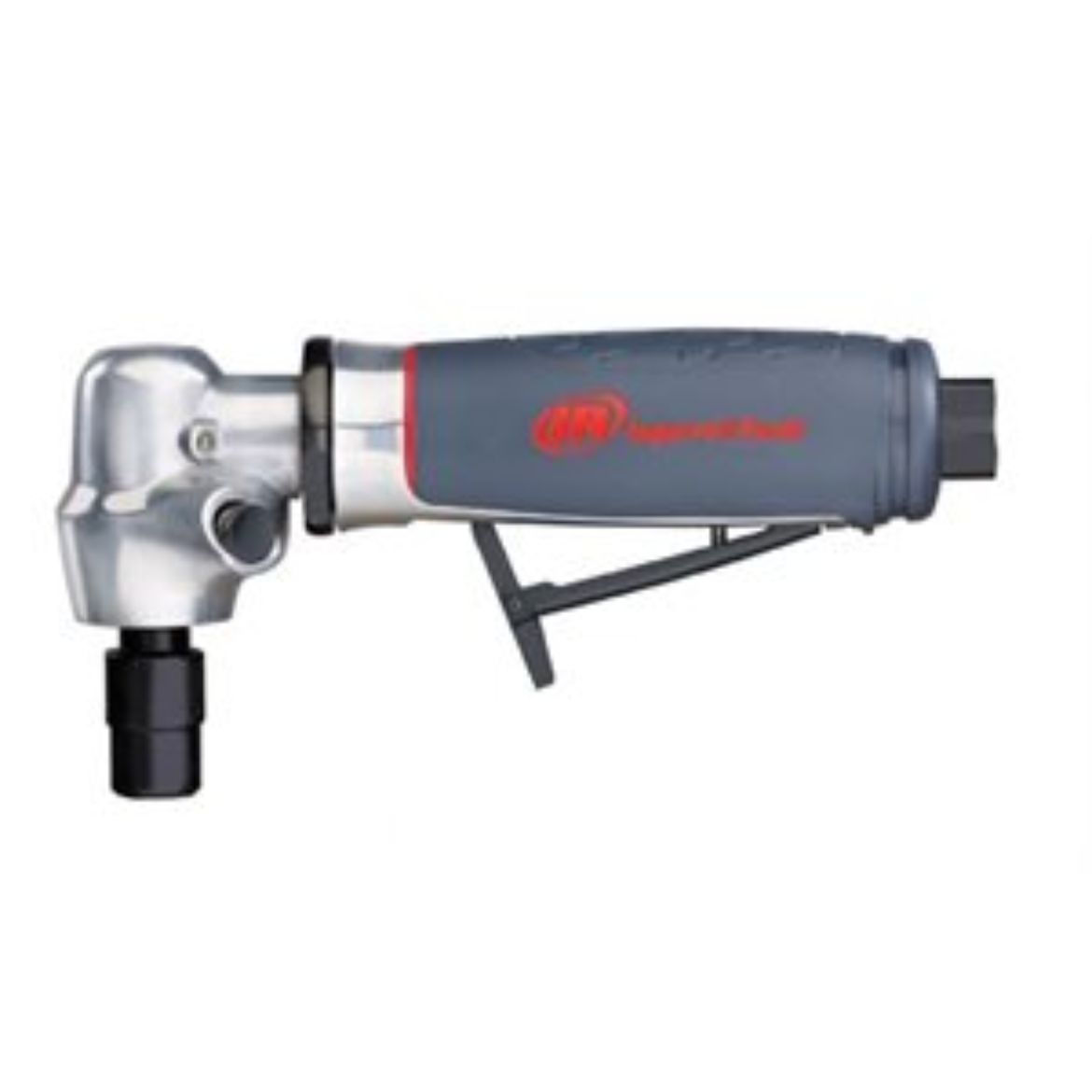

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

Description: MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won't have to choose between topnotch performance or your wallet.

Features And Benefits:

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Productivity: Spindle lock feature allows for quick abrasive changeovers reducing operator downtime.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Product Application and Uses:

Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.

• Includes: Tool, (2) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
• Actuation/Throttle Type/Switch Location: Bottom
• Actuation/Throttle Type/Switch Type: Safety Lever
• Air Consumption @ Free Speed (cfm): 25
• Air Consumption @ Free Speed (l/min): 708
• Air Consumption @ Load (cfm): 25
• Air Consumption @ Load (l/min): 708
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"
• Average Air Consumption (cfm): 6
• Average Air Consumption (l/min): 170

• Bearing Type: Ball Bearing

• Color: Grey
• Configuration/Handle Type: Right Angle
• Duty Rating: Heavy Duty

• Exhaust Location: Rear

• Grinder Type: Die Grinder
• Handle Material: Composite
• Height Over Spindle (in): 3.4
• Housing Material: Composite
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 20000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 1.89

• Product Width (in): 7.09
• Product Height (in): 3.43
• Product Weight (lb): 1.4
• Rated Power (hp): 0.4
• Rated Power (kW): 0.29828000000000005
• Right Angle Length (in): 2
• Right Angle Length (mm): 51

• Side to Center Distance (in): 0.79
• Side to Center Distance (mm): 20

• Sound Pressure/Power Db(A): 84.1 / 95.1
• Special Features: Lube-free Motor, Spindle Lock
• Speed Setting: Variable Speed
• Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9

• Vibration Level (m/s2): 3.3
• Vibration Uncertainy K* (m/s2): 1.1
• Warranty: 1-year
• Wheel Type: Burr

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Lubrication: 67-4T
• Lubrication: 67-LBK1
• Parts: 5102MAX-24
• Parts: 5108MAX-K284

• Parts: RG1-42L-LF-5
