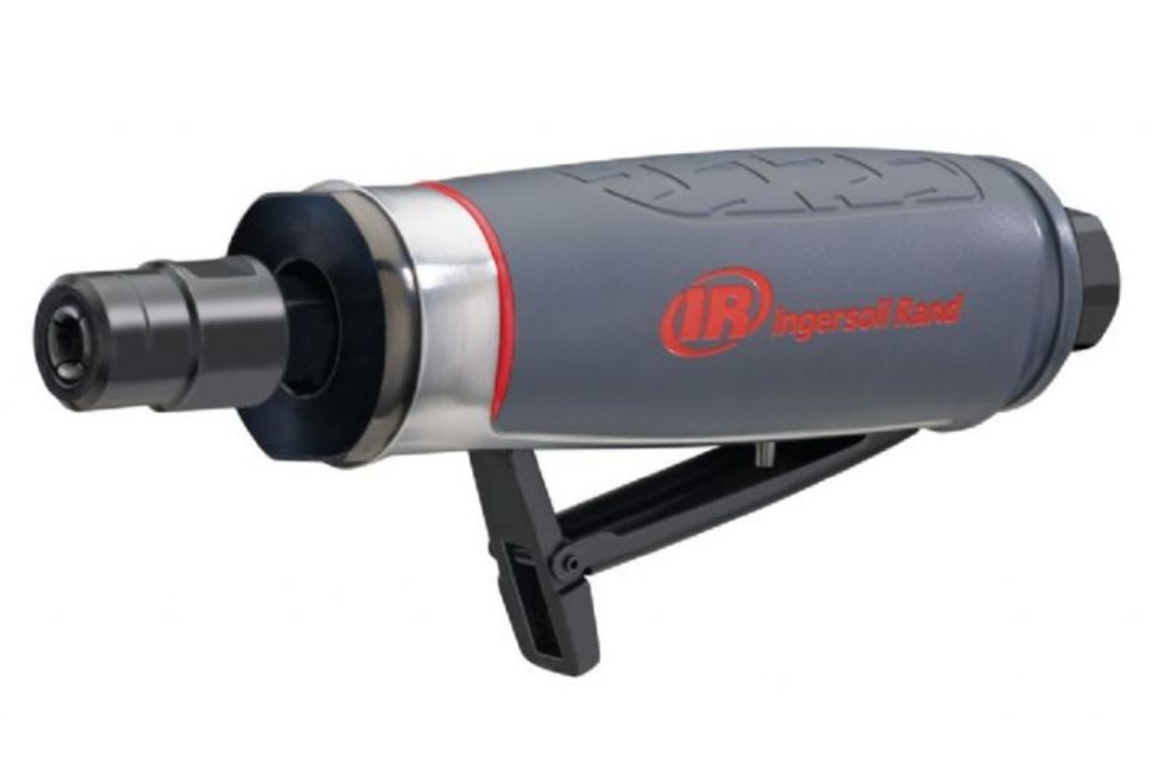

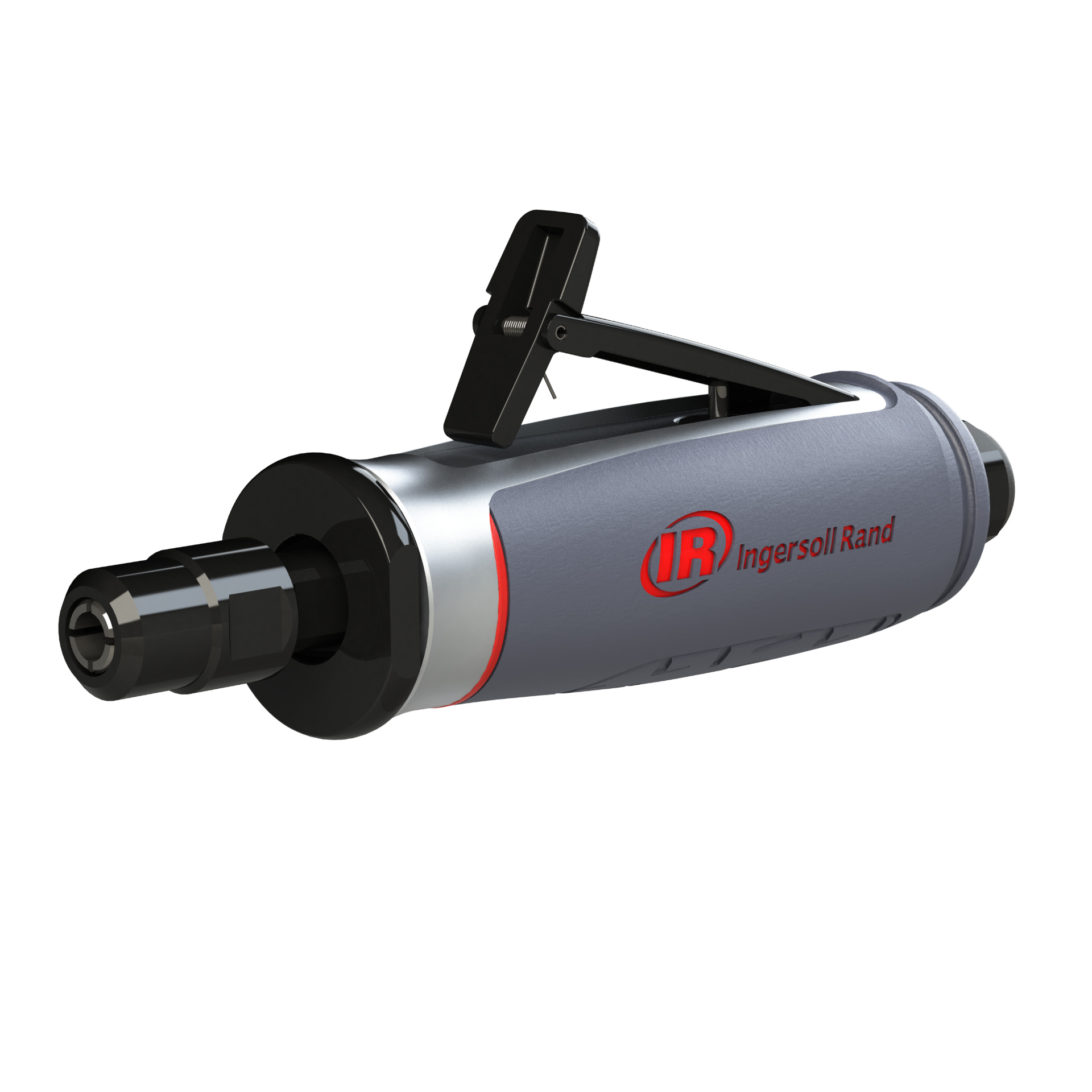

IR 5109MAX-24
Air Die Grinder, 20,000 RPM, 0.3 HP, 1/4" Collet, Rear Exhaust, Top Mounted Lever, 24-Piece
MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.
Features And Benefits
- MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
- MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
- MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.
Includes: (24) 5109MAX Die Grinders; 1/4" collet, 24 Large Wrenches; 24 Small Wrenches
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 600
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 5.3
Average Air Consumption (l/min): 150
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.6
Product Height (in): 2.7
Product Weight (lb): 1.1
Rated Power (hp): 0.3
Rated Power (kW): 0.22371
Side to Center Distance (in): 0.75
Side to Center Distance (mm): 19
Sound Pressure/Power Db(A): 83.3 / 94.3
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 1.8
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
Wheel Type: Burr
