Saw

IR 529

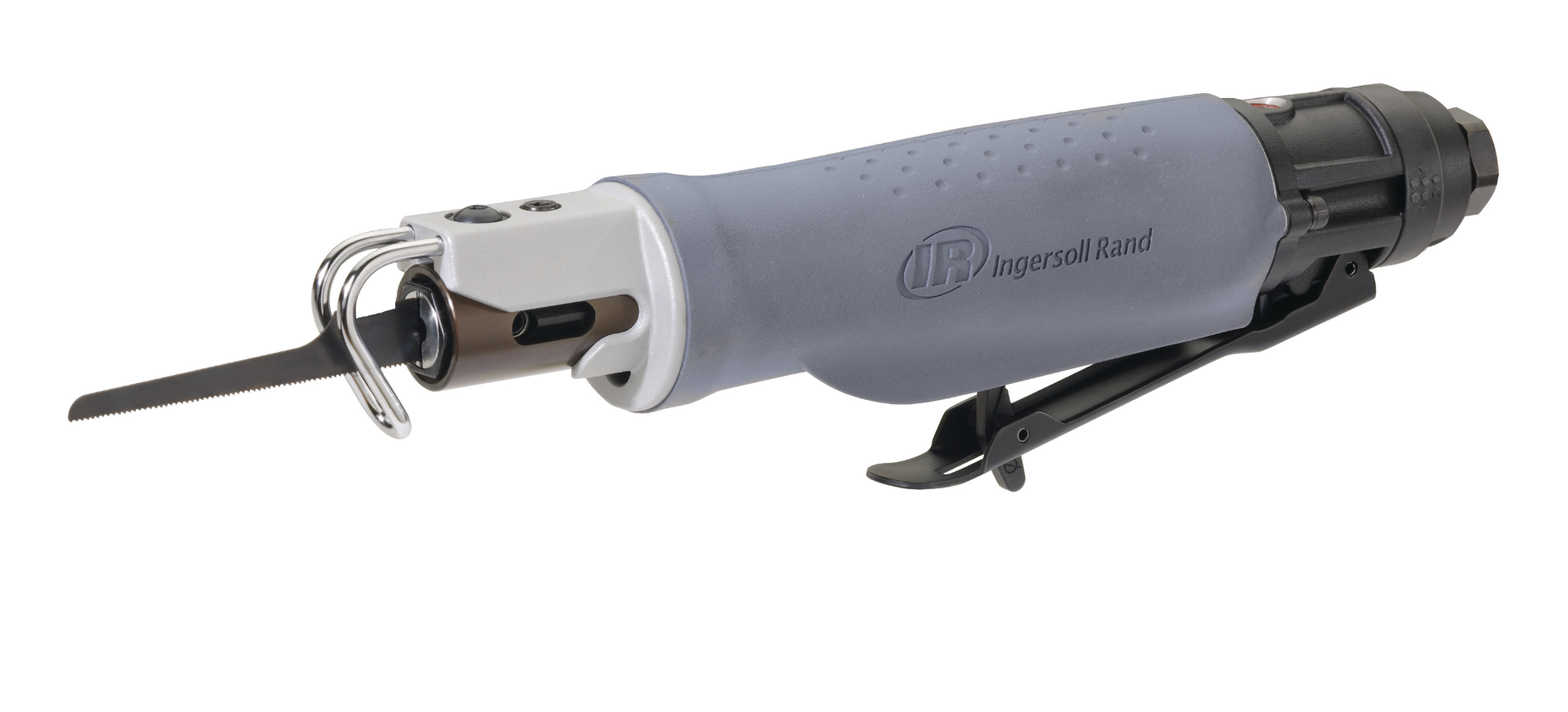

Vibration Reduced Reciprocating Air Saw, 3/8" Stroke Length, 9,500 Strokes Per Minute, 1.5 lbs

Description: The 529 vibration reduced reciprocating saw is the perfect tool for cutting plastics, fiberglass, sheet metal, aluminum, and a host of other materials. Equipped with a 360-degree swivel inlet, this tool allows you to cut intricate patterns in both flat and curved surfaces.

Features And Benefits:

• Reliability: With a guide that increases blade life, you know your tool will perform well from the moment you buy it.
• Access: With an inline configuration, these saws allow for easier access in tight spaces, so even the toughest jobs can get done.
• Lock-Out Lever: The 529 saw contains a unique system that prevents accidental throttle operation by utilizing a spring-loaded latch that resets each time the lever is released.

Product Application and Uses:

Designed for cutting plastics, fiberglass, composites, aluminum and sheet metal.

• Includes: (3) fine tooth saw blades, (3) coarse tooth saw blades, 8mm hex key
• Actuation/Throttle Type/Switch Type: Safety Lever
• Air Consumption @ Load (cfm): 32
• Air Consumption @ Load (l/min): 1.13
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Average Air Consumption (cfm): 1.1
• Average Air Consumption (l/min): 31

• Blade Material: High Speed Steel

• Color: Grey
• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Exhaust Location: Rear- 360 adjustable
• Free Speed Sound Pressure/Power Db(A): 84.3

• Handle Location: Rear
• Handle Material: Aluminum with Rubber Overmold
• Housing Material: Aluminum
• Lock Mechanism: Lever lock in off position

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Number of Blades Included: 6
• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 9.7

• Product Width (in): 3.94
• Product Height (in): 2.6
• Product Weight (lb): 1.5

• Sound Pressure/Power Db(A): 84 / 95
• Special Features: Vibration reduced
• Speed Setting: Variable Speed
• Stroke Length (in): 0.38
• Strokes (per min): 9500

• Vibration Level (m/s2): 3.1
• Warranty: 1-year

• Accessories: P4CS-6
• Accessories: P4EV-6
• Accessories: P4FS-6

• Lubrication: 10P
