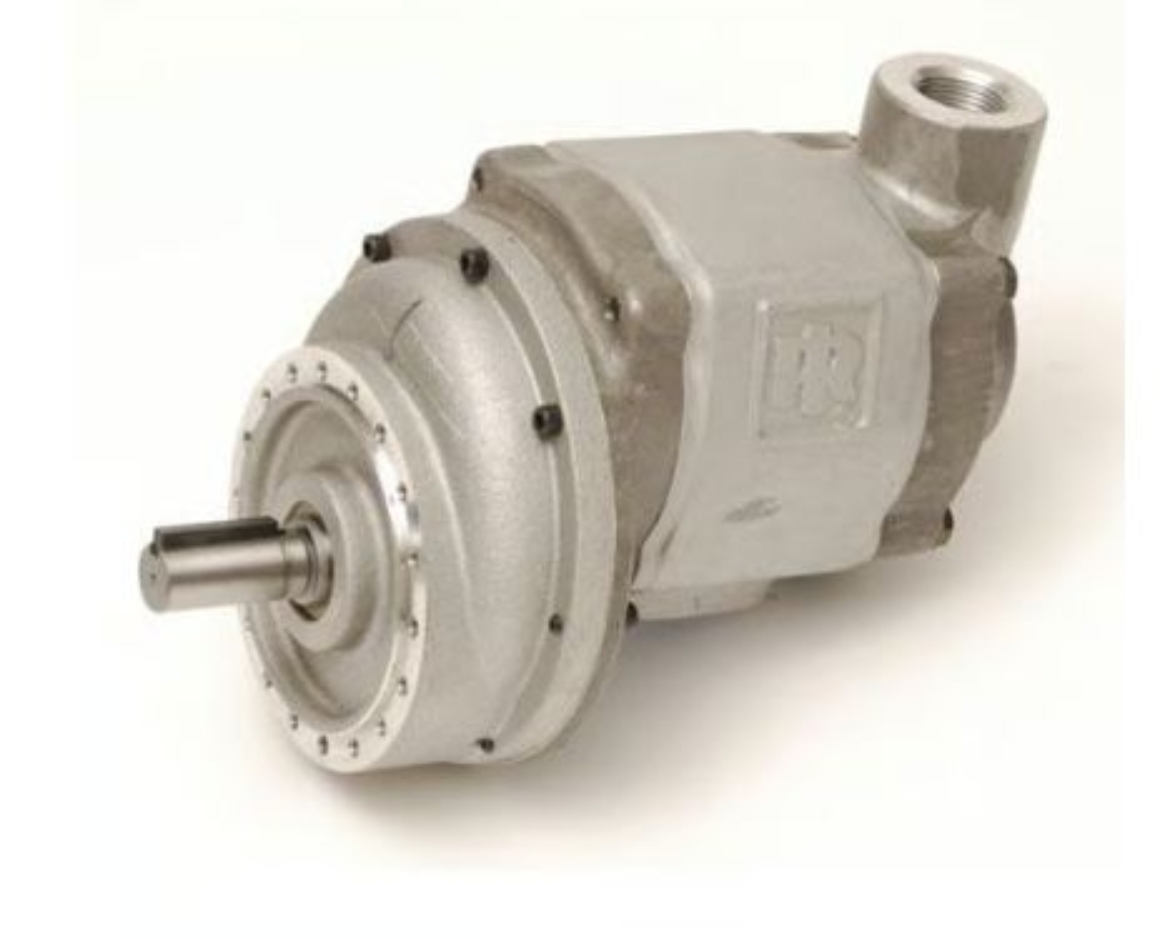

Air Motor

IR 92RM1

Spur Gear Air Motor, 7/8" Keyed Shaft, 3980 RPM, 9.9 HP, 61 NM, Non-reversible

• Air Consumption at Max HP (scfm): 240
• Air Inlet: 1" NPT
• Air Pressure (psi): 90

• Drive Size (in): 7/8
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Train: Spur Gear

• Housing Material: Aluminum

• Max Free Speed (rpm): 3980
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 45
• Max Torque (in-lb): 540
• Max Torque (nm): 61
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Face

• Number of Mounting Holes: 18
• Power Source: Air Powered

• Product Weight (lb): 24.25
• Rated Power (hp): 9.9
• Rated Power (kW): 7.38
• Reversible: Non-reversible

• Speed at Max Power (rpm): 2095
• Starting Torque (ft-lb): 33
• Starting Torque (nm): 44.7

• Warranty: 1-year
