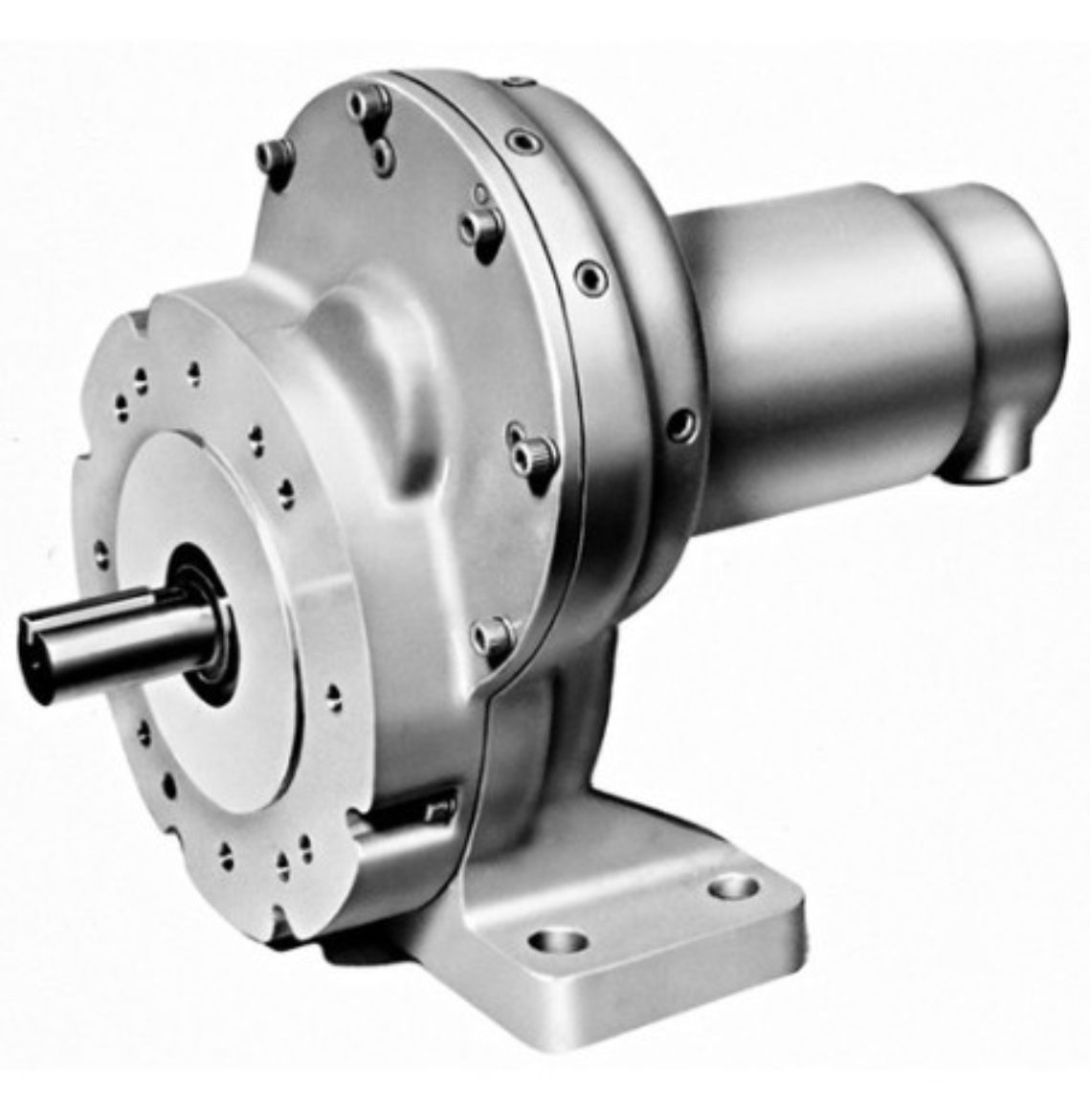

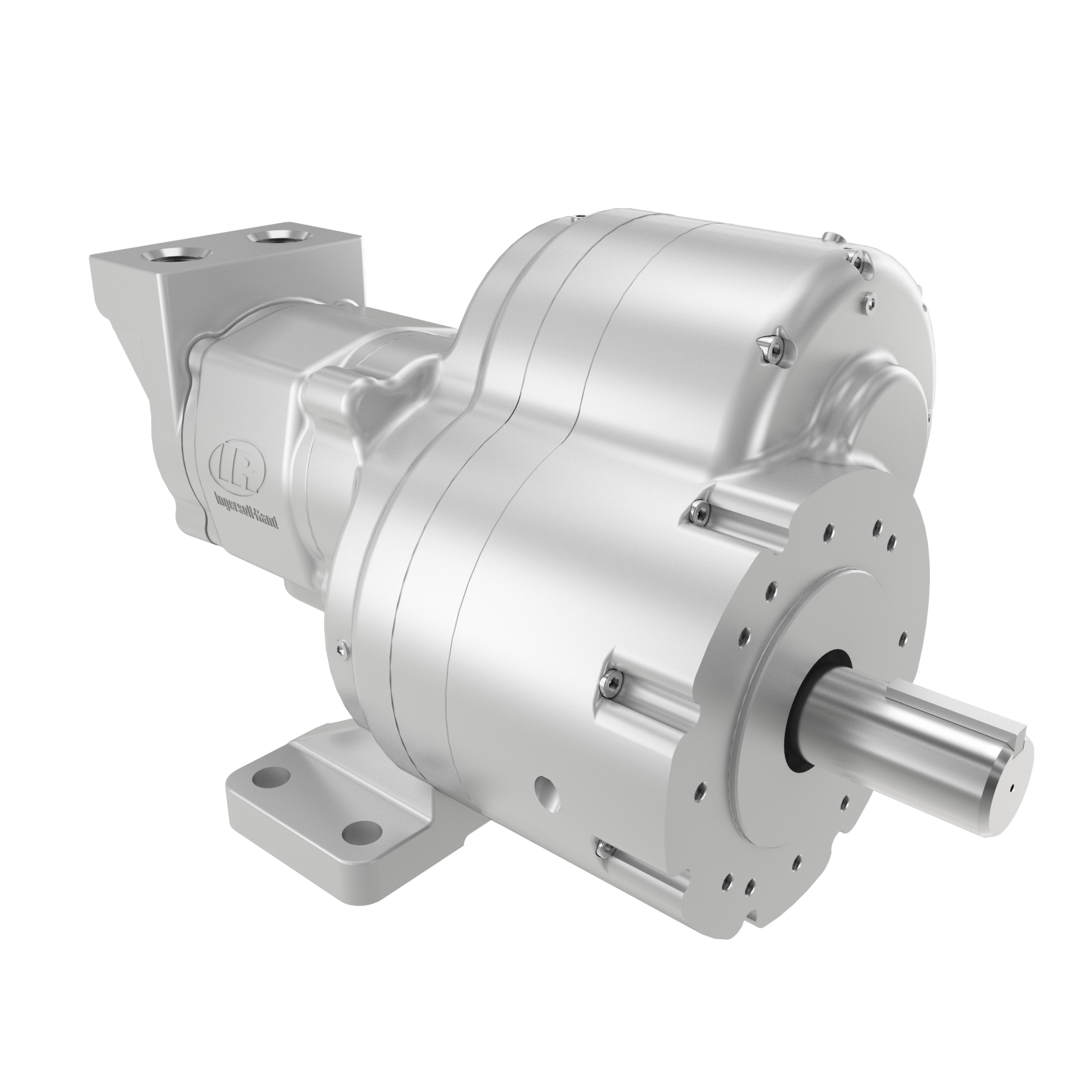

Motor -- Multi-Vane

IR 92RB045

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 210 RPM, 7.9 HP, 849 NM, Reversible

• Air Consumption at Max HP (scfm): 225
• Air Inlet: 1" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-1/2
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Reduction: Double
• Gear Train: Spur Gear

• Housing Material: Aluminum

• Max Free Speed (rpm): 210
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 626
• Max Torque (in-lb): 7514
• Max Torque (nm): 849
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Foot and Face

• Power Source: Air Powered

• Product Weight (lb): 78
• Rated Power (hp): 7.9
• Rated Power (kW): 5.89
• Reversible: Reversible

• Speed at Max Power (rpm): 103
• Starting Torque (ft-lb): 440
• Starting Torque (nm): 597

• Warranty: 1-year
