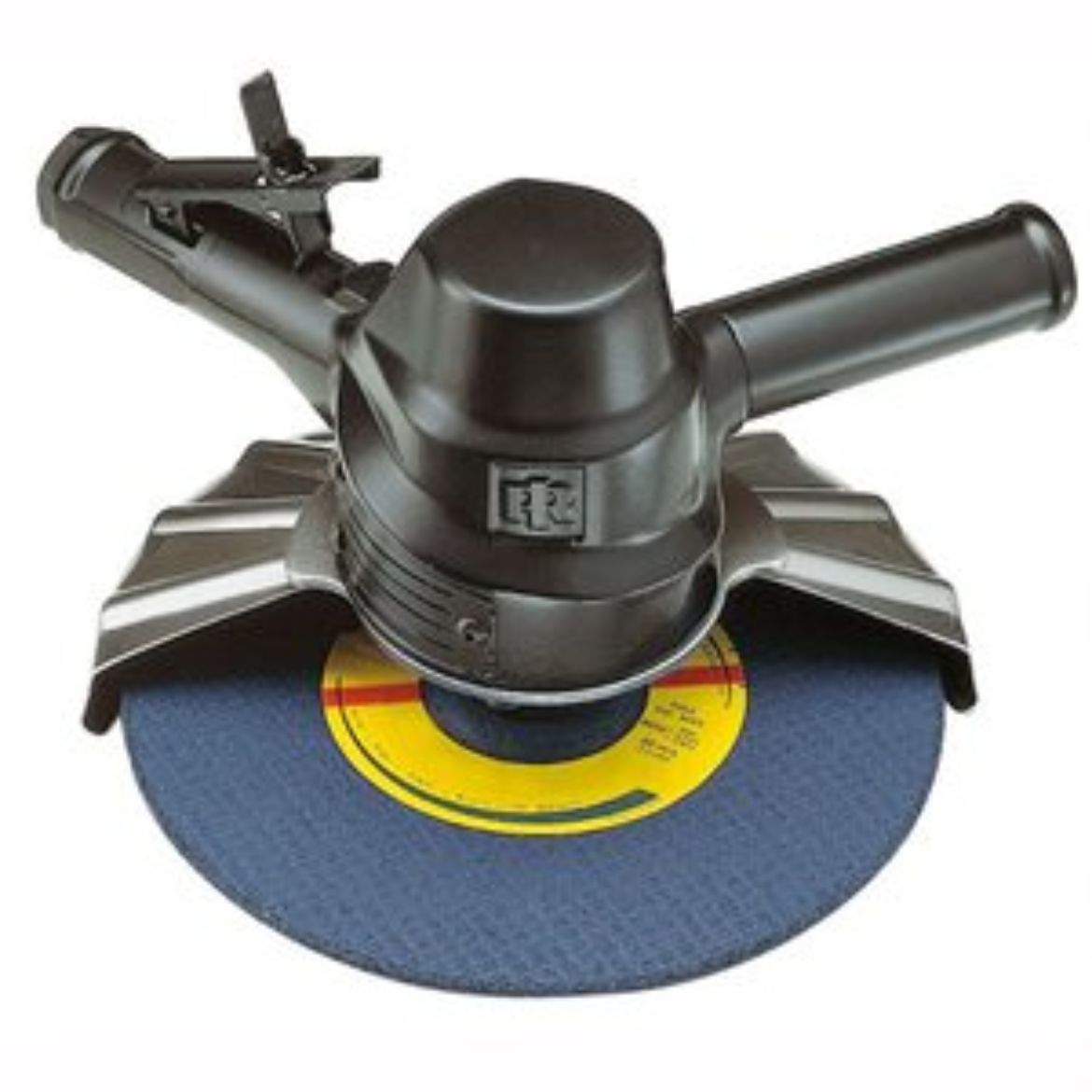

IR 88V60P107
Vertical Air Grinder, 7" Type 27/28 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust
Description: Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Features And Benefits:
- Safety: The 88 Pro Series' lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
- Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
- Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.
Product Application and Uses:
Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
- Includes: Guard
- Actuation/Throttle Type/Switch Location: Top
- Actuation/Throttle Type/Switch Type: Safety Lever
- Air Consumption @ Load (cfm): 61
- Air Consumption @ Load (l/min): 1728
- Air Inlet: 1/2" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 5/8" -11 Thread
- Bearing Type: Ball Bearing
- Color: Black
- Configuration/Handle Type: Vertical
- Duty Rating: Heavy Duty
- Grinder Type: Vertical Type 27/28
- Height Over Spindle (in): 6.1
- Housing Material: Aluminum
- Lock Mechanism: Lever lock in off position
- Max Free Speed (rpm): 6000
- Max Pressure (bar): 6.2
- Min Hose Size (in): 3/4
- Power Source: Air Powered
- Product Length (in): 15.9
- Product Width (in): 11.3
- Product Height (in): 8.2
- Product Weight (lb): 8.75
- Rated Power (hp): 2.1
- Side to Center Distance (in): 2.1
- Side to Center Distance (mm): 53
- Sound Pressure/Power Db(A): 86.2 / 97.2
- Standards/Certifications: En Iso 28927-1, En Iso 15744, En Iso 11148-7
- Vibration Level (m/s2): 3.1
- Vibration Uncertainy K* (m/s2): 0.9
- Warranty: 1-year
- Wheel Diameter (in): 7
- Wheel Thickness (in): 1/4
- Wheel Type: Type 27, 28
- Lubrication: 50G
- Lubrication: 50P
