GRACO INC. S10595

GG 247302

GG 19Y497

GG 24P867

GG 288223

MANIFOLD, ADJUSTABLE,DELTA,LOW PRS

Graco 288223 North America Low Pressure Manifold with side fluid ports and fan adjustment valve

GG 288421

CONTRACTOR GUN, RAC 5(PKGD)

Graco 288421 Contractor Airless Spray Gun, 2 Finger Trigger, RAC 5 517 SwitchTip

The Contractor Airless Spray Gun is the industry standard for performance and durability. Includes a 2-finger trigger and a RAC 5 517 SwitchTip and Guard.

• Exclusive FlexSeal Needle
  • Totally enclosed patented design eliminates needle's exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
  • Fluid pushes on seal to quickly shut off needle and reduce spitting
  • Spring is located outside fluid path for better flow
  • Helps eliminate pack out and slow needle shut-off
• Reduced Gun Spitting
  • Repositioned seat is closer to the tip, eliminating 60% of the dead space
  • Less paint left between needle and tip results in less spitting
• Ergonomic Design
  • Form-fitted handle provides maximum control and comfort
  • Detachable trigger guard swings clear of gun handle for easy filter access
  • Lightweight design reduces operator fatigue
• Modular Needle Design
  • Simply remove the trigger cross pin and unthread front housing to change out needle
• EasyGlide Swivel
  • Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
• Easy Out Gun Filter
  • Filters from the inside out to prevent filter from collapsing
  • Interchangeable with all Contractor series guns

• Model: Contractor
• Series: Airless Spray Gun

• Component A Inlet Size (in): 1/4
• Component A Inlet Thread Type: NPSM

• Fluid Orifice Size (cm): 0.318
• Fluid Orifice Size (in): 0.125
• Fluid Orifice Size (mm): 3.17

• For Use With: Airless Sprayers

• Gun Activation: Manual
• Gun Type: Airless Gun
• Gun Weight (oz): 22

• Includes: RAC 5 517 SwitchTip, RAC 5 HandTite Guard

• Maximum Fluid Pressure (bar): 248
• Maximum Fluid Pressure (kPa): 24800
• Maximum Fluid Pressure (MPa): 24.8
• Maximum Fluid Pressure (psi): 3600

• Maximum Fluid Pressure (bar): 248
• Maximum Fluid Pressure (kPa): 24800
• Maximum Fluid Pressure (MPa): 24.8
• Maximum Fluid Pressure (psi): 3600

• Product Type: Spray Gun

GG 24E416

GG 24E471

REGULATOR, FLUID, 2:1 RATIO

Graco 24E471 1:2 Precision Flow Fluid Pressure Regulator, 50 psi (3.4 bar) max pressure, green ratio spacer

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Air

• Includes: Regulator Only
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Working Pressure (bar): 3.5
• Maximum Working Pressure (kPa): 350
• Maximum Working Pressure (MPa): 0.4
• Maximum Working Pressure (psi): 50

• Minimum Working Pressure (bar): 0.069
• Minimum Working Pressure (kg/cm 2): 0.07
• Minimum Working Pressure (kPa): 6.9

• Minimum Working Pressure (psi): 1

• Outlet Size (cm): 0.3175
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.175

GG 16A462

ROD, PISTON,MINI PUMP

Graco 16A462 Stainless Mini Pump Piston Rod

GG 16C679

GG 16R012

FRP RS GEL SYSTEM, XG, 13:1, CART, 50

Graco 16R012 13:1 Ratio External Mix Gel System with 50 ft (15.2 m) Hose and Cart

To keep material costs low, the system has been designed so that it doesn't need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper. By purely using Graco components, that are proven in multiple industries, you will have a solution that is technologically advanced, durable and long lasting.

• Optimized ratio stability

  Adjustable ratio catalyst pump - no tools are required for a quick and easy ratio change.

  Precision engineered linkage offers you superior ratio control and consistent cure

  • Lower cost of ownership

    Easy maintenance - fewer repair parts

    Long lasting seals mean less downtime

    Pumps last longer between planned maintenances

    No surge bottle necessary, less parts, solvent and resin needed to prime the pump

    • Optional DataTrak Control

      Monitors resin usage - Helps ensure product quality by tracking resin usage per piece, shift or day

      Tracks cycles for preventive maintenance schedule

      Displays real time flow rate - eliminates material waste due to worn spray tips

      • Gravity Fed Catalyst System

        Keeps the catalyst pump primed for consistent delivery

        • New Linkage and Catalyst Pump

          Truly engineered linkage for superior ratio control

          Allows for infinite adjustment of catalyst percentage - no tools required

          Ensures proper catalyst percentage and optimum results

          Variance of 1% or less

          • Balanced Graco NXT Air Motor

            Provides same output pressure on upstroke and downstroke, resulting in more consistent spray pattern

            Shortened stroke on pump for better spray pattern

            • Control Panel

              Easy user interface with all gauges in one location

              • Stable, Lightweight Cart

                Easy to maneuver

                Strong, durable casters




                • Model: FRP
                • Series: XG
                • Air Inlet Size (in): 1/4
                • Air Inlet Thread Gender: Female
                • Air Inlet Thread Type: NPT
                • Component A Inlet Size (in): 3/8
                • Component B Inlet Size (in): 1-5/16
                • Component B Thread Gender: Male
                • Component B Thread Type: UN-2A
                • Fluid Inlet Size (in): 3/4
                • Fluid Inlet Thread Gender: Male
                • Fluid Inlet Thread Type: NPT
                • Fluid Outlet Size (in): 3/4
                • Fluid Outlet Thread Gender: Female
                • Fluid Outlet Thread Type: NPT
                • Hose Length (ft): 50
                • Hose Length (m): 15.2
                • Includes: Hose, Cart
                • Maximum Air Inlet Pressure (bar): 6.9
                • Maximum Air Inlet Pressure (kPa): 690
                • Maximum Air Inlet Pressure (psi): 100
                • Maximum Flow Rate (cc/min): 5680
                • Maximum Flow Rate (GPM): 1.5
                • Maximum Flow Rate (L/min): 5.68
                • Maximum Working Pressure (bar): 90
                • Maximum Working Pressure (kPa): 9000
                • Maximum

GG 16V103

GG 235271

GG 236836

GG 239865

SEAT, VALVE

Graco 239865 Stainless Steel Inlet Valve Seat

GG 15A063

GG 15C766

GG 15F782

GG 222405

VALVE, BACK PRESSURE

Graco 222405 High Pressure Fluid Back Pressure Regulator, 3000 Max psi, CS, Spring Type, 1/4 (f) x 1/4 (f)

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Compatible Material: Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 70
• Maximum Regulated Pressure (kPa): 7000
• Maximum Regulated Pressure (psi): 1000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (MPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Type: NPT

GG 224345

MONARK PUMP, 5:1

Graco 224345 Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/Neoprene Packings

Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, Solvent borne and waterborne fluids, stains, lacquers and varnishes.

• Drum and stubby length models available for mounting and application flexibility
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

• Model: Monark
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2.5
• Maximum Flow Rate (L/min): 9.46

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 62
• Maximum Working Pressure (kPa): 6200
• Maximum Working Pressure (MPa): 6.2
• Maximum Working Pressure (psi): 900

• Portable: Non-Portable

• Pump Ratio: 5:1

GG 60/0137/89

GG 113777

GG 117086

GG 121000

GG 123108

GG 24B872

AIRPRO GUN, ASSY, EFX, LVMP, .043

Graco 24B872 AirPro EFX Auto Air Spray Gun with Manifold, LVMP, 0.043 inch (1.1 mm) Nozzle, SST Tip, Ultra Precision Fluid Adjust Knob

The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.

• Aircaps and nozzles deliver superior, precision spray performance
• Precision fluid adjustment with a micrometer-telescoping knob
• High wear components designed for abrasive materials

• Model: AirPro
• Series: EFX

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Plastic

• Compatible Material: Ceramics, Enamel, Fast-Set, High Solids, Solvent borne, Waterborne

• Component Type: Single Component

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Ultra Precision
• Fluid Orifice Size (cm): 0.11
• Fluid Orifice Size (in): 0.043
• Fluid Orifice Size (mm): 1.1

• Gun Activation: Automatic
• Gun Type: LVMP Gun
• Gun Weight (kg): 0.59
• Gun Weight (lb): 1.3

• Includes: Air Cap with Pin, Fluid Adjustment Knob, Manifold, Needle/Nozzle Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate @ PSI (oz/min): 8.5

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Minimum Flow Rate @ PSI (oz/min): 0.8

• Needle Tip Material: Stainless Steel

• Overall Height (cm): 2.6
• Overall Height (in): 1
• Overall Height (mm): 25
• Overall Length (cm): 12
• Overall Length (in): 4.9
• Overall Length (mm): 124
• Overall Width (cm): 3.8
• Overall Width (in): 1
• Overall Width (mm): 25

• Purge Method: Air

GG 24C135

KIT, REPAIR

Graco 24C135 Standard Pump Repair Kit with Nylon Piston Seal, for 400 Series Glutton Pumps

GG EC1241

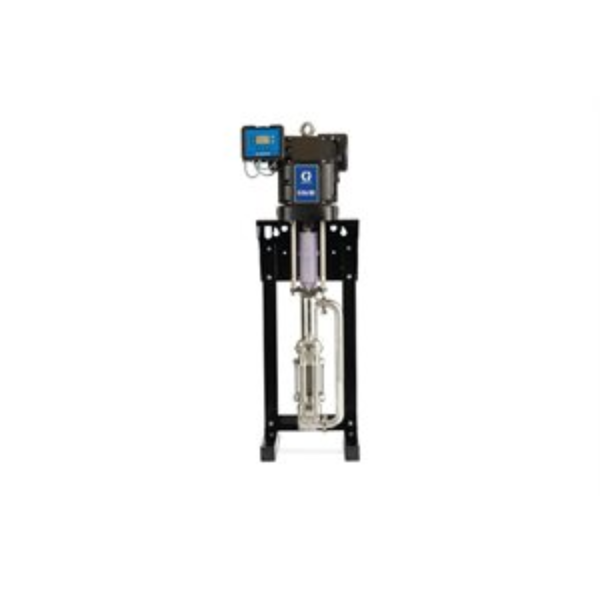

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, STND

Graco EC1241 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand

E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.

• Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
• Minimal pulsation at changeover provides a more consistent finish
• Electric motor eliminates icing - giving you smoother pump operation and better finished product

• Model: E-Flo
• Series: DC 4-Ball

• Application: Circulation

• Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Section Type: Sealed

• Includes: Advanced Control Input, Stand

• Input Voltage (V ac): 250

• Material: Stainless Steel

• Maximum Continuous Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.14

• Maximum Input Amperage (A): 20

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Working Pressure (bar): 20.7
• Maximum Working Pressure (kPa): 2070
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Motor Type: AC

• Portable: Non-Portable

• Power Rating (HP): 1

GG G15C07

MERKUR SYSTEM, PUMP, 15:1, 25CC, CART, STD

Graco G15C07 15:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, PerformAA 15 Gun, Pump Air Controls, Gun Air/Fluid Hose, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 15 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.4763
• Hose Inlet Diameter (in): 0.1875
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose

• Maximum Flow Rate (GPM): 0.4

• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 15:1
• Pump Type: Pneumatic Piston Pump

GG G30C67

MERKUR SYSTEM PUMP 30:1 75CC CART STD

Graco G30C67 30:1 Merkur AA Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

• Proven to outperform and outlast other pumps in their class
• Highest technology air motor on the market
• Low air consumption for increased efficiency

• Model: Merkur

• Convertible: Non-Convertible

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: PerformAA 50 Air Assist
• Gun Technology: Air-Assisted
• Gun Type: Air-Assisted

• Hose Inlet Diameter (cm): 0.5
• Hose Inlet Diameter (in): 0.1968
• Hose Inlet Diameter (mm): 5

• Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter

• Maximum Flow Rate (GPM): 1.2
• Maximum Flow Rate (L/min): 4.54

• Maximum Hose Length (cm): 762
• Maximum Hose Length (ft): 25
• Maximum Hose Length (m): 7.6
• Maximum Hose Length (mm): 7620

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Motor Type: Pneumatic

• Mount Type: Cart Mount

• Number of Guns: 1

• Power Source: Air

• Pressure Type: High Pressure
• Product Type: Spray Package

• Pump Ratio: 30:1
• Pump Type: Pneumatic Piston Pump

GG AAF414

GG AEM315

GG L020S1

LOWER, CHEMICAL, 20, SST, UCUP

Graco L020S1 Z-Pump, 20 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 0.32

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 20

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

GG L060CM

LOWER, CM060 MAXLIFE

Graco L060CM Carbon Steel MaxLife Check-Mate 60 Lower

• Model: Check-Mate

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT

• For Use With: Check-Mate Pump Packages

• Maximum Flow Rate (GPM): 0.9

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 60

• Maximum Pump Speed (CPM): 60

• Maximum Working Pressure (psi): 6100

GG L100S1

LOWER, CHEMICAL, 100, SST, UCUP

Graco L100S1 Z-Pump, 100 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 1.59

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 100

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

GG L160S1

LOWER, CHEMICAL, 160, SST, UCUP

Graco L160S1 Z-Pump, 160 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 2.54

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 160

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

GG L60M10

PRO XP GUN, ES, 60KV, SMART

Graco L60M10 Pro Xp60 Air Spray Manual Electrostatic General Gun Model, 60 kV, 0.055 in (1.5 mm) nozzle, smart display, standard coatings

This 60 kV electrostatic paint spray gun comes in a compact, lightweight package with smart technology.

• Smart controls help you analyze performance, adapt voltage, and troubleshoot easily.
• Built-in durability means each gun is designed to last - and made in the USA.
• High transfer efficiency equals less waste, saving you money on material.

• Model: Pro Xp
• Series: 60

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Smart

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 670
• Gun Weight (kg): 0.67
• Gun Weight (lb): 1.48
• Gun Weight (oz): 23.63

• Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 24.13
• Overall Length (in): 9.5
• Overall Length (mm): 241.3

GG LC1249

GG LCC640

GG LTX427

RAC X LTX TIP, SPRAY, (427)

Graco LTX427 RAC X SwitchTip, 427

The Reverse-A-Clean (RAC) 427 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.77
• Maximum Flow Rate (L/min): 2.91

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.027

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG LTX431

RAC X LTX TIP, SPRAY, (431)

Graco LTX431 RAC X SwitchTip, 431

The Reverse-A-Clean (RAC) 431 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.031 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 1.03
• Maximum Flow Rate (L/min): 3.90

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.031

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG LTX429

RAC X LTX TIP, SPRAY, LATEX, (429)

Graco LTX429 RAC X SwitchTip, 429

The Reverse-A-Clean (RAC) 429 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.90
• Maximum Flow Rate (L/min): 3.41

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.029

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG LTX433

RAC X LTX TIP, SPRAY, (433)

Graco LTX433 RAC X SwitchTip, 433

The Reverse-A-Clean (RAC) 433 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.033 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 1.17
• Maximum Flow Rate (L/min): 4.43

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.033

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG LTX435

RAC X LTX TIP, SPRAY, LATEX, (435)

Graco LTX435 RAC X SwitchTip, 435

The Reverse-A-Clean (RAC) 435 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.035 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Lacquer to Mastic, Latex Paint

• For Use With: RAC X HandTite Tip Guard

• Maximum Fan Width (cm): 20
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 1.31
• Maximum Flow Rate (L/min): 4.96

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.035

• Pattern Size (in): 8 to 10
• Pattern Size (mm): 203.2 to 254

GG C31154

GG C59752

GG 245397

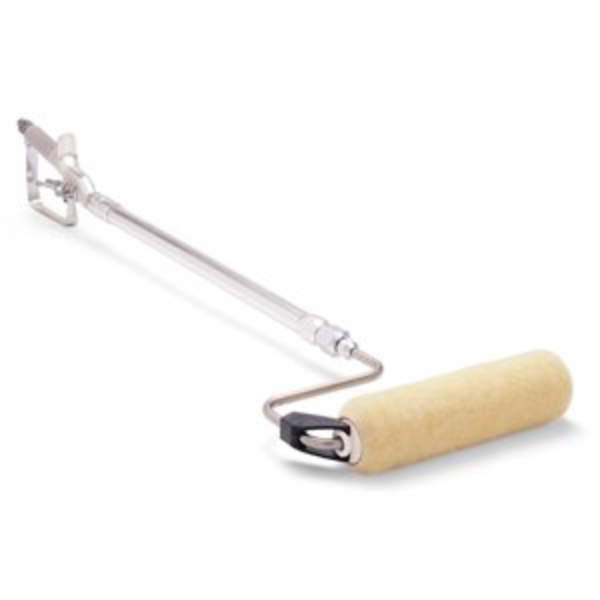

KIT, ACCESSORY, PRESSURE ROLLER

Graco 245397 EvenFlow In-Line Valve Pressure Roller Assembly

Painting with a roller has never been easier. The EvenFlow Pressure Roller with In-Line Valve eliminates the need to stop and dip your roller into the messy paint tray while giving you the best angle to roll with. Includes everything you need to start rolling with an airless sprayer.

• Model: Graco

• For Use With: Airless Sprayers

• Includes: Contractor In-Line Valve, 20 in (50.8 mm) Fixed Extension, 9 in (229 mm) EvenFlow Roller Frame, 1/2 in (12.7 mm) nap Roller Cover

• Kit Type: Pressure Roller Kit

• Maximum Pole Length (in): 20

• Maximum Working Pressure (bar): 248
• Maximum Working Pressure (kPa): 24800
• Maximum Working Pressure (MPa): 24.8
• Maximum Working Pressure (psi): 3600

GG 246099

FUSION AP GUN, ROUND 000

Graco 246099 Round Fusion Air-Purge Gun with 000 Mix Chamber and 0.020 in (0.51 mm) Orifice Size

With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.

• Easy air-blast tip cleaning reduces build-up and tip clogging.
• Long-lasting side seals means less downtime for maintenance
• Quick-release fluid housing - lets you easily change the mix chambers without tools
• Ergonomic handle

• Model: Fusion AP
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35

• Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam

• Fluid Orifice Size (cm): 0.051
• Fluid Orifice Size (in): 0.020
• Fluid Orifice Size (mm): 0.51

• Gun Type: Air Purge Gun
• Gun Weight (g): 1130
• Gun Weight (kg): 1.1
• Gun Weight (lb): 2.5
• Gun Weight (oz): 40

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Chamber: 000 (.020)

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.1
• Overall Length (in): 7.5
• Overall Length (mm): 191
• Overall Width (cm): 8.4
• Overall Width (in): 3.3
• Overall Width (mm): 84

• Pattern Size (in): 5 in @ 24 in from target

GG 246477

GG 247212

FUSION MP GUN, MR3535, RTM040

Graco 247212 Round Pattern Fusion Mechanical Purge Gun with 0.040 in (1.0 mm) Orifice Size and Mix Chamber with 0.035 in (0.89 mm) Impingement Port

Whether youre spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.

• Easy mechanical cleaning - mix modules and tips are cleaned with a drill bit
• Long-lasting PolyCarballoy mix module
• Advanced mix module and tip provides superior mixing capabilities

• Model: Fusion MP
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.102
• Fluid Orifice Size (in): 0.040
• Fluid Orifice Size (mm): 1.02

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Mechanical-Purge
• Gun Weight (g): 1315
• Gun Weight (kg): 1.32
• Gun Weight (lb): 2.9
• Gun Weight (oz): 46.4

• Impingement Port Size (in): 0.035
• Impingement Port Size (mm): 0.89
• Impingement Type: Standard

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate @ PSI (lb/min): 50

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature ( degree C): 93
• Maximum Fluid Temperature ( degree F): 200

• Maximum Fluid Working Pressure (bar): 245
• Maximum Fluid Working Pressure (MPa): 24.5
• Maximum Fluid Working Pressure (psi): 3500

• Minimum Air Inlet Pressure (bar): 5.5
• Minimum Air Inlet Pressure (kPa): 550
• Minimum Air Inlet Pressure (MPa): 0.55
• Minimum Air Inlet Pressure (psi): 80

• Mix Module: .035

• Overall Height (cm): 20.6
• Overall Height (in): 8.1
• Overall Height (mm): 206
• Overall Length (cm): 19.3
• Overall Length (in): 7.6
• Overall Length (mm):

GG P57LSS

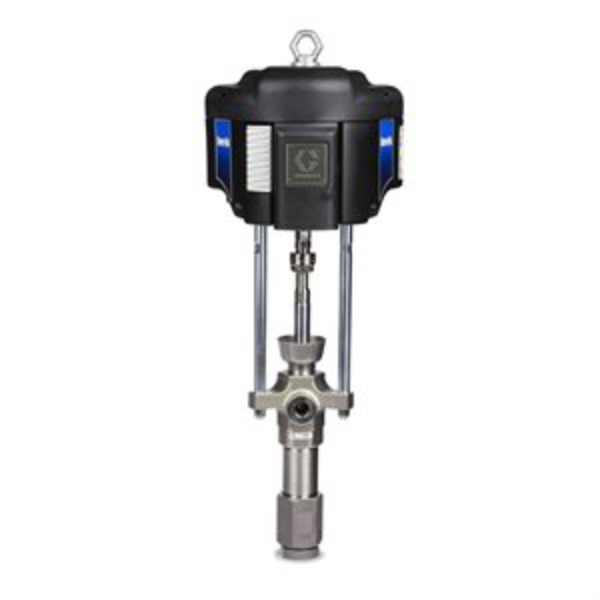

DURA-FLO PUMP, 6500/220

Graco P57LSS 57:1 - 220cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• NXT 6500 Air Motor


  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 220cc Dura-Flo Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Standard Threaded Coupler -

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity

  • Optional DataTrak Control

    Runaway protection

    Pump diagnostics

    Material usage




    • Model: Dura-Flo
    • Ambient/Warm Melt/Hot Melt: Ambient
    • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
    • Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
    • Fluid Inlet Size (in): 2
    • Fluid Inlet Size (mm): 50.8000
    • Fluid Inlet Thread Gender: Female
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1
    • Fluid Outlet Size (mm): 25.4000
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
    • Material: Stainless Steel
    • Maximum Working Pressure (bar): 388
    • Maximum Working Pressure (kPa): 38800
    • Maximum Working Pressure (MPa): 38.8
    • Maximum Working Pressure (psi): 5700
    • Power Type: Pneumatic
    • Pump Ratio: 57:1

GG TE30-0017

QUANTM QUANTM PUMP, QTC-ALFC5PPPTPSPTA200

Graco TE30-0017 QUANTM i30, 1" BSPT, Aluminum Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, PP Seat, PT Ball, PS Diaphragm

QUANTM isn't just another electric pump: it's a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It's time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.

• Revolutionary Design

  Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature

  Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump

  Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback

  Quiet operation reduces plant noise and improves employee safety and health

  Smart pump control provides more accurate flow set points and built-in I/O

• Efficient Electric Motor Powder-coated aluminum electric drive 120 VAC motor with 15 ft cord and NEMA 5-15 plugNon-hazardous
• Materials of Construction Aluminum fluid section with BSPT end portInternal components include Polypropylene seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

• Model: QUANTM
• Series: i30

• Application: Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer

• Ball Material: PTFE

• Center Section Material: Aluminum

• Connection Type: BSPT

• Cord Length (ft): 15
• Cord Length (m): 4.57

• Diaphragm Material: PTFE/Santoprene 2-Piece

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: BSPT

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: BSPT
• Fluid Section: Aluminum, End Port, BSPT
• Fluid Section Material: Aluminum

• Hazardous Location Approval: None

• Manifold Configuration: End Port

GG TE30-0007

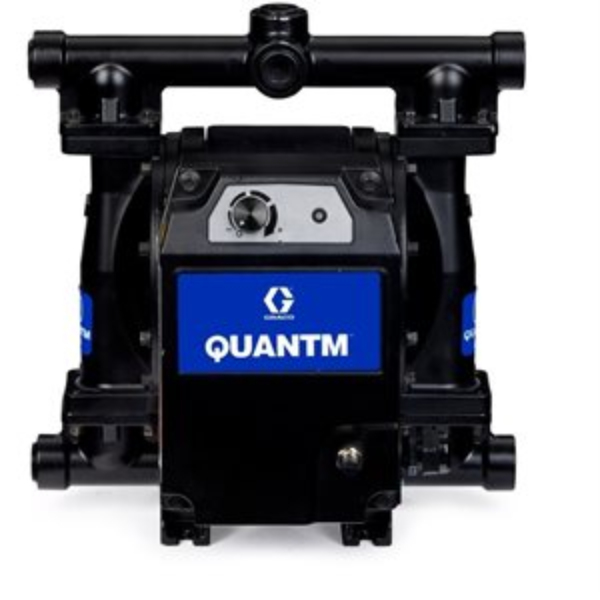

QUANTM QUANTM PUMP, QTC-ALFC5BNBNBN--A100

Graco TE30-0007 QUANTM i30, 1" NPT, Aluminum Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, BN Seat, BN Ball, BN Diaphragm

QUANTM isn't just another electric pump: it's a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It's time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.

• Revolutionary Design

  Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature

  Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump

  Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback

  Quiet operation reduces plant noise and improves employee safety and health

  Smart pump control provides more accurate flow set points and built-in I/O

• Efficient Electric Motor Powder-coated aluminum electric drive 120 VAC motor with 15 ft cord and NEMA 5-15 plugNon-hazardous
• Materials of Construction Aluminum fluid section with NPT end portInternal components include Buna-N seat, Buna-N ball, Buna-N diaphragm and Buna-N manifold o-ring

• Model: QUANTM
• Series: i30

• Application: Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer

• Ball Material: Buna-N

• Center Section Material: Aluminum

• Connection Type: NPT

• Cord Length (ft): 15
• Cord Length (m): 4.57

• Diaphragm Material: Buna-N

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section: Aluminum, End Port, NPT
• Fluid Section Material: Aluminum

• Hazardous Location Approval: None

• Manifold Configuration: End Port
• Manifold O-Ring Material: Buna-N

GG TE30-0314

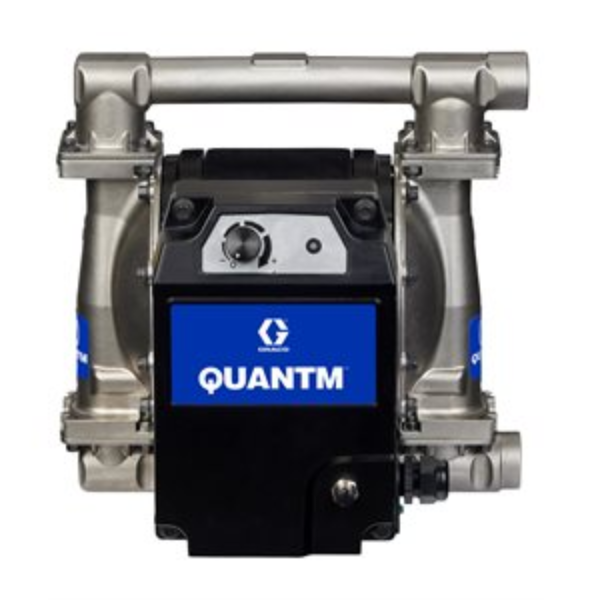

QUANTM PUMP, QTC-SSFC6SSPTPSPTS100

Graco TE30-0314 QUANTM i30, 1" NPT, Stainless Steel Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, SS Seat, PT Ball, PS Diaphragm

QUANTM isn't just another electric pump: it's a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It's time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.

• Revolutionary Design

  Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature

  Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump

  Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback

  Quiet operation reduces plant noise and improves employee safety and health

  Smart pump control provides more accurate flow set points and built-in I/O

• Efficient Electric Motor Powder-coated aluminum electric drive 120 VAC motor with 15 ft flying leadsCID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval
• Materials of Construction Stainless steel fluid section with NPT end portInternal components include 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

• Model: QUANTM
• Series: i30

• Application: Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer

• Ball Material: PTFE

• Center Section Material: Aluminum

• Connection Type: NPT

• Cord Length (ft): 15
• Cord Length (m): 4.57

• Diaphragm Material: PTFE/Santoprene 2-Piece

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section: Stainless Steel, End Port, NPT
• Fluid Section Material: Stainless S

GG 24Y559

HUSKY SYSTEM, CART, 1050P-E, PP/PT/PTS/5B

Graco 24Y559 Husky 1050e PP Electric Operated Double Diaphragm Plastic Pump System with Cart, PTFE

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

• Patent pending technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves
• Energy efficient - electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
• Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions

• Model: Husky
• Series: 1050e

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Detergent, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solvent borne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Material: Polypropylene

• Maximum Air Pressure (bar): 5.5

• Maximum Air Pressure (kPa): 550
• Maximum Air Pressure (MPa): 0.55
• Maximum Air Pressure (psi): 80
• Maximum Amperage (A): 5.2

• Maximum Cycle Rate (CPM): 280

• Maximum Flow Rate (GPM): 42
• Maximum Flow Rate (L/min): 159

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Motor Speed (RPM): 3600

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Solid Size (cm): 0.3175
• Maximum Solid Size (in): 0.125
• Maximum Solid Size (mm): 3.175

• Maximum Storage Temperature ( degree C): 40
• Maximum Storage Temperature ( degree F): 104

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Storage Temperature ( degree C): 0
• Minimum Storage Temperature ( degree F): 32

• Motor Type: Brushless DC

• Power Rating (HP): 2.2
• Power Source: Electric

GG 24Y561

HUSKY SYSTEM, CART, 1050S-E, SS/PT/PTS/5B

Graco 24Y561 Husky 1050e SS Electric Operated Double Diaphragm Metal Pump System with Cart, PTFE

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

• Patent pending technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves
• Energy efficient - electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
• Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions

• Model: Husky
• Series: 1050e

• Air Inlet Size (in): 3/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Detergent, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solvent borne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE

• Fluid Inlet Size (cm): 2.54
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Stainless Steel

• Manifold Configuration: Center Port
• Material: Stainless Steel

• Maximum Air Pressure (bar): 5.5

• Maximum Air Pressure (kPa): 550
• Maximum Air Pressure (MPa): 0.55
• Maximum Air Pressure (psi): 80
• Maximum Amperage (A): 5.2

• Maximum Cycle Rate (CPM): 280

• Maximum Flow Rate (GPM): 42
• Maximum Flow Rate (L/min): 159

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Fluid Pressure (bar): 4.8
• Maximum Fluid Pressure (kPa): 480
• Maximum Fluid Pressure (MPa): 0.48
• Maximum Fluid Pressure (psi): 70

• Maximum Motor Speed (RPM): 3600

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Solid Size (cm): 0.3175
• Maximum Solid Size (in): 0.125
• Maximum Solid Size (mm): 3.175

• Maximum Storage Temperature ( degree C): 40
• Maximum Storage Temperature ( degree F): 104

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Storage Temperature ( degree C): 0
• Minimum Storage Temperature ( degree F): 32

• Motor Type: Brushless DC

• Power

GG 24Z177

GG 257622

GG 26C724

MODULE,G-BARRIER, POWER SUPPLY

• Compatible Material: Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC

GG 25R487

REGULATOR, BP, AIRPILOT, LOW-FLOW

Graco 25R487 Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Pneumatic, high wear, sanitary inlet/outlet

Graco's low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.

• Air operated model works with Intelligent Paint Kitchen (IPK) control to reduce energy consumption and paint shear
• Ultralife series ceramic coated parts resist wear and increase service life
• Low profile, compact design and backwards compatibility mean easy installation and replacement

• Compatible Material: Waterborne, Solvent borne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 3.8
• Inlet Size (in): 1.5
• Inlet Size (mm): 38

• Inlet Thread Type: Sanitary Flange

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kg/cm 2): 7
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 10
• Maximum Flow Rate (L/min): 38

• Maximum Operating Temperature ( degree C): 50
• Maximum Operating Temperature ( degree F): 122

• Maximum Regulated Pressure (bar): 17.6
• Maximum Regulated Pressure (kg/cm 2): 17.6
• Maximum Regulated Pressure (kPa): 1724
• Maximum Regulated Pressure (psi): 250

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21.1
• Maximum Working Pressure (kg/cm 2): 21.1
• Maximum Working Pressure (kPa): 2068
• Maximum Working Pressure (psi): 300

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Regulated Pressure (bar): 1.8
• Minimum Regulated Pressure (kg/cm 2): 1.8
• Minimum Regulated Pressure (kPa): 172
• Minimum Regulated Pressure (MPa): 0.17
• Minimum Regulated Pressure (psi): 25

• Outlet Size (cm): 3.8
• Outlet Size (in): 1.5
• Outlet Size (mm): 38
• Outlet Thread Type: Sanitary Flange

GG 25S028

KIT, MIXER, 13MM, 12ELEMENT, 10PK

GG 25S024

KIT, MIXER, 8MM, 12ELEMENT, 10PK

GG 25T670

VALVE, DMV

Graco 25T670 Voltex Two-Component Dynamic Mix Valve

The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage.

• Easily integrates with Graco meter, mix, and dispense systems like the PR70 for a complete dispensing solution.
• Control system delivers precision RPM control, and real time monitoring for dispensing process stability.
• Built with durable check valves and disposable mixers that reduce maintenance and downtime.

• Model: Voltex

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Encapsulation, Gasketing, Potting, Urethane, Sealing, Molding

• Compatible Material: Foaming Urethane, Silicone

• Component Type: Plural-Component

• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 7/8 - 14
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: UNF

• Frequency (Hz): 50/60

• Gun Activation: Automatic

• Maximum Flow Rate (cc/sec): 50

• Maximum Fluid Inlet Pressure (psi): 3000

• Maximum Fluid Inlet Pressure (psi): 3000

• Maximum Fluid Working Pressure (psi): 1000

• Maximum Speed (RPM): 4400

• Maximum Viscosity (cP): 100000

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Metering Valve Orifice Size (in): 0.016, 0.020, 0.024, 0.028, 0.031, 0.035, 0.039, 0.042, 0.047, 0.052, 0.055, 0.060, 0.063, 0.067, 0.073, 0.083
• Metering Valve Orifice Size (mm): 0.41, 0.51, 0.61, 0.71, 0.79, 0.89, 0.99, 1.07, 1.19, 0.132, 1.40, 1.52, 1.60, 1.70, 1.85, 2.18

• Mix Type: Static Dynamic
• Mount Hole Size (mm): 4X M6 X 1.0
