57:1 - 220cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

GG P57LSS

DURA-FLO PUMP, 6500/220

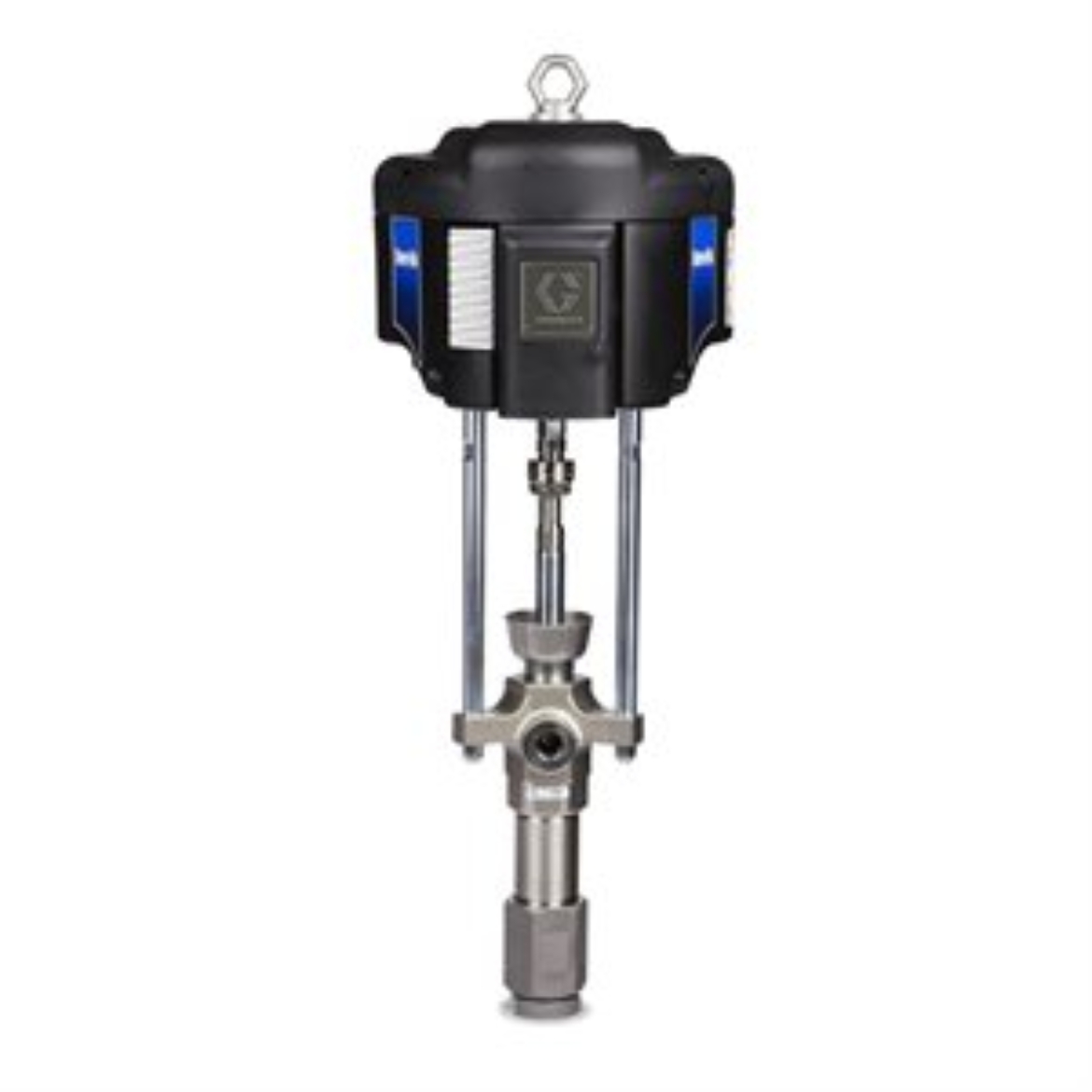

Graco P57LSS 57:1 - 220cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• NXT 6500 Air Motor


  Modular design for easier maintenance

  Rugged body armor wont rust or dent

  Highest technology air motor on the market

• 220cc Dura-Flo Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Standard Threaded Coupler -

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity

  • Optional DataTrak Control

    Runaway protection

    Pump diagnostics

    Material usage




    • Model: Dura-Flo
    • Ambient/Warm Melt/Hot Melt: Ambient
    • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
    • Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
    • Fluid Inlet Size (in): 2
    • Fluid Inlet Size (mm): 50.8000
    • Fluid Inlet Thread Gender: Female
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1
    • Fluid Outlet Size (mm): 25.4000
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
    • Material: Stainless Steel
    • Maximum Working Pressure (bar): 388
    • Maximum Working Pressure (kPa): 38800
    • Maximum Working Pressure (MPa): 38.8
    • Maximum Working Pressure (psi): 5700
    • Power Type: Pneumatic
    • Pump Ratio: 57:1
