GG 965766
ULTRA-LITE 1K VALVE, UL, MACHINE MOUNT

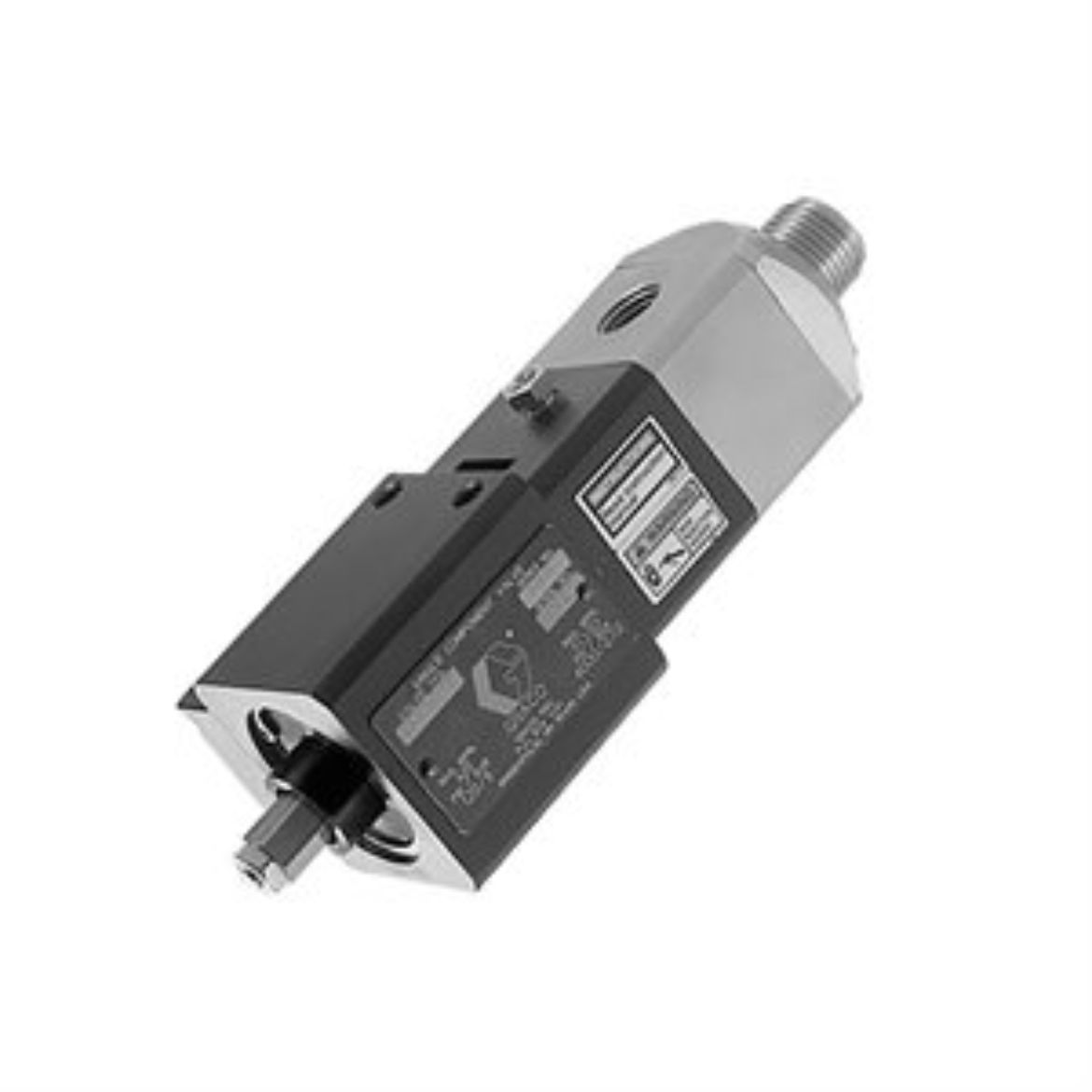

Graco 965766 1k Ultra-Lite Stainless Steel Machine Mount Valve
Precision Dispense Valve for Quality Bead Dispensing
- Lightweight and compact
- Designed for long service
- SST wetted parts
- Model: Ultra-Lite
- Series: 1K
- Air Inlet Size (in): 1/8
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation
- Compatible Material: Sealants, Adhesives
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Gun Activation: Automatic
- Maximum Viscosity (cP): 1000000
- Maximum Working Pressure (bar): 276
- Maximum Working Pressure (kg/cm²): 281.2
- Maximum Working Pressure (kPa): 27600
- Maximum Working Pressure (MPa): 28
- Maximum Working Pressure (psi): 4000
- Mount Hole Thread Gender: Female
- Mount Hole Thread Type: Standard
